Shandong Shengyue Technology Development Co.,Ltd is one of the most professional sinotruk howo zf gearbox odometer speed senso 215920102501 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

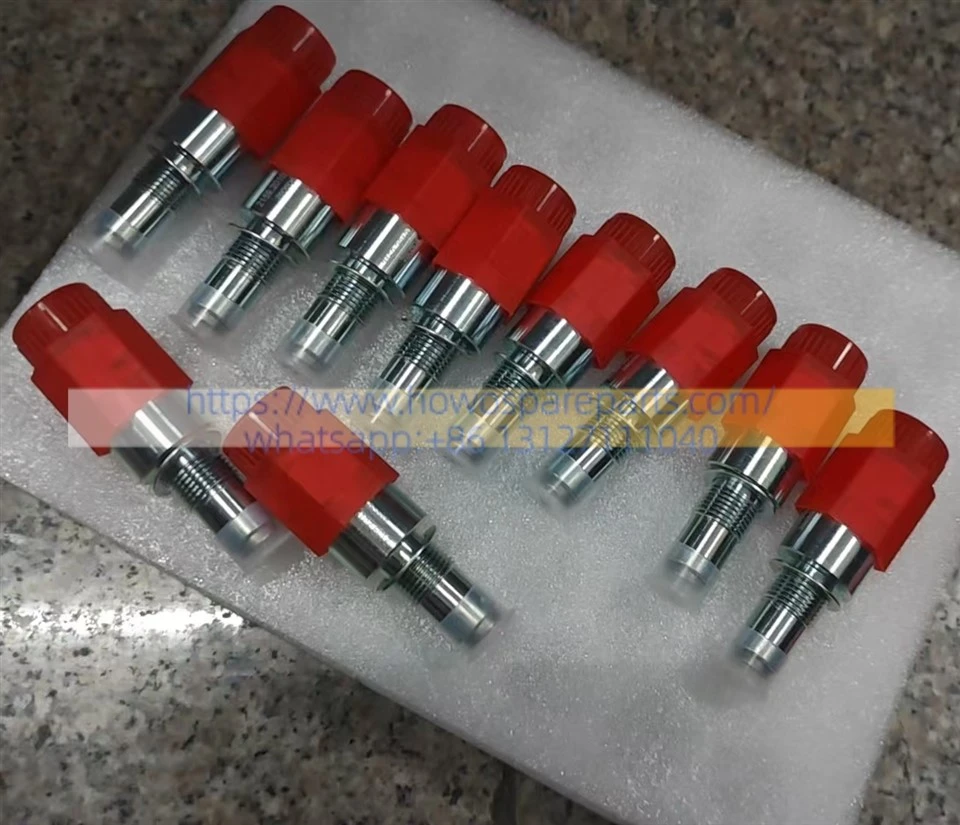

SINOTRUK HOWO ZF Gearbox Odometer Speed Senso 215920102501
VDO 215920102501 Speed Sensor Replacement Complete BOM List
| No. | Component Name | Official Recommended Part No. / Specification | Recommended Qty | Part Attribute & Technical Notes |
|---|---|---|---|---|
| Core Assembly | ||||
| 1 | VDO 35mm Speed Impulse Sensor (Odometer Speed Sensor) |
2159.20102501 / 215920102501 (4-Pole Round Pin Interface / 35mm Insertion Length) |
1 Pc | Mandatory Replacement Item. Genuine Germany VDO 1318 / 1381 Series pure component 2159-2. |
| Seals & Shims (Air Gap Regulation) | ||||
| 2 | Oil-Proof Brass Hardened Flat Shim Washer (Brass Shim Washer) |
Official Specification: 1.2 mm Thickness | 1 Pc | Mandatory Wear Item. Included with the genuine sensor or stocked separately. Thickness must be strictly 1.2mm to accurately regulate the critical air gap between the sensor probe and the reluctor ring; do not omit or stack multiple shims. |
| Electrical Connectors & Harness Repair | ||||
| 3 | 4-Pin Round Waterproof Female Connector Kit (4-Pole Round Bayonet Connector) |
Matches VDO 1318 / 1381 Tachograph round sensor socket profile | 1 Set | Highly Recommended Item. Old plugs swollen or brittle due to long-term exposure to capillary transmission oil leaks must be cut off and re-crimped with fresh terminals during overhaul. |
| 4 | High-Density Waterproof Silicon Bayonet Seal (Connector Silicon Seal) |
Matches internal sealing groove of the 4-pin round plug | 1 Pc | Included within the connector kit. Strongly seals against high-pressure chassis washdowns and muddy water. |
| 5 | Automotive Heavy-Duty Flame-Retardant Corrugated Pipe | Specification: Φ10 Nylon PA66 material | 1-2 Meters | Chassis wire harness restoration consumable; protects the output signal lines against flying stone impacts under the chassis. |
DETAILS
| DESCRIPTION | Odometer Speed Senso | PART NUMBER | 215920102501 |
| WEIGHT | 0.2kg | VOLUME | 9.0 cm × 4.5 cm × 3.5 cm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | Gearbox |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
Hot Tags: sinotruk howo zf gearbox odometer speed senso 215920102501, manufacturers, suppliers, factory, parts, genuine, original
