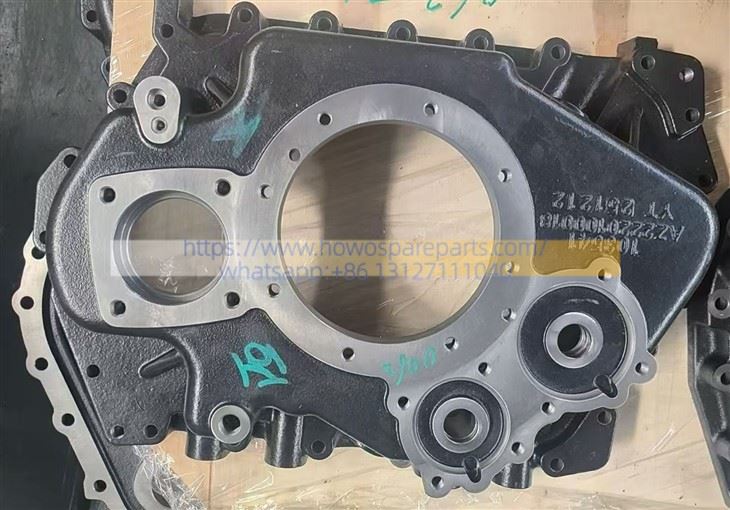

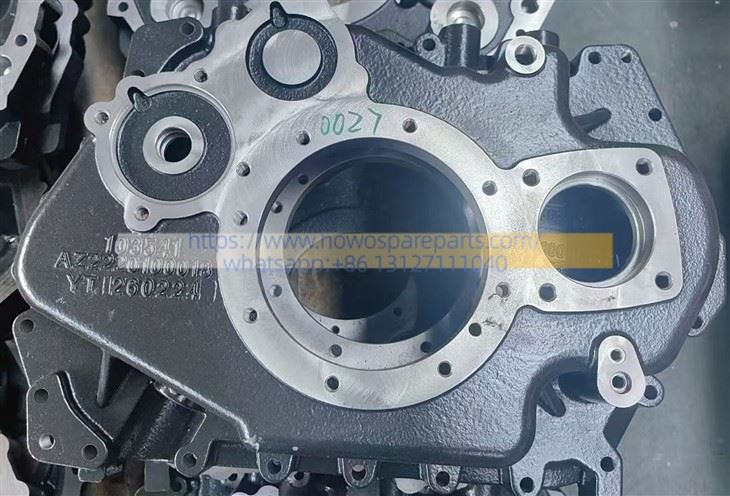

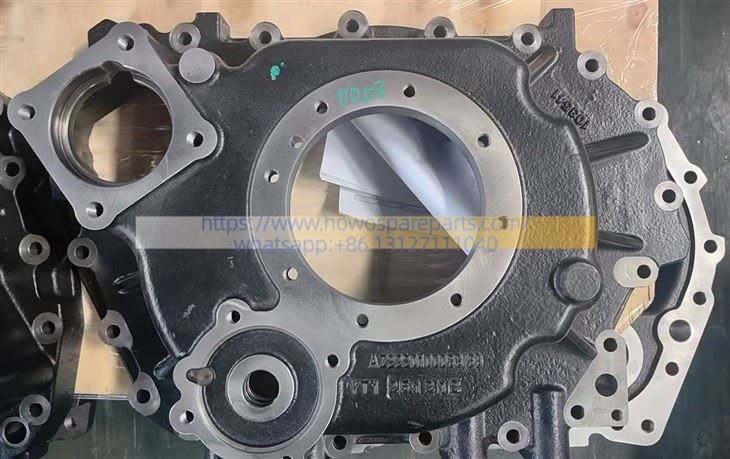

SINOTRUK HOWO T5G,TX Transmission HW25712X Rear Housing AZ2220100018
Manufactured via a single-piece gravity casting process using high-strength ductile iron or premium gray cast iron alloy, the component offers excellent tensile strength and vibration-damping properties; it is specifically designed to withstand the immense reverse torque shocks generated within the auxiliary gearbox when the vehicle climbs slopes or starts under heavy load.
Rear Housing, Sealing & Fastening System [Core Replacement BOM Breakdown]
| No. | Official OEM Part / Drawing No. | Part Name (EN) | Std. Qty | Repair Function & Purpose |
|---|---|---|---|---|
| 1 | AZ2220100018 | Transmission Rear Housing (Helical Use) | 1 pc | The core replacement item for this overhaul; the primary load-bearing housing for the auxiliary section and output shaft. |
| 2 | WG9003070800 | Fluororubber O-Ring | 2 pcs | Special ring for housing mating surfaces; prevents high-pressure transmission oil from bypassing the rear section. |
| 3 | WG2229100041 | Rear Cover Paper Gasket | 1 pc | Coordinates with the output shaft rear cover to provide a reliable static face seal. |
| 4 | WG2222100023 | Output Shaft Rear Cover Assembly | 1 pc | Houses dual oil seals; prevents gear oil from leaking out while blocking external mud and water. |
| 5 | WG9000361423 (Ref.) | Double-Lip Skeleton Oil Seal | 2 pcs | Pressed into the rear cover, acting directly on the output shaft flange to eliminate oil throwing. |
| 6 | AZ2229100075 | Oil Return Hole Cover Plate | 1 pc | Seals the oil return inspection hole at the lower section of the rear housing. |
| 7 | Q1421035 (Ref.) | Hex Bolt & Spring Washer Assembly | 1 set | M10×35 spec; used to clamp the rear housing to the main case (replacement highly recommended). |
Range Shift & Synchronizer Components (Resolving Gear Slipping, Neutral Binding, or Difficult Engagement)
| No. | Official OEM Part / Drawing No. | Part Name (EN) | Std. Qty | Repair Function & Purpose |
|---|---|---|---|---|
| 10 | AZ2210100018 | Auxiliary Synchronizer Assembly (Helical) | 1 set | Controls high/low (range) gear shifting. Helical-specific; worn friction cones lead to gear clashing. |
| 11 | WG2214110001 | Range Cylinder Assembly | 1 pc | Fixed atop the rear housing; utilizes pneumatic pressure to actuate the shift fork for high/low range transitions. |
| 12 | AZ2229100028 | Auxiliary Shift Fork | 1 pc | Drives the synchronizer sliding sleeve; any wear or warping will cause incomplete gear engagement. |
| 13 | WG2210100020 | Speedometer Induction Gear Ring | 1 pc | Press-fitted onto the output shaft; provides vehicle speed signals to the odometer sensor mounted on the rear housing. |
DETAILS
| DESCRIPTION | Transmission Rear Housing | PART NUMBER | AZ2220100018 |
| WEIGHT | 30kg | VOLUME | 550 mm × 370 mm × 103 mm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | GEARBOX |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
