Shandong Shengyue Technology Development Co.,Ltd is one of the most professional sinotruk light truck wly 6ts55 6-speed manual transmission clutch release bearing carrier assembly lg9704220502+001 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

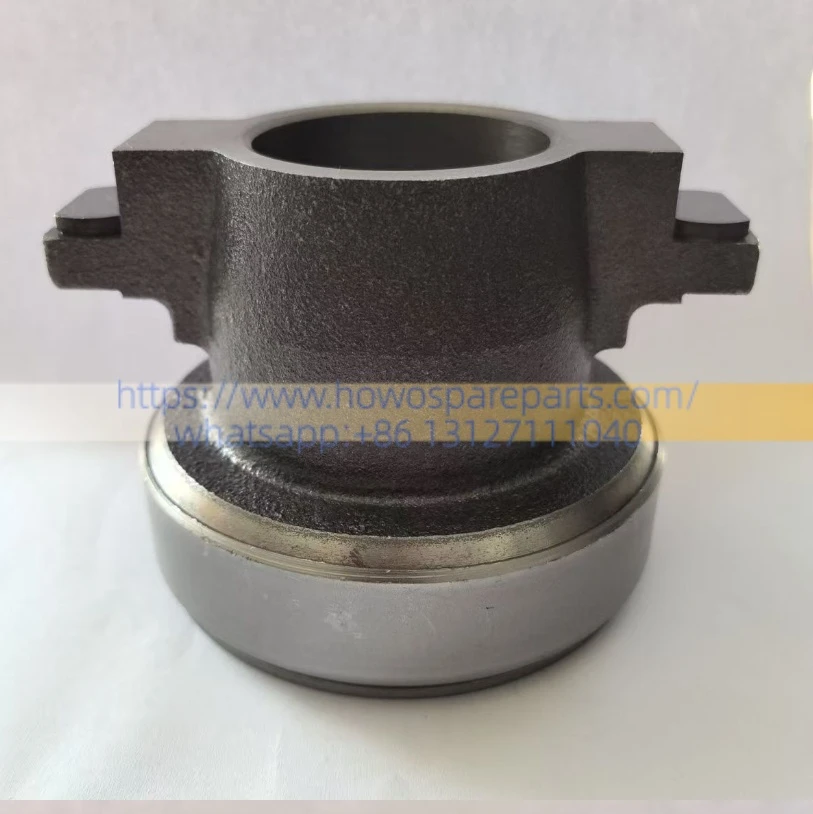

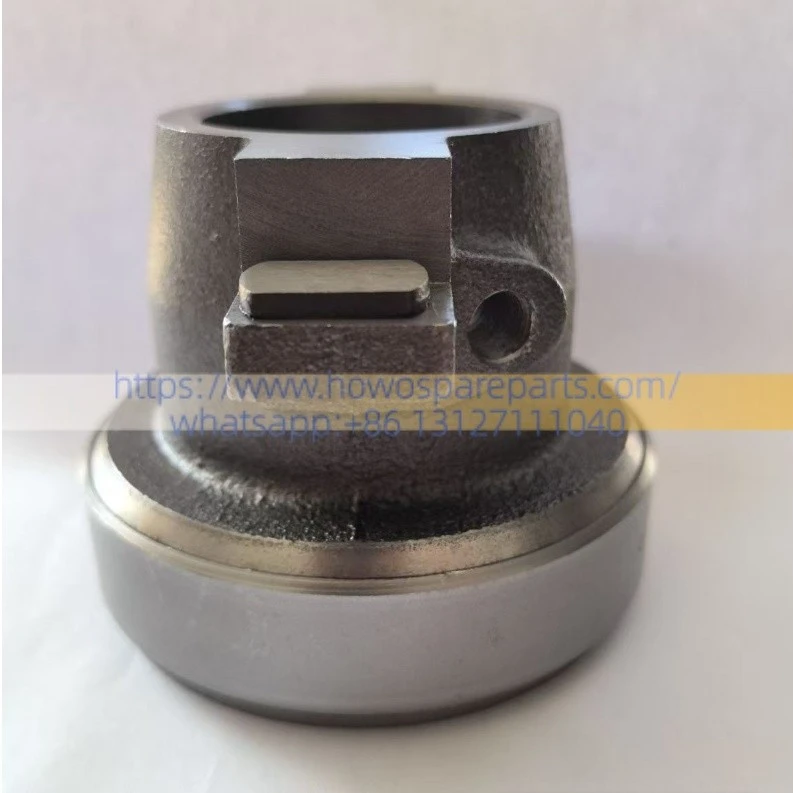

SINOTRUK Light Truck WLY 6TS55 6-Speed Manual Transmission Clutch Release Bearing Carrier Assembly LG9704220502+001
Four typical symptoms of a damaged release bearing housing
1. Abnormal noise: A distinct, continuous metallic grinding sound is heard from beneath the cab when the clutch pedal is depressed; the noise ceases when the pedal is released. This indicates that the internal ball bearings are worn due to a lack of lubrication.
2. Heavy clutch / Difficulty shifting gears: Severe scoring or binding occurs between the bearing housing bore and the transmission input shaft guide sleeve due to dry friction, preventing the release fork from moving the bearing smoothly. The driver experiences an extremely heavy clutch pedal, and insufficient travel may even cause gear grinding when shifting.
3. Incomplete clutch disengagement: Misalignment or excessive wear of the bearing housing results in uneven pressure on the pressure plate, making gear shifting difficult (especially into reverse and first gear).
4. Seizure / Complete jamming: A completely seized bearing may prevent the clutch pedal from being depressed or grind through the diaphragm spring fingers of the clutch pressure plate, causing an immediate loss of power to the vehicle.
SINOTRUK HOWO Light Truck Clutch & WLY Transmission Overhaul Complete BOM List
| No. | Component Name | SINOTRUK Genuine / Specification | Recommended Qty | Part Attribute & Technical Notes |
|---|---|---|---|---|
| Core Assembly | ||||
| 1 | Clutch Release Bearing & Carrier Assembly | LG9704220502+001 (Latest ERP Part No.: LG9704220502+001/1) |
1 Pc | Mandatory Replacement Item. Includes the heavy-duty thrust ball bearing pre-assembled onto the cast iron carrier. |
| Clutch Matching Kit | ||||
| 2 | Clutch Cover / Pressure Plate Assembly | Matches Φ325 or Φ350 specification (Selected based on engine horsepower segment) |
1 Pc | Highly Recommended Item. Inspect the diaphragm spring fingers for flattening or heat softening caused by the old bearing; replace simultaneously. |
| 3 | Clutch Disc / Driven Plate Assembly | Matches the input shaft spline profile of the WLY6TS55 transmission | 1 Pc | Highly Recommended Item. A high-frequency wear item; renewing this alongside the bearing completely restores drivetrain torque capacity. |
DETAILS
| DESCRIPTION | Clutch Release Bearing Carrier Assembly | PART NUMBER | LG9704220502+001 |
| WEIGHT | 2kg | VOLUME | 118 mm × 106 mm × 72 mm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | GEARBOX |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
