Baudouin Weichai M33 Series 8/12/16-Cylinder Engine Electronic Control Wiring Harness Assembly 1001420334
Weichai M33 Series Engine Wiring Harness Original Part Specifications Table
| Weichai Genuine Part No. | Applicable Engine Platform | Wiring Harness Category & Technical Attributes | Core Pairing & Control Functions |
|---|---|---|---|

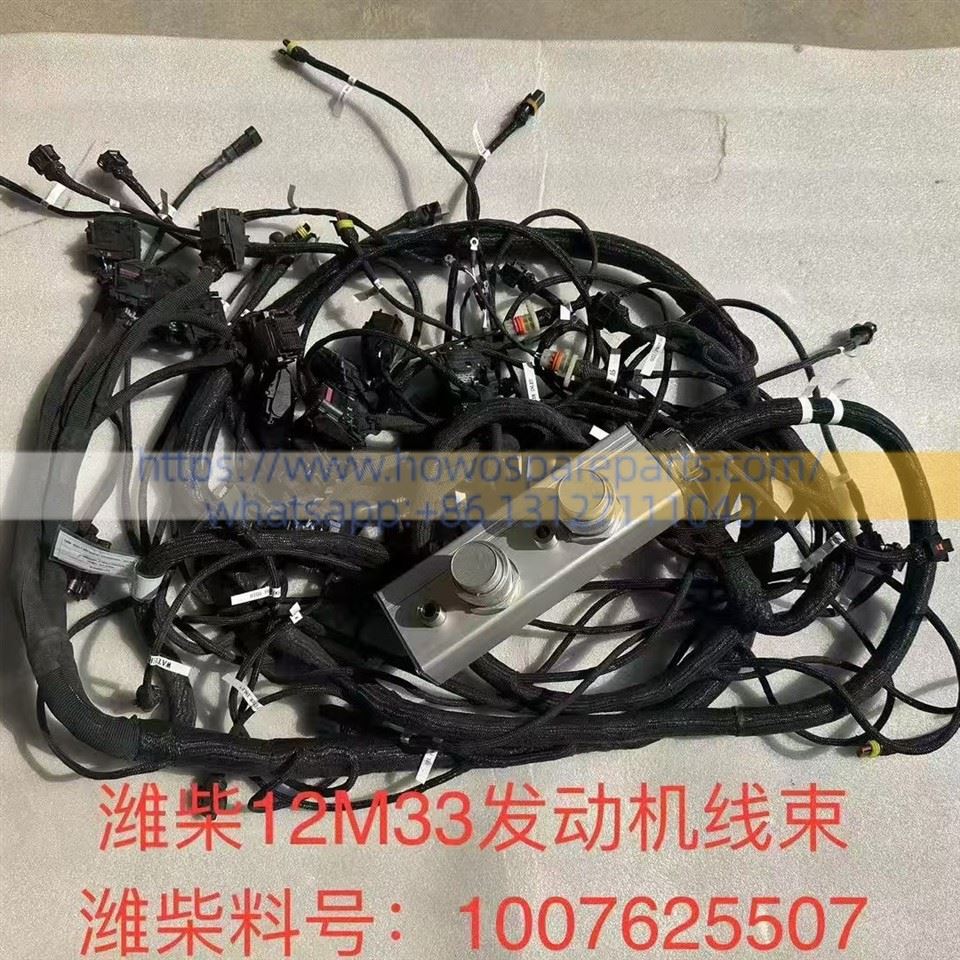

| 1007625507 | Weichai 12M33 (V12 Engine) |
Main Electronic Common Rail Injection Harness | Responsible for delivering high-voltage fuel injector drive signals across all 12 cylinders; integrates core sensors such as rail pressure and camshaft position sensors. |

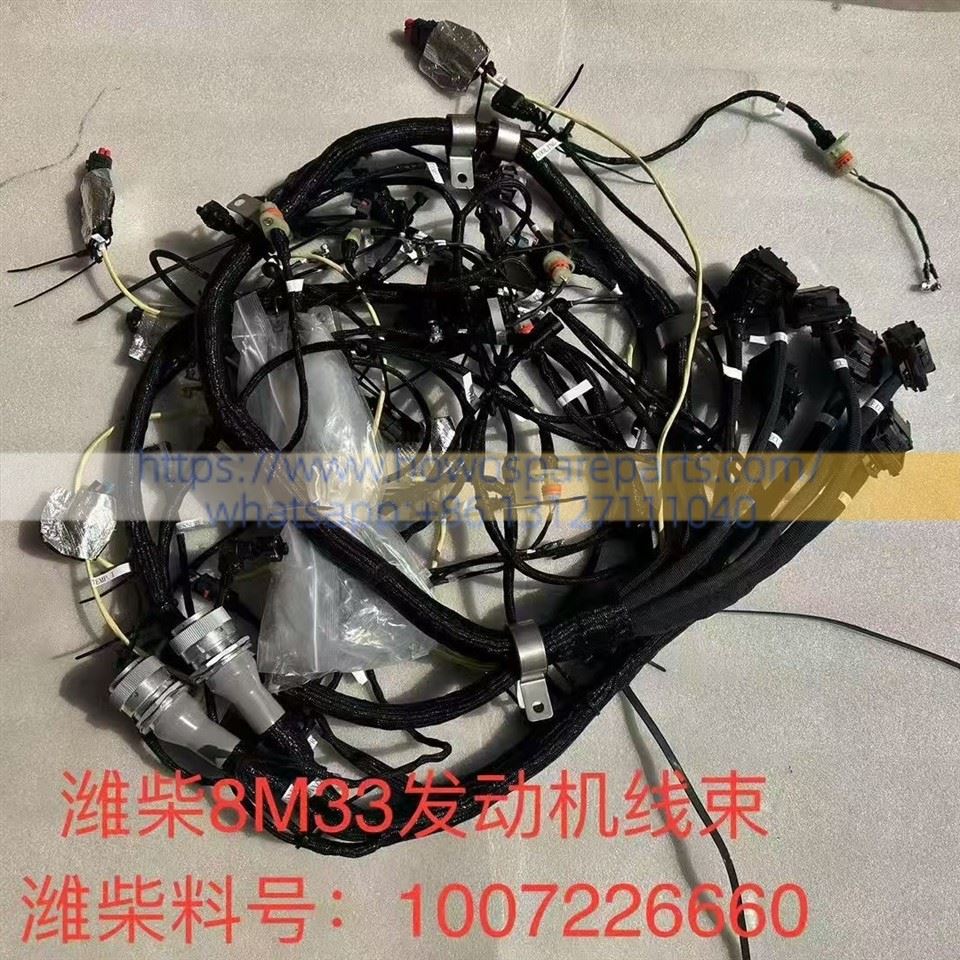

| 1007226660 | Weichai 8M33 (V8 Engine) |
Main Control Module (ECU) Connection Harness | Connects the main electronic control unit (ECU) to the primary engine sensor trunks, utilizing heavy-duty Deutsch high-density waterproof connectors. |

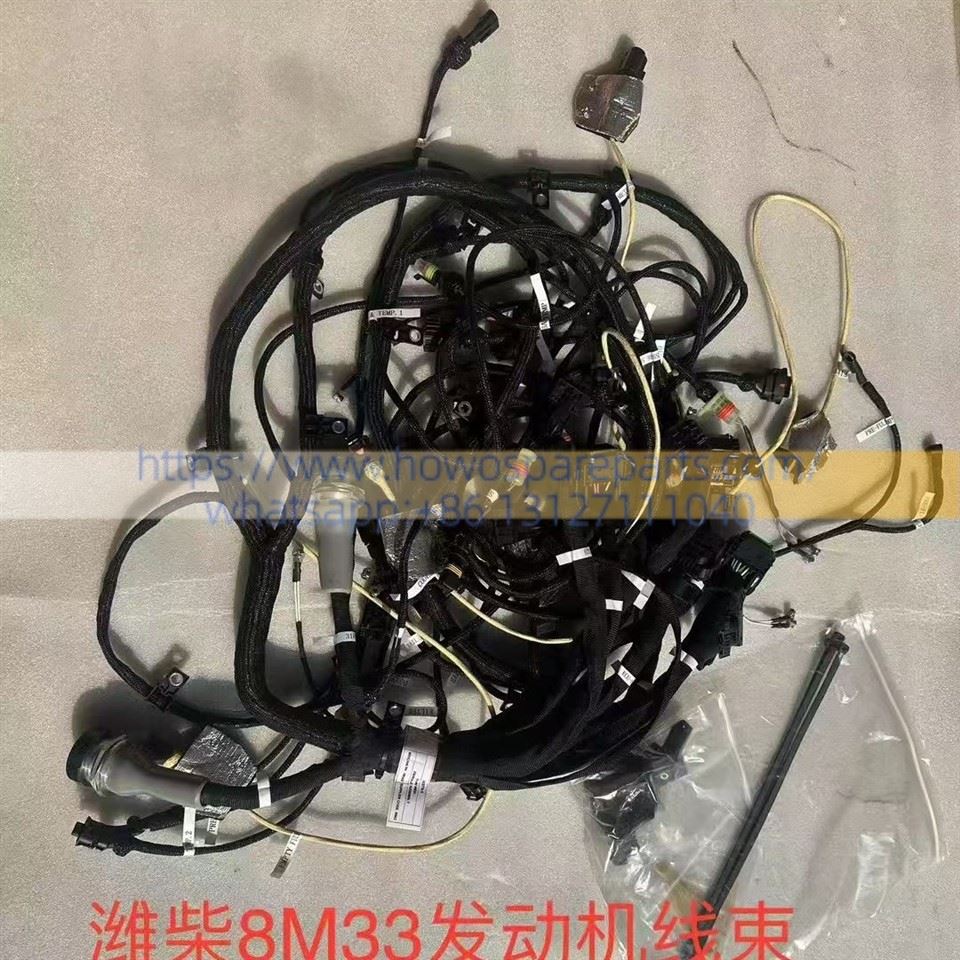

| 1004646551 | Weichai 8M33 (V8 Engine) |
Instrument Console & Sensor Integration Harness | Collects essential signals including oil pressure, water temperature, and intercooler intake temp/pressure, transferring telemetry data to external containerized control panels or dashboard displays. |
| 1006470562 | Weichai 8M33 (V8 Engine) |
Injector Dedicated Common Rail Branch Harness | Specialized for routing inside the 8M33 cylinder heads, driving the high-frequency electronic fuel injectors and the fuel metering unit (MeUn) on the high-pressure pump. |

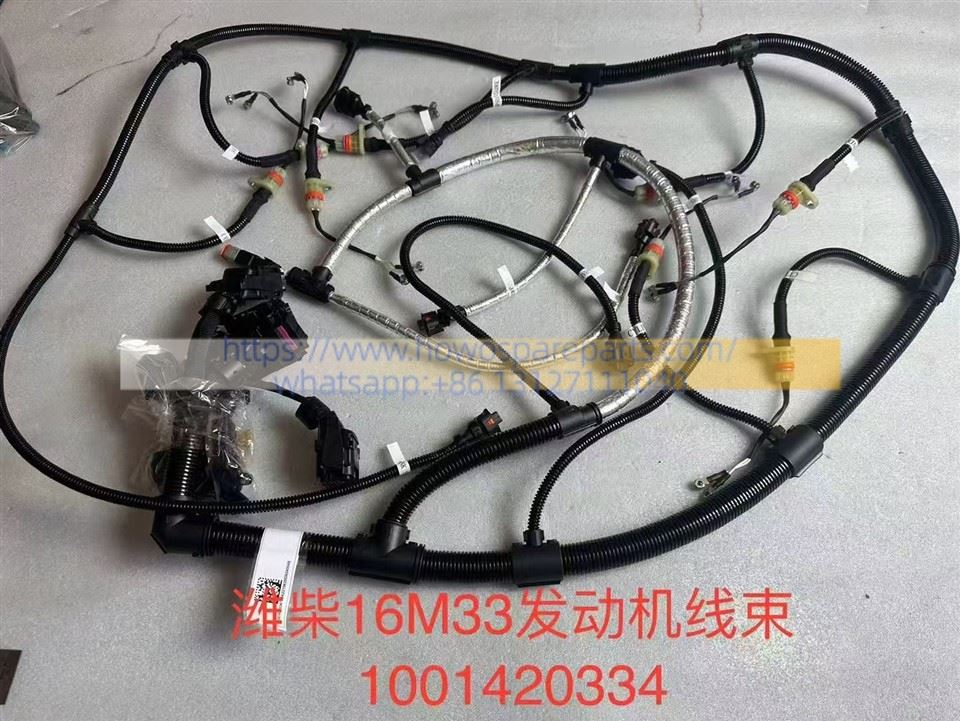

| 1001420334 | Weichai 16M33 (V16 Engine) |
Flagship 16-Cylinder Main Electronic Control Harness | Tailored for the highest displacement/power rating configuration (V16) of the M33 platform. Equipped with heavy-duty metal shielding mesh to combat intense electromagnetic interference (EMI). |
