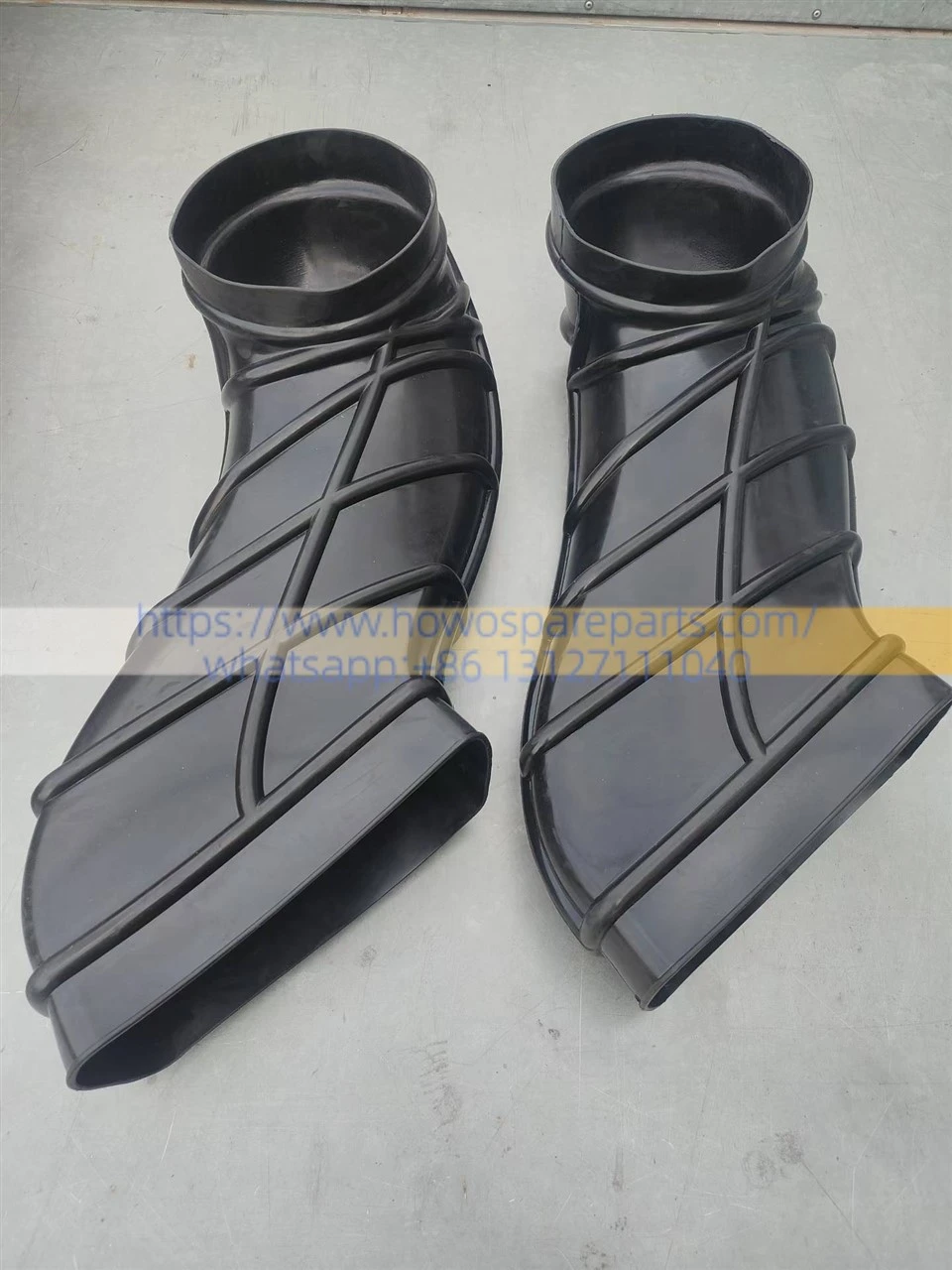

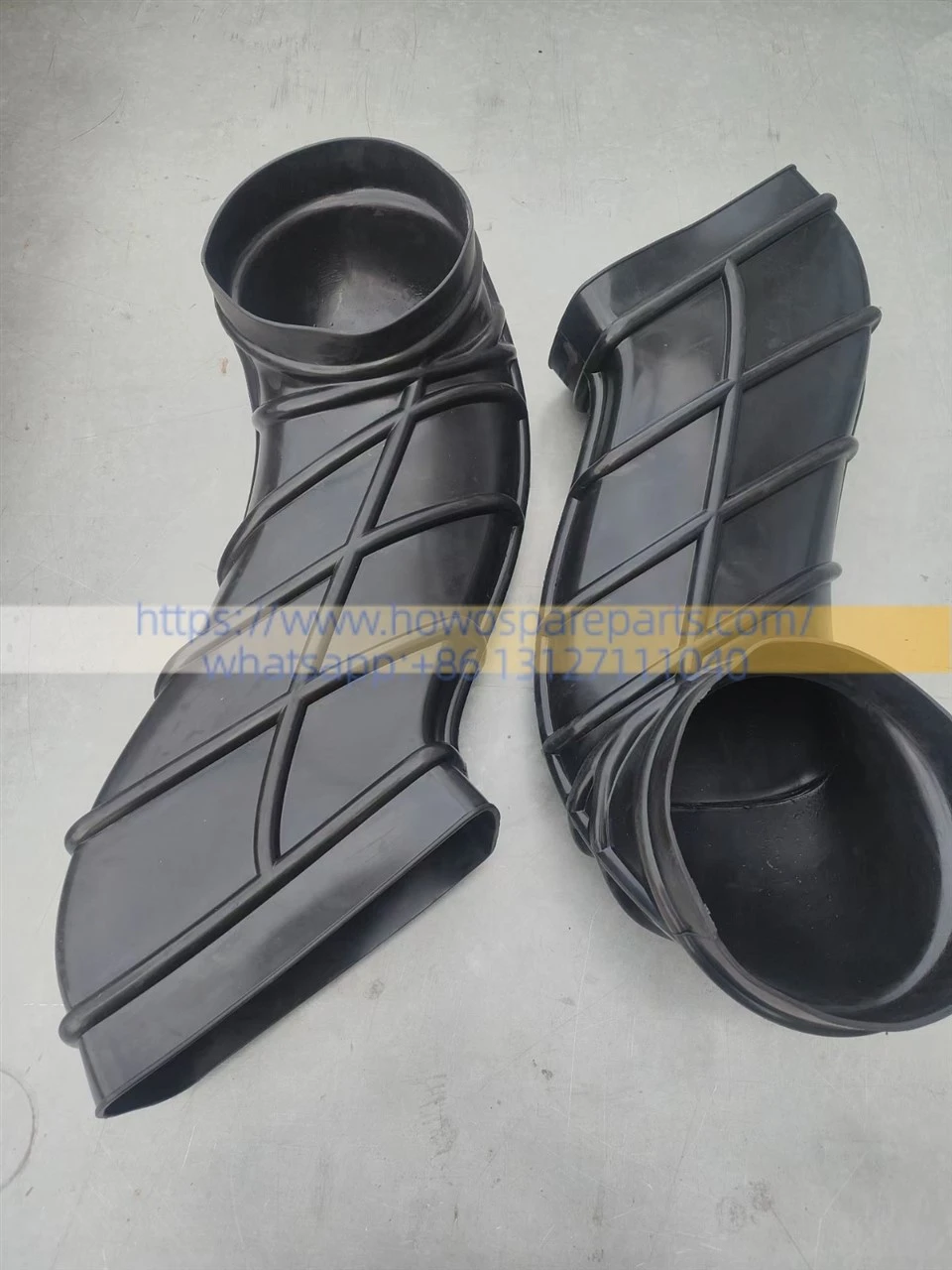

SINOTRUK HOWO MAN MC07 MC11 MC13 ENGINE Rubber Air Intake Hose AZ9525195054
It is connected between the air cleaner (air filter housing) of a heavy-duty truck and the intake port of the engine's turbocharger. Its function is to compensate for relative vibrations between the cab/chassis and the engine, ensuring that filtered, clean air from the outside is delivered smoothly and securely-in a sealed manner-to the engine's combustion chamber. This prevents air leaks that could otherwise allow unfiltered dust and debris to enter the engine and cause premature wear.
Bill of Materials (BOM) - HOWO NX/TX Engine Air Intake System
| Module Category | No. | Core Part Number (OEM No.) | Description (English) | Standard Qty | Maintenance & Overhaul Advice |
|---|---|---|---|---|---|
| 1. Pre-Filter & Air Duct (External Air Intake) |
1 | WG9525195004 | Transverse Air Intake Port Duct | 1 Set | High-strength rigid engineering plastic duct located behind the cab. Replace if cracked in frontal collisions. |
| 2 | WG9725190055 | Air Intake Silencer / Rain Cap | 1 Pc | Mounted at the very top to prevent rain and large debris from entering. Replace if scraped or smashed. | |
| 2. Air Filter Core Unit (Debris Filtration) |
3 | WG9725190100 | Air Filter Housing Assembly | 1 Set | The main metal/plastic casing holding the elements. Replace if severely crushed or deformed in an accident. |
| 4 | WG9725190102 | Main Air Filter Element (Outer) | 1 Pc | Core consumable for trucks working in dusty mines/sites. A must-replace item during routine overhauls. | |
| 5 | WG9725190103 | Safety Air Filter Element (Inner) | 1 Pc | Replaced simultaneously with the outer element to strictly prevent micro-dust from bypassing into the turbocharger. | |
| 3. Post-Filter & Turbo Connections (Flexible Soft Joints) |
6 | AZ9525195054 | Rubber Air Intake Hose (Bellows) | 1 Pc | This Part. Connects air filter to the turbocharger. Must be replaced if aged, cracked, or collapsing. |
| 7 | AZ9925190004 | Intercooler Air Intake Hose | 2 Pcs | High-temperature, high-pressure silicone hose at the turbo end. High thermal resistance requirement. | |
| 8 | WG1500190015 | Steel Air Intake Connecting Pipe | 1 Pc | Rigid transition steel pipe situated between two rubber hoses. Replace if heavily dented or rusted through. | |
| 4. Monitoring & Clamping | 9 | 190003934310 | Heavy-Duty Hose Clamp (Φ130) | 4 Pcs | Heavy-duty stainless steel clamps to lock down the rubber hoses. Must replace if threads strip or rust. |
| 10 | WG9112190006 | Air Intake Resistance Indicator | 1 Pc | Vacuum sensor monitoring intake blockage. Replace if electrical connections or internal diaphragms fail. | |
| 11 | 190003933330 | Turbocharger V-Band Metal Clamp | 1 Pc | Specialized metal V-clamp to secure the high-pressure interface at the turbo inlet. | |
| 12 | WG9725190105 | Air Cleaner Cover Rubber Seal Gasket | 1 Set | Prevents dust bypass at the filter housing cover edges. High-wear elastomer part prone to aging. |
DETAILS

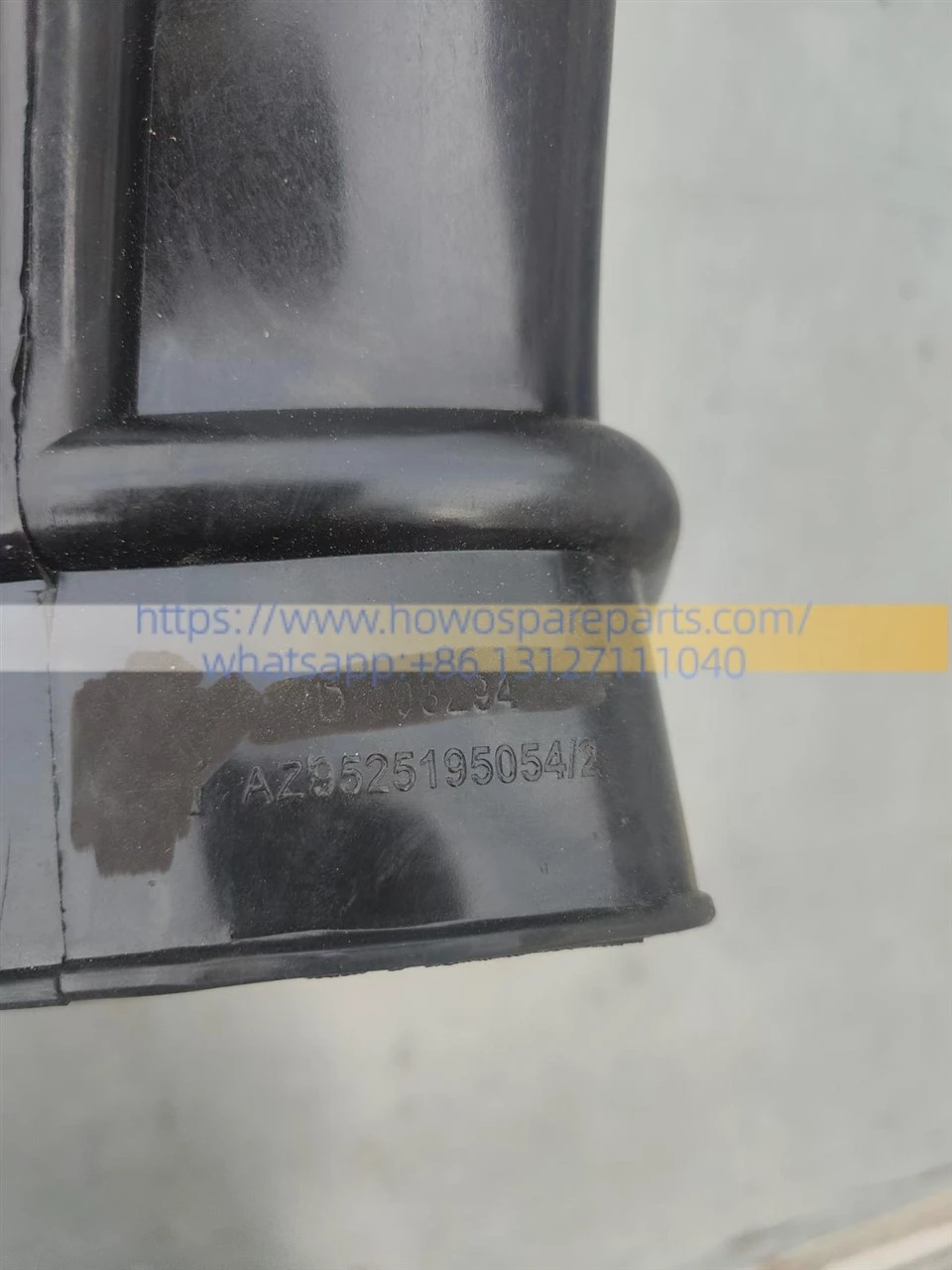

| DESCRIPTION | Rubber Air Intake Hose | PART NUMBER | AZ9525195054 |
| WEIGHT | 2kg | VOLUME | 550 × 450 × 45 |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
