Shandong Shengyue Technology Development Co.,Ltd is one of the most professional sinotruk howo truck weichai engine wp10 wp12 wd615 engine fan blade / fan assembly 612600060123 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

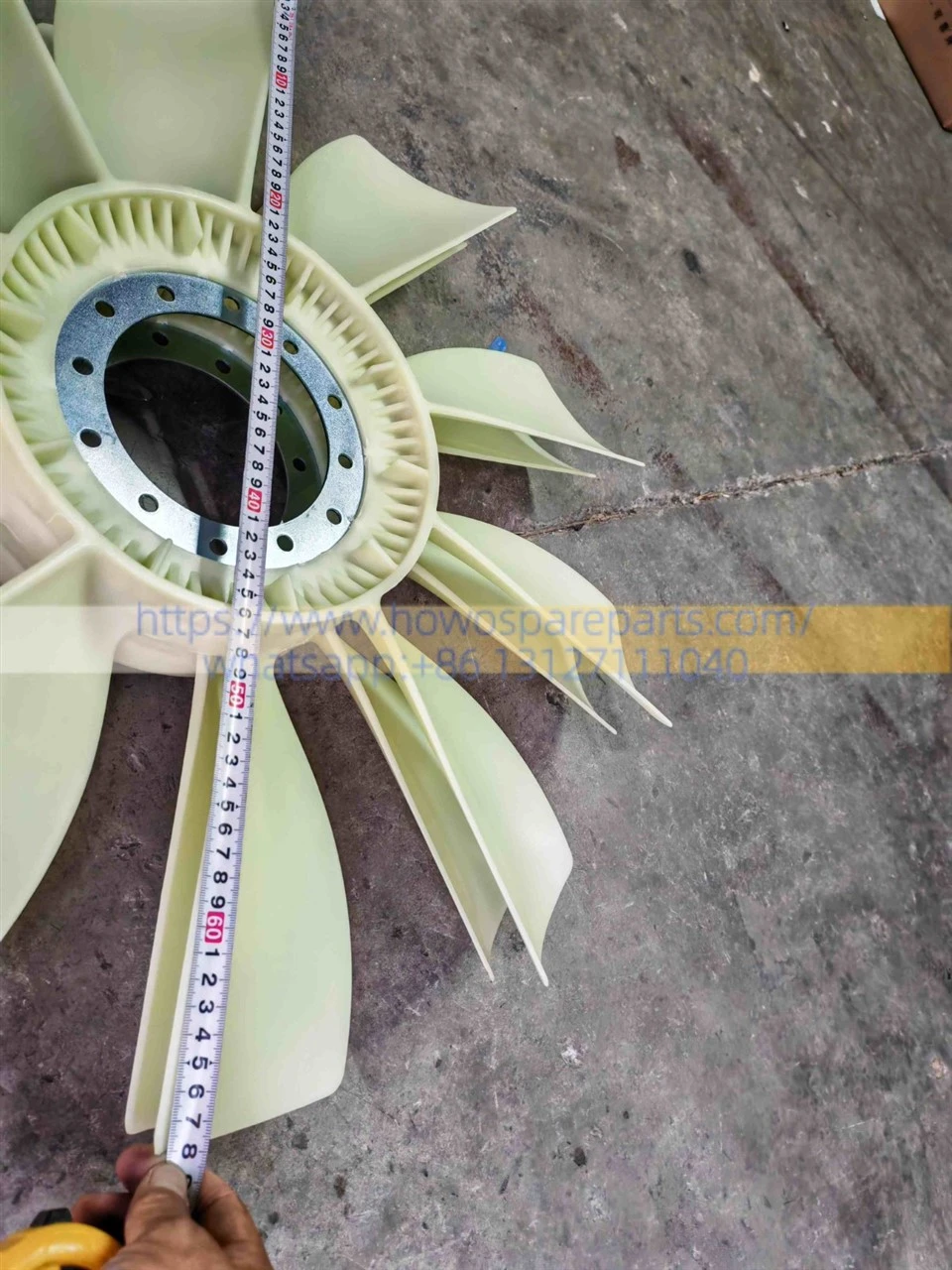

SINOTRUK HOWO TRUCK WEICHAI ENGINE WP10 WP12 WD615 ENGINE Fan Blade / Fan Assembly 612600060123
Product Features
1. Forced-Air Cooling: High-speed rotation generates powerful axial airflow, forcing cool air through the radiator and intercooler to rapidly dissipate engine heat and prevent overheating.
2. Circular Directed Airflow: A unique integrated outer ring design contains the airflow to prevent leakage, significantly improving intake efficiency and suppressing high-speed vibration.
3. Power Enhancement: Effectively cools high-temperature air from the turbocharger, increasing oxygen content in the intake charge for more complete combustion and unleashing the engine's full horsepower.
4. Lightweight, Noise-Reducing, and Fuel-Efficient: Constructed from high-strength reinforced plastic, the unit is lightweight with low rotational inertia; this minimizes parasitic power loss (improving fuel economy) and significantly reduces wind noise.
Common Issues and Replacement Recommendations
1. Embrittlement and Fracture: Heavy-duty trucks often operate under harsh thermal cycling conditions, causing plastic fan blades to age and become brittle. Damaged or broken blades severely disrupt dynamic balance during high-speed rotation, causing violent engine vibration; detached blades can even puncture the radiator fins.
2. Comprehensive Inspection Recommended: When replacing fan blades, it is strongly recommended to manually check the fan bracket and the viscous clutch bearing for looseness or abnormal noise. If clutch failure causes the fan to run continuously or not at all, the clutch should be replaced along with the fan blades.
Radiator Fan Blade Replacement Bill of Materials (BOM)
| No. | Part Number | Part Name (EN) | Qty | Replacement Category | Remarks / Functional Description |
|---|---|---|---|---|---|
| 1 | 612600060123 | Ring-type Radiator Fan Blade | 1 pc | Mandatory | Core component for this repair; Ø 670 mm, 10 blades with integrated strengthening outer ring. |
| 2 | 612630060538 (or 612600060937) |
Viscous Fan Clutch Assembly | 1 pc | Conditional (Highly Recommended) |
The fan blade mounts directly onto it. Replace if bearings have play, noise, or fluid leaks. |
| 3 | Q150B0835 (WEICHAI Standard) |
Hexagon Bolts (M8x35) | 6 pcs | Always Replace | Core fasteners. Subject to high shear force; pre-coated with threadlocker; reuse is strictly prohibited. |
| 4 | Q40308 / Q40108 (WEICHAI Standard) |
Spring Washers & Flat Washers Kit | 6 pairs | Always Replace | Used with M8 bolts to provide continuous clamping force and prevent loosening under heavy-duty vibrations. |
| 5 | 612600061253 (Ref. No., verify via VIN) |
Poly-V Belt (Fan Drive) | 1 pc | Conditional | Fan drive belt. Inspect for surface cracks, fraying, or aging, and replace if necessary. |
| 6 | 612600061256 (Ref. No., verify via VIN) |
Automatic Belt Tensioner | 1 pc | Conditional | Ensures correct belt tension. Replace if bearings seize or internal spring weakens (causes belt slippage). |
| 7 | -- (General Chemical) | Threadlocker Glue (High Strength / Red) | As req. | Consumable | Applied to the 6 fan bolts to provide maximum resistance against loosening under high engine RPMs. |
DETAILS
| DESCRIPTION | Fan Blade / Fan Assembly | PART NUMBER | 612600060123 |
| WEIGHT | 5kg | VOLUME | 690 mm × 690 mm × 110 mm |
| TRUCK MOLDE | WEICHAI | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
