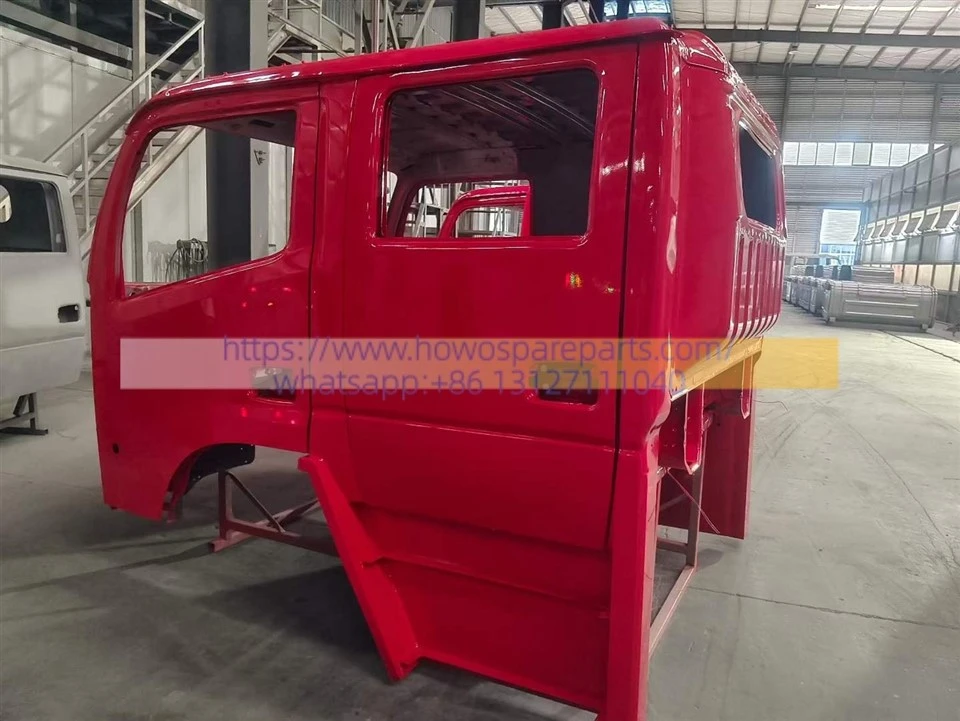

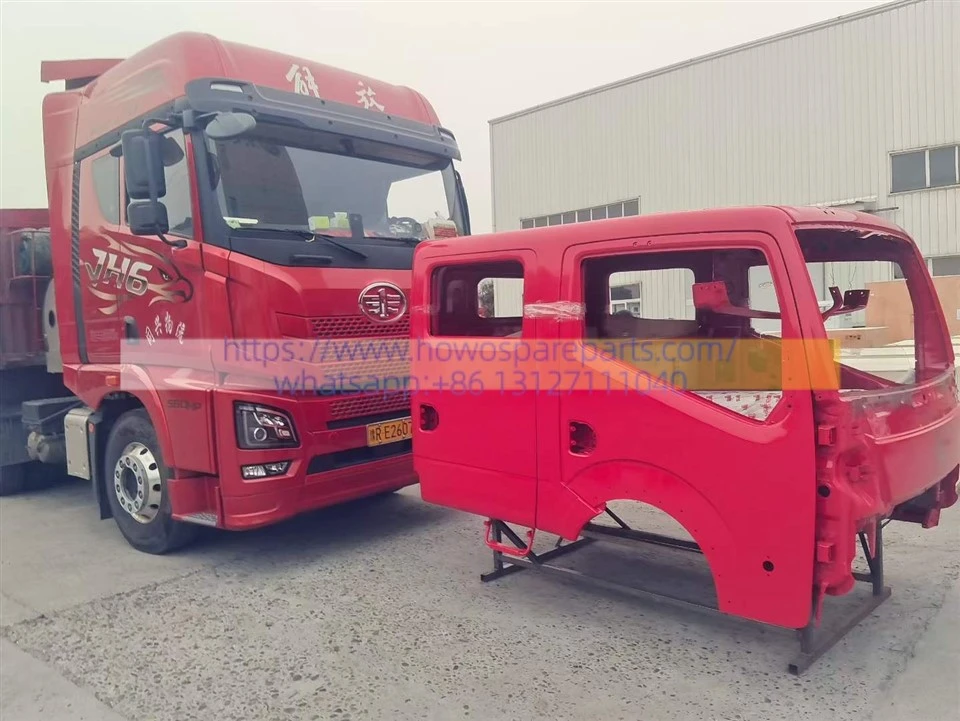

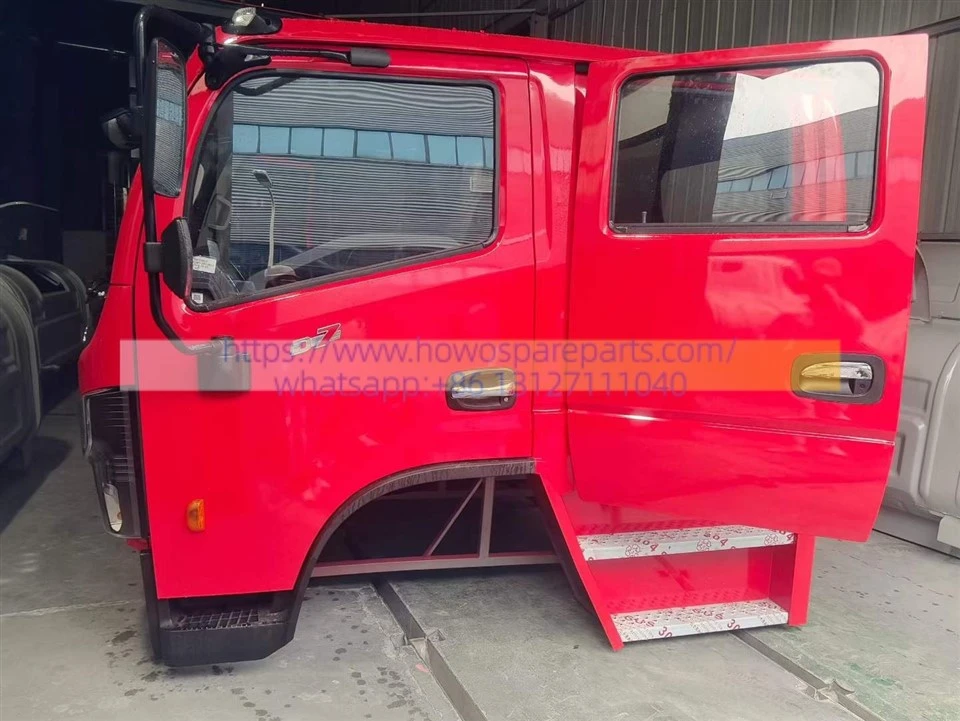

Dongfeng Kinland / Dongfeng KC Complete Cab Assembly 3750065-H04211GR
Bill of Materials (BOM) - Dongfeng Heavy Truck Cabin Assembly
| Module Category | No. | Core Part / System Code | Description (English) | Standard Qty | Maintenance & Insurance Survey Advice |
|---|---|---|---|---|---|
| 1. Body Structure & Sheet Metal (Core Shell) |
1 | 5000010-H0100 | Bare Cabin Shell (Body in White) | 1 Set | Must be replaced if there is overall severe deformation or if A/B pillars snap. |
| 2 | 5301010-H0100 | Front Panel (Grill Cover / Front Face) | 1 Pc | High-risk fragile part during frontal collisions; easily dented or cracked. | |
| 3 | 6100010-H0100 | Left Front Door Assembly | 1 Pc | Replace if damaged by side collisions or rollovers; includes door hinges. | |
| 4 | 6100020-H0100 | Right Front Door Assembly | 1 Pc | Same as above. Usually comes with internal anti-collision beams. | |
| 2. Glass & Rearview Mirrors (Visibility & Exterior) |
5 | 5206011-H0100 | Laminated Front Windshield Glass | 1 Pc | Explosion-proof. Must be replaced if cracked, shattered, or severely pitted. |
| 6 | 6103011-H0100 | Door Window Glass | 2 Pcs | Divided into left/right. Replace if shattered during side impact. | |
| 7 | 8202010-H0100 | Left Rearview Mirror Assembly (Electric & Heated) | 1 Set | Includes main mirror, wide-angle mirror, and electric bracket. | |
| 8 | 8202020-H0100 | Right Rearview Mirror Assembly (Electric & Heated) | 1 Set | Same as above. High-damage item due to large blind spots on the right side. | |
| 3. Dashboard & Central Console (Core Switch Area) |
9 | 5306005-H0100 | Dashboard Body (Instrument Panel Skeleton) | 1 Set | Main interior structure; replace if deformed or if airbags deploy. |
| 10 | 3820010-H0100 | Instrument Cluster Assembly (LCD/Mechanical) | 1 Pc | Core display for truck speed, RPM, and diagnostic trouble codes (DTCs). | |
| 11 | 3750065-H04211GR | Hazard / Rear Work Light Switch | 1 Pc | Located on the right panel of the console. Replace if burned out or failed. | |
| 12 | 3750010-H0100 | Inter-Axle / Inter-Wheel Differential Lock Switch | 2 Pcs | Located adjacent to the 3750065 switch; replace as a matching set. | |
| 4. Electrical Wiring Harness (Nervous System) |
13 | 3724010-H0100 | Main Dashboard Wire Harness Assembly | 1 Set | Connects all switches. Mandatory replacement if burned or torn apart. |
| 14 | 3724030-H0100 | Door Wire Harness (Left / Right) | 2 Pcs | Controls central locking, power windows, and rearview mirror heating. | |
| 15 | 3711010-H0100 | Front Headlight Assembly (Left) | 1 Pc | Integrated unit with high/low beams, turn signals, and DRLs. | |
| 16 | 3711020-H0100 | Front Headlight Assembly (Right) | 1 Pc | Highly vulnerable to being crushed during rear-end collisions. | |
| 5. HVAC System (Climate Control) |
17 | 8101010-H0100 | HVAC Evaporator & Heater Box Assembly | 1 Set | Installed under the dashboard; includes blower motor and expansion valve. |
| 18 | 8105010-H0100 | A/C Control Panel (LCD / Rotary Knobs) | 1 Pc | Core panel on the dashboard for adjusting cabin temperature and air flow. | |
| 6. Suspension & Tilting (Cabin Support) |
19 | 5001010-H0100 | Front Cabin Air Spring (Shock Absorber) | 2 Pcs | Cabin shock absorbers. Replace if the airbag bursts or leaks air. |
| 20 | 5001020-H0100 | Rear Cabin Air Spring (Shock Absorber) | 2 Pcs | Same as above. Core load-bearing component of the 4-point suspension. | |
| 21 | 5001105-H0100 | Hydraulic Cabin Tilt Pump Assembly | 1 Pc | Responsible for tilting the cabin (manually/electrically) to service the engine. | |
| 22 | 5001110-H0100 | Hydraulic Tilt Cylinder | 1 Pc | Lifts the cabin. Replace if leaking oil, bent, or deformed. | |
| 7. Seats & Interior Trims (Driver Comfort) |
23 | 5702010-H0100 | Main Driver Air Suspension Seat Assembly | 1 Pc | Multi-functional air seat. Replace if the frame is bent or air bellows leak. |
| 24 | 5704010-H0100 | Co-Driver Seat Assembly | 1 Pc | Standard fixed or mechanical suspension passenger seat. | |
| 25 | 5801010-H0100 | Sleeper Mattress Assembly (Lower Bunk) | 1 Pc | Essential for long-haul driver rest. Replace if contaminated or burned. | |
| 26 | 5402010-H0100 | Cabin Roof Interior Trim Lining | 1 Set | Flame-retardant microfiber sound-absorbing headliner; includes dome lights. |
