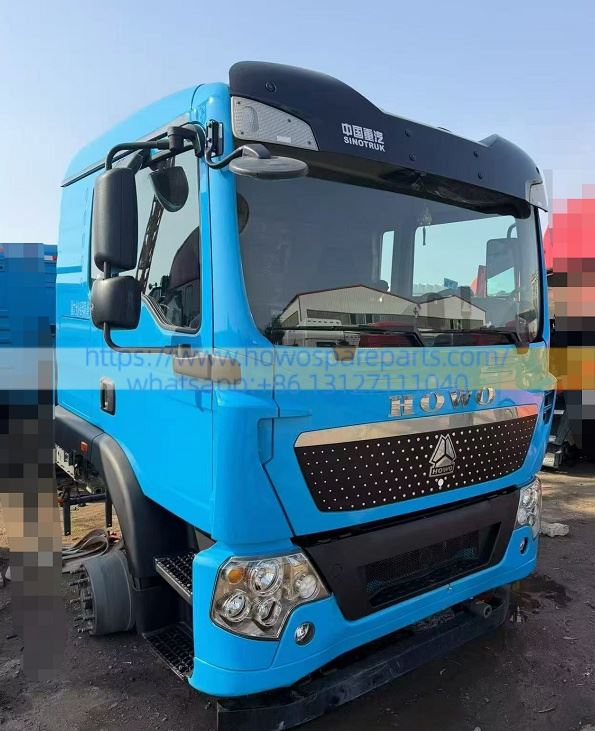

SINOTRUK HOWO TX Cab Assembly MAN MC11.43-30 ENGINE T743220193Q

Bill of Materials (BOM) - HOWO TX Cabin Assembly (MAN Technology)

Module Category	No.	Core Part Number (OEM No.)	Description (English)	Standard Qty	Maintenance & Insurance Survey Advice
1. Body Structure & Sheet Metal (MAN Safety Skeleton)	1	AZ1664000011	Bare Cabin Shell (Body in White)	1 Set	Core structural component; replace if the overall frame is twisted or if A/B pillars snap.
	2	AZ1664110020	Front Panel (Radiator Grille / Front Face)	1 Pc	High-risk fragile plastic part during frontal collisions; easily cracked or dented.
	3	AZ1664110035	Front Bumper Assembly (Steel / Engineering Type)	1 Pc	Heavy-duty 3-section steel bumper for tippers; extremely hard to repair once deformed.
	4	AZ1664210010	Left Front Door Assembly (with Anti-Collision Beam)	1 Pc	Replace if damaged by side collisions or rollovers; includes internal reinforcements.
	5	AZ1664210020	Right Front Door Assembly (with Anti-Collision Beam)	1 Pc	Same as above. Usually ordered with door hinges and lock actuator latches.
	6	AZ1664110050	Left / Right Side Air Deflector Wings	2 Pcs	Plastic deflector panels on truck sides; highly prone to shattering during minor scrapes.
2. Glass, Mirrors & Seals	7	AZ1664520010	Laminated Front Windshield Glass	1 Pc	Explosion-proof safety glass. Must be replaced if shattered, cracked, or severely pitted.
	8	AZ1664520025	Door Window Glass (Left / Right)	2 Pcs	Divided into left/right sides. Replace if shattered during side impact or heavily scratched.
	9	WG1664820001	Left Rearview Mirror Assembly (Electric & Heated)	1 Set	Integrated housing includes main mirror, wide-angle mirror, and electric bracket.
	10	WG1664820002	Right Rearview Mirror Assembly (Electric & Heated)	1 Set	High-failure component on the blind-spot side; very frequently scraped or broken.
	11	AZ1664520110	Complete Door/Window Weatherstrip & Seal Gasket Kit	1 Set	Replace the whole kit if the cabin has severe water leaks, high wind noise, or fire damage.

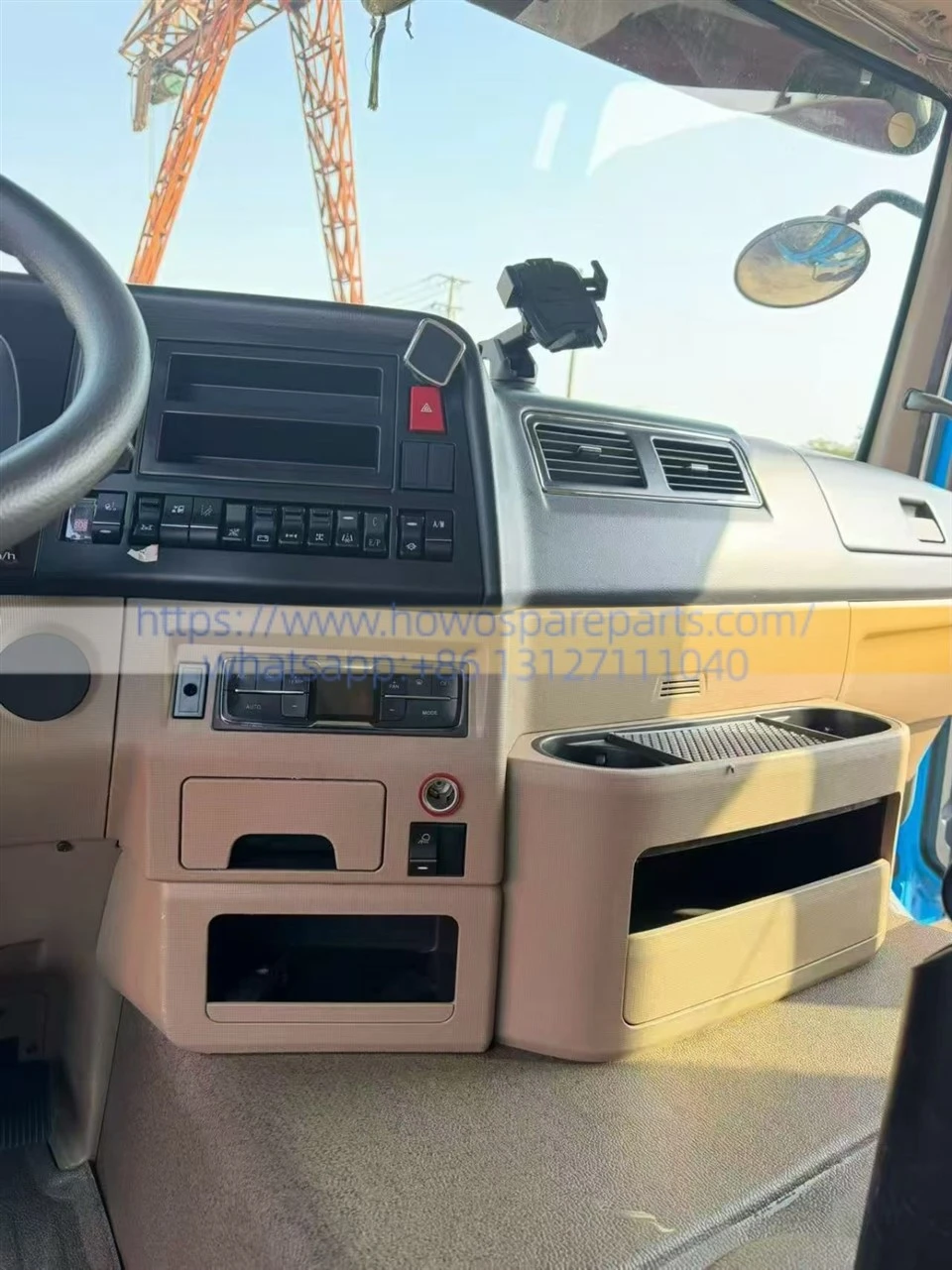

3. Dashboard & Interior Trims (Core Switch Clusters)	12	AZ1664580010	Dashboard Body Assembly (Console Skeleton)	1 Set	MAN technology wrap-around main interior frame. Replace if cracked or after airbag deployment.
	13	WG9918210001	Instrument Cluster Assembly (Central LCD Screen)	1 Pc	Core digital cluster via CAN-Bus. Replace if water damaged, screen cracked, or circuitry shorted.
	14	3750065-H04211GR Related	Differential Lock & Rocker Switches Group	1 Set	Includes the previously mentioned plug-and-play buttons like hazard lights and rear work lights.
	15	AZ1664580220	Central Console Sub-Assembly (Cupholder & Storage Tray)	1 Pc	Located between the two seats; replace if the plastic structure is broken or worn out.
4. Electrical & Lighting System (Nervous & Illumination System)	16	WG9719581001	Main Dashboard Wire Harness (Electronic Core)	1 Set	Connects all cockpit switches. Mandatory replacement if burned or torn apart.
	17	WG1664710001	Front Headlight Assembly (Left / Matrix Type)	1 Pc	Integrated unit with high/low beams, turn signals, and DRLs. Vulnerable to frontal hits.
	18	WG1664710002	Front Headlight Assembly (Right / Matrix Type)	1 Pc	Same as above. One of the most expensive lighting components in collision overhaul.
	19	WG9719210011	Windshield Wiper Motor & Linkage Assembly	1 Set	Replace if the linkage is bent by heavy debris or if the motor burns out.
5. HVAC System	20	WG1664810010	All-In-One HVAC Evaporator & Blower Box	1 Set	Installed underneath the dashboard; contains blower motor, expansion valve, and core box.
	21	WG1664810025	A/C Climate LCD Control Panel	1 Pc	Mounted on the central dashboard console to regulate fan speed and cabin temperature.
6. Air Suspension & Tilting (Load-Bearing Cabin Base)	22	WG1664430061	Front Cabin Air Spring (Shock Absorber)	2 Pcs	Front air suspension dampers. Replace if the rubber bellow leaks air, bursts, or leaks oil.
	23	WG1664440062	Rear Cabin Air Spring (Shock Absorber)	2 Pcs	Core part of the 4-point full-floating suspension; easily damaged on bumpy construction sites.
	24	WG1664510001	Electric / Manual Hydraulic Cabin Tilt Pump	1 Pc	Core pump mechanism responsible for tilting the cabin up. Replace if the motor burns out.
	25	WG1664510010	Hydraulic Cabin Tilt Lift Cylinder	1 Pc	Heavy-duty cylinder that pushes and holds the cabin shell. Replace if bent or leaking oil.

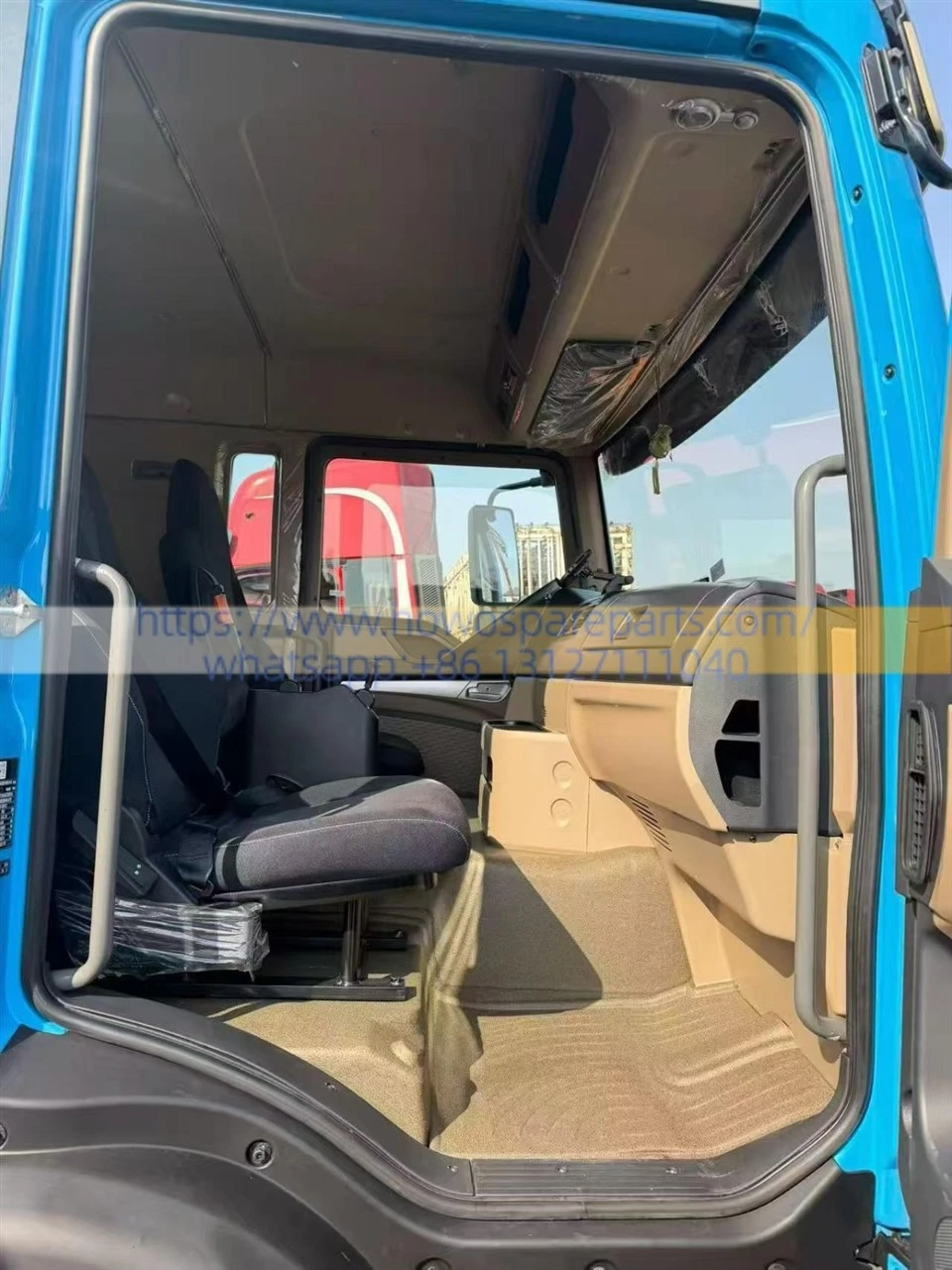

7. Seats & Sleeper Compartment	26	WG1664570001	Main Driver Air Suspension Seat Assembly	1 Bag/Set	Multi-functional air seat. Replace if the base frame is twisted or if internal air bags leak.
	27	WG1664570020	Co-Driver Fixed Seat Assembly	1 Bag/Set	Passenger seat; replace if the mechanical frame is bent or if the upholstery is torn.
	28	WG1664580310	Sleeper Compartment Mattress (Lower Bunk)	1 Pc	Foam mattress for long-haul rest. Replace if heavily contaminated, sagging, or burned.
	29	AZ1664540010	Flame-Retardant Microfiber Roof Interior Lining	1 Set	Sound-absorbing headliner panel; includes front overhead lockers and dome roof lights.
