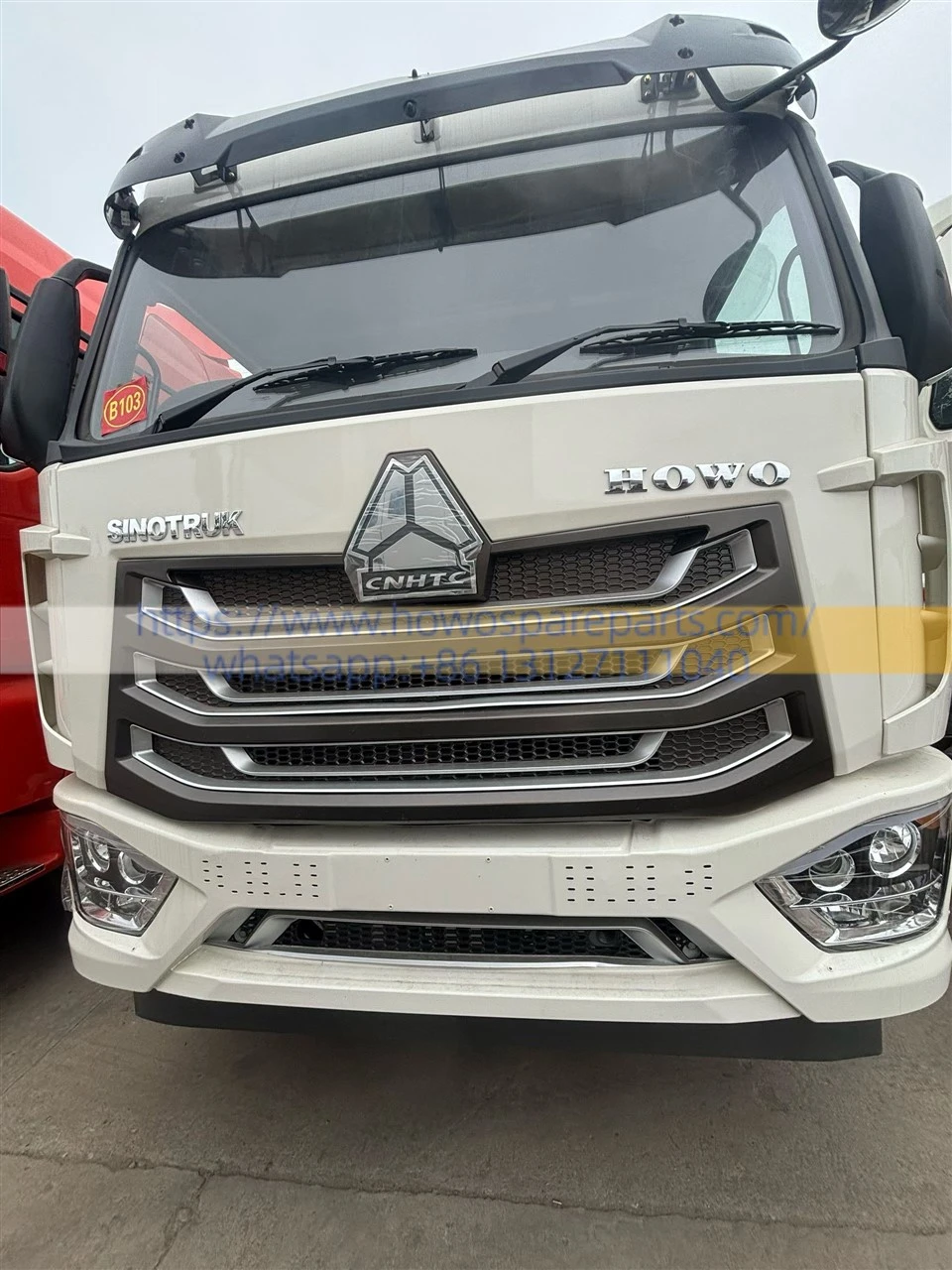

SINOTRUK HOWO NX Cab Assembly H77L/H78L Platform
Bill of Materials (BOM) - HOWO NX Cabin Assembly
| Module Category | No. | Core Part Number (OEM No.) | Description (English) | Standard Qty | Maintenance & Insurance Survey Advice |
|---|---|---|---|---|---|
| 1. Body Structure & Sheet Metal (Crash Protection) |
1 | FC1697000011 | Bare Cabin Shell (Body in White) | 1 Set | Main structural framework. Replace if the A-pillar/B-pillar snaps or the overall skeleton twists. |
| 2 | FC1697110020 | Front Cover Panel (Radiator Grille) | 1 Pc | Front plastic face panel. Plastic clips easily break or crack during frontal impacts. | |
| 3 | FC98049300200 | Front Bumper Assembly (Anti-Collision Bar) | 1 Set | Protects the lower front chassis. Highly prone to cracking and scraping on rough jobsites. | |
| 4 | AZ1642210001 | Left Front Door Assembly (with Side Beam) | 1 Pc | Replace if damaged by side-collisions or vehicle rollovers; includes outer door handles. | |
| 5 | AZ1642210002 | Right Front Door Assembly (with Side Beam) | 1 Pc | Same as above. Usually sourced along with door hinges and door lock actuators. | |
| 6 | FC1697110050 | Left / Right Cab Lower Step Mudguard Kit | 1 Set | Low ground clearance component. Frequently stepped on and smashed in construction areas. | |
| 2. Glass, Mirrors & Seals | 7 | FC1697520010 | Laminated Front Windshield Glass | 1 Pc | Explosion-proof safety windshield. Mandatory replacement if shattered, cracked, or pitted. |
| 8 | FC1697520025 | Door Window Glass (Left / Right) | 2 Pcs | Divided into left and right sides. Replace if shattered during side impact or heavily scratched. | |
| 9 | FC1697740500 | Integrated Heated Rearview Mirror Assembly | 1 Set | High-failure parts due to blind-spot scraping or collision with side obstacles. | |
| 10 | LG1613770080 | Front Lower View Blind-Spot Mirror | 1 Pc | Eliminates dead zones directly in front of the truck cabin. Smashed in rear-end hits. | |
| 3. Dashboard & Interior Trims (Cockpit Control) |
11 | FC1697580010 | Dashboard Instrument Panel Shell | 1 Set | NX new-generation wrap-around main console frame. Replace if passenger airbags deploy. |
| 12 | WG9918580011 | Combination Digital LCD Instrument Cluster | 1 Pc | Core CAN-Bus dashboard. Replace if water damaged, screen cracked, or circuitry shorted. | |
| 13 | 3750065-H04211GR Related | Differential Lock & Rocker Switches Group | 1 Set | Plugs directly into the right console panel. Controls diff-locks, hazard, and rear work lights. | |
| 14 | FC1697580220 | Central Console Sub-Assembly (Cupholder Island) | 1 Pc | Located in between the two seats. Replace if the plastic frame is cracked or worn out. | |
| 4. Electrical & Lighting System (Nervous & Illumination) |
15 | WG9719581001 | Main Dashboard Wiring Harness (Electronic Spine) | 1 Set | Connects all cockpit electronics. Mandatory replacement if burned out or ripped apart. |
| 16 | WG9925720001 | Front Headlight Assembly (Left / Matrix Type) | 1 Pc | Integrated matrix lamp with high/low beams and DRLs. Damaged in frontal accidents. | |
| 17 | WG9925720002 | Front Headlight Assembly (Right / Matrix Type) | 1 Pc | Same as above. One of the most expensive electrical parts in accident survey claims. | |
| 18 | WG9719210011 | Windshield Wiper Motor & Linkage Assembly | 1 Set | Replace if the link linkage is bent by heavy impacts or if the motor burns out. | |
| 5. HVAC System | 19 | WG1664810010 | All-In-One HVAC Evaporator & Blower Box | 1 Set | Contains the blower motor and expansion valves. Replace if the inner box leaks refrigerant. |
| 20 | WG1664810025 | A/C Electronic Climate Control Panel | 1 Pc | Mounted on the central dashboard console to regulate fan speed and cabin temperature. | |
| 6. Air Suspension & Tilting (Load Bearing & Lifting) |
21 | WG1642430282 | Front Cabin Air Spring (Shock Absorber) | 2 Pcs | Front air suspension dampers. Replace if the rubber bellow leaks air or shocks blow oil. |
| 22 | WG1642440062 | Rear Cabin Air Spring (Shock Absorber) | 2 Pcs | Core part of the 4-point full-floating suspension; easily damaged on bumpy dump truck paths. | |
| 23 | WG9925820031 | Electric / Manual Hydraulic Cabin Tilt Pump | 1 Pc | Core mechanism to tilt and lift the cockpit. Replace if the internal motor burns out. | |
| 24 | WG9925820040 | Hydraulic Cabin Tilt Lift Cylinder | 1 Pc | Heavy-duty ram rod holding the weight of the cabin shell. Replace if bent or leaking oil. | |
| 7. Seats & Living Comfort | 25 | YZ167151000031 | Air Suspension Main Driver Seat Assembly | 1 Pc | NX-exclusive ergonomic air seat. Replace if air valve bellows leak or frame cracks. |
| 26 | C16757-1000004 | Sleeper Berth Mattress (Lower Bunk) | 1 Pc | High-density flame-retardant mattress. Replace if contaminated, sagging, or burned. | |
| 27 | FC1697540010 | Flame-Retardant Microfiber Roof Interior Lining | 1 Set | Sound-absorbing headliner panel; includes front overhead lockers and interior roof lights. |
