Transmission High/Low Range Shift Valve / Dual-H Shift Valve Assembly WG2209250015 WG2209250010

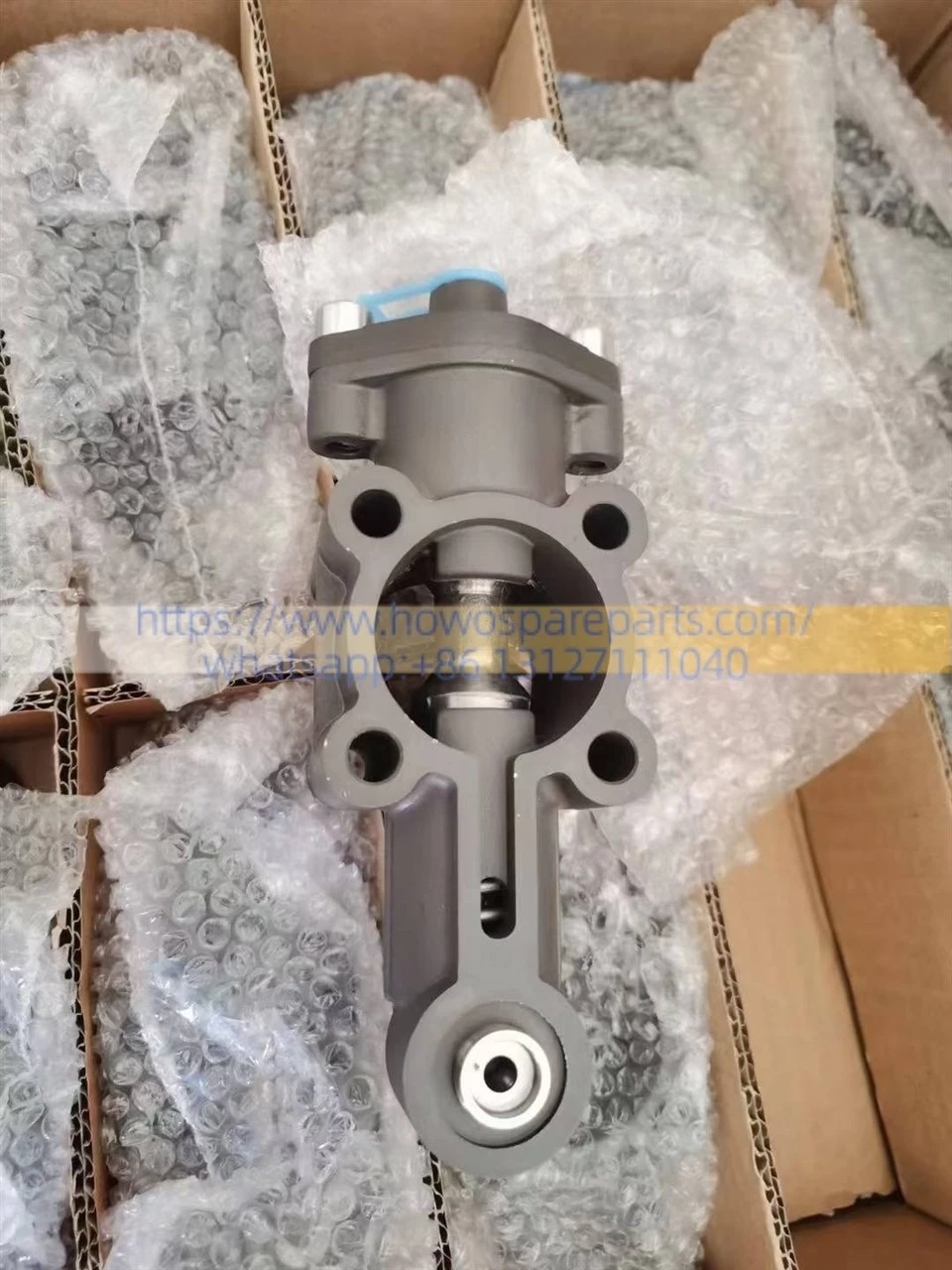

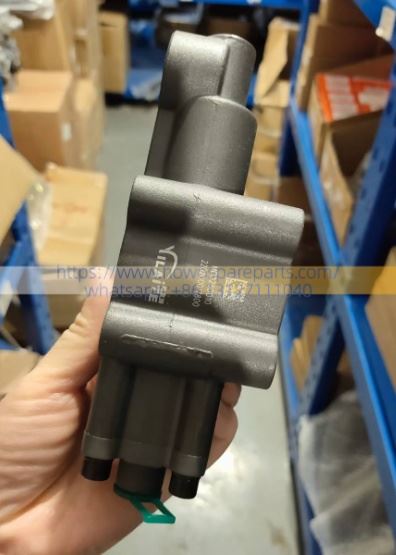

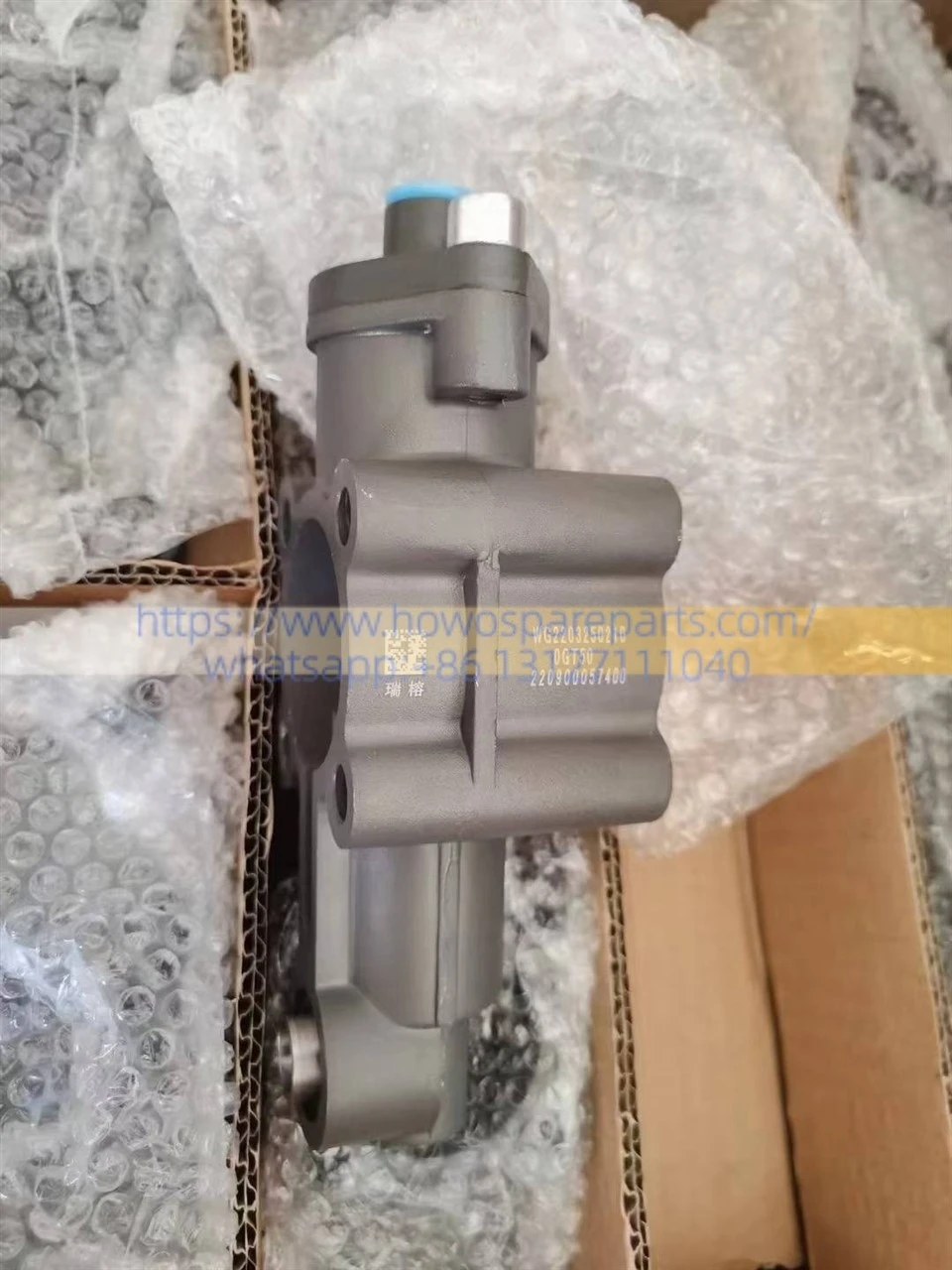

WG2209250015 (Double-H Shift Valve Assembly / Double-H Follow-up Valve)
This is a pneumatically controlled distribution valve mounted on the transmission's top-cover shift mechanism. When the driver moves the gear shift lever laterally (such as when passing through the neutral zone between 4th and 5th gears), the valve is mechanically actuated to switch internal air circuits. It automatically supplies air to the auxiliary section cylinder, thereby enabling automatic switching between the transmission's high- and low-range gear groups.
WG2209250010 (High/Low Range Control Valve / Air Valve)
Typically serving as a pilot control valve for the Double-H valve or as a specific air circuit protection valve, it stabilizes the air pressure supplied to the shifting system. It ensures rapid valve response during range switching and prevents incomplete gear engagement caused by insufficient air pressure affecting the auxiliary section synchronizer.
Common Faults and Troubleshooting
1. Transmission "gear jumping" or "erratic shifting": Internal valve spool wear or air leakage can cause simultaneous air pressure at both ends of the auxiliary gearbox cylinder, preventing the auxiliary synchronizer from fully locking; this results in the vehicle suddenly slipping into neutral or experiencing confused high/low range selection while driving.
2. Gear grinding or inability to engage high range: Often caused by pressure loss due to the aging of internal rubber seals. Insufficient air pressure prevents the instantaneous actuation of the auxiliary synchronizer, causing severe mechanical grinding noises inside the transmission when the driver forces the gear shift.
3. Maintenance and inspection: If a persistent, faint air leak is detected beneath the gear shift lever or at the top of the transmission, or if shifting feels stiff during cold winter weather, prioritize checking the two air valves for sticking; additionally, it is recommended to regularly drain accumulated water from the vehicle's air reservoirs.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
