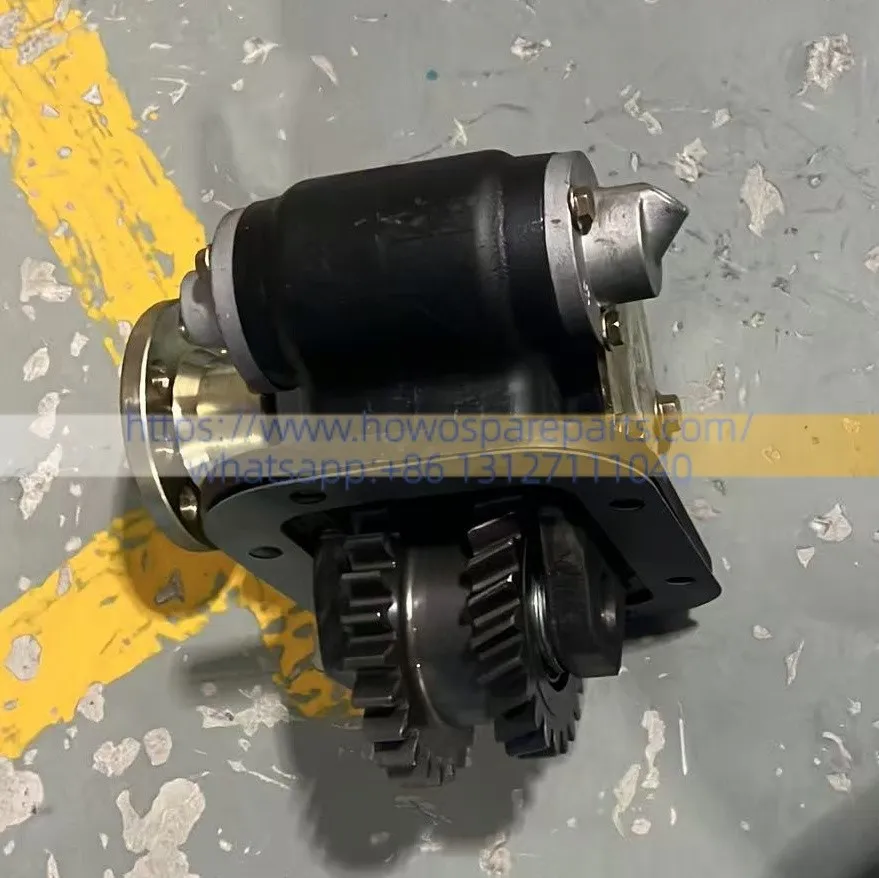

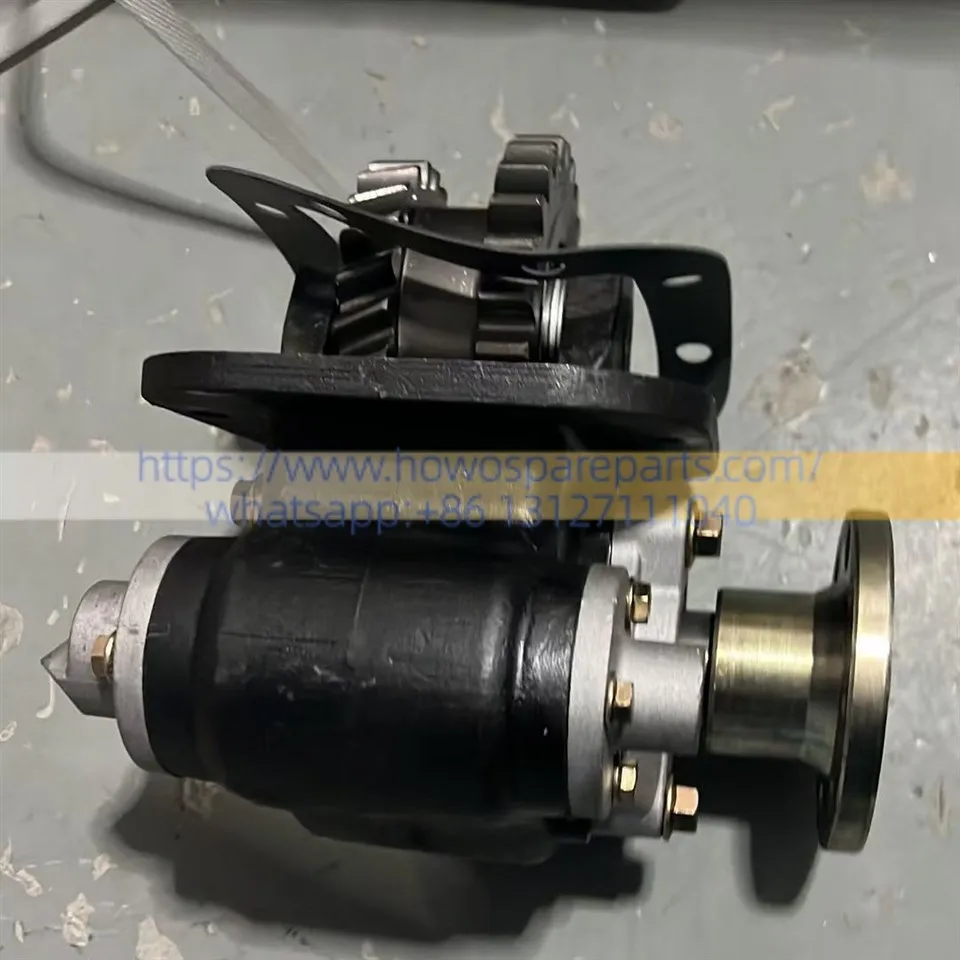

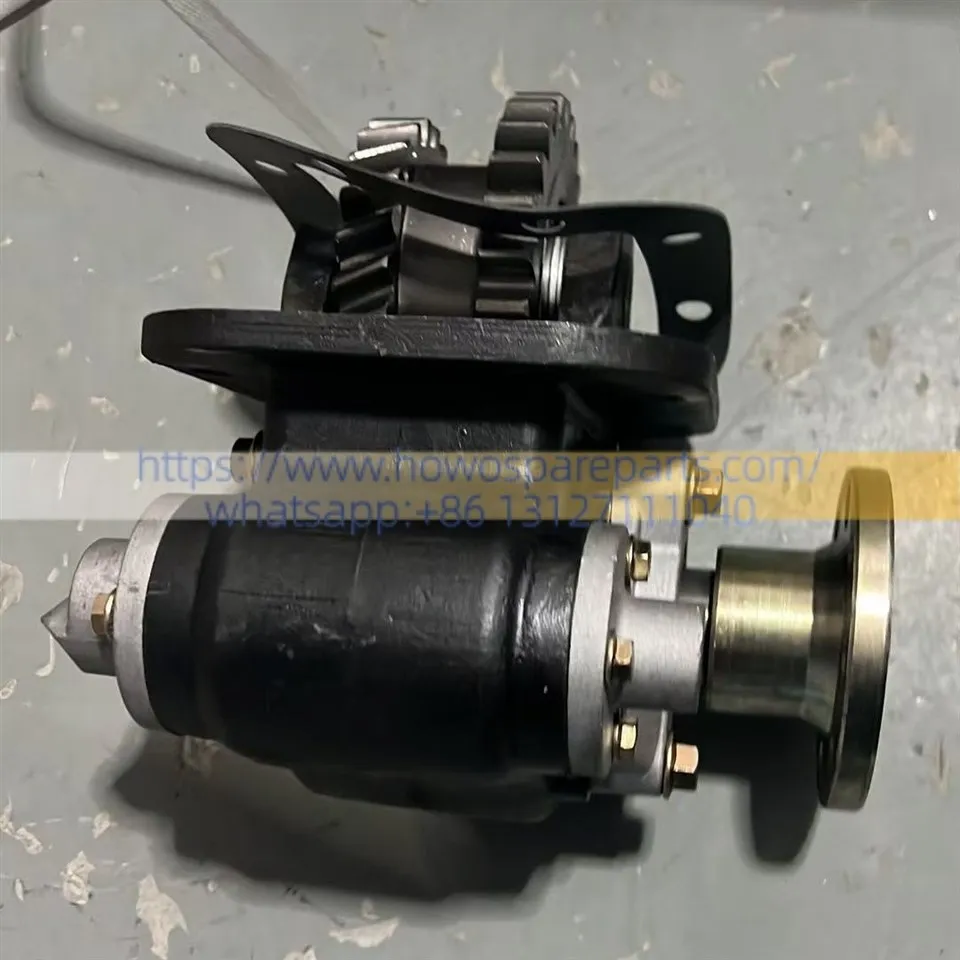

Wanliyang WLY6 6T50C 6-speed manual transmission with power take-off assembly WLY6 6T50C14593
FUNCTION
1. Power Diversion and Output: When the vehicle is parked or traveling at low speeds, the system "intercepts" a portion of the engine's rotational speed and torque from the transmission's intermediate shaft, channeling it-via its internal shaft-and-gear mechanism-to an output point located on the side or rear of the vehicle chassis.
2. Powering Core Hydraulic Systems: The output mechanical energy directly drives a high-pressure hydraulic oil pump, providing a high-pressure fluid source for the vehicle's hydraulic cylinders and motors, thereby enabling operations such as dump-bed lifting, boom extension and retraction, and winch rotation.
3. Driving Specialized Pump Equipment: On vehicles not equipped with hydraulic modifications, the system directly drives specialized equipment-such as high-pressure water pumps, vacuum sewage pumps, or high-pressure blowers-via a drive shaft, thereby endowing the vehicle with capabilities for water spraying, sewage suction, or air-blast cleaning.
Technical Parameters and Structural Specifications
1. Input Gear Specifications: 26 teeth; the gear module and pressure angle are precisely matched to the countershaft gear of the Wanliyang 6T50C transmission.
2. Housing Material: High-strength cast iron. A cast iron housing is strongly recommended-and considered mandatory-for modifications involving dump trucks and cranes, in order to withstand high-intensity, instantaneous hydraulic reaction forces.
3. Internal Bearings: The complete assembly utilizes high-precision tapered roller bearings or reinforced deep-groove ball bearings, capable of simultaneously supporting combined radial and axial loads generated by high rotational speeds.
DETAILS
| DESCRIPTION | power take-off assembly | PART NUMBER | WLY6 6T50C14593 |
| WEIGHT | 10kg | VOLUME | 32.0 × 24.5 × 22.0 cm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | GEARBOX |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
Functional Application Scenarios Across Various Engineering Vehicle Models
1. Dump Truck: Upon engaging the Power Take-Off (PTO) switch, power is transmitted to the hydraulic pump, which drives the hydraulic lifting ram to automatically tilt the cargo bed and discharge its load.
2. Wrecker / Flatbed Tow Truck: Drives the hydraulic winch to pull disabled vehicles onto the platform, while simultaneously controlling the hydraulic cylinders for the tailboard to facilitate the tilting and lowering of the flatbed.
3. Truck-Mounted Crane: Supplies a continuous flow of high-pressure hydraulic fluid to the crane system, enabling precise control over the boom's lifting, extension, luffing, and slewing operations.
4. Sprinkler Truck / Sanitation Vehicle: Drives a specialized, high-flow water pump to execute various sanitation tasks, such as front spraying, rear sprinkling, and high-pressure water cannon jetting.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
