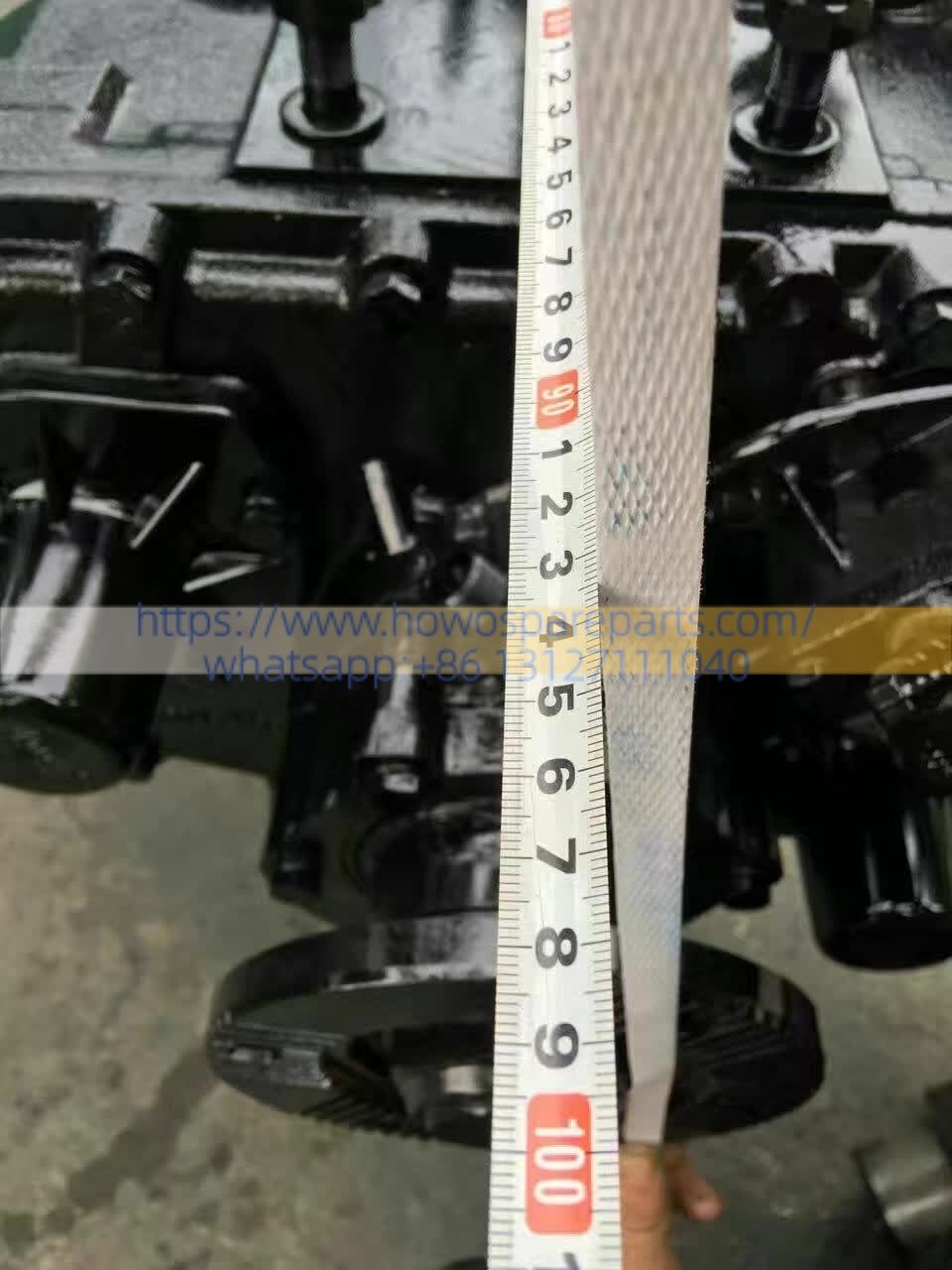

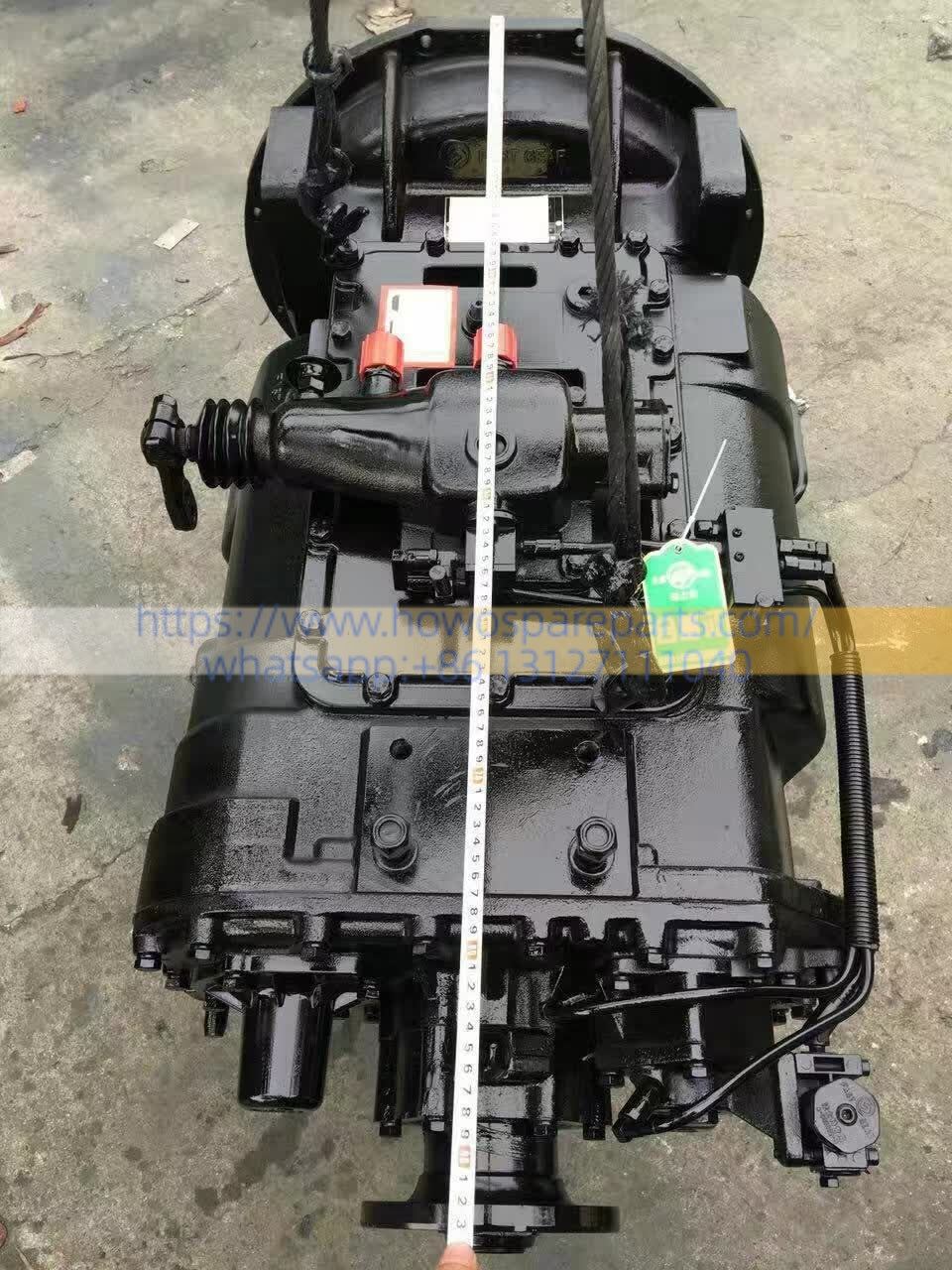

FAST 10-speed manual transmission with twin countershafts and full synchronizers 10JSD120TB
Basic Specifications & Performance Parameters
| Parameter Item | Detailed Technical Specification / Value | Remarks |
|---|---|---|
| Product Name | FAST 10-Speed Double Intermediate Shaft Full-Synchronizer Manual Transmission | Mechanical Manual Transmission (MT) |
| Forward Gears | 10 gears | Double-H control mechanism |
| Reverse Gears | 2 gears | Divided into High and Low reverse gears |
| Max. Input Torque | 1,200 N·m | Do not exceed this limit when matching |
| Max. Input Speed | 2,600 RPM | Matches mainstream medium-bore engines |
| Net Weight | 300 kg | Excluding gear oil and clutch housing |
Dimensions & Structural Installation Parameters
| Parameter Item | Detailed Technical Specification / Value | Remarks |
|---|---|---|
| Total Length | 881.3 mm | From flywheel housing mating face to output flange face |
| Structural Design | Main box + Auxiliary box combination structure | 5 forward gears in main, High/Low range in auxiliary |
| Flywheel Housing Interface | Standard SAE 1# / SAE 2# | Must be confirmed by engine model when purchasing |
| Input Shaft Spline | 2-inch - 10 teeth (or 1.75-inch) | Determines clutch friction disc hub spline size |
| Output Flange Spec | ISO 8-bolt - Φ150 / Φ165 (or US-standard flange) | Connects to the driveshaft universal joint |
| PTO Window | Standard Power Take-Off windows on right side and bottom | For modifying and installing hydraulic pumps (tippers/special vehicles) |
Operation, Air Circuit & Gear Ratio Parameters
| Parameter Item | Detailed Technical Specification / Value | Remarks |
|---|---|---|
| Control Mode | Remote single/double rod control OR gearshift cable control | Depends on the truck cab tilting mechanism |
| Auxiliary Box Control | Pneumatic automatic range shifting | Controlled by the High/Low switch on the shift knob |
| Air Circuit Pressure | 0.70 - 0.85 MPa (7.0 - 8.5 bar) | Fed from vehicle air dryer / brake air system |
| 1st Gear (Max. Ratio) | 12.741 | For heavy-load, steep-slope startup |
| 9th Gear (Direct Drive) | 1.000 | Highest drivetrain efficiency |
| 10th Gear (Overdrive) | 0.730 | Cruising gear for highway, enhances fuel economy |
| Low Reverse (R1) | 13.713 | - |
Lubrication & Maintenance Parameters
| Parameter Item | Detailed Technical Specification / Value | Remarks |
|---|---|---|
| Oil Capacity | Approx. 12.5 Liters (L) | May vary slightly depending on PTO installation |
| Recommended Oil Spec | 85W-90 (GL-5 Grade) or FAST Genuine Gear Oil | Use 75W-90 in low-temperature/cold regions |
| First Service Interval | 2,000 - 5,000 km | Mandatory limit for new or newly overhauled gearboxes |
| Routine Oil Change | Every 50,000 km or 1 year | Shorten interval for harsh conditions (e.g., dumper operations) |
| Filter Configuration | Optional integrated magnetic mesh for some variants | Magnetic oil drain plug is standard equipment |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
