Shandong Shengyue Technology Development Co.,Ltd is one of the most professional yuchai yunnei ycd4f series cylinder liner kit rebuild kit ka100-900020 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.
YUCHAI YUNNEI YCD4F Series Cylinder Liner Kit Rebuild Kit KA100-900020
KA100-900020 Diesel Engine Core Overhaul BOM Detailed List (Per Cylinder/Engine)
| No. | Component Name | English Description | Qty | Replacement Level | Remarks / Functional Description |
|---|---|---|---|---|---|
| I. Core Cylinder Kit Components (Inquired Items) | |||||

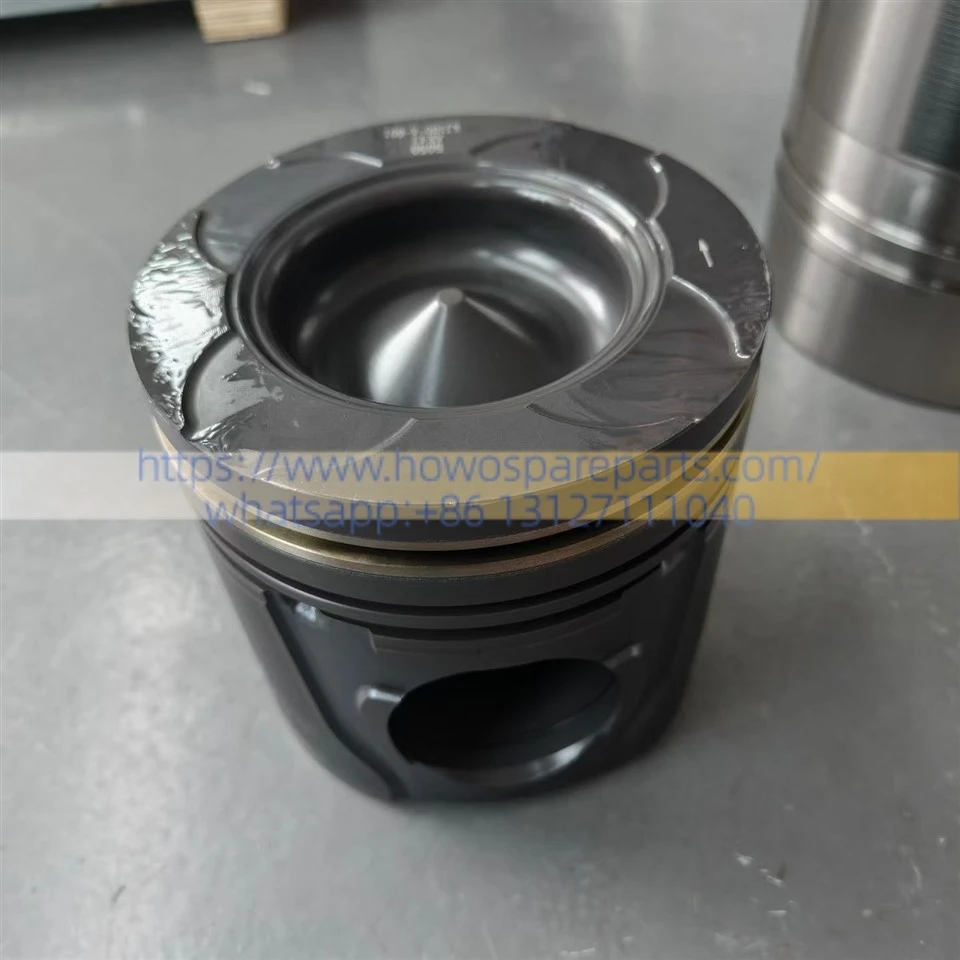

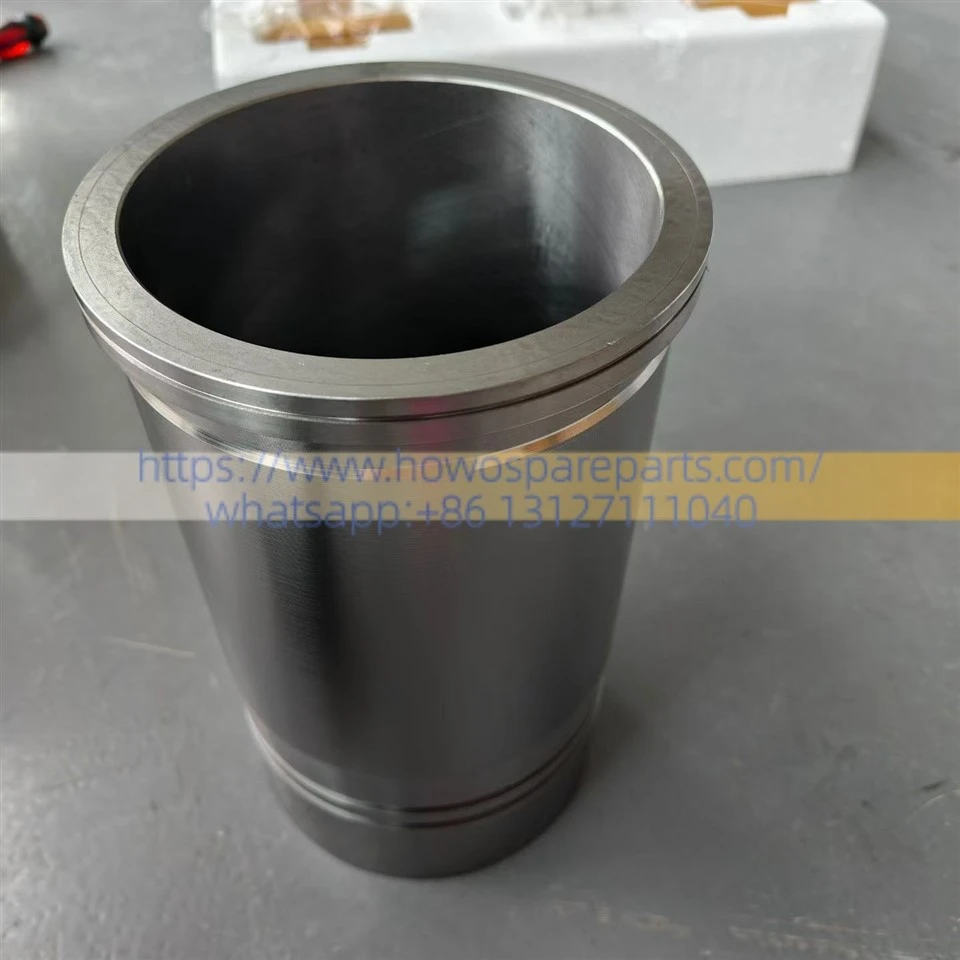

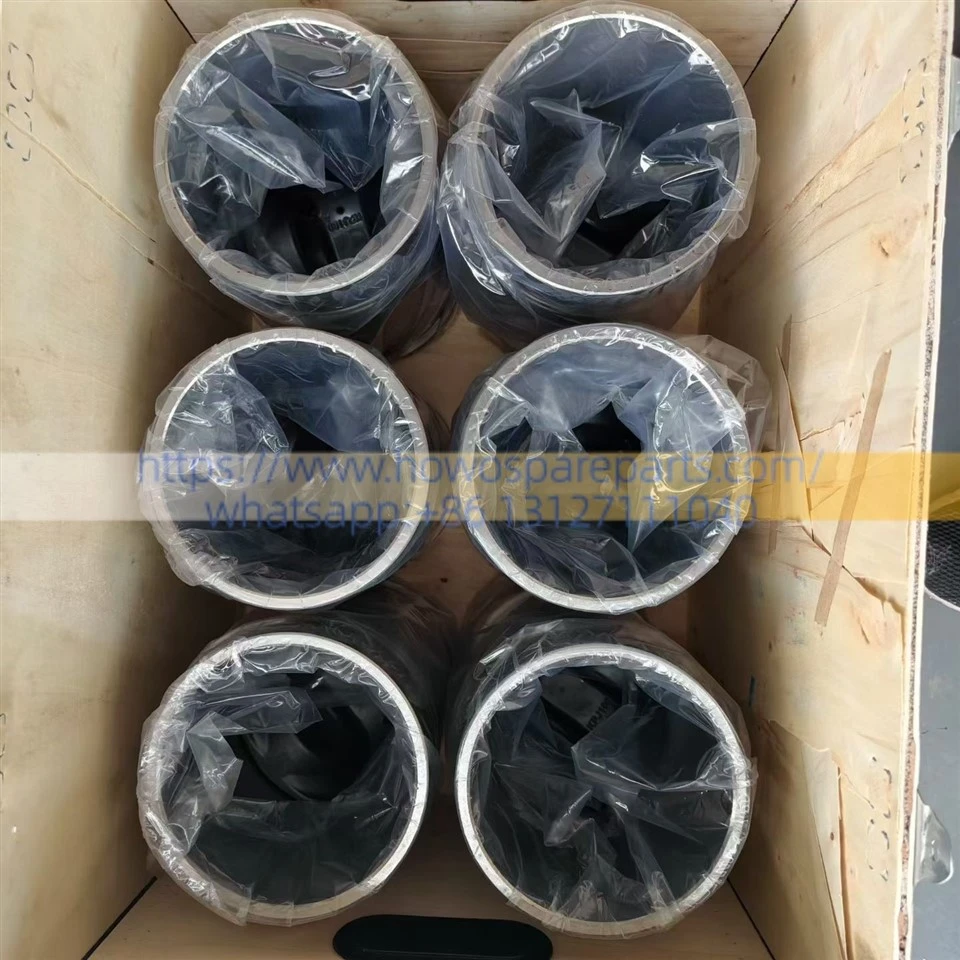

| 1 | Cylinder Liner Kit (4-Piece Set) | Cylinder Rebuild Kit (4-Piece) | 1 set/cyl | Mandatory | KA100-9000200 This product (includes liner, piston, rings, and pin). A 4-cylinder engine requires 4 sets. |
| II. Bearings & Connecting Rod Train (Ensures smooth bottom-end rotation) | |||||
| 2 | Connecting Rod Bearing | Connecting Rod Bearing Set | 1 pr/cyl | Highly Recommended | Must be replaced whenever the rod is disassembled to prevent knocking caused by uneven bearing clearance. |
| 3 | Crankshaft Main Bearing | Main Crankshaft Bearing Set | 1 set/eng | Inspect & Replace | The core bearing supporting the crankshaft; replace if wear ridges or scratches are found. |
| 4 | Connecting Rod Bushing | Connecting Rod Small-End Bushing | 1 pc/cyl | Inspect & Replace | Located inside the small end of the rod; pairs with the piston pin. Replace if excessive play is detected. |
| III. Engine Block Sealing & Fasteners (Critical for preventing leaks after overhaul) | |||||

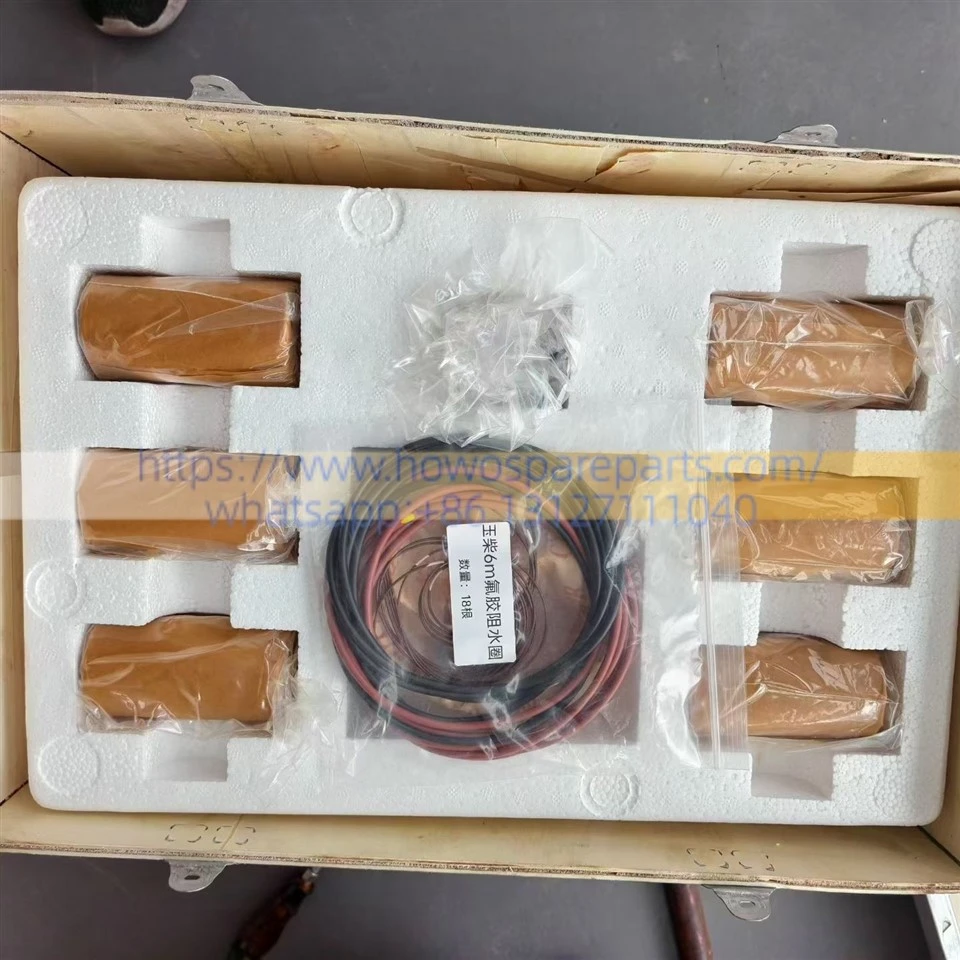

| 5 | Cylinder Liner O-Rings | Liner O-Rings / Seals | 2-3 pcs/cyl | Mandatory | Seated in the lower outer grooves of the liner to prevent coolant from leaking into the oil pan. Included with the liner kit. |
| 6 | Connecting Rod Bolts | High-Strength Connecting Rod Bolts | 2 pcs/cyl | Highly Recommended | High-stress fasteners. These bolts stretch during operation and must not be reused. |
| 7 | Cylinder Head Gasket | Cylinder Head Gasket | 1 pc/eng | Mandatory | Must be replaced once the cylinder head is removed; choosing an original high-strength metal-composite gasket is recommended. |
| 8 | Full Engine Overhaul Gasket Set | Full Engine Overhaul Gasket & Seal Kit | 1 set/eng | Highly Recommended | Includes front/rear crankshaft oil seals, valve cover gaskets, intake/extra exhaust manifold gaskets, etc. |
DETAILS
| DESCRIPTION | Cylinder Liner Kit Rebuild Kit | PART NUMBER | KA100-900020 |
| WEIGHT | 30kg | VOLUME | 720 mm × 300 mm × 270 mm |
| TRUCK MOLDE | YUCHAI | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
Hot Tags: yuchai yunnei ycd4f series cylinder liner kit rebuild kit ka100-900020, manufacturers, suppliers, factory, parts, genuine, original
