Shandong Shengyue Technology Development Co.,Ltd is one of the most professional sinotruk man mc11 mc13 diesel engine 24v ac compressor 202v77970-7030 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

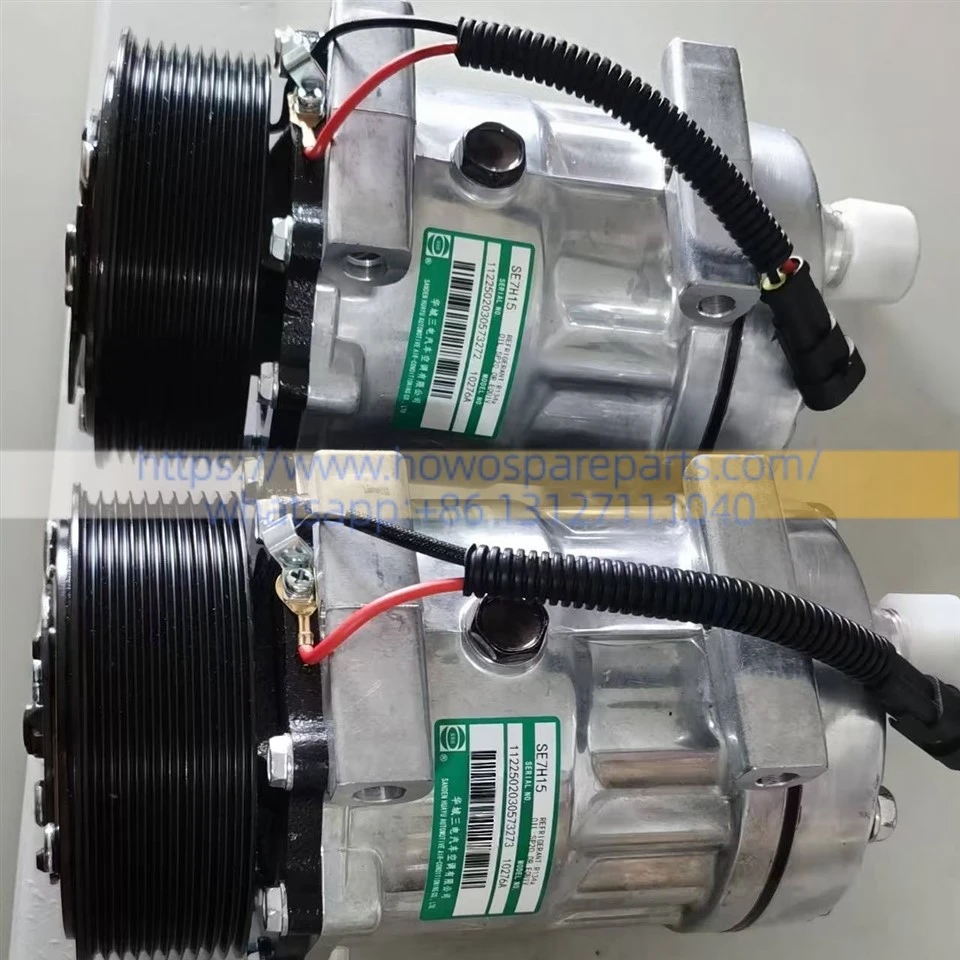

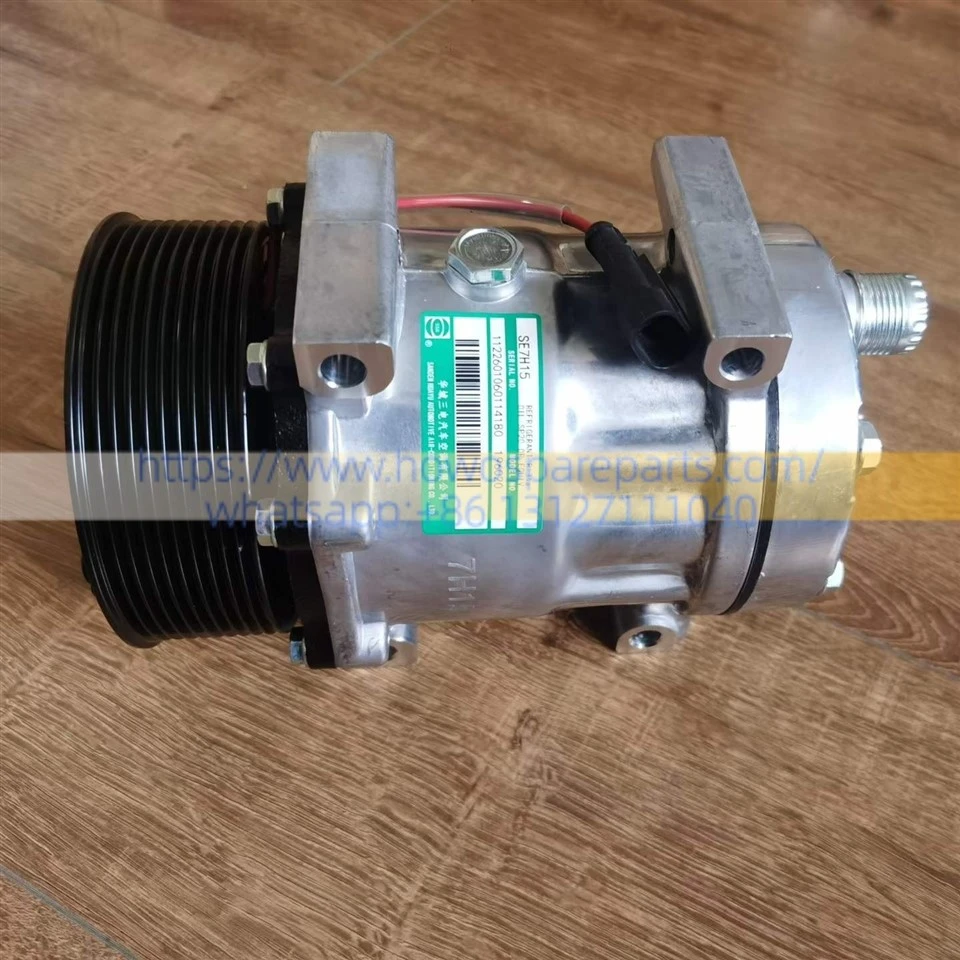

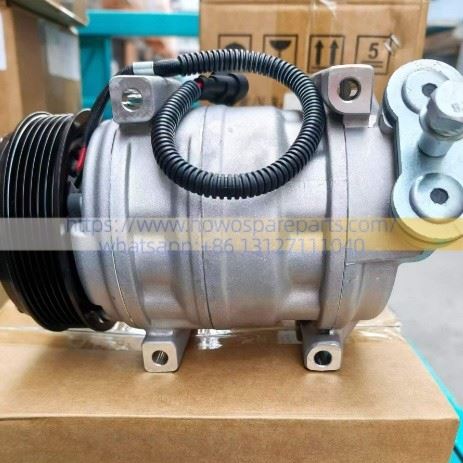

SINOTRUK MAN MC11 MC13 Diesel Engine 24V AC Compressor 202V77970-7030
Common Faults and Replacement Recommendations
1. Air conditioner fails to cool or cooling is insufficient: This is usually caused by wear and leakage of the compressor's internal valve plates or a burnt-out electromagnetic clutch coil (preventing engagement).
2. Abnormal noise in the engine compartment when the A/C is on: A loud metallic grinding sound upon switching on the A/C indicates internal compressor bearing failure or piston scoring (seizure).
3. Overhaul precautions: Before installing a new compressor on a heavy-duty truck, the entire A/C piping system must be flushed, and the A/C receiver-drier (accumulator) replaced. If the old compressor suffered internal scoring or fragmentation, residual metal debris in the lines could instantly damage the newly installed compressor.
Multi-ribbed pulley (PV / Poly-V groove)-typically in the 8PK (8-groove) specification-designed for use with the Front-End Accessory Drive (FEAD) system of MAN-technology engines.
SINOTRUK 24V MAN Engine Models A/C System Overhaul BOM Detailed List
| No. | Component Name | OE Part No. | Qty | Replacement Level | Remarks / Functional Description |
|---|---|---|---|---|---|
| I. Core Power Component (Must be replaced) | |||||

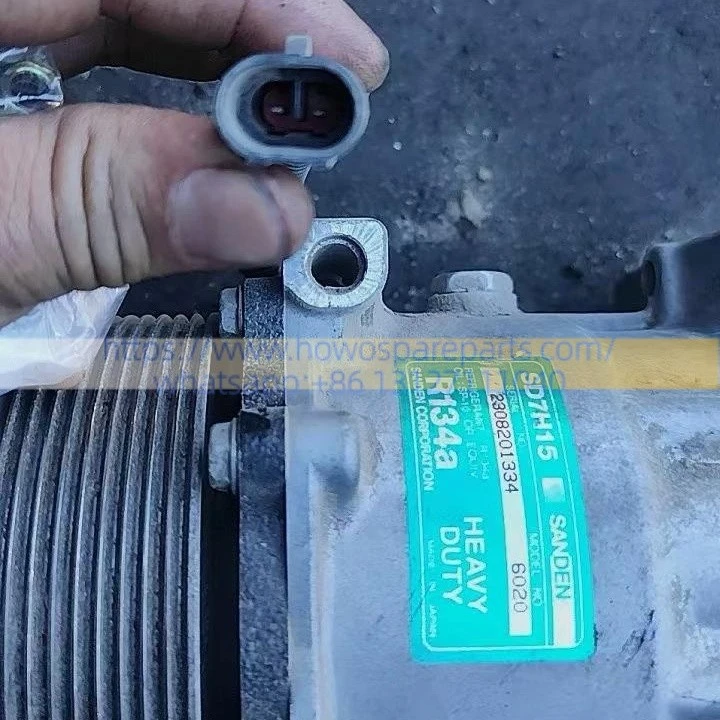

| 1 | A/C Compressor Assembly | 202V77970-7030 | 1 pc | Mandatory | This product; 24V/8PK drive; Sanden SD7H15 specification and technology. |
| II. Core Filtration & Throttling Components (Must be replaced simultaneously if compressor failed) | |||||
| 2 | A/C Receiver Drier (Filter Drier Bottle) | WG1664820013 (Depends on Model) | 1 pc | Mandatory | Filters moisture and impurities. The old drier traps metal debris from the failed compressor and must be replaced to protect the new one. |
| 3 | A/C Expansion Valve (TxV / Throttle Valve) | WG1664820025 (or OE Specific) | 1 pc | Highly Recommended | Responsible for high-pressure refrigerant throttling and atomization. The micro-orifices in the old valve easily clog with metal dust. |
| III. Belt Drive & Front End Accessory Drive (Replace based on wear/tear) | |||||
| 4 | Alternator & Compressor V-Ribbed Belt (8PK) | 082V26201-7151 (Depends on Engine) | 1 pc | Recommended | For MAN tech engines. Belts subjected to a seized compressor are usually stretched or scorched. |
| 5 | Belt Tensioner Assembly | 202V26201-7132 (Depends on Engine) | 1 pc | Inspect & Replace | Ensures proper 8PK belt tension. Replace if the bearing feels loose or makes noise. |
DETAILS
| DESCRIPTION | 24V AC Compressor | PART NUMBER | 202V77970-7030 |
| WEIGHT | 6kg | VOLUME | 230 × 160 × 170 mm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
