Shandong Shengyue Technology Development Co.,Ltd is one of the most professional xcmg truck crane permco hydraulic gear pump 1163134008i 803073887 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

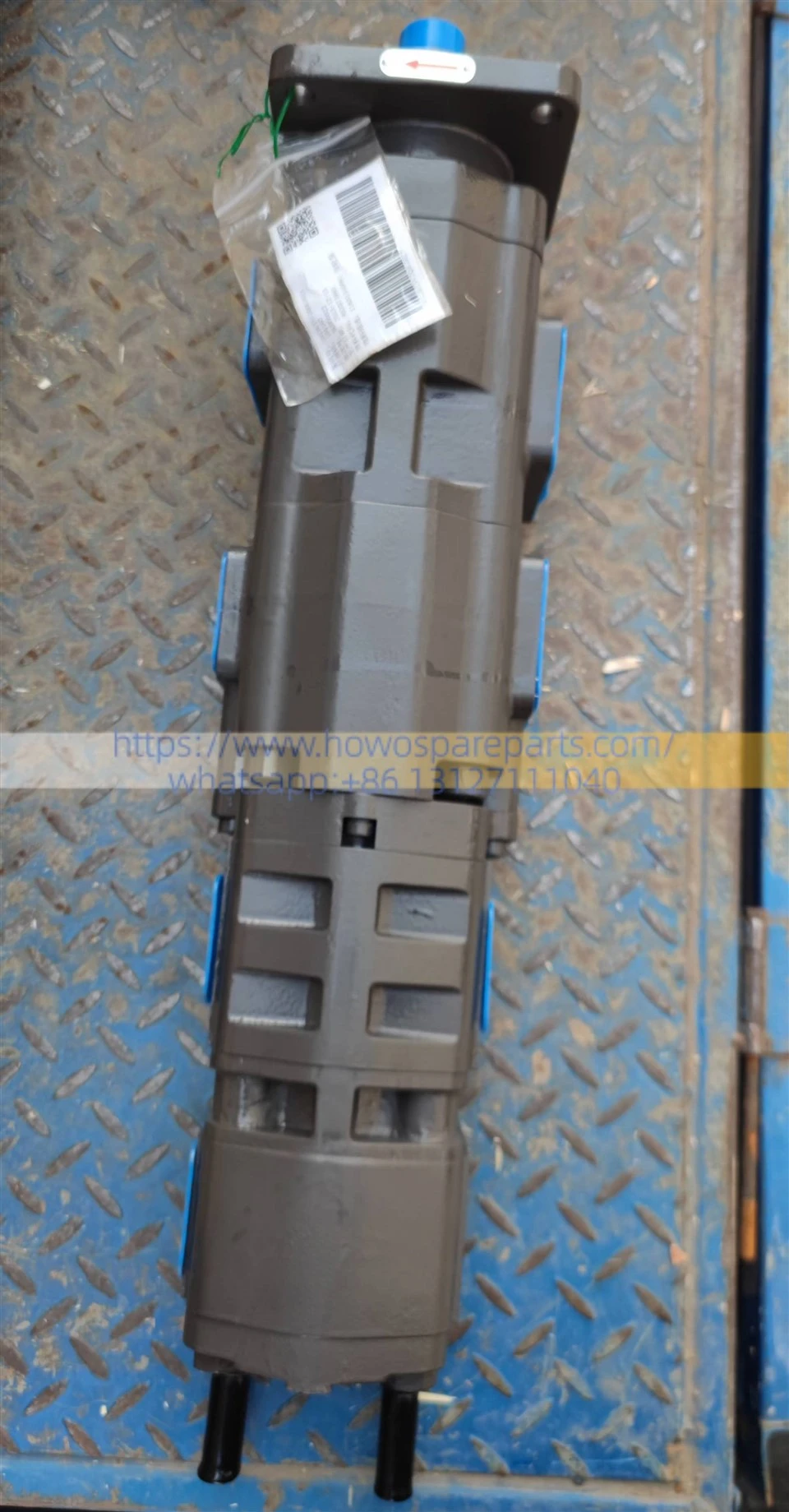

XCMG Truck Crane Permco Hydraulic Gear Pump 1163134008I 803073887

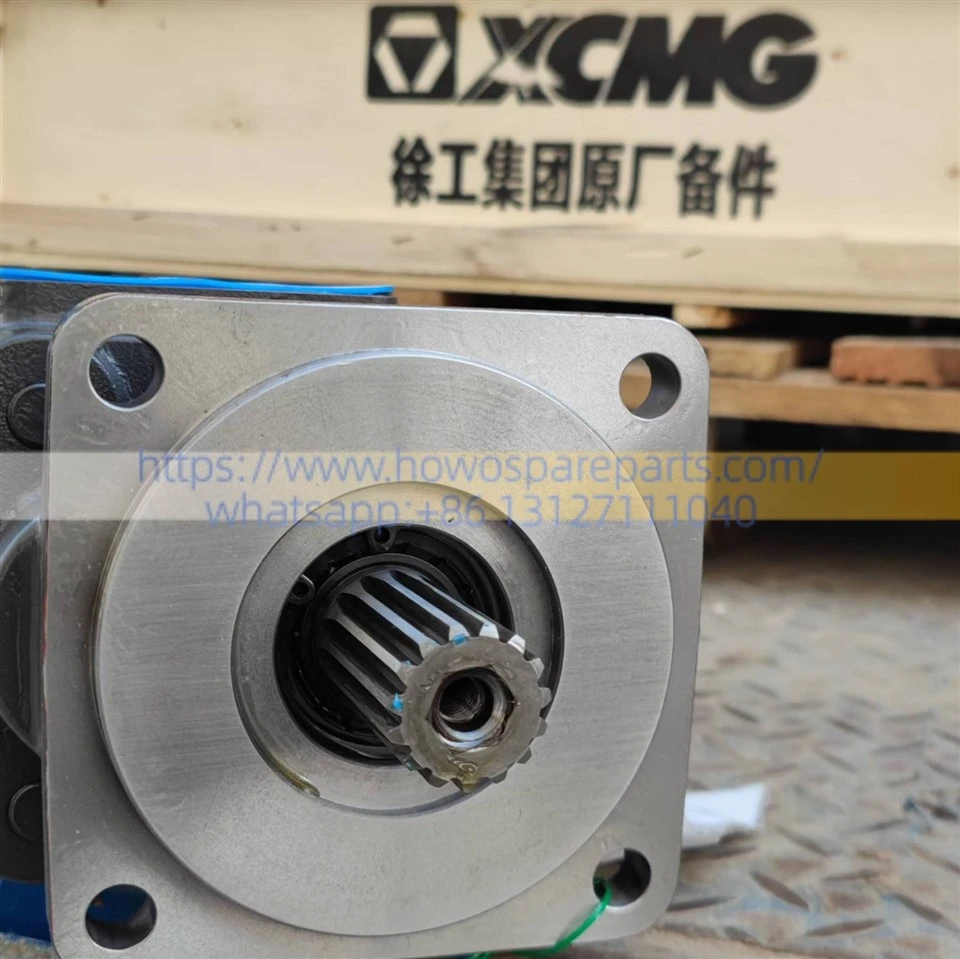

This assembly consists of front and rear pump bodies connected in series. Engine power is input via a single shaft, while two independent high-pressure hydraulic oil flows are output simultaneously to meet the requirements for compound movements of the crane's various operating mechanisms (such as simultaneous hoisting and slewing).
XCMG 50-Ton Truck Crane Hydraulic Main Pump System Overhaul BOM Detailed List
| No. | Component Name | OE / Manufacturer Part No. | Qty | Replacement Level | Remarks / Functional Description |
|---|---|---|---|---|---|
| I. Core Hydraulic Power Component (Inquired Items) | |||||
| 1 | Tandem Hydraulic Gear Pump Assembly | 803073887 / 1163134008I | 1 pc | Failure Replacement | This product; Permco original heavy-duty, high-pressure twin gear pump (main pump). |
| II. Drivetrain & Power Input Mechanism (Connection System) | |||||
| 2 | Power Take-Off Assembly (PTO) | Varies by chassis transmission specification | 1 pc | Inspect & Replace | The auxiliary gearbox driving the main pump; inspect for internal gear wear and backlash. |
| 3 | Drive Shaft Universal Joint (Cross Journal) | Specific crane drivetrain specification | 1 set | Highly Recommended | Connects the PTO to the pump input shaft. Play or binding causes severe shaft vibration, leading to premature oil seal failure. |
| III. Filtration & Contamination Control System (Must be replaced if old pump failed) | |||||
| 4 | Hydraulic Return Line Filter Element | 803164213 (Reference No.) | 2 pcs | Mandatory Overhaul | Filters all return line impurities. Metal debris from old pump scoring is trapped here; must be replaced to protect the new pump. |
| 5 | Hydraulic Suction Line Strainer / Filter | 803164522 (Reference No.) | 1 pc | Mandatory Overhaul | Located at the oil tank suction inlet; prevents larger raw contaminants from entering the new pump causing abrasion. |
| 6 | High-Pressure Flange O-Rings | High-pressure Fluororubber (Viton) O-Rings | 1 set | Mandatory | Dedicated high-pressure sealing rings for the pump inlet and outlet flanges. Do not reuse old ones. |
| IV. Hydraulic Fluids & Maintenance Consumables | |||||
| 7 | Anti-Wear Hydraulic Oil | Premium AW-46 or AW-68 Hydraulic Oil | A.R. | Mandatory | Depending on overall system oil contamination, perform a partial top-off (approx. 20–30L) or a complete fluid flush. |
DETAILS

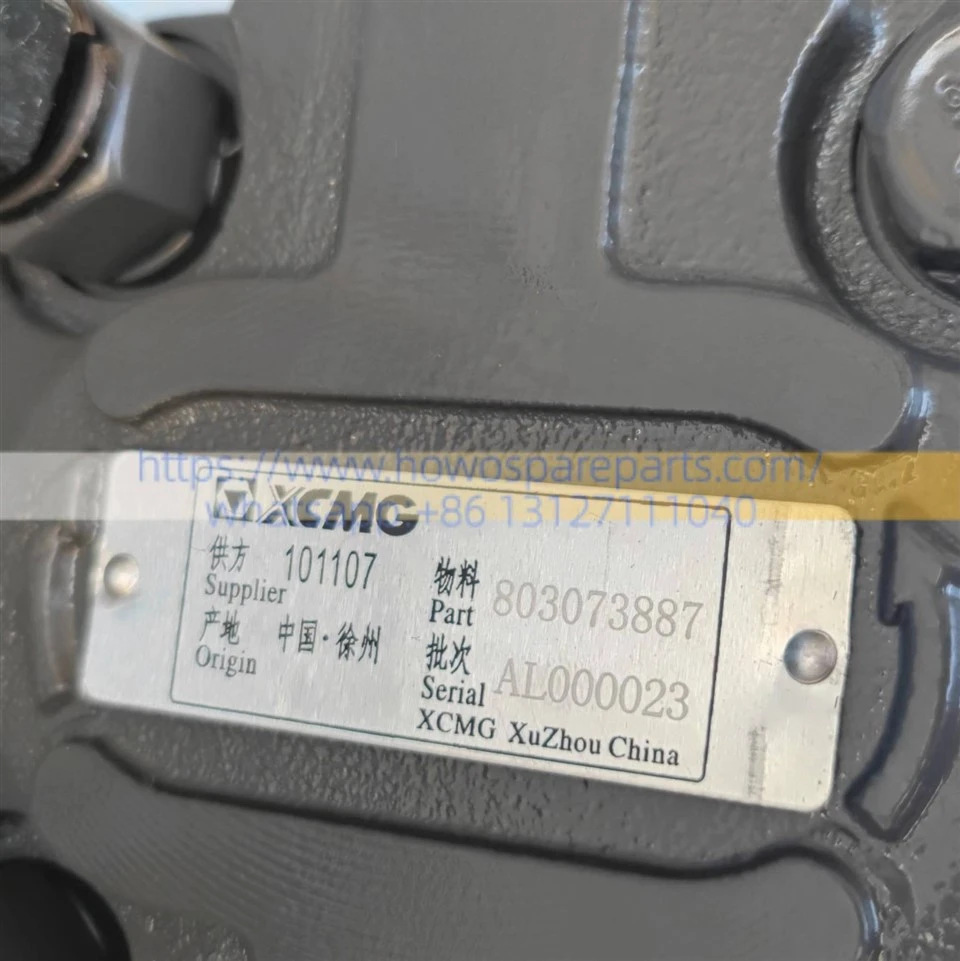

| DESCRIPTION | Hydraulic Gear Pump | PART NUMBER | 1163134008I 803073887 |
| WEIGHT | 50kg | VOLUME | 600 mm × 220 mm × 250 mm |
| TRUCK MOLDE | XCMG | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
