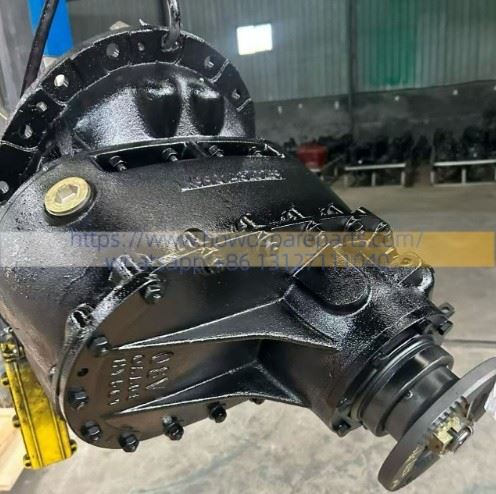

SINOTRUK HOWO Middle Axle Drive Assembly Main Reducer Axle Differential Assembly AZ9231320745
Compatible with HC16/ST16 dual rear axles; primarily used for Sinotruk's traditional 16-ton class dual-stage reduction drive axles.
Internal Core Components and Manufacturing Processes
1. Reinforced Differential: The assembly comes factory-equipped with a reinforced differential. Both the planetary gears and side gears are manufactured using a precision forging process, resulting in an impact load resistance that is over 20% higher than that of standard components.
2. Bearings and Seals: The unit features heavy-duty tapered roller bearings as standard, which offer superior heat and wear resistance. The housing oil seals have been reinforced to effectively block out mud and debris, preventing gear oil leakage-even under the high-temperature conditions typical of heavy-duty or mining operations.

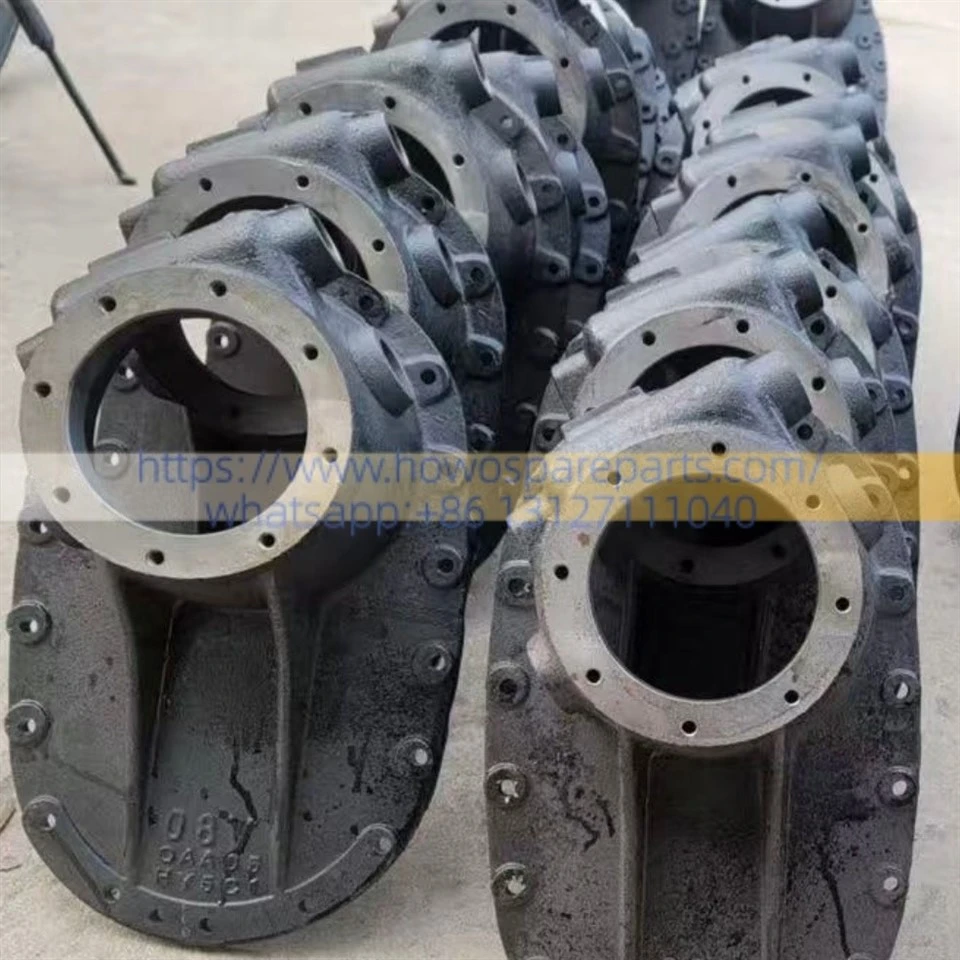

3. Housing Quenching Process: The cast-steel main reducer housing undergoes a quenching process, which imparts exceptional overall rigidity. This prevents minor deformation of the housing when the heavy-duty vehicle encounters rough terrain or muddy conditions, thereby ensuring the precise meshing of the ring and pinion gears.
Bill of Materials (BOM) - Sinotruk HOWO Main Reducer Assembly
| Module Category | No. | OEM Part Number | Description (English) | Standard Qty |
|---|---|---|---|---|
| Main Drive & Housing | 1 | AZ9231321215 | Crown Gear & Pinion Set (Ratio 5.73) | 1 Set |
| 2 | WG9231320155 | Input Flange Assembly (XS180 / 4-Hole) | 1 Pc | |
| 3 | WG9231320159 | Through Shaft (Input Shaft) | 1 Pc | |
| 4 | WG9231320227 | Main Reducer Housing (Casing) | 1 Pc | |
| Inter-Axle Differential Group (Balances Speed Between Axles) |
5 | WG9231320150 | Inter-Axle Differential Case Assembly | 1 Set |
| 6 | WG9231320165 | Inter-Axle Differential Cross Spider | 1 Pc | |
| 7 | WG9231320162 | Inter-Axle Differential Planet Gear (Satellite) | 4 Pcs | |
| 8 | WG9231320163 | Inter-Axle Planet Gear Thrust Washer | 4 Pcs | |
| 9 | WG9231320157 | Inter-Axle Side Gear | 2 Pcs | |
| 10 | WG9100710007 | Pneumatic Lock Shift Fork Assembly | 1 Set | |
| Inter-Wheel Differential Group (Balances Speed Between Wheels) |
11 | AZ9231320714 | Reinforced Inter-Wheel Differential Case | 1 Set |
| 12 | WG9231320119 | Inter-Wheel Differential Cross Spider | 1 Pc | |
| 13 | WG9231320117 | Inter-Wheel Differential Planet Gear | 4 Pcs | |
| 14 | WG9231320118 | Planet Gear Spherical Thrust Washer | 4 Pcs | |
| 15 | WG9231320121 | Inter-Wheel Differential Side Gear | 2 Pcs | |
| 16 | WG9231320122 | Side Gear Flat Thrust Washer | 2 Pcs |
DETAILS
| DESCRIPTION | Middle Axle Drive Assembly Main Reducer Axle Differential Assembly | PART NUMBER | AZ9231320745 |
| WEIGHT | 150kg | VOLUME | 450 mm × 450 mm × 450 mm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CHASSIS |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
