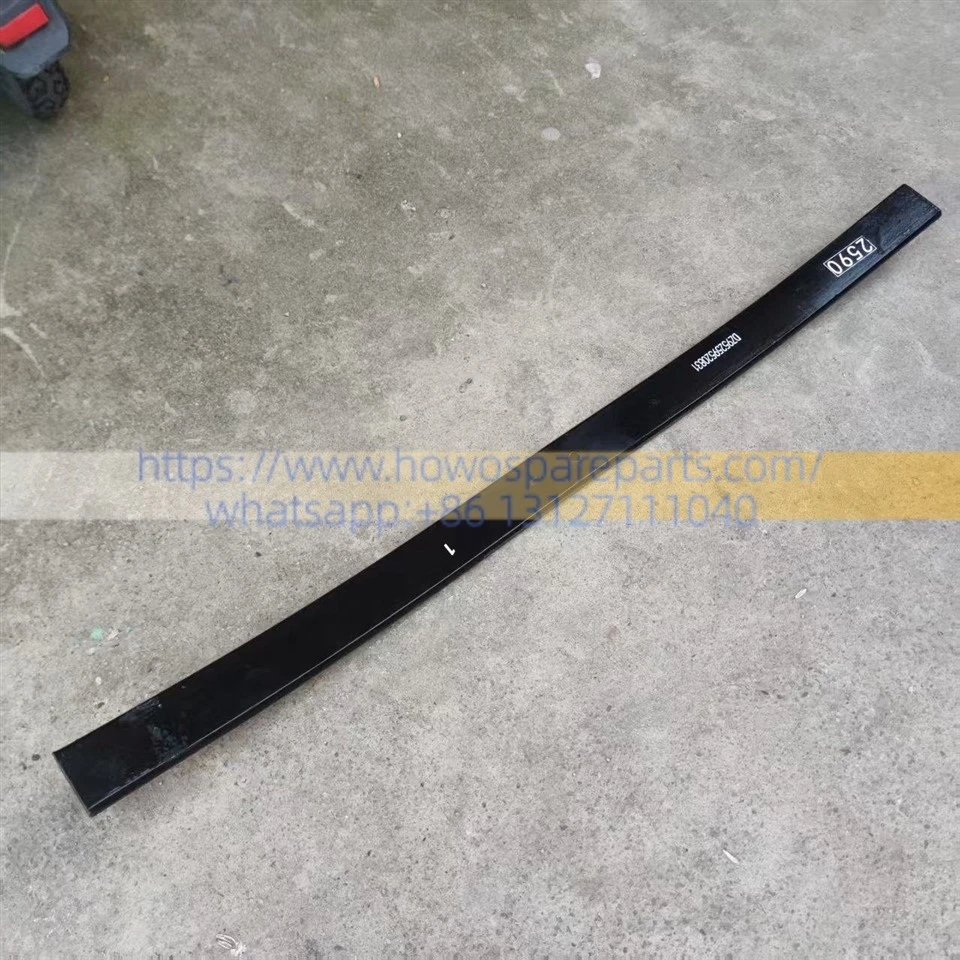

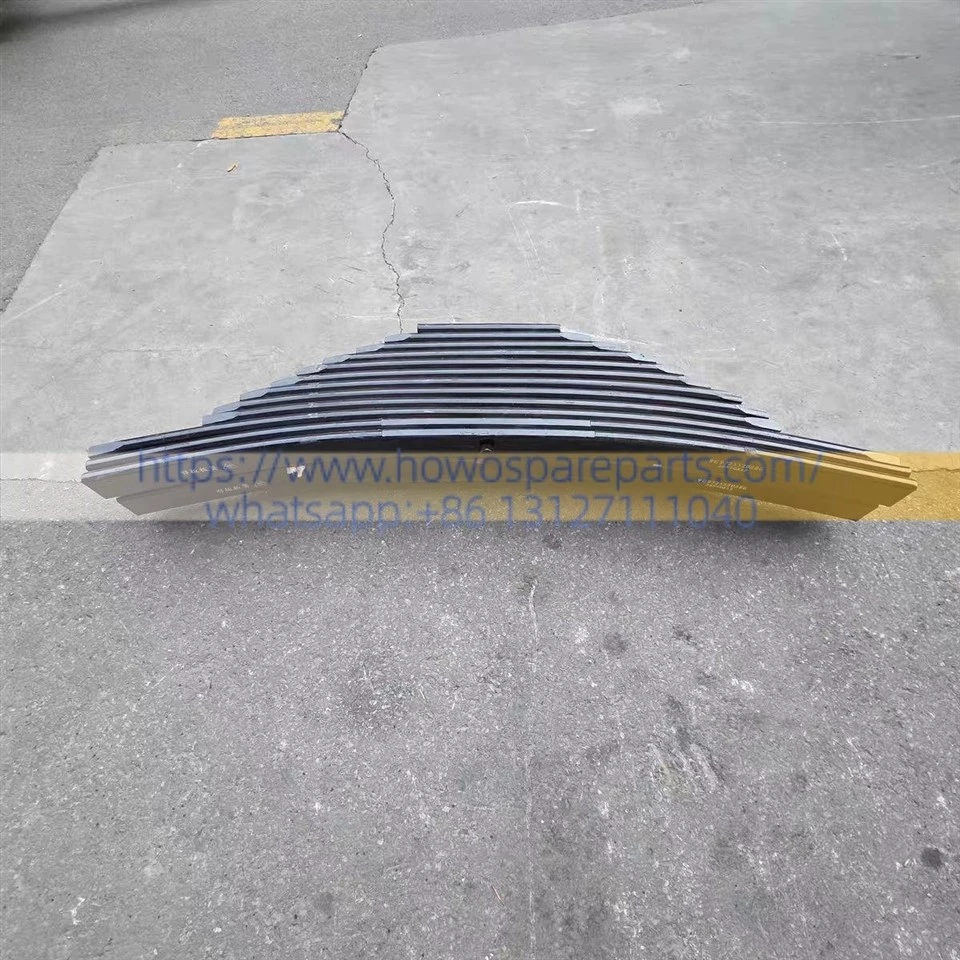

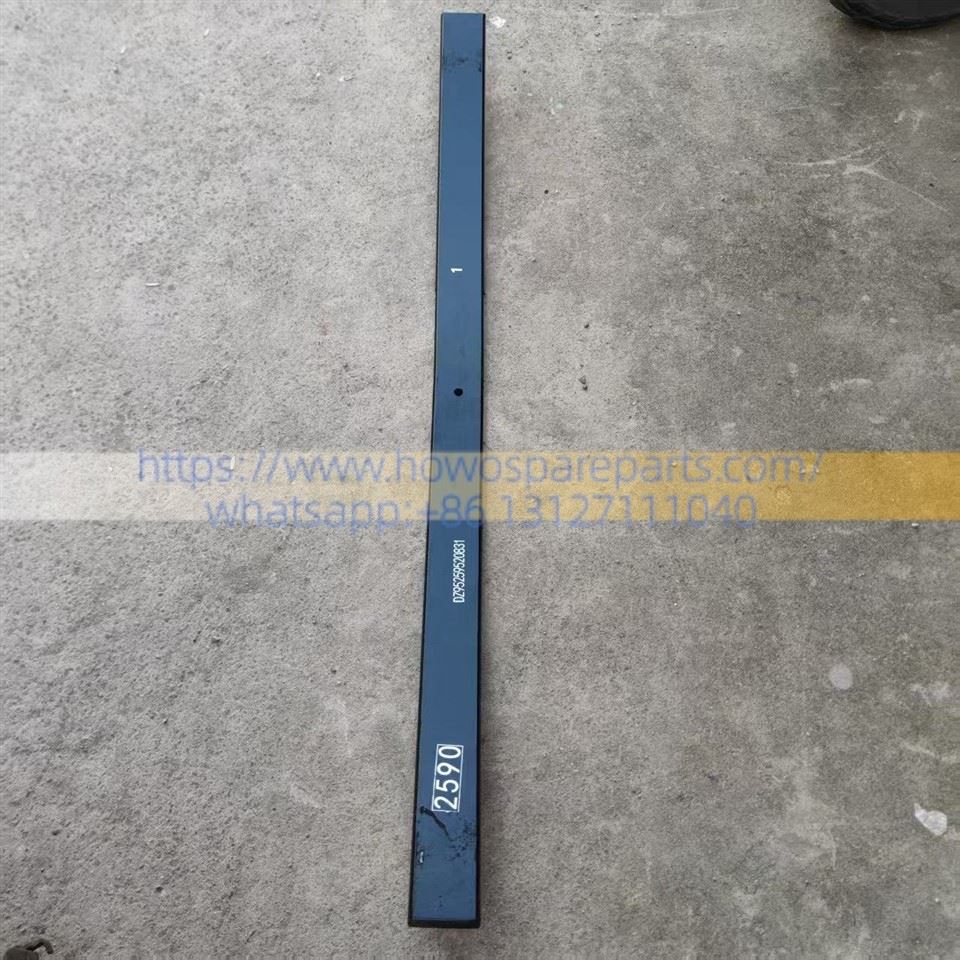

SHACMAN F3000,M3000,X3000 Rear Leaf Spring Assembly DZ95259520831
Loosening of the U-bolts is the primary cause of leaf spring breakage. After a heavy-duty truck has been in operation for some time, the U-bolts tend to loosen slightly due to stretching. Consequently, the center of the leaf spring is no longer clamped tightly; when the vehicle encounters bumps, the load-bearing fulcrum shifts to the center bolt hole-the weakest point-causing the steel leaves to snap cleanly at that location.
Maintenance Recommendation: Within 500 kilometers of installing a new assembly, the U-bolts must be re-tightened using a heavy-duty pneumatic impact wrench or a long breaker bar.
High-Strength Fasteners
| BOM ID | Part Name | Core Specifications / Installation Standard | Qty | Remarks & Safety Tips |
|---|---|---|---|---|
| BOM-02 | Rear Leaf Spring U-Bolts | SHACMAN Delong specific / M24 or M30 specs (Grade 10.9 / 12.9 high-tensile) |
4 pcs / side | Most critical safety component (root-cause part). Responsible for locking the leaf spring tightly onto the balancing shaft housing. Must be completely replaced during every overhaul [DZ95259520831]. |
| BOM-03 | U-Bolt High Nuts & Washers | High-strength fine-thread locknuts matching the U-bolts | 8 pcs / side | Must be used with high-strength flat washers. Tighten strictly to standard pre-load torque using a heavy pneumatic impact wrench or a torque multiplier. |
| BOM-04 | Leaf Spring Center Bolt | M16 / M18 elongated high-strength center bolt | 1 pc / assy | The core positioning pin that chains and longitudinally constrains the entire leaf spring bundle. Typically included within the assembly |
Suspension Bushings & Guides
| BOM ID | Part Name | Core Specifications / Spare Description | Qty | Remarks & Field Maintenance Tips |
|---|---|---|---|---|
| BOM-05 | Spring Pin | SHACMAN genuine heavy-duty alloy steel quenched & tempered pin shaft | 1-2 pcs / side | Connects the truck frame to the leaf spring end eyelet. Must be replaced if step-like wear grooves appear on the surface, otherwise it causes severe chassis clunking noise. |
| BOM-06 | Bi-metal Bushing | Press-fitted inside the rolled eyelet of the 1st main leaf | 1-2 pcs / side | Pairs with the spring pin. If excessive clearance/play develops, repress a new bushing using a hydraulic press machine and ensure grease channels remain unobstructed. |
| BOM-07 | Rubber Buffer / Bump Stop | Thickened oil-resistant rubber buffer block above the suspension | 1 pc / side | Acts as a cushion to protect the frame and rear axle from rigid collision when the vehicle encounters extreme bumps and the leaf spring is fully compressed. |
| BOM-08 | MoS2 Heavy Duty Grease | Extreme pressure anti-wear heavy duty black grease | 1 tub (Field apply) |
Pump into the spring pin grease nipples during assembly and apply evenly on the contact surface between the leaf spring center and balancing shaft seat for high-pressure anti-wear lubrication. |
DETAILS
| DESCRIPTION | Rear Leaf Spring Assembly | PART NUMBER | DZ95259520831 |
| WEIGHT | 200kg | VOLUME | 165 cm × 9 cm × 47 cm |
| TRUCK MOLDE | SHACMAN | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CHASSIS |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
