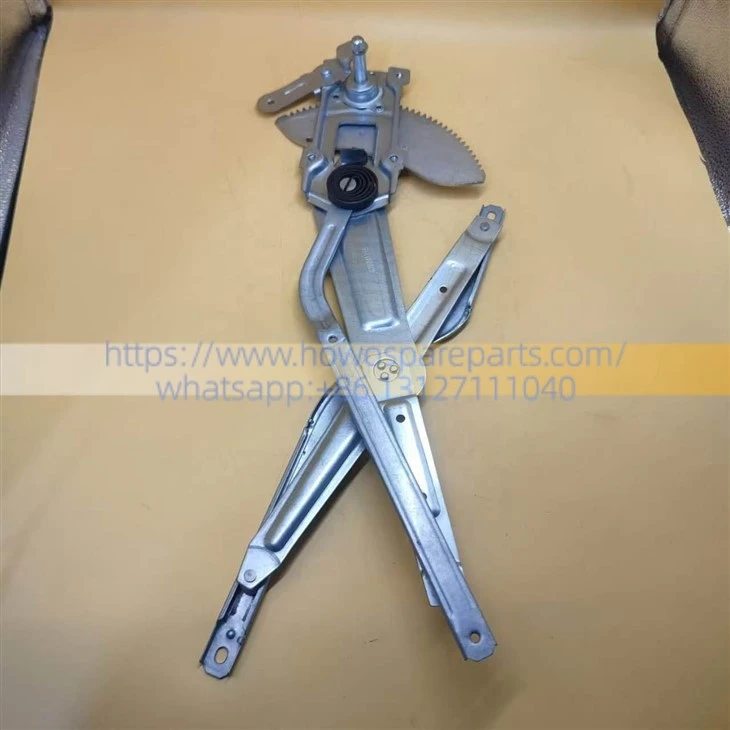

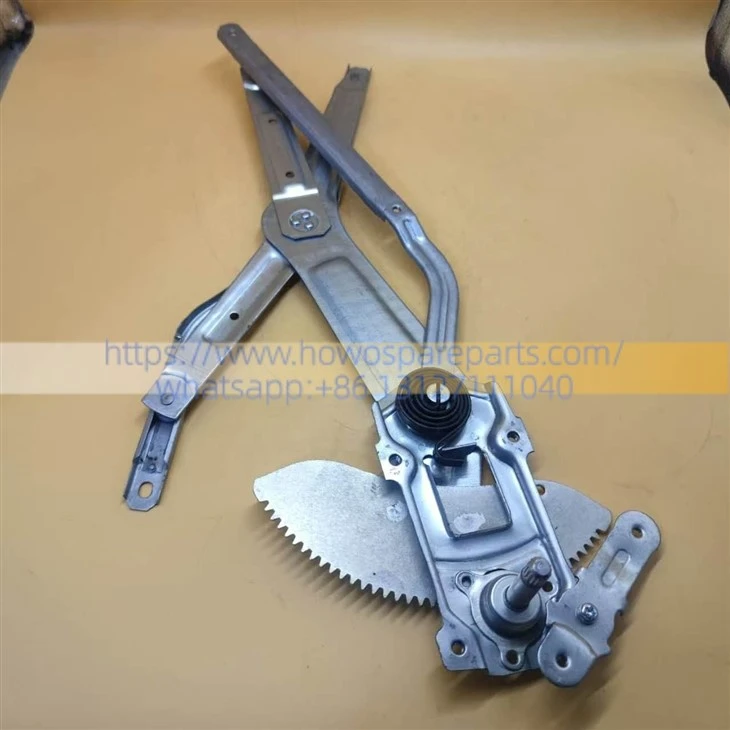

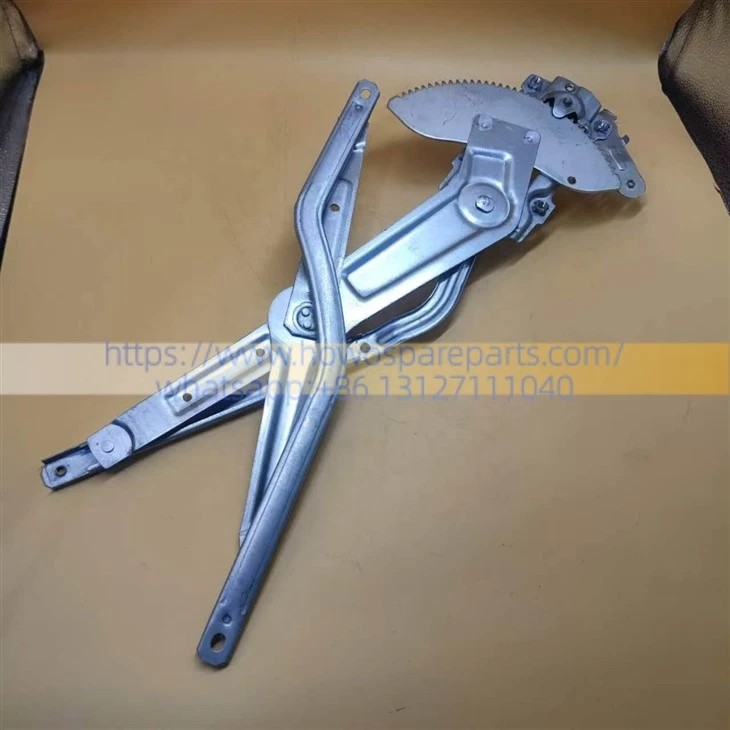

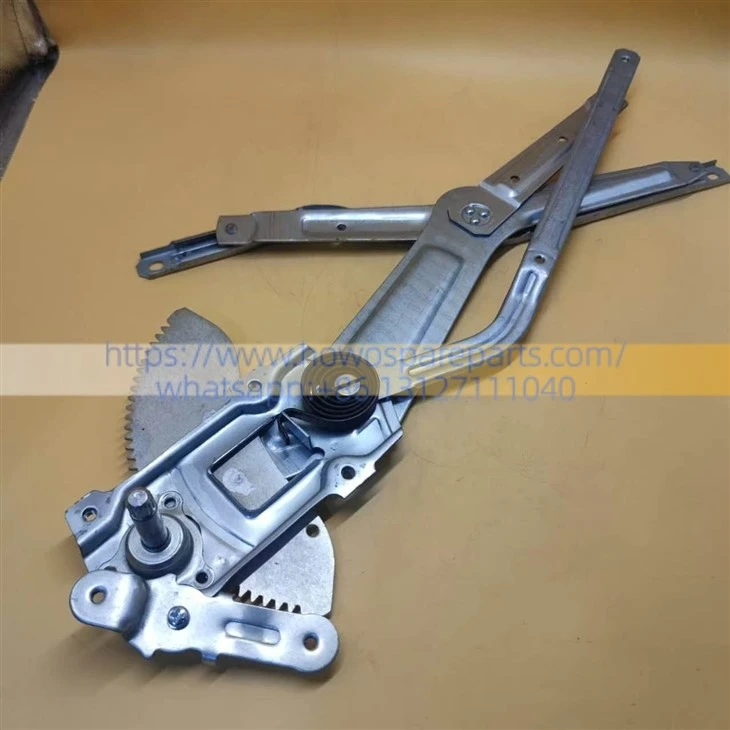

HINO Trucks 500 Series & 700 Series Door Window Regulator Assembly 68410-1340 69820-E0020 68410-1290
Regulator Core Assemblies
| BOM ID | Part Name | Core Specifications / OEM Cross-Ref | Qty |
|---|---|---|---|
| BOM-01 | Window Regulator LH (Left Hand) | 68410-1340 |
1 pc |
| BOM-02 | Window Regulator RH (Right Hand) | 68410-1290 | 1 pc |
| BOM-03 | Electric Window Regulator Assembly LH | 69820-E0020 | 1 set |
Electrical & Driving Components
| BOM ID | Part Name | Core Specifications / Selection Notes | Qty | Remarks & Functional Description |
|---|---|---|---|---|
| BOM-04 | 24V Window Regulator Motor | HINO 700 specific (2-pin or 6-pin connector plug) | 1 pc | Motor burned out or weak. Replace individually if a relay click is heard when pressing the switch but the glass does not move, or if lifting is extremely slow and the motor overheats. |
| BOM-05 | Window Master Control Switch | HINO 700 / 500 specific multi-switch assembly | 1 pc | Replace if internal contacts are eroded or water-damaged, causing failure to control the window lifting on either side. |
Cabin Sealing & Fasteners
| BOM ID | Part Name | Core Specifications / Torque Standard | Qty | Remarks & Field Maintenance Tips |
|---|---|---|---|---|
| BOM-06 | Glass Run Rubber / Channel | HINO genuine specification EPDM anti-vibration rubber | 1 pc/door | Critical Preventive Part. Old rubber channels gather sand/dust and harden over time, doubling lifting resistance. Highly recommended to replace simultaneously to protect the new motor from burning out. |
| BOM-07 | Regulator Mounting Bolts & Nuts Kit | M6 / M8 galvanized flanged anti-loosening bolts | 1 set/door | Long-term heavy truck vibrations can loose inner door screws. Replacing all screws with a touch of medium-strength thread locker is advised. |
| BOM-08 | Low-Temp Lithium Grease | Specialized white lithium grease for sunroofs/door rails | 1 tube (Field apply) |
Apply to the scissor arm joints and rail grooves during assembly to provide long-term lubrication and eliminate squeaking noises. |
DETAILS
| DESCRIPTION | Door Window Regulator Assembly | PART NUMBER | 68410-1340 69820-E0020 68410-1290 |
| WEIGHT | 5kg | VOLUME | 430 mm × 430 mm × 115 mm |
| TRUCK MOLDE | HINO | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CABIN |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
