Shandong Shengyue Technology Development Co.,Ltd is one of the most professional shacman f2000、f3000、x3000、m3000 balance shaft housing/equalizer housing dz91259520038 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

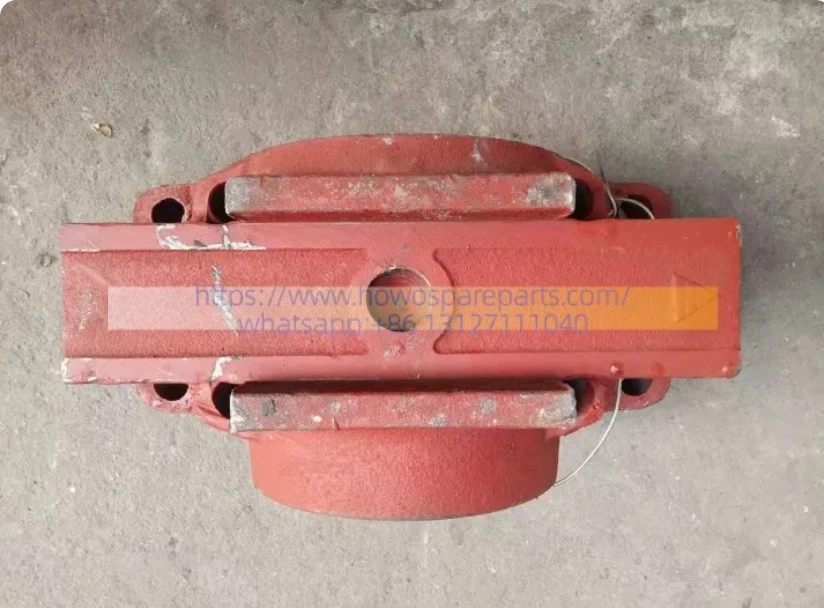

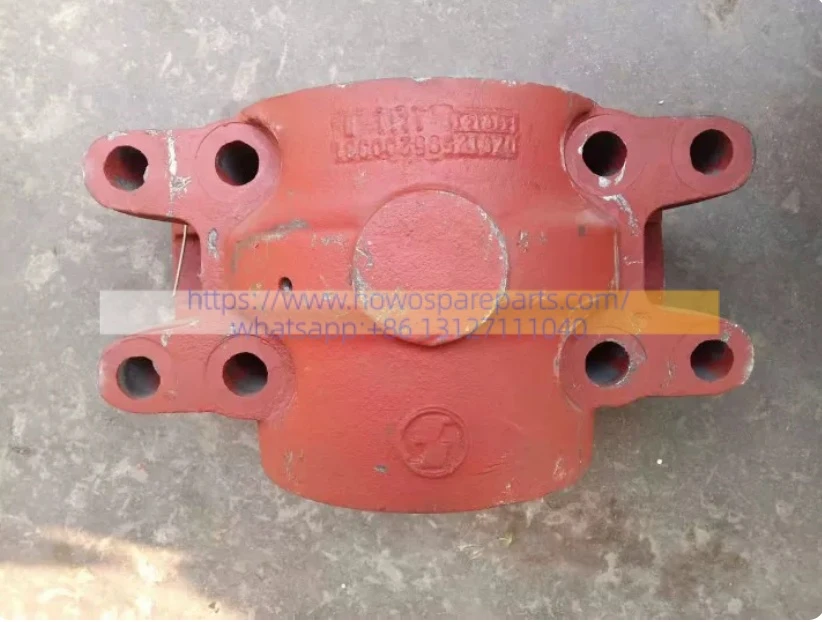

SHACMAN F2000,F3000,X3000,M3000 Balance Shaft Housing/Equalizer Housing DZ91259520038
Installed at the center of the equalizer shaft assembly located between the tandem rear axles (specifically between the intermediate and rearmost axles) of heavy-duty trucks, this component serves as the critical connection point between the leaf springs and the main chassis frame. It tightly encases the equalizer shaft using rubber or bronze bushings; through axial oscillation, it evenly distributes the load across the intermediate and rear axles when the truck is fully loaded, traversing rough terrain, or climbing slopes.
BOM (Bill of Materials) for DZ91259520038 Balance Shaft Housing Replacement
| Part Category | Replacement Recommendation | Reference Part No. | Part Name (English) | Qty per Side | Description & Remarks |
|---|---|---|---|---|---|
| 1. Suspension Skeleton | Core Replacement | DZ91259520038 | Balance Shaft Housing (Double-Clip Type) | 1 pc | The core part to be replaced. Supports the rear leaf springs and pivots on the balance shaft. |
| Optional (Upon Wear) | DZ91259520032 | Balance Shaft / Bracket Assembly (Hollow Shaft) | 1 pc | Inspect the shaft journal. Replace if it is scored, out-of-round, or seized due to the old housing failing. | |
| 2. Anti-Friction & Oil Sealing | 100% Mandatory | DZ9100520042 / Bronze Bushing | Balance Shaft Bushing (Bimetallic/Rubber) | 2 pcs | Core element to eliminate play. Press-fitted inside the housing. Reusing old worn bushings will ruin the new housing rapidly. |
| (Essential to Prevent Leaks) | 100% Mandatory | 190003989311 | Balance Shaft Oil Seal (Fluororubber/FKM) | 2 pcs | Prevents gear oil or lubricating grease from leaking out, while blocking mud and sand from entering. |
| 100% Mandatory | O-Ring Series | Cover O-Ring / Rectangular Gasket | 1-2 pcs | Ensures a perfect flush seal for the balance shaft outer cover to prevent slow oil weeping. | |
| 3. Heavy-Duty Fasteners | 100% Mandatory | DZ91259520112 / U-Bolt | Balance Shaft Clamping Bolt / U-Bolt | 2-4 pcs | Secures the leaf spring assembly. These high-strength fasteners stretch under extreme torque and must never be reused. |
| 100% Mandatory | Washer & Nut Kits | Locking Washers & Heavy Duty Nut Set | 1 set | Ensures that the balance shaft cover and clamping clips do not back off under severe off-road vibration. | |
| Recommended | DZ91259520039 | Balance Shaft End Cover | 1 pc | Protects the shaft end. Replace if the old cover is cracked or its threads are stripped. | |
| 4. Lubricants & Workshop Supplies | 100% Mandatory | GL-5 85W-90 / MoS2 Grease | Heavy Duty MoS2 Grease / Gear Oil | As req. | Must be fully packed inside the housing during assembly to eliminate dry-friction wear during early operation. |
DETAILS
| DESCRIPTION | Balance Shaft Housing/Equalizer Housing | PART NUMBER | DZ91259520038 |
| WEIGHT | 20kg | VOLUME | 30 cm × 30 cm × 20 cm |
| TRUCK MOLDE | SHACMNAN | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CHASSIS |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
