SINOTRUK D12,WD615 ENGINE Rear Engine Mount / Engine Rear Support Rubber Pad WG9725592131

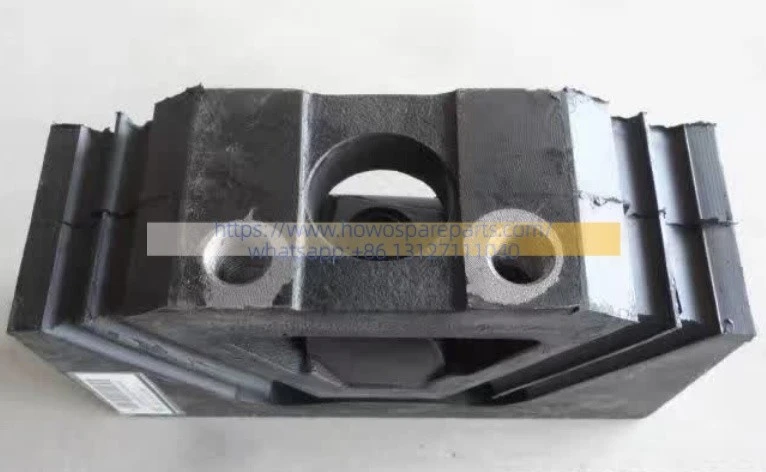

It is installed between the chassis frame and the flywheel housing brackets located on both sides of the rear of the engine (near the transmission connection). Given the immense weight and massive explosive torque characteristic of heavy-duty truck engines, this rubber mount-utilizing a steel plate and a specialized structural design-firmly supports the engine's weight. It also absorbs high-frequency engine vibrations and road-induced shocks during operation, thereby preventing vehicle body resonance.
Inspection Intervals
Routine Inspection: Every 10,000 km driven or every 300 operating hours (inspect visually using a flashlight during chassis lubrication and maintenance).
In-depth Tightening: For new vehicles or after a major overhaul involving gasket replacement, the long central bolt must be retightened using a torque wrench after the initial 1,500 km of operation.
BOM (Bill of Materials) for SINOTRUK WG9725592131 Rear Engine Mounting Pad Replacement
| Part Category | Replacement Recommendation | Reference Part No. | Part Name (English) | Qty per Vehicle | Description & Remarks |
|---|---|---|---|---|---|
| 1. Mounting Core Units | Core Replacement | WG9725592131 | Rear Engine Mounting Pad (Rear Support) | 2 pcs | The core part to be replaced. Symmetrical left & right pieces. Highly recommended to replace as a pair to prevent uneven stress and premature tearing. |
| Recommended | WG9725592132 (Ref.) | Front Engine Mounting Pad (Front Support) | 1-2 pcs | Rear mount failures are usually accompanied by aging of front mounts. Synchronous replacement thoroughly eliminates idle/start-up vibration. | |

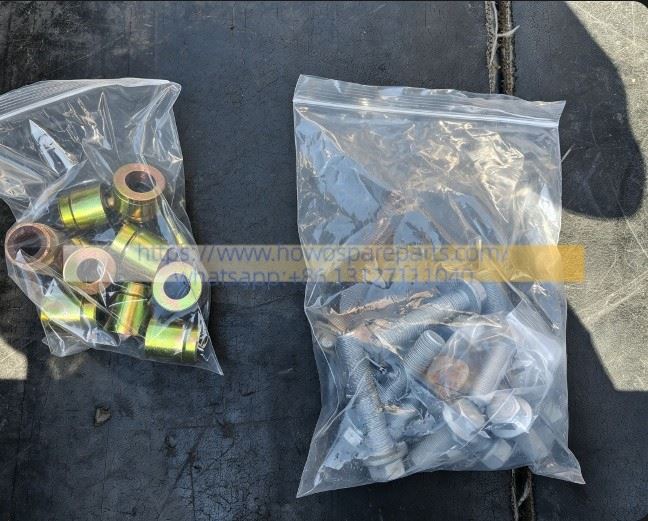

| 2. Heavy-Duty Fasteners | 100% Mandatory | Q151B14115 / Q151B14125 | High-Strength Center Long Bolt (M14) | 2 pcs | Critical Safety Component. Passes vertically through the rubber core to lock it to the frame bracket. Stretches under high torque; never reuse old bolts. |
| (Safety Items: Reusing Forbidden) | 100% Mandatory | Q341B14 | High-Strength Hex Lock Nut (M14) | 2 pcs | Mates with the center long bolt. Features a one-time self-locking structure; must be replaced as a mandatory safety item. |
| Recommended | Heavy Washer Series | Heavy-Duty Flat & Spring Washers | 1 set | Provides continuous axial clamping elasticity to prevent the nut from backing off under heavy-duty off-road vibrations. | |
| 3. Brackets & Frame Fixings | Recommended | Q150B1235 (Common Ref.) | Bracket Mounting Bolts (M12×35) | 6-8 pcs | Used to rigidly secure the support brackets to the chassis frame rail. Replace if threads are stripped or heavily rusted. |
| Optional (As Needed) | WG9725591040 (Ref.) | Engine Rear Support Bracket (L/R) | 1 set | Commonly known as the horseshoe bracket. Replacement is unnecessary unless cracked or deformed in a severe collision. | |
| 4. Workshop Supplies | Recommended | Engine Degreaser | Engine Degreaser / Solvent Cleaner | 1 can | Essential overhaul supply. Used to clear old sludge from mounting interfaces. Residual engine oil will quickly rot and degrade the new rubber. |
DETAILS
| DESCRIPTION | Rear Engine Mount / Engine Rear Support Rubber Pad | PART NUMBER | WG9725592131 |
| WEIGHT | 2kg | VOLUME | 16.5 cm × 11.5 cm × 9.5 cm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
