Shandong Shengyue Technology Development Co.,Ltd is one of the most professional danfoss eaton vickers two-stage pilot-operated solenoid relief/unloading valve cg5v-8gw-d-m-u-h7-11 859553 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

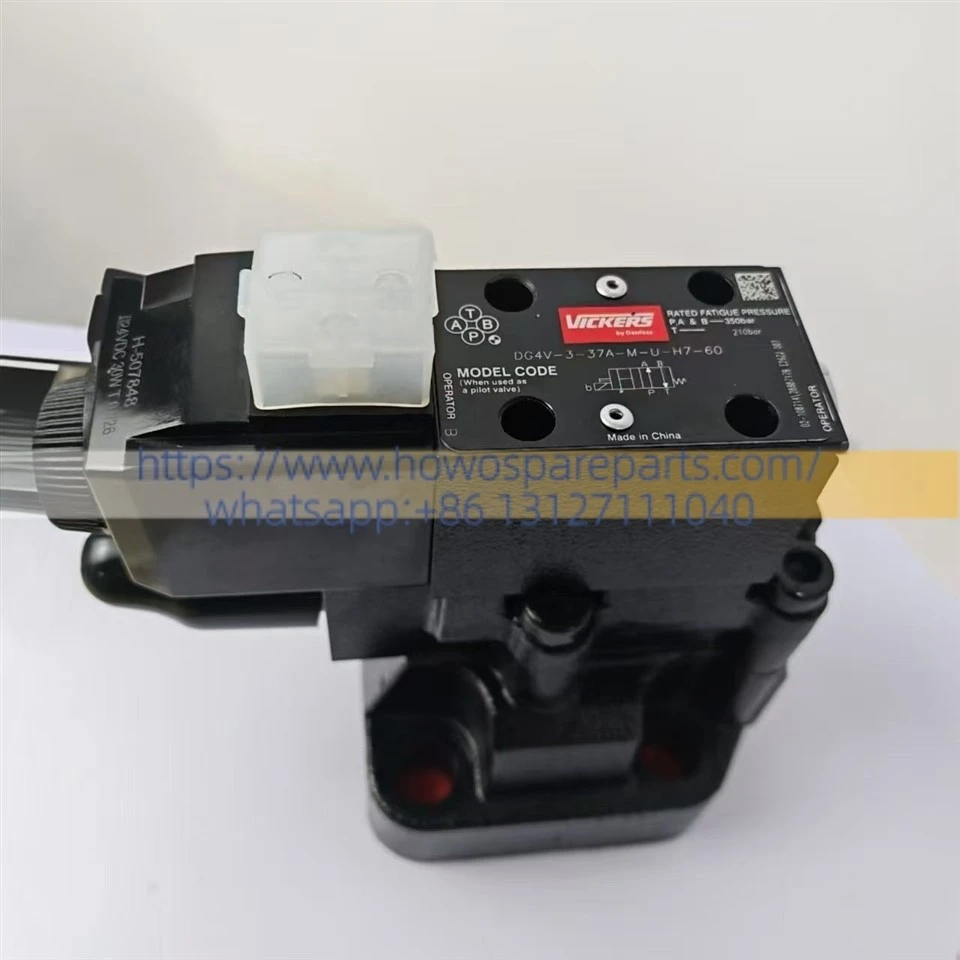

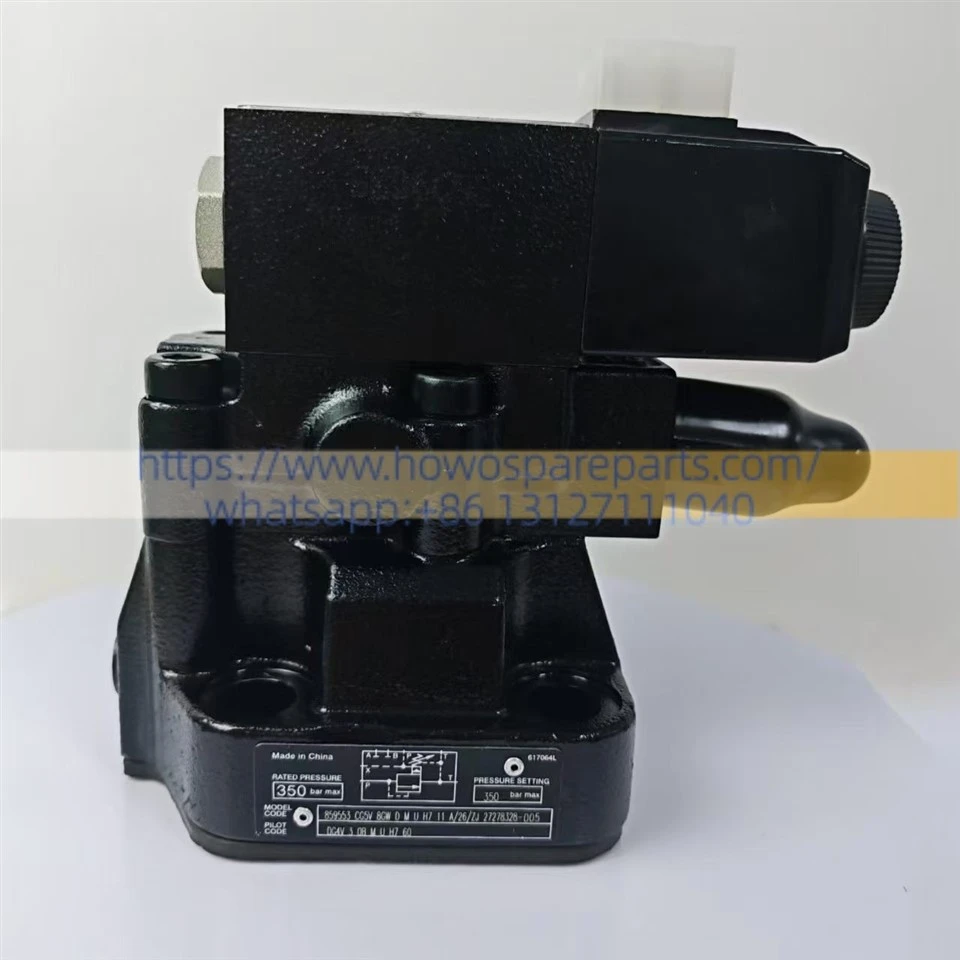

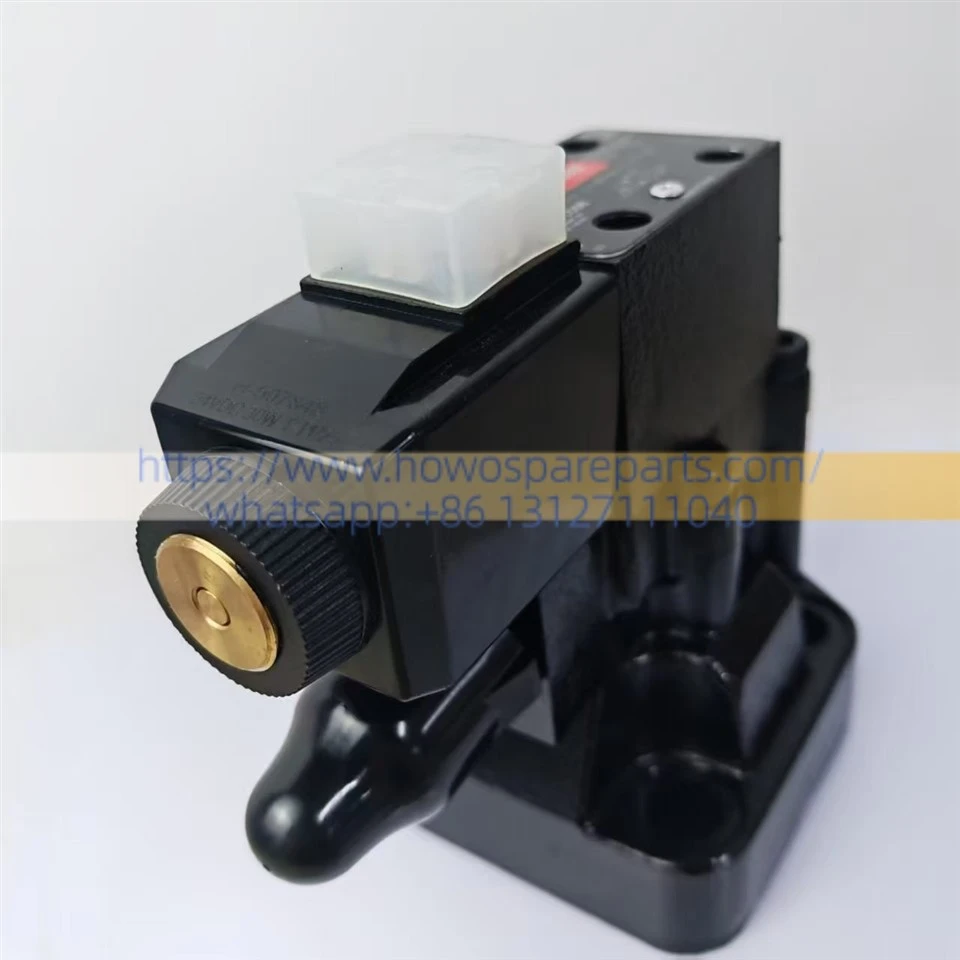

Danfoss Eaton Vickers Two-Stage Pilot-Operated Solenoid Relief/Unloading Valve CG5V-8GW-D-M-U-H7-11 859553
Application Scenarios
1. Die-casting and Injection Molding Machines: During the pressure-holding or cooling/waiting phases, the control system uses electrical signals to rapidly switch the system to a low-pressure, no-load unloading state, thereby significantly reducing hydraulic oil temperature and motor energy consumption.
2. Heavy-duty Hydraulic Presses and Stamping Machines: Serves as a core safety pressure-limiting valve in the main circuit, providing overpressure protection and enabling low-pressure circulation during the rapid, no-load return stroke of the slide.
3. Heavy-duty Machine Tools and Steel Mill Automation: Utilized in large-scale industrial hydraulic power units to regulate the maximum system pressure during transitions between fixture clamping and the stationary state of various actuators.
4. Marine and Deck Machinery: Employed in hydraulic systems for marine anchor windlasses, winches, cranes, and steering gear; it handles sudden overload shocks in harsh environments to ensure pipeline safety.
Routine Maintenance & Wear Parts (Seal & Coil Kits)
| BOM ID | Part Name | Core Specifications / OEM Cross-Ref | Qty | Failure Match & Functional Description |
|---|---|---|---|---|
| BOM-01 | Solenoid Coil | 02-178121 (24V DC / 30W / DIN 43650) |
1 pc | Coil burnout/open circuit. Replace this first if the PLC outputs 24V but the solenoid valve fails to actuate (fails to vent or build pressure). |
| BOM-02 | Main Interface O-Ring Kit | Buna-N / NBR Conforming to ISO 6264 AR-08 |
1 set | External leakage at the valve base or manifold interface. Includes high-pressure O-rings and backup rings for the main P (pressure) and T (tank) ports. |
| BOM-03 | Hirschmann Connector Plug | DIN 43650 (ISO 4400 3-Pin Standard Plug) |
1 pc | Replace in case of plug aging, internal water ingress, poor electrical contact, or missing LED indicator light. |
Core Functional Assemblies (Pilot & Main Stage Assemblies)
| BOM ID | Part Name | Core Specifications / Selection Notes | Qty |
|---|---|---|---|
| BOM-04 | Pilot Solenoid Valve Assembly | DG4V-3-0B-M-U-H7-60 (Standard Cetop 03 / NG6 Spec) |
1 unit |
| BOM-05 | Main Stage Cartridge Kit | Fits CG5V-8 / 11 Series (Includes main spool, main spring, and sleeve) |
1 set |
| BOM-06 | Manual Adjuster Kit | Pressure adjustment mechanism with locknut | 1 set |
Structural & Mounting Fasteners (Standard Hardware)
| BOM ID | Part Name | Core Specifications / Torque Standard | Qty |
|---|---|---|---|
| BOM-07 | Main Valve Mounting Bolts | M16 or US 5/8"-11 (Grade 12.9 High-Tensile Socket Head Cap Screws) |
4 pcs |
| BOM-08 | Pilot Valve Mounting Screws | M5 (Grade 12.9 High-Tensile Screws) |
4 pcs |
DETAILS
| DESCRIPTION | Two-Stage Pilot-Operated Solenoid Relief/Unloading Valve | PART NUMBER | CG5V-8GW-D-M-U-H7-11 859553 |
| WEIGHT | 10kg | VOLUME | 169.0 mm × 106.7 mm × 203.2 mm |
| TRUCK MOLDE | Danfoss Eaton Vickers | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
