Shandong Shengyue Technology Development Co.,Ltd is one of the most professional howo t7h/ tx sitrak c7h/g7h gear shift lever unit / integrated tcu controller az970024000060 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

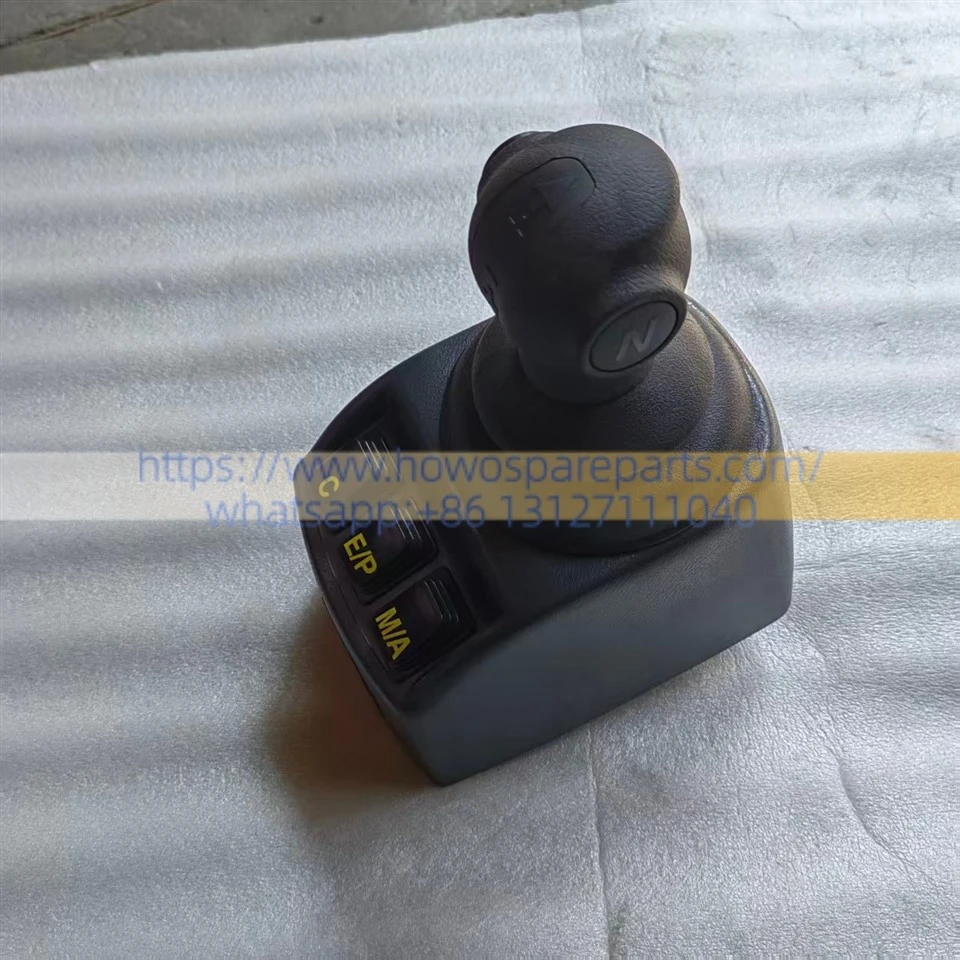

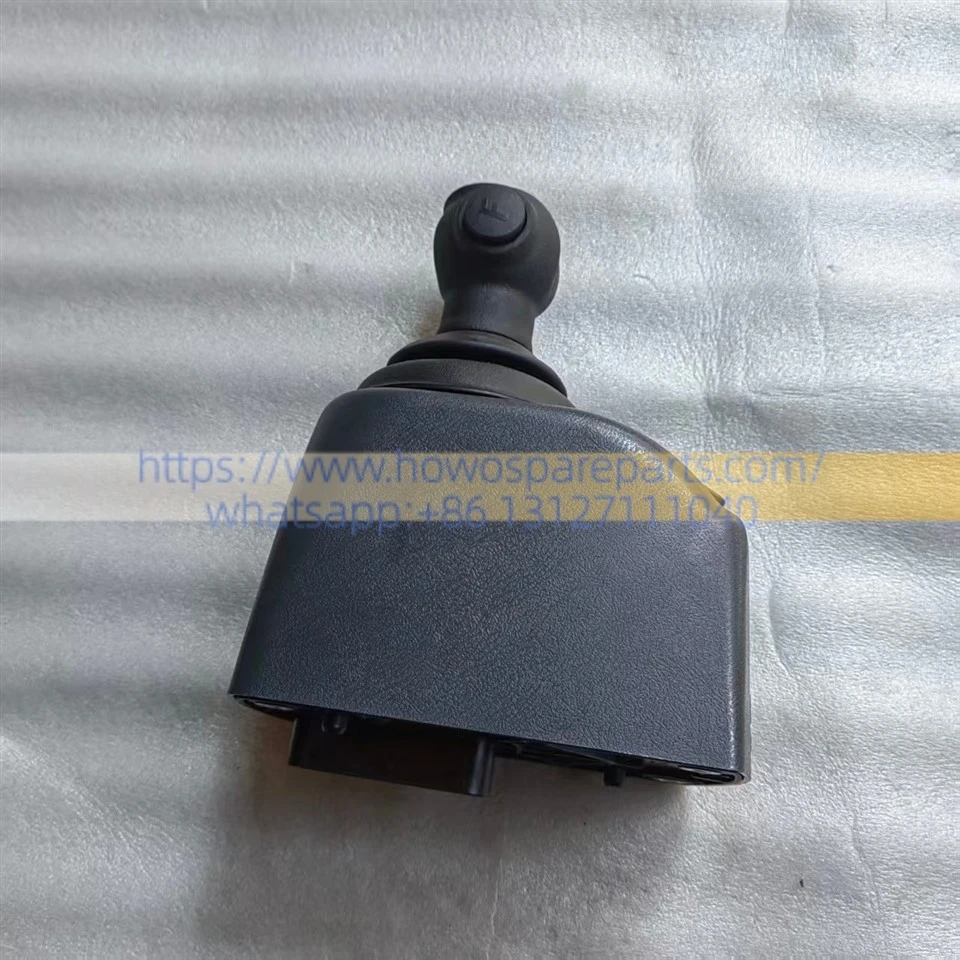

HOWO T7H/ TX SITRAK C7H/G7H Gear Shift Lever Unit / Integrated TCU Controller AZ970024000060
Key Features

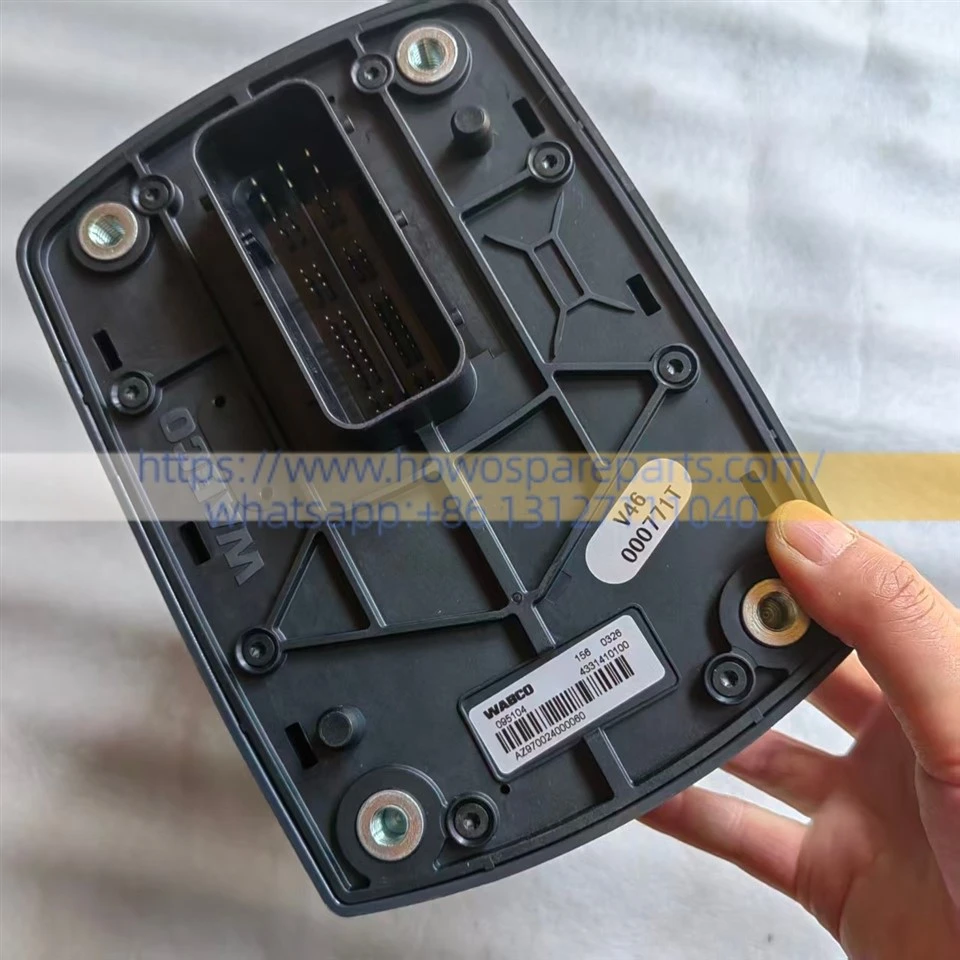

1. Highly Integrated Design (Integrated TCU): The unit's base houses an intelligent control motherboard and sensor chips. It directly captures gear-shifting commands and transmits digital signals straight to the transmission's pneumatic or electric actuators.

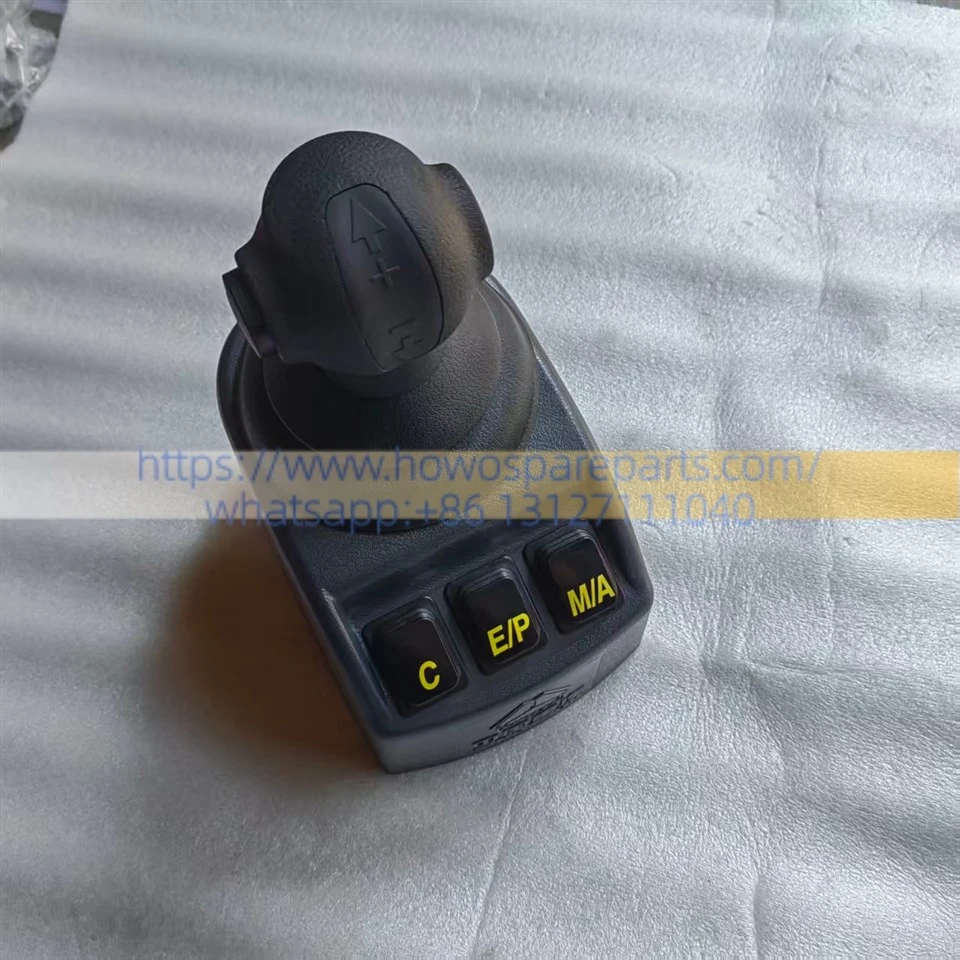

2. Multi-Mode Switching Control: The shift lever integrates the various function buttons required for truck AMT systems.
A/M Button: One-touch switching between Automatic and Manual driving modes.
E/P Button: Toggles between Economy and Power modes to adjust shift timing based on conditions such as heavy-load hill climbing or high-speed driving with an empty load.
Functional Gears: Clearly controls D (Drive), N (Neutral), and R (Reverse).
Manual Gear Shifting: In Manual (M) mode, drivers can manually upshift or downshift by pushing/pulling the lever or using side-mounted paddle shifters.
Common Faults and Replacement Information
1. Mainboard Burnout/Water Damage: Accidental liquid spills on the gear-shifting panel can short-circuit the integrated TCU circuit board, resulting in symptoms such as the inability to switch to automatic mode or error messages preventing gear engagement.
2. Microswitch/Button Failure: Frequent use can cause spring fatigue or internal contact oxidation in the A/M or E/P buttons located on the side of the handle, rendering them unresponsive.
3. Matching and Programming: A dedicated Sinotruk diagnostic tool (EOL diagnostic system) is required to perform anti-theft matching and parameter programming with the vehicle's ECU and transmission actuator; failure to do so may prevent the vehicle from starting.
DETAILS
| DESCRIPTION | Gear Shift Lever Unit / Integrated TCU Controller | PART NUMBER | AZ970024000060 |
| WEIGHT | 1.5 kg | VOLUME | 165 mm × 125 mm × 210 mm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | GEARBOX |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
