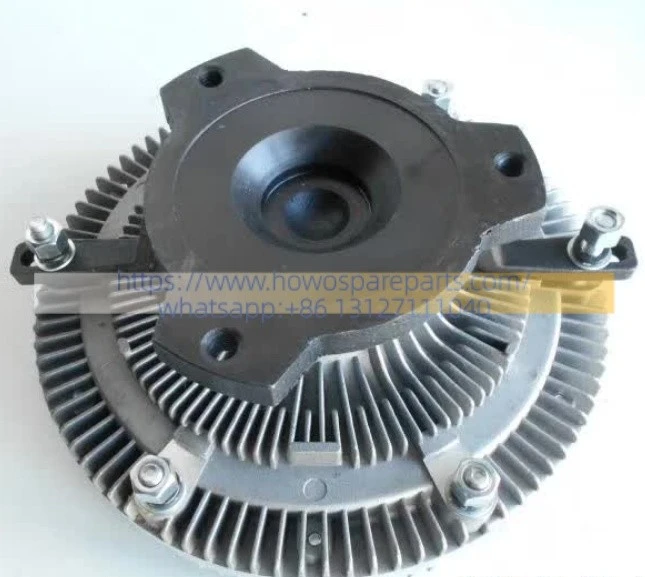

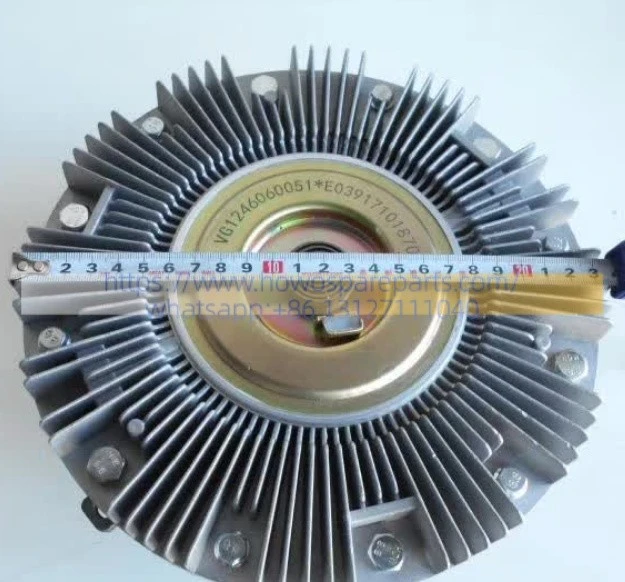

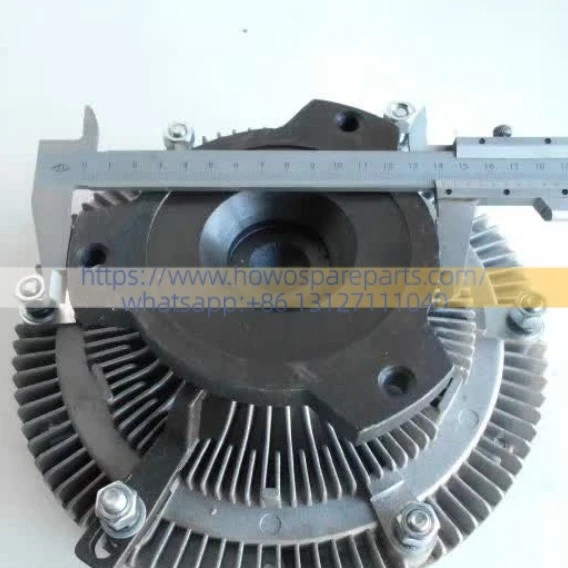

HOWO A7 HOWO MAX HOWO T7H HOWO TH7 Ring Silicone Oil Fan Assembly VG1246060051

Shandong Shengyue Technology Development Co.,Ltd is one of the most professional howo a7 howo max howo t7h howo th7 ring silicone oil fan assembly vg1246060051 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

HOWO A7 HOWO MAX HOWO T7H HOWO TH7 Ring Silicone Oil Fan Assembly VG1246060051

Core Technologies and Operating Principles
1. "Jet Ring" Design: The outermost tips of the fan blades are connected by an integrated ring. This design significantly reduces airflow turbulence at the blade tips and prevents air recirculation; compared to standard open-blade fans, it delivers a more concentrated airflow and improves cooling efficiency while substantially reducing wind noise at high speeds.
2. Intelligent Temperature-Controlled Regulation: A highly sensitive bimetallic temperature-sensing spring is located at the front of the clutch. When the hot air from the radiator reaches a preset temperature, the sensing element deforms to open an internal valve, allowing high-viscosity silicone oil to flow into the working chamber; shear forces then drive the fan to rotate at high speed. When the water temperature drops, the silicone oil flows back, and the fan reverts to a low-speed idle state.
3. Significant Fuel Savings: During high-speed driving or in cold winter conditions, the fan clutch disengages. This eliminates the wasteful engine power consumption associated with "always-on" fans, thereby reducing the vehicle's overall fuel consumption.

Common Failure Modes
1. Silicone oil leakage: Aging of the clutch's oil seal causes the internal high-viscosity silicone oil to leak out completely. Even when the engine overheats and coolant temperatures soar, the fan merely idles sluggishly, failing to provide sufficient airflow.
2. Seizure of the temperature-controlled bearing: Internal bearing wear causes the clutch to remain permanently locked. This results in difficult starting in cold weather, loud fan noise from the engine bay, and significant power loss.

DETAILS

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
