Shandong Shengyue Technology Development Co.,Ltd is one of the most professional weichai wd615 / wd10 engine high-pressure common-rail fuel injection pump vg1034080001 0445020216 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

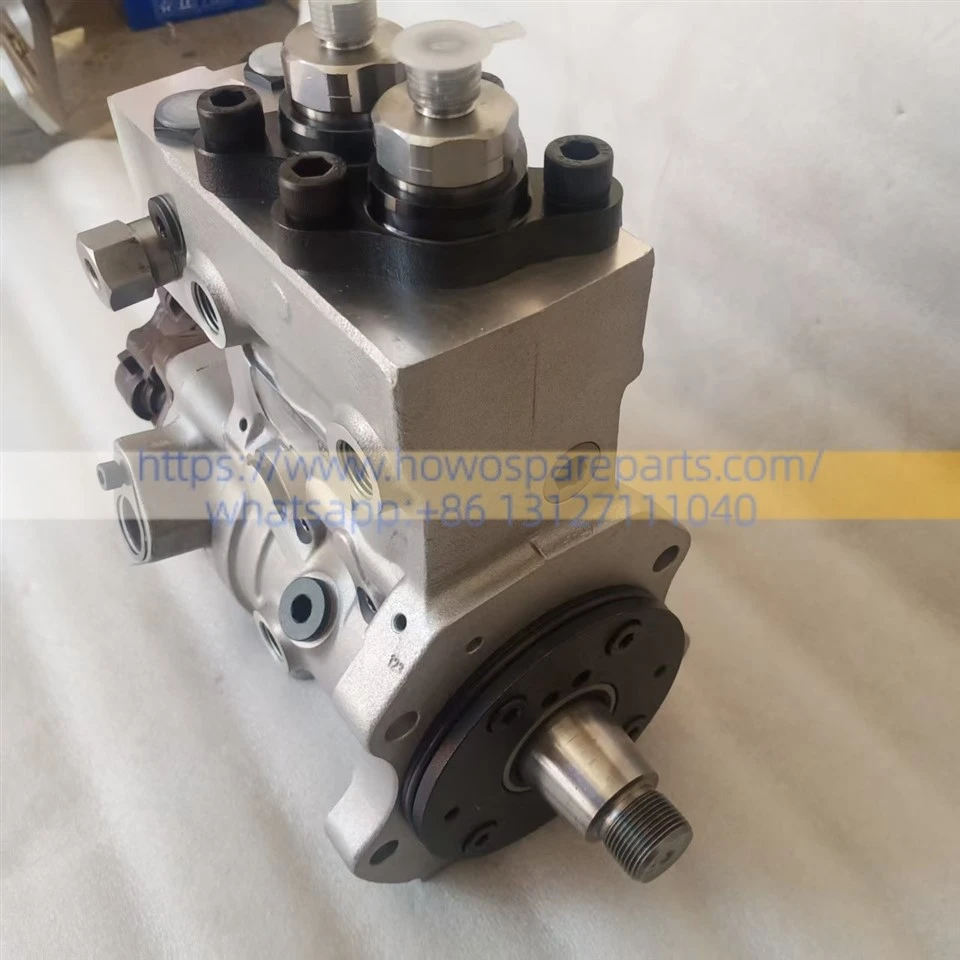

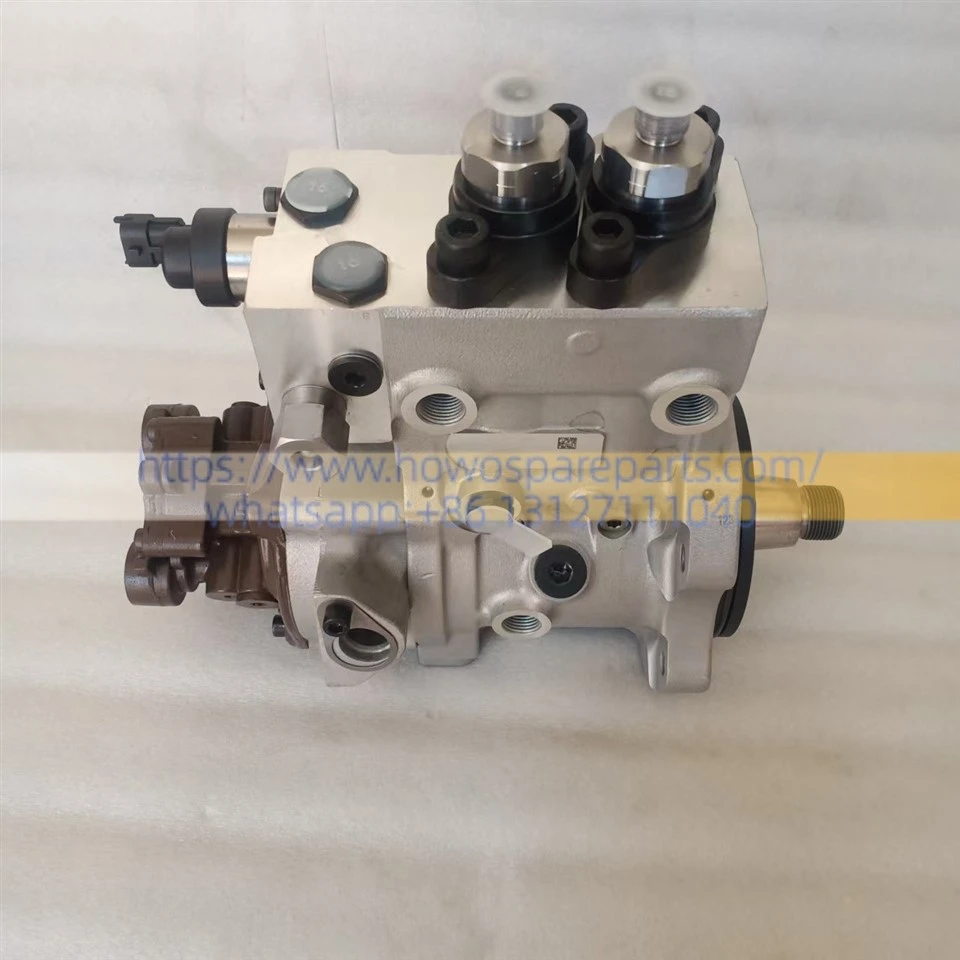

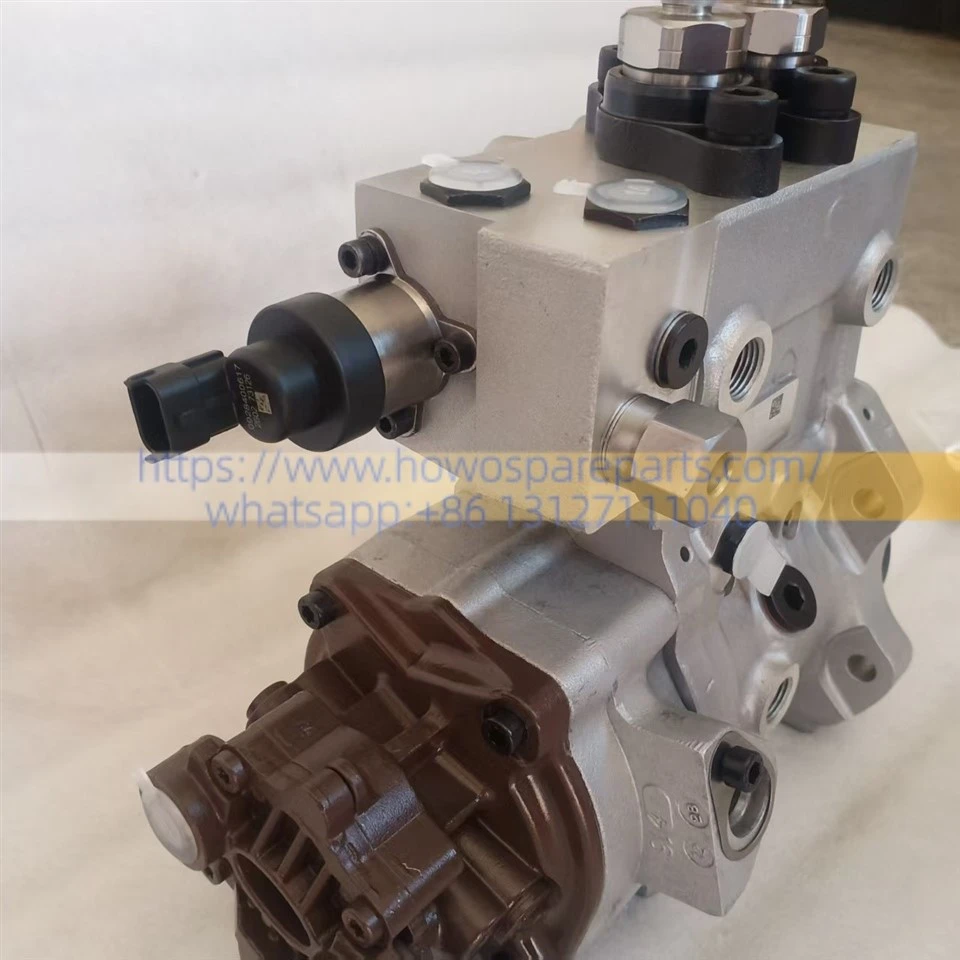

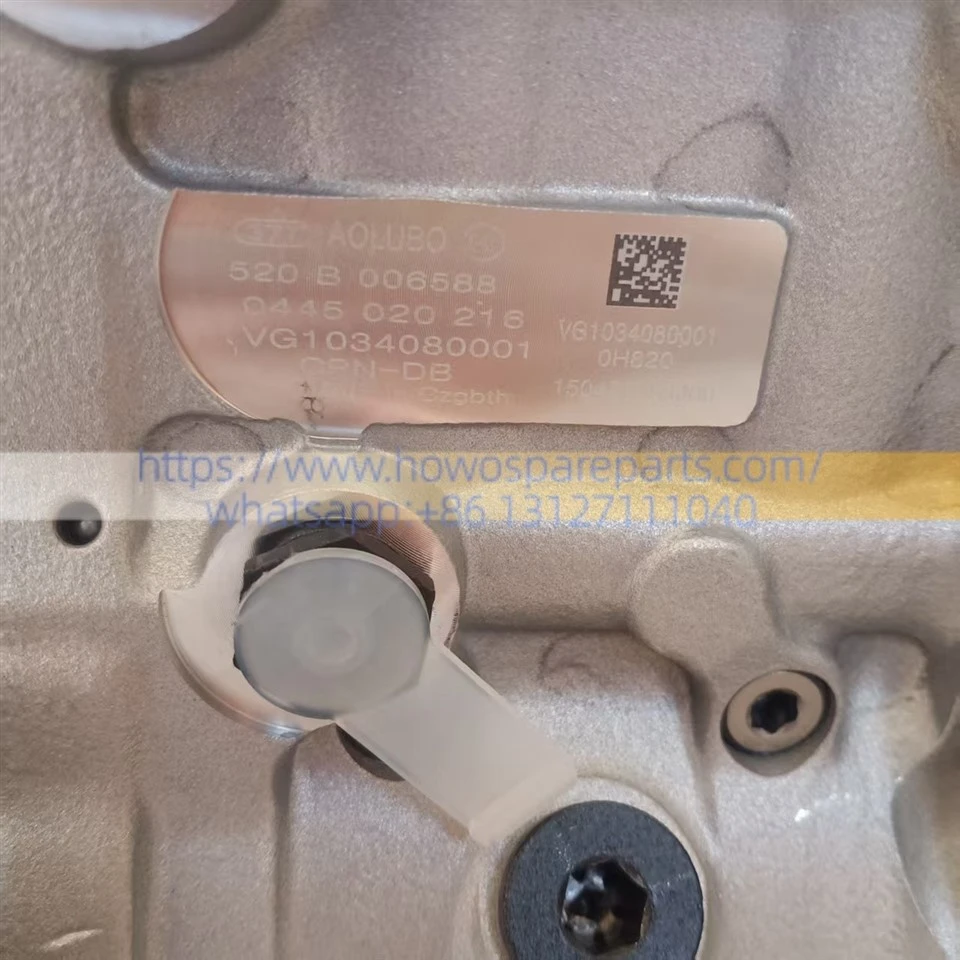

WEICHAI WD615 / WD10 ENGINE High-pressure common-rail fuel injection pump VG1034080001 0445020216
Key Electronic Control Components
1. Inlet Metering Valve (IMV / MeUn Valve): Bosch Part No. 0928400617
Controlled by the engine ECU via PWM signals, it precisely regulates the fuel flow entering the high-pressure chamber, thereby controlling the pressure within the common rail at the source.
2. Crankshaft/Camshaft Position Sensor: Bosch Part No. 0261210151
Accurately captures rotational speed and phase synchronization signals from the pump assembly and the engine.
Common Failure Modes and Maintenance Recommendations
1. Abnormal Plunger Wear: Often caused by water contamination in the diesel fuel or the use of low-quality fuel. This leads to insufficient pumping pressure, manifesting as difficulty starting the engine when hot and engine speed/torque limitations under high loads. Metering Valve Sticking (Triggering Fault Codes P0087/P0088): The 0928400617 metering valve is prone to sticking when tiny metal shavings or impurities are present in the fuel, triggering pressure-relief protection modes such as "rail pressure too high" or "failure to build rail pressure." Routine Maintenance Recommendation: Strictly adhere to mileage intervals when replacing genuine diesel pre-filters (equipped with water separators) and fine filters; operating the system without a filter element is strictly prohibited.
DETAILS
| DESCRIPTION | High-pressure common-rail fuel injection pump | PART NUMBER | VG1034080001 0445020216 |
| WEIGHT | 15kg | VOLUME | 278 × 229 × 212 mm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE |
ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
