Shandong Shengyue Technology Development Co.,Ltd is one of the most professional sinotruk light truck homan h3 engine rear rubber cushion fg9804590040 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

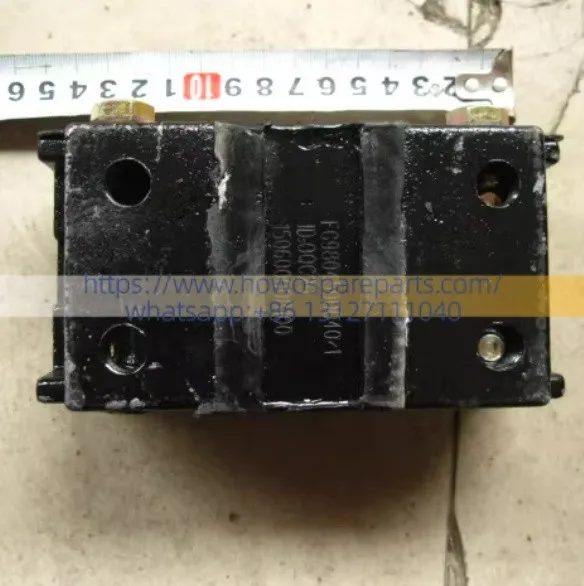

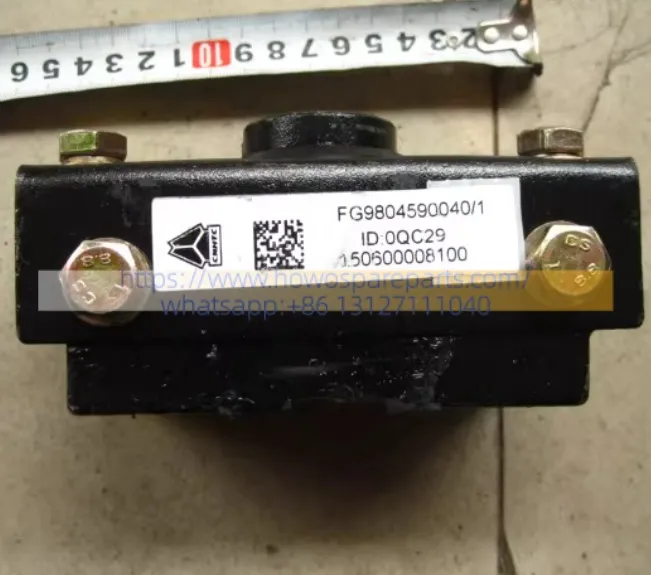

SINOTRUK LIGHT TRUCK HOMAN H3 Engine Rear Rubber Cushion FG9804590040
When replacing the component, ensure symmetrical installation on both the left and right sides, and verify the torque of the bracket bolts. It is recommended to inspect the front mounts concurrently to prevent imbalance caused by replacing only a single component.
FUNCTION
1. Securing and Supporting the Rear of the Engine: Reliably connects the rear section of the engine to the vehicle's frame, providing stable mechanical support; this prevents fore-and-aft or lateral displacement of the engine during vehicle operation, thereby ensuring the powertrain remains securely fixed in position.
2. Absorbing and Isolating Vibrations: Utilizes the compressive and shear properties of highly elastic rubber materials to absorb vibrations generated by the engine itself-including those occurring during idling, acceleration, and torsional oscillations-as well as shock excitations transmitted from the road surface, thereby serving a damping and buffering function.
3. Reducing Noise and Enhancing Comfort: Effectively isolates the transmission of vibrations to the vehicle frame and cabin, thereby reducing interior noise and tremors, and ultimately enhancing ride comfort for both the driver and passengers.
This mount features a composite structure comprising rubber and a metal bracket:
The rubber component primarily accommodates compressive and shear deformation, serving to provide high-elasticity vibration damping.
The metal component provides structural strength and serves as the mounting interface.
Over time, the rubber may harden or crack due to aging, exposure to oil, or high temperatures, resulting in diminished vibration-damping performance. In such instances, the mount must be replaced promptly to prevent abnormal engine noises, excessive vibration, or damage to other components.
Advantages
| Performance Dimension | Specific Advantage Description | Actual Benefits |
|---|---|---|
| Vibration Damping & Isolation | Uses high-elasticity premium rubber material to effectively absorb engine torsional vibration, idle vibration, and road impacts | Significantly reduces cabin vibration and noise, improving driving comfort |
| Durability & Reliability | Rubber formulation offers excellent oil resistance, heat resistance, and aging resistance; robust metal bracket and rubber composite structure | Long service life with reduced risk of delamination or breakage |
| Structural Stability | Original factory precise matching design maintains good alignment between engine and transmission; stable support for the rear of the engine | Reduces wear on the powertrain system and enhances driving stability |
| Protection & Safety | Reduces transmission of vibration to the chassis and cabin, protecting the frame, pipelines, and other surrounding components from fatigue damage | Extends service life of the vehicle and related parts, improving driving safety |
DETAILS
| DESCRIPTION | Engine Rear Rubber Cushion | PART NUMBER | FG9804590040 |
| WEIGHT |
1KG |
VOLUME |
18 cm × 15 cm × 10 cm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
Daily Maintenance Suggestions
It is recommended that, during routine maintenance-every 5,000–10,000 kilometers or every 3–6 months-you visually inspect the condition of the rubber mounts from the underside of the vehicle. Check the rubber components for cracks, hardening, deformation, detachment, or saturation by oil/grease; inspect the metal brackets for corrosion or looseness; and verify that all bolts are securely tightened.
Cleaning: Keep the mounting area clean to prevent the prolonged accumulation of oil, grease, or dirt (as oil contamination accelerates rubber aging).
Driving Habits: Avoid prolonged heavy-load operation, frequent rapid acceleration or hard braking, and severe overloading, as these factors will accelerate the wear and tear of the rubber mounts.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Hot Tags: sinotruk light truck homan h3 engine rear rubber cushion fg9804590040, manufacturers, suppliers, factory, parts, genuine, original
