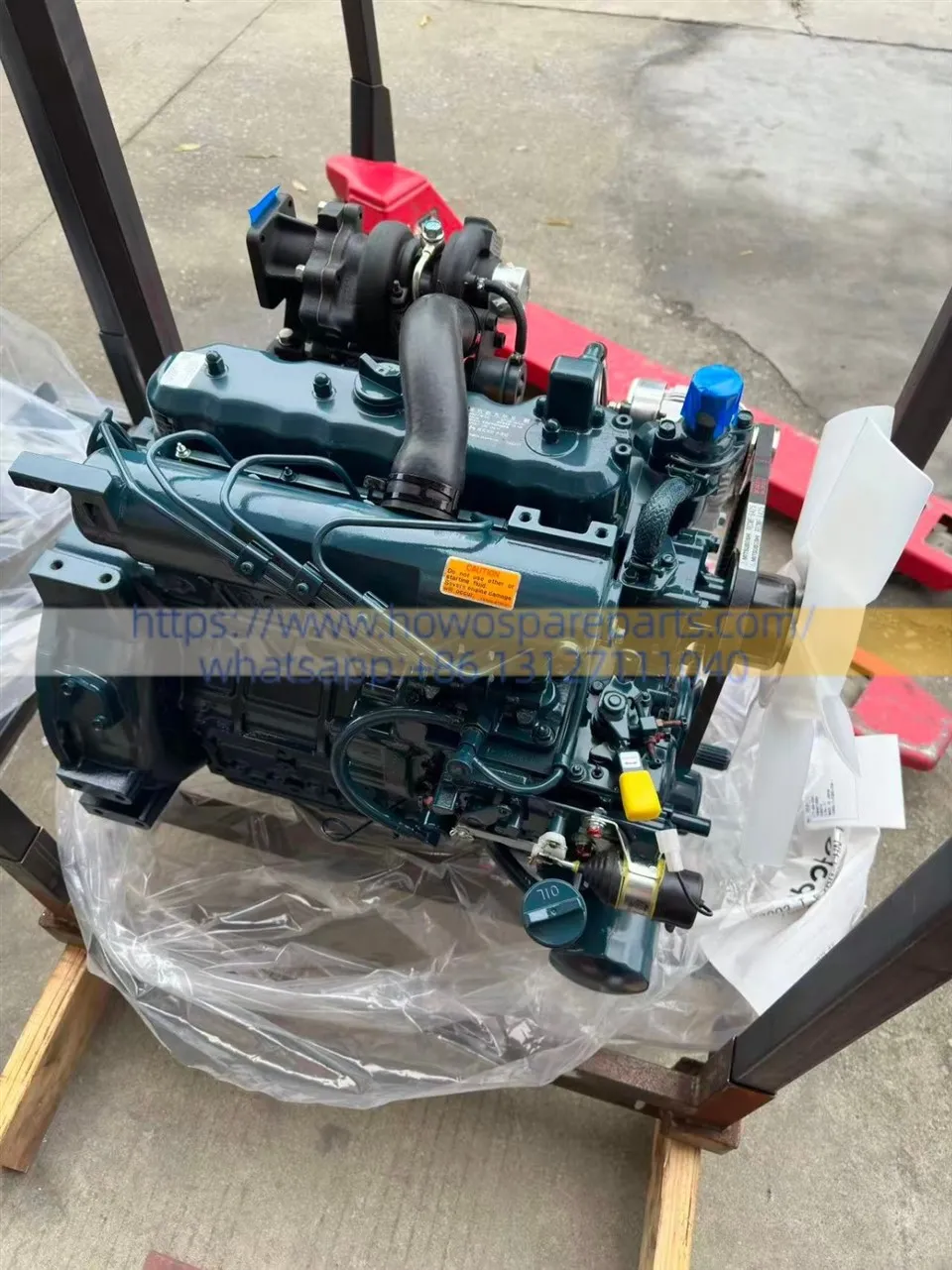

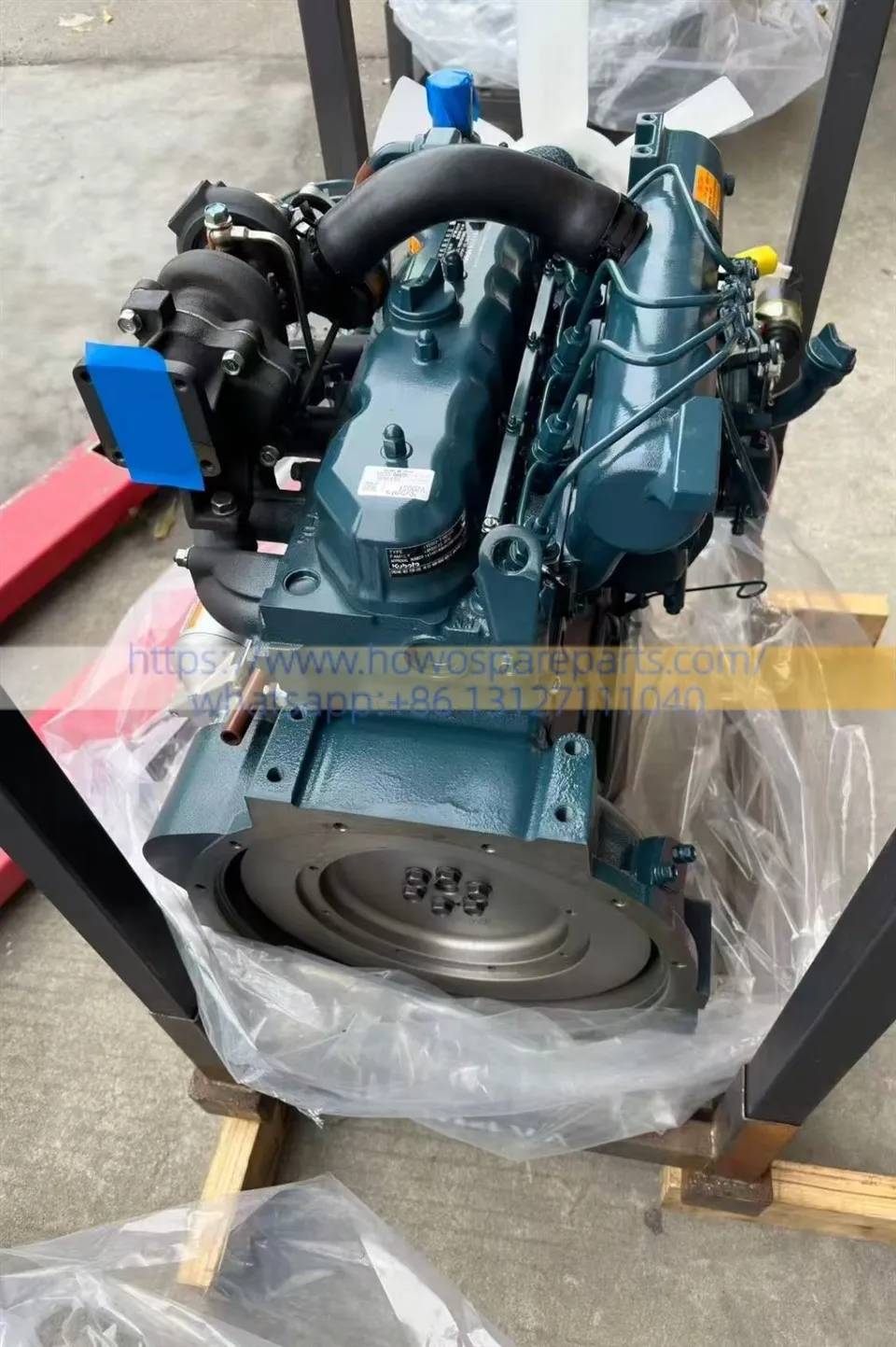

Kubota 03 Series Generator Set Diesel Engine V2003-T-E2-BG
Engine Basic Specifications
| Item | Specification | Item | Specification |
|---|---|---|---|
| Engine Model | V2003-T-BG-EU2 / V2003-T-E2-BG | Number of Cylinders | 4 |
| Engine Type | Vertical, Water-cooled, 4-cycle Diesel | Bore × Stroke | 83.0 mm × 92.4 mm (3.27 × 3.64 in) |
| Displacement | 1.999 L (122.0 cu.in.) | Compression Ratio | 21.7 : 1 |
| Aspiration | Turbocharged | Emission Regulation | EPA/CARB Tier 2 + EU Stage II |
| Combustion System | Indirect Injection (E-TVCS Spherical Type) | Firing Order | 1-3-4-2 |
| Injection Pressure | 13.73 MPa (1991 psi) | Injection Timing | Approx. 15.25° BTDC |
Performance & System Specifications
| Item | Specification | Item | Specification |
|---|---|---|---|
| Standby Power (1800 rpm) | 27.1 kW (36.3 HP) | Continuous Power (1800 rpm) | 24.5 kW (32.8 HP) |
| Standby Power (1500 rpm) | Approx. 22.5–25.7 kW | Continuous Power (1500 rpm) | Approx. 20.4–22.3 kW |
| Dry Weight | 208 kg (459 lbs) | Dimensions (L×W×H) | Approx. 700.6 × 505 × 674 mm |
| Cooling System | Water-cooled (Forced circulation with radiator) | Starting System | 12V Electric with Glow Plugs |
| Alternator | 12V, 480 W | Oil Capacity (90 mm oil pan) | Approx. 7.6 L |
| Oil Capacity (124 mm oil pan) | Approx. 9.5 L | Maximum No-load Speed | Approx. 1890–2120 rpm |
Common Application Areas
1. Backup Power and Emergency Generator Sets: Widely utilized for emergency backup power generation in critical facilities such as hospitals, data centers, commercial buildings, and residential complexes. These systems start up rapidly in the event of a grid outage, providing stable electricity to prevent business interruptions or equipment damage.
2. Construction Sites and Temporary Power Supply: Provide power for lighting, tools, temporary offices, and heavy machinery at construction sites. Mobile generator sets are particularly well-suited for this purpose, capable of operating continuously for extended periods even in harsh environments.
3. Remote Areas and Off-Grid Power Supply: Applied in locations lacking a stable grid connection-such as mines, oil fields, agricultural irrigation sites, farms (for irrigation systems and dairy equipment), outdoor events, and remote communication base stations.
4. Industrial and Commercial Continuous Power Supply: Small to medium-sized generator sets (typically in the 20–35 kVA range) used as auxiliary power sources in factories, for IT infrastructure, security systems, or in applications requiring both Prime (continuous) and Standby (backup) operating modes.
5. Other Specialized Applications: Previously utilized as Auxiliary Power Units (APUs) in locomotives, for light towers, and in refrigerated transport equipment; when appropriately modified, these units can also be adapted to meet specific industrial requirements.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
