Shandong Shengyue Technology Development Co.,Ltd is one of the most professional faw water pump assembly ab05-yf30 1307010ab05-yf30 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

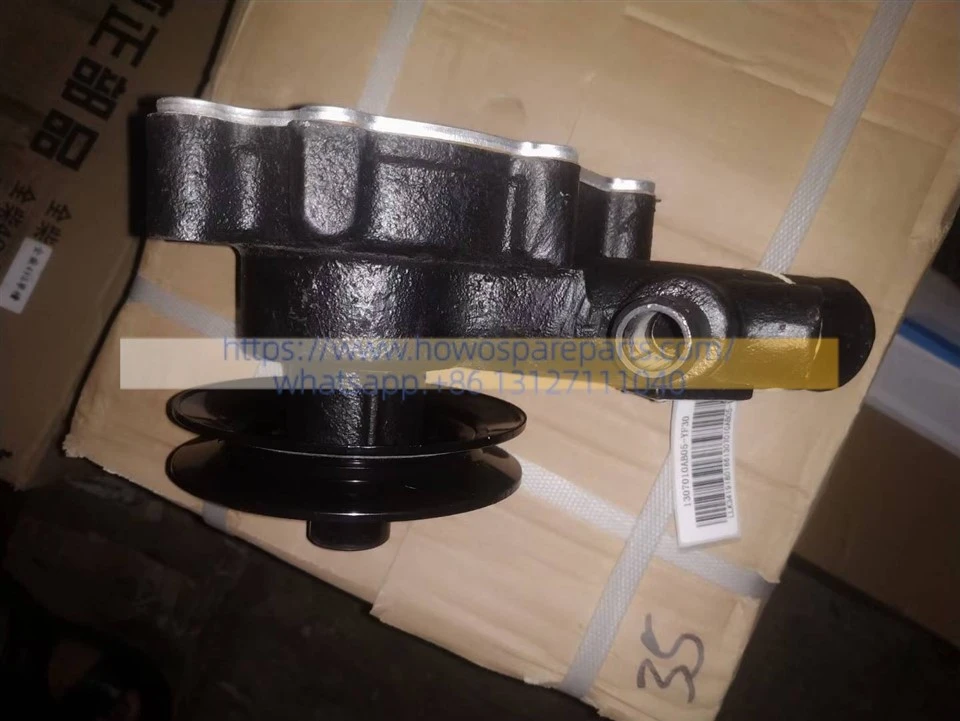

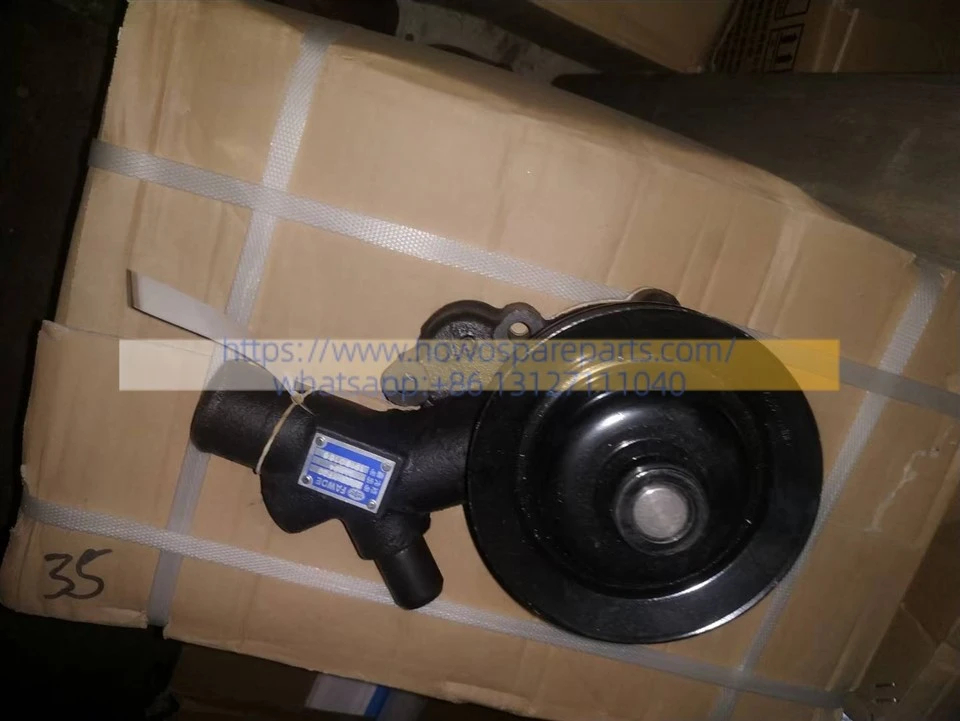

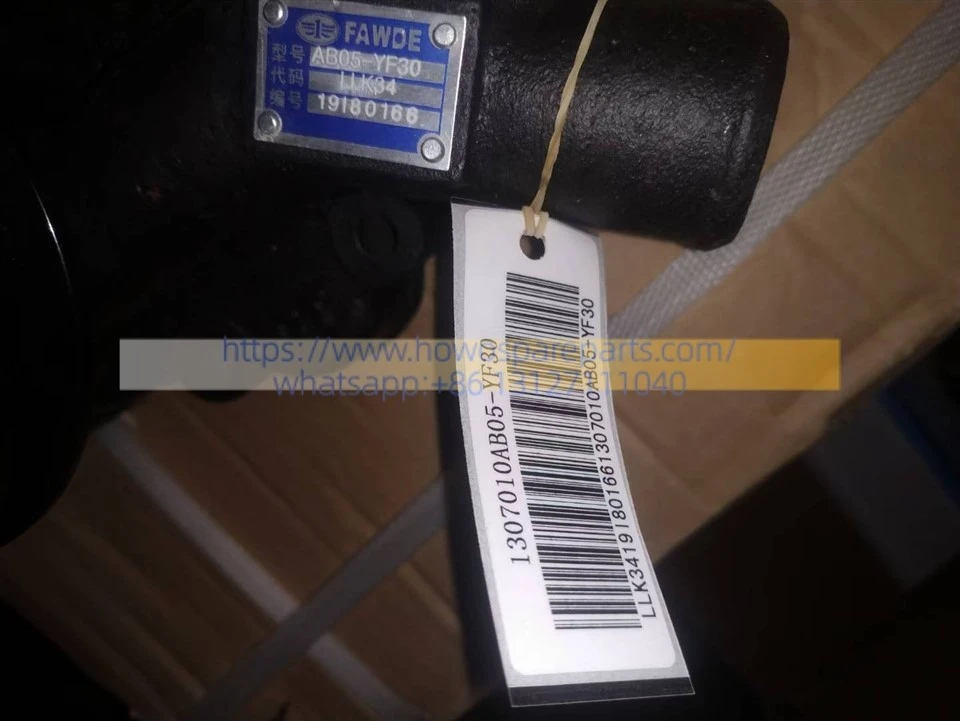

FAW Water Pump Assembly AB05-YF30 1307010AB05-YF30
Core Product Functions
1. Forced Coolant Circulation: Acting as the heart of the engine cooling system, the water pump is driven by the engine pulley (or gear) and forces cool water from the radiator into the water jackets of the engine block and cylinder head.
2. Prevention of Engine Overheating: It dissipates the intense heat generated by fuel combustion and pumps the heated water back to the radiator for air-cooling, effectively maintaining the engine within its optimal operating temperature range of 85°C to 95°C.
Common Faults, Maintenance, and Technical Advisories
1. Water Pump Leakage: If coolant levels drop inexplicably, or if visible coolant crystallization or drip marks appear at the "weep hole" (inspection hole) beneath the water pump, it indicates that the internal mechanical seal is worn and leaking. The entire water pump assembly must be replaced; do not attempt to replace only the mechanical seal.
2. Abnormal Noise and Bearing Play: If a continuous metallic grinding sound emanates from the front of the engine bay, and the water pump pulley exhibits noticeable play (wobbling) when manually checked after the drive belt is removed, the water pump bearing has failed. It could seize at any moment, potentially causing the drive belt to snap or the engine to overheat rapidly.
3. Installation Requirements: When replacing the water pump, all remnants of the old gasket must be thoroughly scraped off the cylinder block. Apply an appropriate amount of sealant and tighten the fasteners evenly in a crisscross pattern, strictly adhering to the manufacturer's torque specifications; failure to do so can easily result in subsequent leakage due to uneven stress on the pump housing.
DETAILS
| DESCRIPTION | Water Pump Assembly | PART NUMBER | AB05-YF30 1307010AB05-YF30 |
| WEIGHT | 3 kg | VOLUME | 180 mm × 155 mm × 140 mm |
| TRUCK MOLDE | FAW/FAWDE | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
