Shandong Shengyue Technology Development Co.,Ltd is one of the most professional kubota 03-m series classic industrial diesel engine v2003-m-t-e2b manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

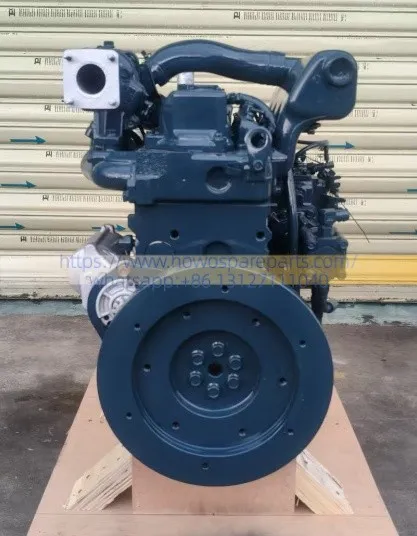

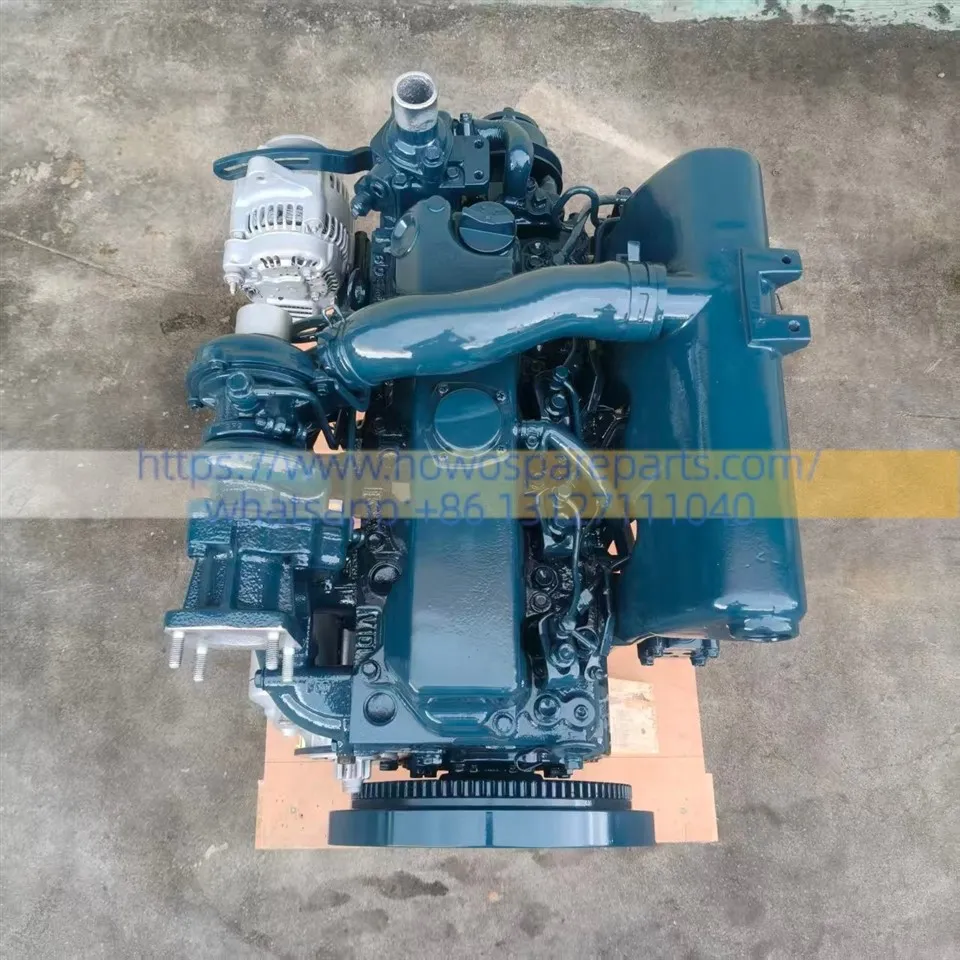

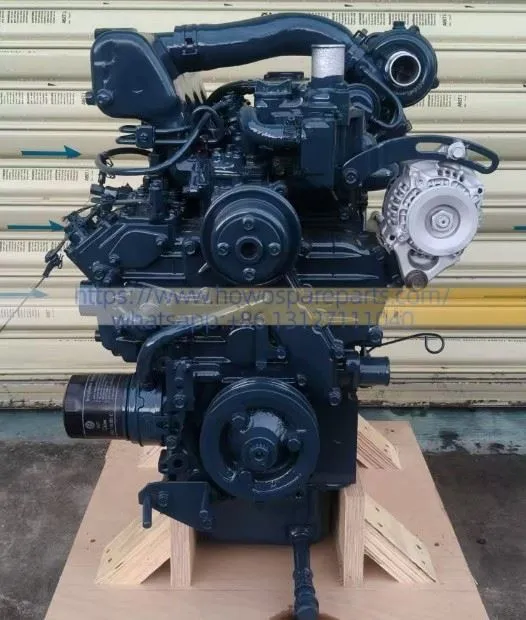

Kubota 03-M Series Classic Industrial Diesel Engine V2003-M-T-E2B
The Kubota V2003-M-T-E2B is a compact, reliable 4-cylinder turbocharged diesel engine that delivers robust torque at low to mid-range speeds, making it ideally suited for continuous heavy-duty operations. Renowned for its exceptional durability, fuel efficiency, and compliance with EPA/CARB Tier 2 and EU Stage II emission standards, it is widely adopted by numerous Original Equipment Manufacturers (OEMs).
Engine Basic Specifications
| Item | Specification | Item | Specification |
|---|---|---|---|
| Engine Model | V2003-M-T-E2B | Number of Cylinders | 4 |
| Engine Type | Vertical, Water-cooled, 4-cycle Diesel | Bore × Stroke | 83.0 mm × 92.4 mm (3.27 in × 3.64 in) |
| Displacement | 1.999 L (122.0 cu.in.) | Compression Ratio | Approx. 23 : 1 |
| Aspiration | Turbocharged | Emission Regulation | EPA/CARB Tier 2 + EU Stage II |
| Combustion System | Indirect Injection (E-TVCS Spherical Type) | Firing Order | 1-3-4-2 |
| Injection Pressure | 13.73 MPa (1991 psi) | Injection Timing | Approx. 18° BTDC |
Performance & System Specifications
| Item | Specification | Item | Specification |
|---|---|---|---|
| Rated Power | 44.0 kW (59 HP) @ 2800 rpm | Maximum Torque | 165.1 Nm (121.8 lb-ft) @ 1600 rpm |
| Maximum No-load Speed | Approx. 3000 rpm | Minimum Idle Speed | Approx. 750–850 rpm |
| Dry Weight | 186 kg (410 lbs) | Dimensions (L×W×H) | Approx. 642 × 495 × 719 mm |
| Cooling System | Water-cooled (Forced circulation with radiator) | Starting System | 12V Electric with Glow Plugs |
| Alternator | 12V, 360W or 480W | Oil Capacity (90 mm oil pan) | Approx. 7.6–7.9 L |
Key Application Areas
1. Material Handling Equipment (Forklifts and Off-Road Vehicles)
Widely utilized in telehandlers, rough-terrain forklifts, and multi-directional forklifts-specifically in equipment from brands such as Moffett, HIAB, and Combilift.
With its compact dimensions, this engine is ideally suited for heavy-duty lifting and handling operations in environments such as warehouses, construction sites, and ports.
2. Generator Sets
Frequently integrated into small-to-medium-sized diesel generator sets, serving as backup power, primary power, or for continuous power supply.
Suitable for construction sites, remote areas, data centers, or emergency backup power systems.
3. Construction Machinery and Industrial Equipment
Used in various types of light-duty construction machinery, such as lighting towers, air compressors, welding machines, small excavators, or loaders.
Certain Bobcat Toolcat utility work machines also utilize engines similar to the V2003 series.
4. Agriculture and Specialized Equipment
Although primarily utilized in industrial sectors, it is also occasionally applied in medium-sized agricultural machinery-such as compact tractors, irrigation pumps, or specialized farm equipment.
Capable of operating reliably even in dusty or harsh environments, it is well-suited for outdoor agricultural applications.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
