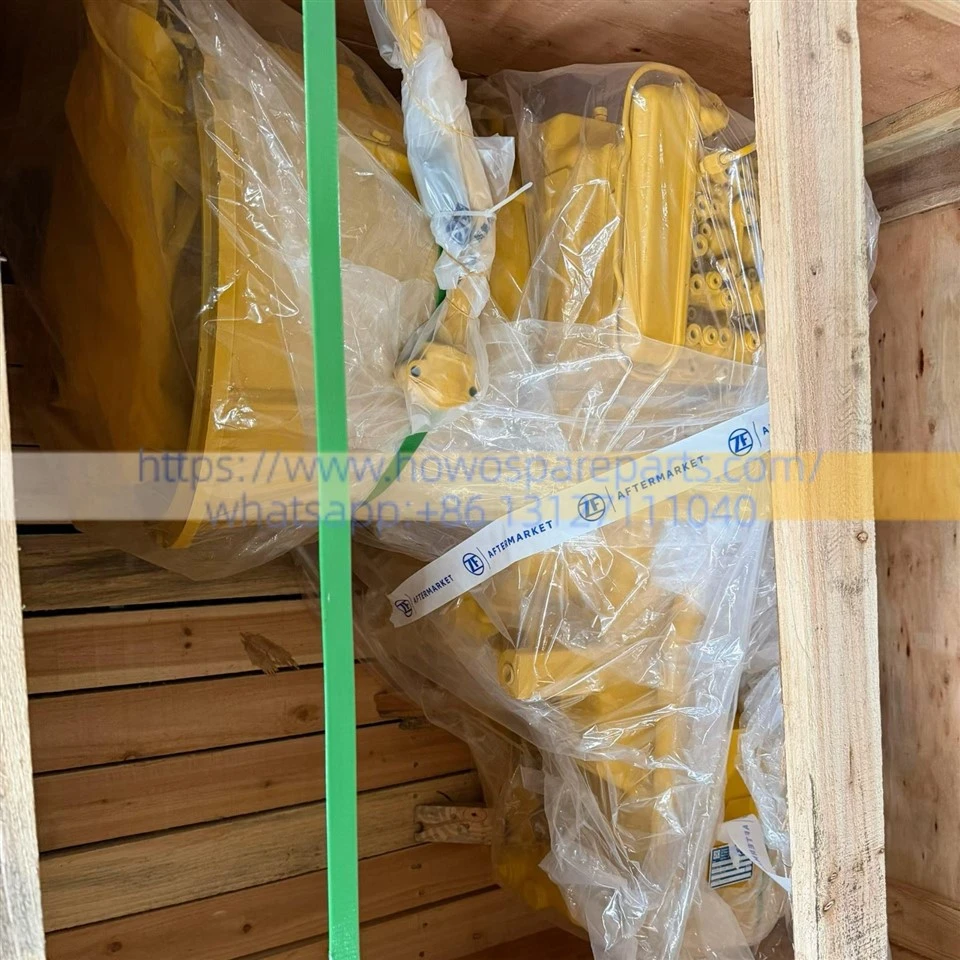

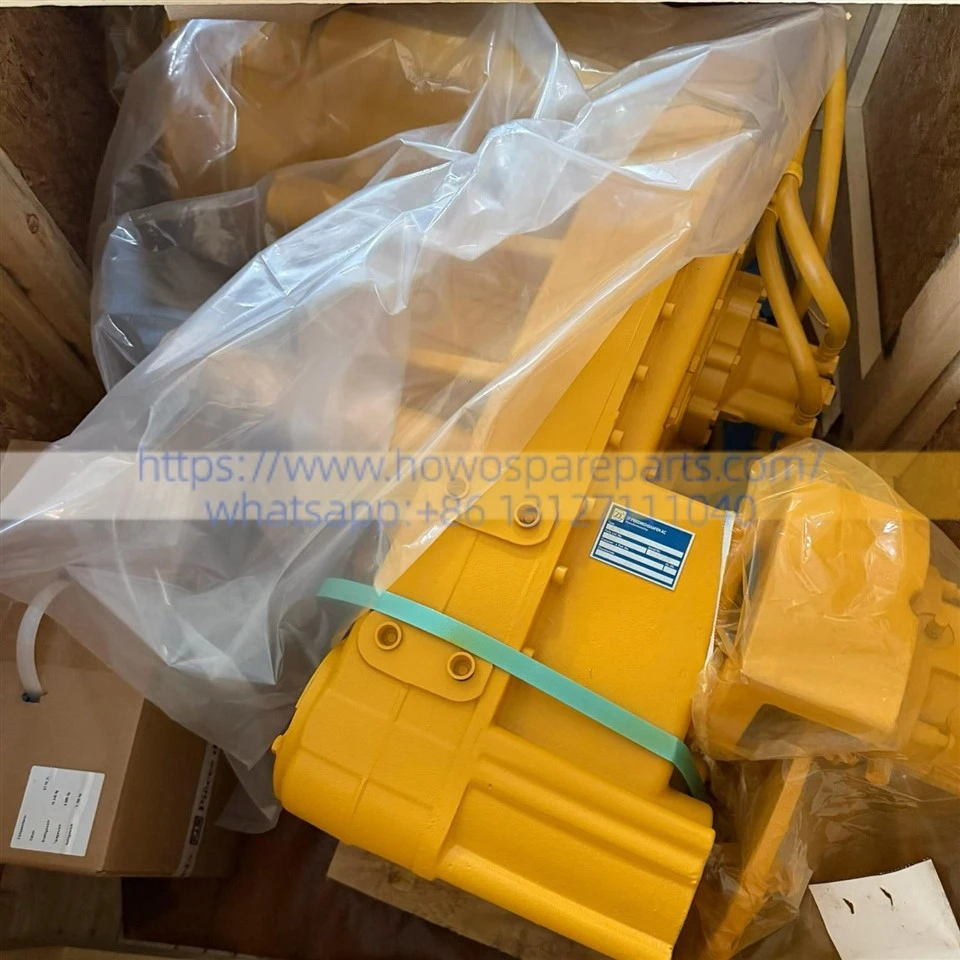

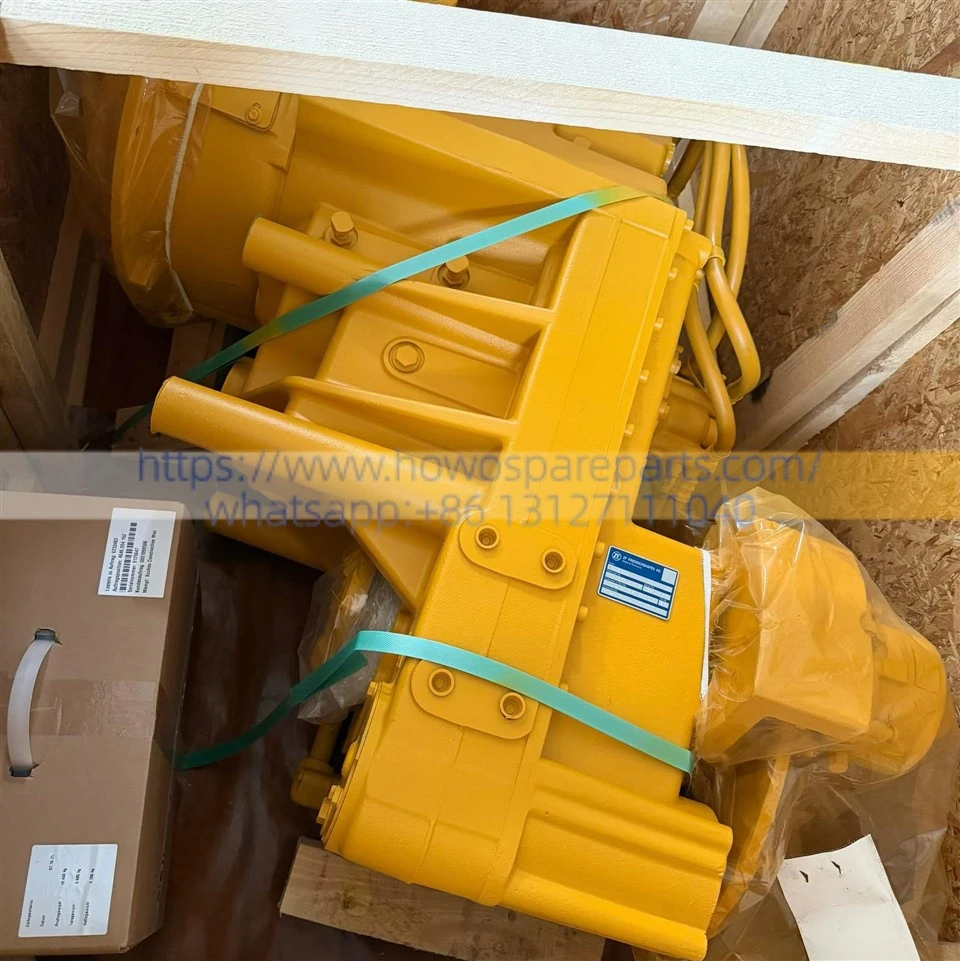

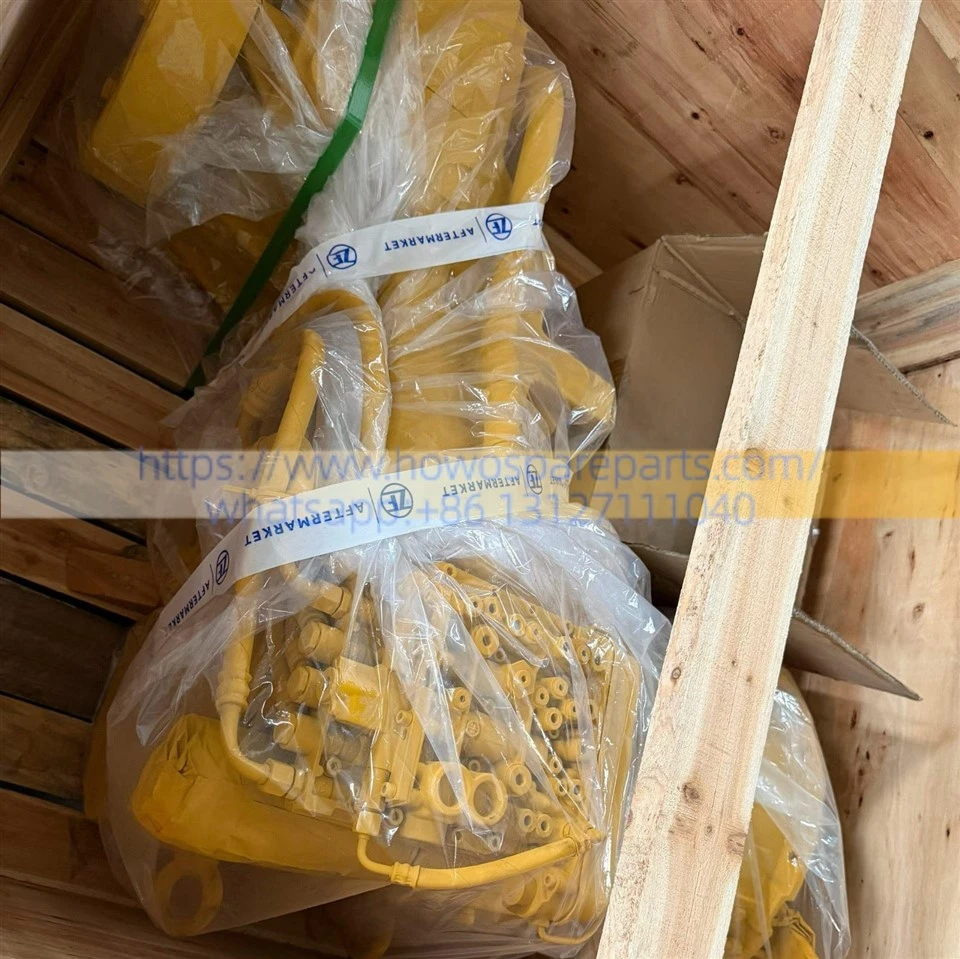

ZF 4WG310 Fully Automatic Electronically Controlled Power-Shift Transmission Electro-Hydraulic Integrated for Large, Heavy-Duty Construction Machinery
General Specifications & Applications
| Parameter Item | Details / Standard Value |
|---|---|
| Product Series | ZF Ergopower Series |
| Max. Matched Engine Power | Approx. 220 kW - 290 kW (295 - 390 hp) |
| Max. Rated Input Speed | 2200 rpm - 2500 rpm |
| Applicable Machine Tonnage | 7-ton, 8-ton, and 10-ton wheel loaders / heavy-duty motor graders |
Gear Ratios & Speeds
| Gear (Forward / Reverse) | Typical Gear Ratio | Max. Design Travel Speed (Loader) | Functional Characteristics |
|---|---|---|---|
| Forward 1 (F1) | Approx. 4.0 ~ 4.3 | Approx. 6 - 7 km/h | Digging and heavy scooping / Maximum cut-in working gear. |
| Forward 2 (F2) | Approx. 2.1 ~ 2.3 | Approx. 12 - 13 km/h | Heavy-duty short-distance transport / Standard working gear. |
| Forward 3 (F3) | Approx. 1.0 ~ 1.1 | Approx. 24 - 26 km/h | Mid-speed travel / Job site transfer gear. |
| Forward 4 (F4) | Approx. 0.58 ~ 0.63 | Approx. 38 - 42 km/h | Unloaded high-speed / Long-distance roading gear. |
| Reverse 1 (R1) | Approx. 3.8 ~ 4.1 | Approx. 7 km/h | Reversing out of pile / High-torque backing gear. |
| Reverse 2 (R2) | Approx. 2.0 ~ 2.2 | Approx. 13.5 km/h | Standard reversing during work cycles. |
| Reverse 3 (R3) | Approx. 0.95 ~ 1.05 | Approx. 26 km/h | High-speed reversing / Long-distance backing. |
Hydraulic & Lubrication Parameters
| Parameter Item | Details / Standard Value | Remarks |
|---|---|---|
| Main Circuit System Pressure | 16 + 2 bar (1.6 - 1.8 MPa) | Standard oil pressure required for clutch engagement during shifting. |
| Torque Converter Safety Valve Opening Pressure | 8.5 ± 0.5 bar | Prevents the torque converter housing from ballooning due to high pressure. |
| Normal Operating Oil Temp. | 80°C - 100°C | Standard temperature range during continuous duty cycles. |
| Max. Allowed Transient Oil Temp. | 120°C | Exceeding this limit triggers the transmission high-temperature alarm. |
| Initial Oil Refill Capacity | Approx. 45 - 65 Liters | Varies based on the size of the OEM's external radiator and cooling lines. |
| Recommended Oil Specification | ZF-TE-ML 03 certified transmission fluid | Strictly forbidden to mix with general or universal hydraulic fluids. |
Physical & Electrical Characteristics
| Parameter Item | Details / Standard Value | Remarks |
|---|---|---|
| Total Dry Weight | Approx. 680 kg - 820 kg | Excludes operating fluids; varies by output drop/drop-box configuration. |
| Structural Design | Powershift (Countershaft type) | Gears are constantly in mesh; shifting is managed via multi-plate wet clutches. |
| Transmission Control Unit (TCU) | ZF EST-37 or EST-117 series | Responsible for shifting logic calculation and fault code diagnostics. |
| Solenoid Valve Type | Proportional Valves | Enables smooth, modulated clutch pressure adjustments rather than on/off spikes. |
| Sensor Configuration | Input speed, turbine speed, output speed, oil temperature sensors | Forms a closed-loop system for automatic shifting and gear overlap protection. |
