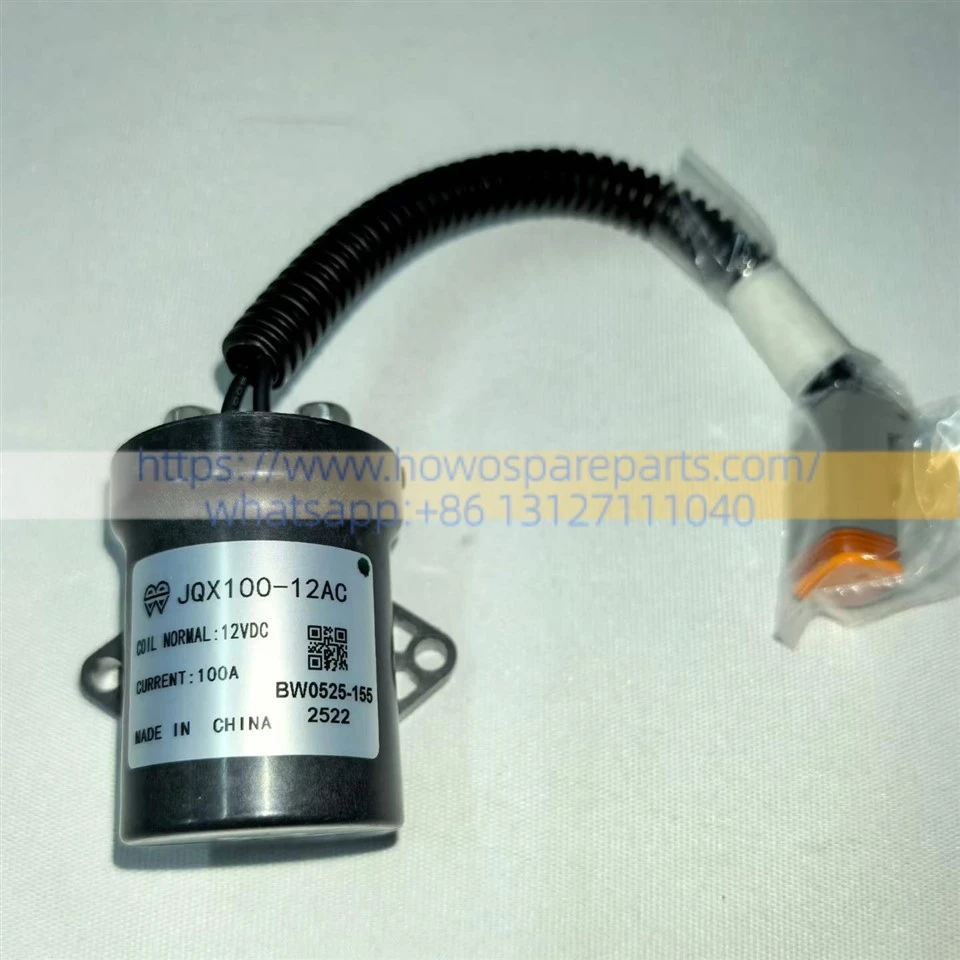

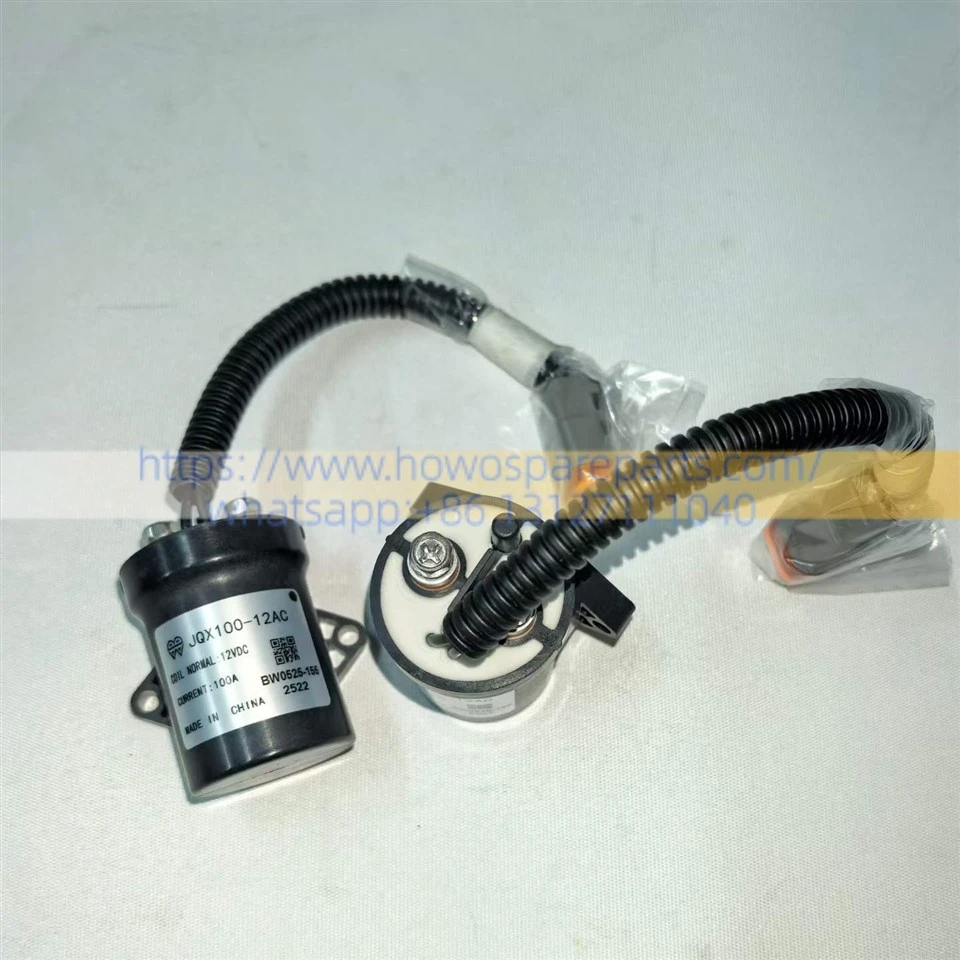

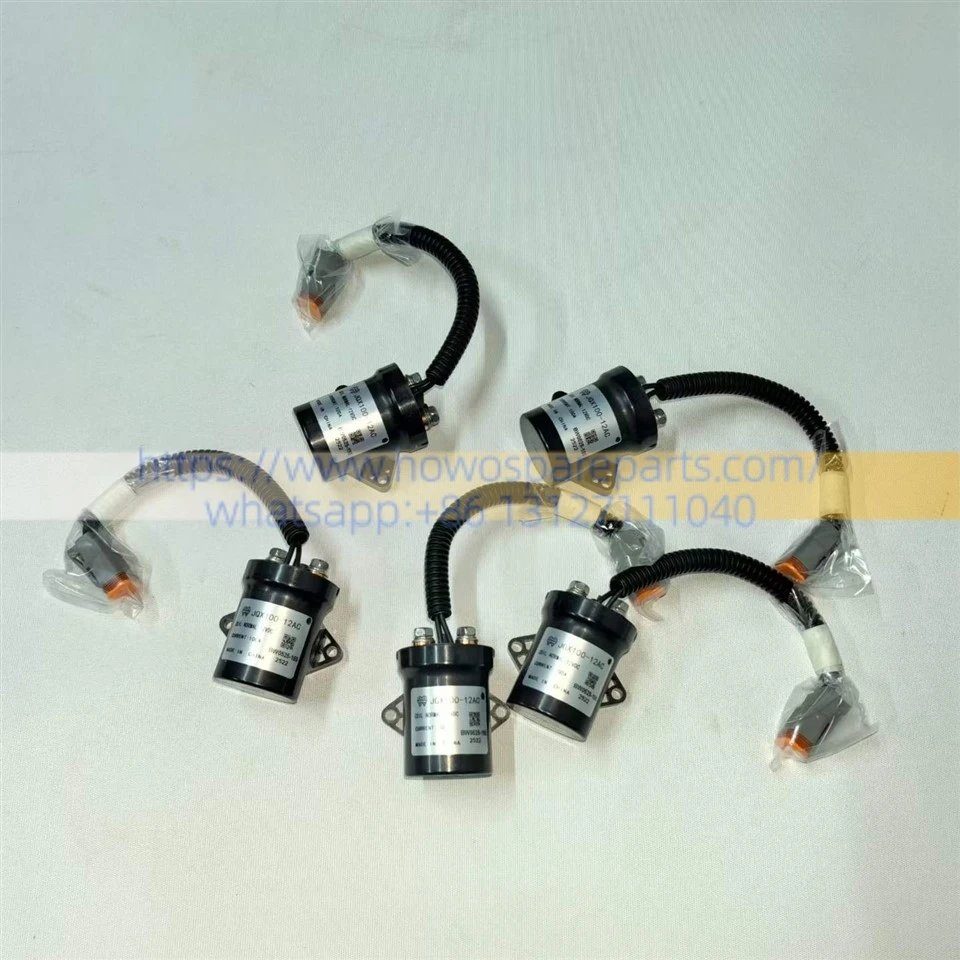

LiuGong and XCMG excavators Starter relay JQX100-12AC 100ABW0525-155
Detailed Electrical and Performance Specifications
| Parameter / Item | Specification / Indicator | Remarks & Description |
|---|---|---|
| Contact Form | 1 Form A / SPST-NO (Single Pole Single Throw - Normally Open) | Designed for high-current on/off control. |
| Rated Contact Current | 100A | Maximum safe continuous carrying current. |
| Max. Switching Voltage | 24V DC / 450V DC | Depends on application (high-voltage versions support high-voltage DC switching). |
| Nominal Coil Voltage | 12V DC | Driven by 12V DC vehicular power supply (despite the "AC" suffix). |
| Pick-up Voltage | ≤ 8.4V DC (at 23℃) | Minimum voltage required to actuate the coil. |
| Drop-out Voltage | ≥ 1.2V DC | Voltage at which the contacts release after power is removed. |
| Coil Power Consumption | Approx. 4W ~ 6W | Power consumed by the coil during operation. |
| Insulation Resistance | ≥ 100 MΩ (at 500V DC) | Insulation degree between contacts, coil, and outer shell. |
| Dielectric Strength | 1500V AC (for 1 minute) | Withstand voltage between open contacts, and between coil and contacts. |
| Ambient Temperature | -40℃ to +100℃ | Adapted to harsh, high-temperature environments like excavator engine bays. |
Product Features
1. Low-Current Control of High-Current Loads: Uses the low current from the vehicle's 12V battery to energize the control coil, thereby safely and remotely actuating a high-capacity 100A main power circuit.
2. Core Applications: Primarily used to control starter motor ignition and intake system glow plug power, or to serve as the master power switch for the vehicle's entire electrical control system.
3. Safety Protection: Features heavy-duty copper contacts that are resistant to high temperatures and arcing; this effectively prevents damage from sparks generated during high-current switching-which would destroy standard switches-thereby ensuring the safety of the vehicle's electrical system.
DETAILS
| DESCRIPTION | Starter relay | PART NUMBER |
Starter relay JQX100-12AC 100ABW0525-155 |
| WEIGHT | 0.05kg | VOLUME | 70 mm × 60 mm × 80 mm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE |
ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
