LiuGong Wheel Loaders Brake Booster 13C1354

Shandong Shengyue Technology Development Co.,Ltd is one of the most professional liugong wheel loaders brake booster 13c1354 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

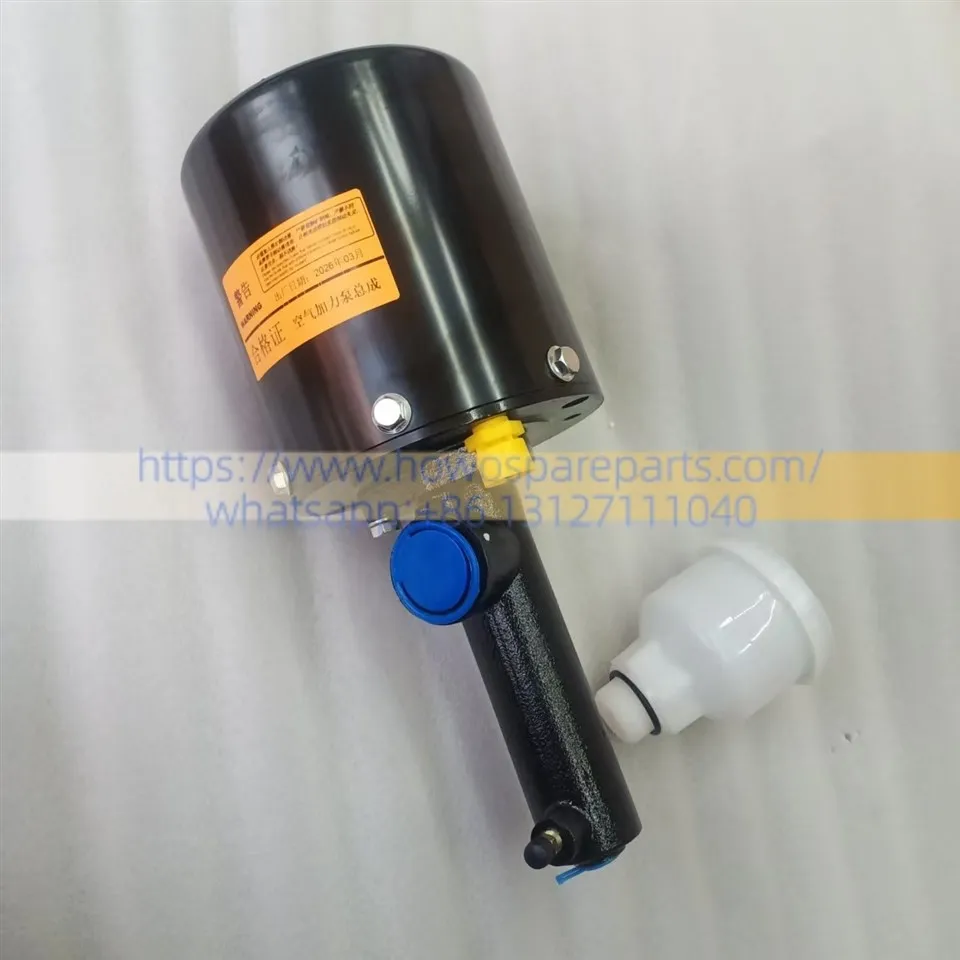

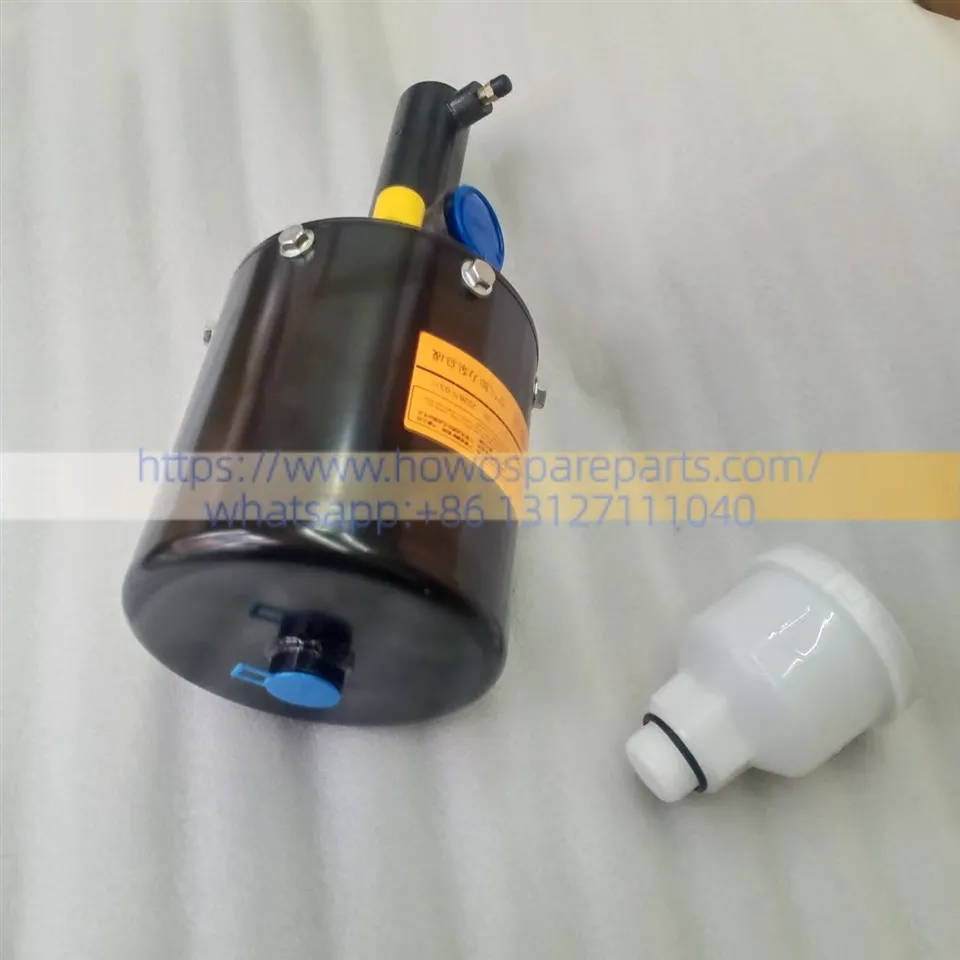

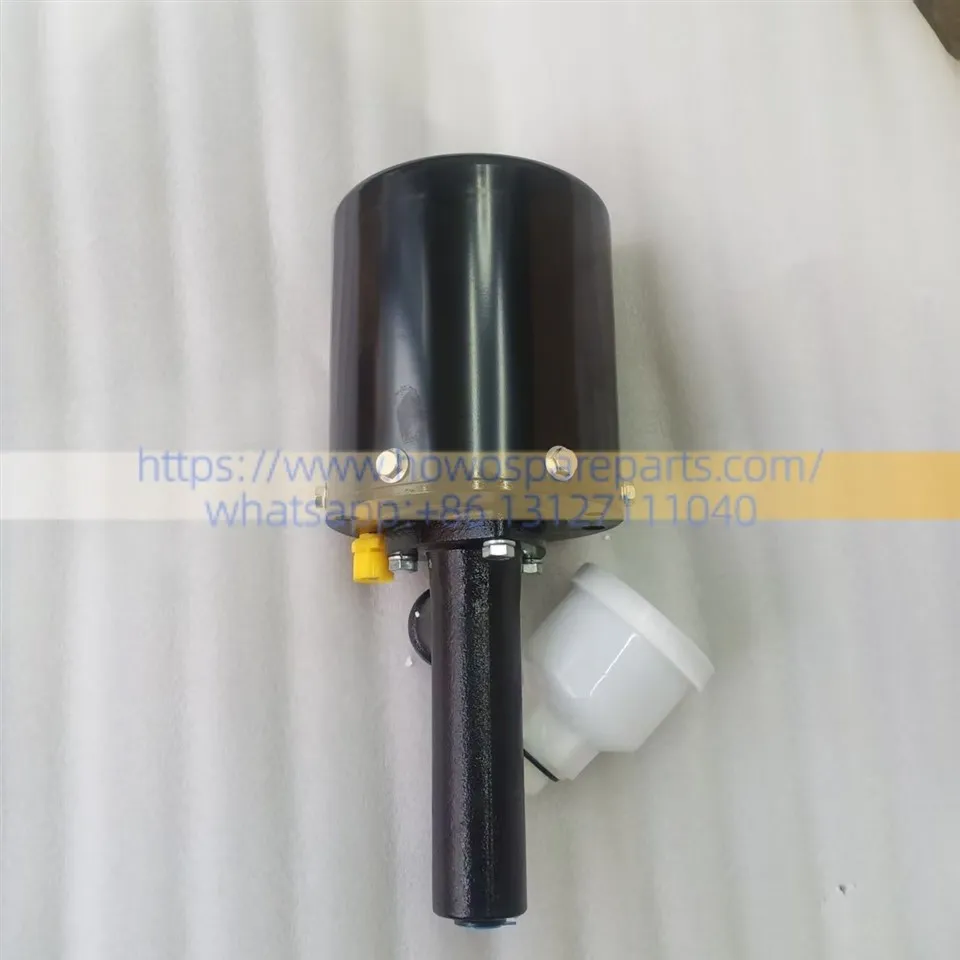

LiuGong Wheel Loaders Brake Booster 13C1354

FUNCTION

1. Pneumatic-Hydraulic Energy Conversion and Pressure Amplification: Given the substantial weight of a wheel loader, relying solely on human effort or standard pneumatic pressure is insufficient to bring the vehicle to a halt. This booster unit utilizes a large-surface-area piston within a pneumatic chamber to receive low-pressure compressed air from the air tank; this piston then drives a smaller-surface-area piston within a hydraulic cylinder, thereby multiplying the braking force.
2. Actuation of Brake Calipers: Once the booster generates high-pressure hydraulic fluid at its output port, rigid metal lines channel this fluid to the brake calipers located on the front and rear axles. The high-pressure fluid drives the pistons within the calipers, causing the brake pads to clamp down firmly on the rotating brake discs-which turn in tandem with the wheels-generating immense friction to rapidly decelerate or bring the multi-ton loader to a complete and stable stop.
3. Self-Sufficiency and Storage of Brake Fluid: The top of this assembly features an integrated transparent fluid reservoir, which serves as the primary storage tank for the brake fluid. With every depression and release of the brake pedal, this reservoir automatically replenishes any fluid volume deficits within the hydraulic master cylinder-whether caused by brake pad wear, minor line leakage, or thermal expansion and contraction-thereby preventing air from entering the hydraulic system.
4. Ensuring Independent and Safe Braking for Front and Rear Axles: Typically, a vehicle is equipped with two separate booster units, each dedicated to independently controlling the braking systems of the front and rear axles.

Installation Locations

Front/Top: Connected to a relatively thick black air brake hose (leading from the foot-operated brake valve).
Rear/Bottom: Connected to a rigid copper or steel high-pressure brake fluid line (leading to the brake calipers on the front and rear axles).

During installation, the oil cup must be kept vertical and facing upward. If tilted or inverted, the brake fluid within the cup will be unable to flow properly into the hydraulic master cylinder, and proper air bleeding will be impossible; this will result in a complete failure of the braking system.

DETAILS

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
