Shandong Shengyue Technology Development Co.,Ltd is one of the most professional danfoss pressure control pilot valve pcp mcv116a3101 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

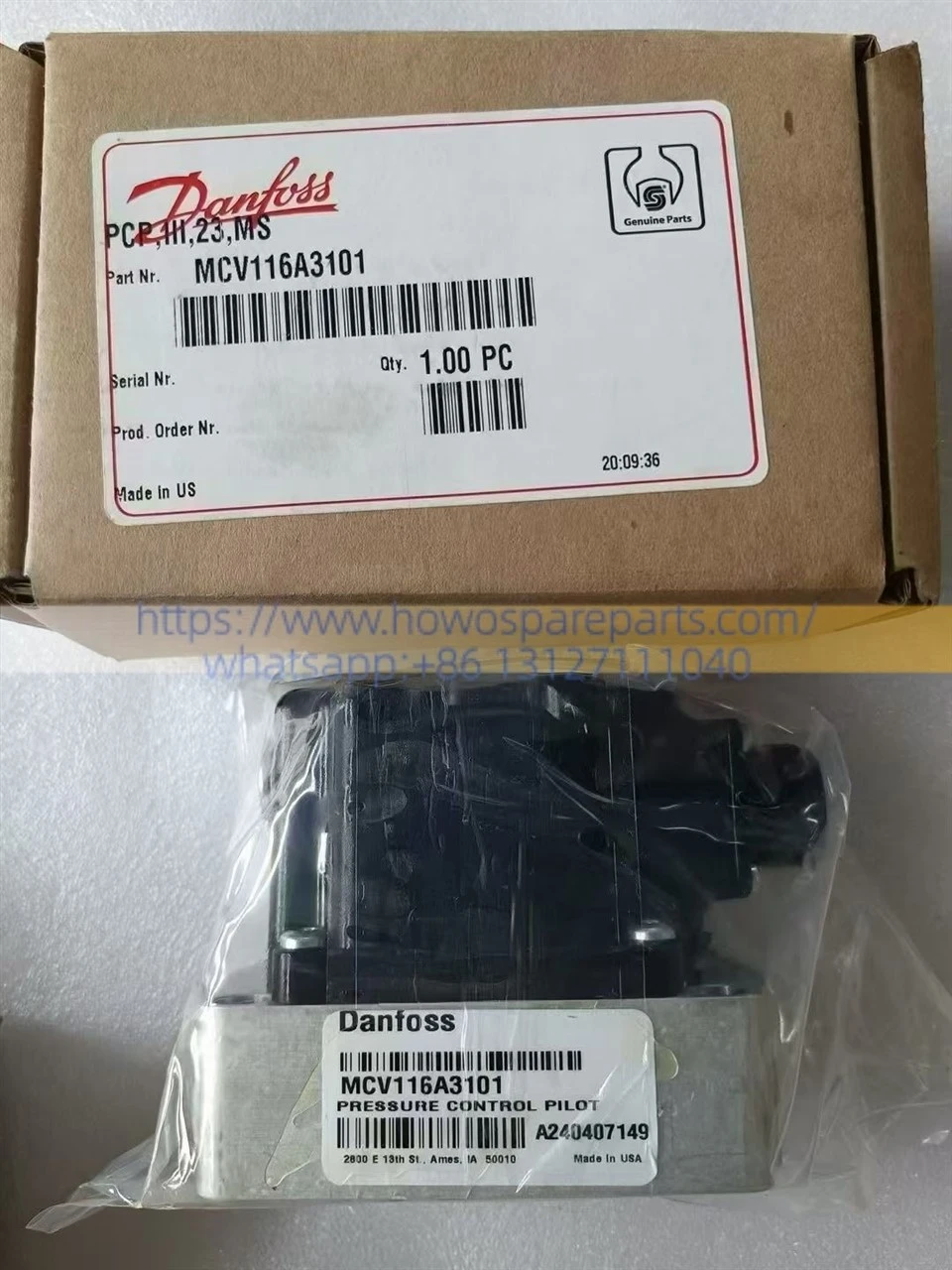

Danfoss Pressure Control Pilot Valve PCP MCV116A3101
Core Performance Technical Specifications
| Technical Specifications | Official Data | Notes / Remarks |
|---|---|---|
| Coil Resistance | 23 Ω | Standard resistance value at 25°C ambient temperature |
| Rated Control Current | ±150 mA | Current range for full-stroke pressure adjustment |
| Maximum Allowable Current | 325 mA | Limit current; exceeding this can cause coil overheating |
| Rated Pressure Gain | 1.15 psid / mA | Differential pressure change per 1 mA of input current |
| Max. Differential Pressure | 260 psid (Approx. 18 bar) | Max. pressure difference between ports A and B at rated current |
| Recommended Supply Pressure | 150 - 500 psi (Approx. 10 - 35 bar) | Standard inlet pressure range for the pilot oil circuit |
| Maximum System Pressure | 1000 psi (Approx. 70 bar) | Peak pressure that the valve housing can withstand |
| Electrical Connector Type | MS Military Circular Connector | Classic threaded metal plug connection |
| Net Weight | Approx. 0.82 kg | Compact mixed aluminum and stainless steel structure |
Key Application Scenarios
1. Pavers and Road Rollers: Controls precise vehicle travel speed and straight-line tracking.
2. Aerial Work Platforms and Rotary Drilling Rigs: Enables fine proportional control of multi-way valves, ensuring smooth, vibration-free operation at height.
3. Sauer Closed-Loop Pump Drive: Mounts directly onto the top of the EDC (Electric Displacement Control) valve assembly on Series 90 and M46 pumps.
Common Fault Symptoms
1. Sudden Seizure: Electrical signals are normal, yet the machine suddenly stops moving entirely, or an initiated movement cannot be retracted (causing the engine to stall under load). Cause: Micron-sized iron filings, burrs, or sludge in the hydraulic oil clog the tiny gap between the nozzle and the flapper. Recommended Action: Do not strike the valve body indiscriminately. Clean the interior using a specialized high-pressure cleaning agent; more importantly, replace the vehicle's hydraulic return oil filter element and, if necessary, clean the entire pilot oil circuit reservoir.
2. Zero-Point Drift: The machine continues to exhibit slight movement after the control handle returns to the neutral position, or movement speeds differ between left and right directions. Cause: Mechanical fatigue of the internal torque motor, or deformation and internal leakage of the four small O-rings at the base of the valve. Recommended Action: Inspect the sealing surfaces at the valve base and replace the O-rings with a genuine OEM fluororubber O-ring repair kit.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
