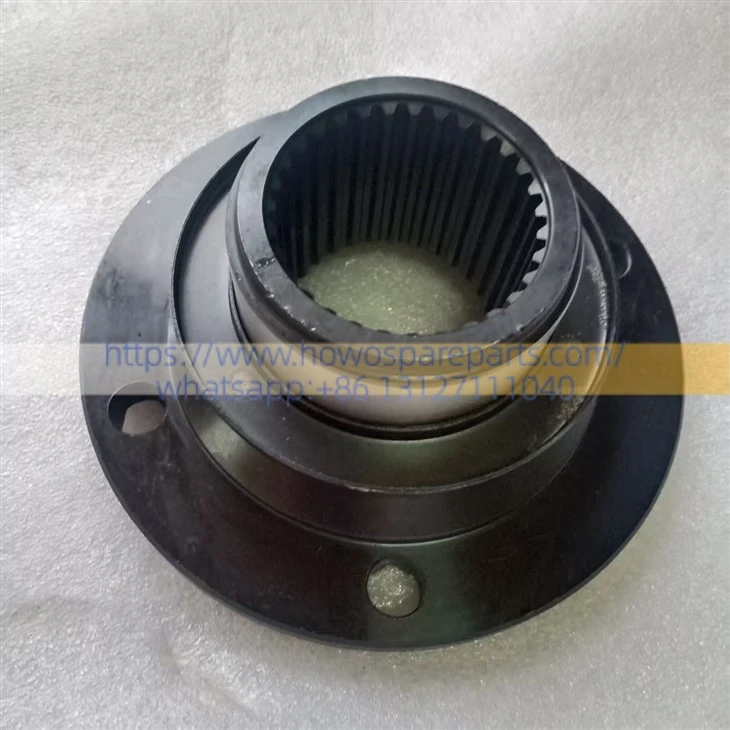

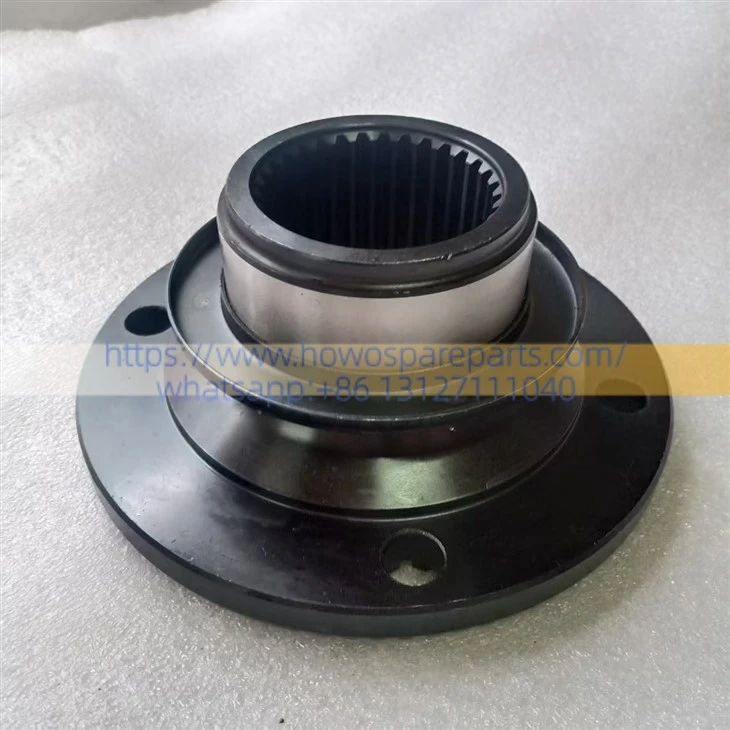

SINOTRUK HOWO MCY13 and MCP16 Series MAN-Technology Drive Axles Flange Assembly KV180
Key Functions and Technical Features
1. Face-Gear/Hirth-Style Coupling: This flange utilizes a face-mounted cross-tooth (KV-tooth) design. Compared to standard flat-face flanges, this design supports the transmission of extremely high torque and ensures superior centering accuracy, making it resistant to slippage under heavy loads or frequent start-stop operations.
2. Driveshaft-to-Reducer Connection: Serving as the primary input component for the axle gearbox, it connects to the driveshaft's universal joint, transferring power from the engine and transmission into the drive axle's final drive unit (differential housing).
3. Wear-Resistant and Leak-Proof Design: The flange journal undergoes high-frequency quenching to achieve exceptional hardness and wear resistance; it mates precisely with the corresponding rear axle oil seal (WG7117329002) to prevent axle gear oil leakage.
Details of the matching axle assemblies
1. MCY13 series MAN-technology tandem drive axles: Widely used in high-efficiency long-haul logistics vehicles (such as the Sitrak C7H and Howo TH7 4×2 or 6×4 tractor units).
2. MCP16 / MCP16ZG series MAN-technology hub-reduction axles: Commonly used in heavy-duty construction dump trucks and special-purpose vehicles operating under harsh conditions, where the flange is designed to withstand frequent and severe torque fluctuations.
Matching Oil Seal WG7117329002 This oil seal fits directly onto the flange journal. Since the journal is prone to developing wear grooves during prolonged chassis operation, this seal must be replaced whenever the flange is replaced; otherwise, leakage of axle gear oil is highly likely to occur.
DETAILS
| DESCRIPTION | Flange Assembly | PART NUMBER | KV180 |
| WEIGHT | 5kg | VOLUME | 200 mm × 200 mm × 150 mm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CHASSIS |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
