Shandong Shengyue Technology Development Co.,Ltd is one of the most professional shacman cab a/c system receiver-drier assembly dz13241821201 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

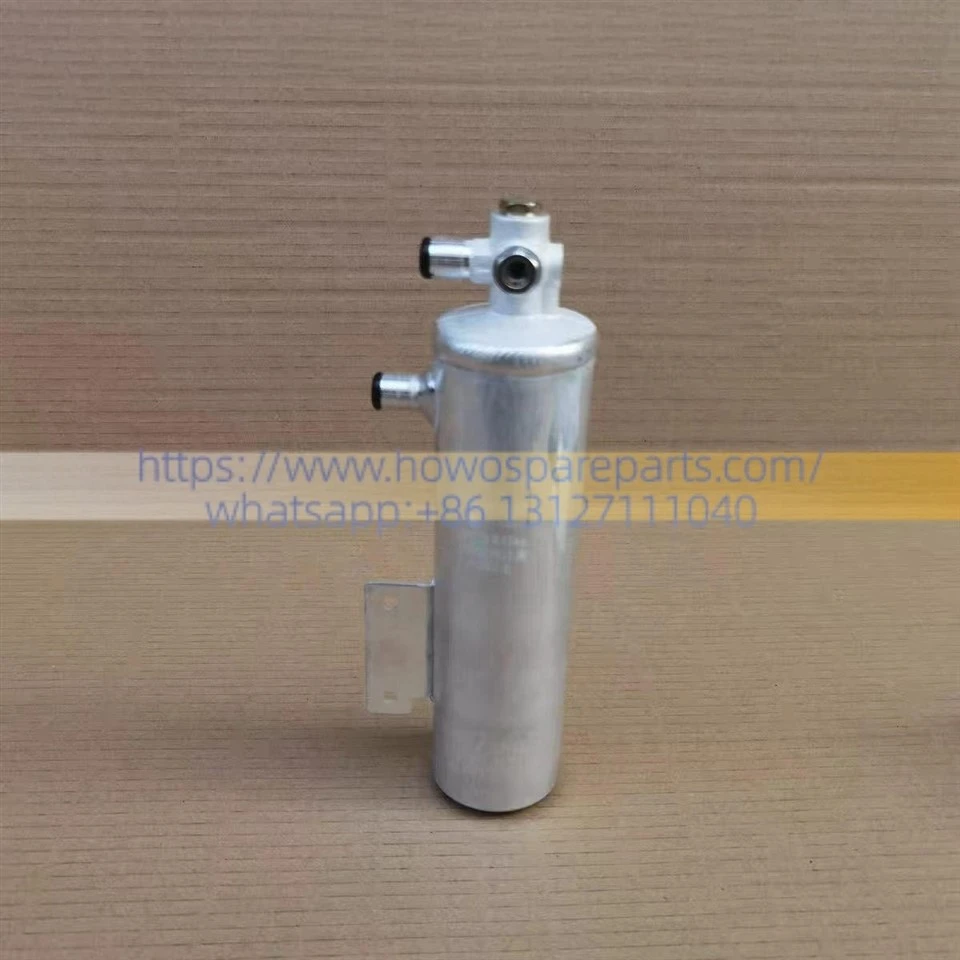

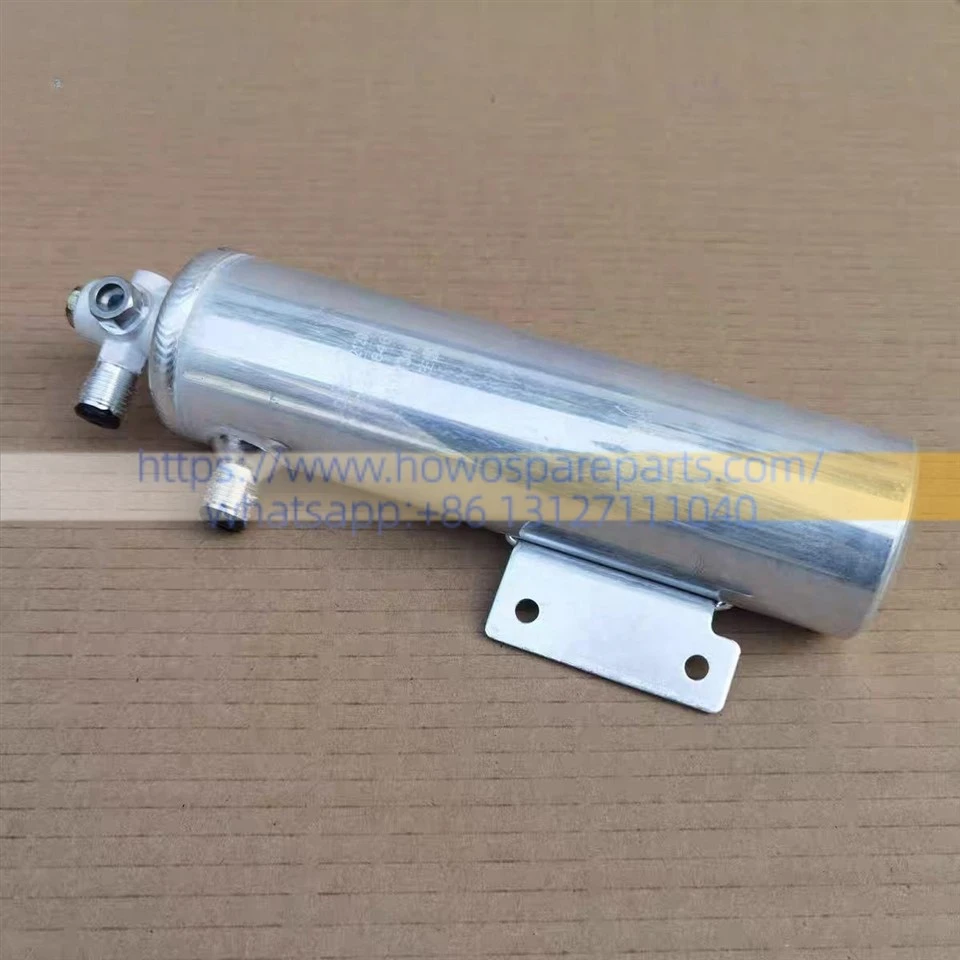

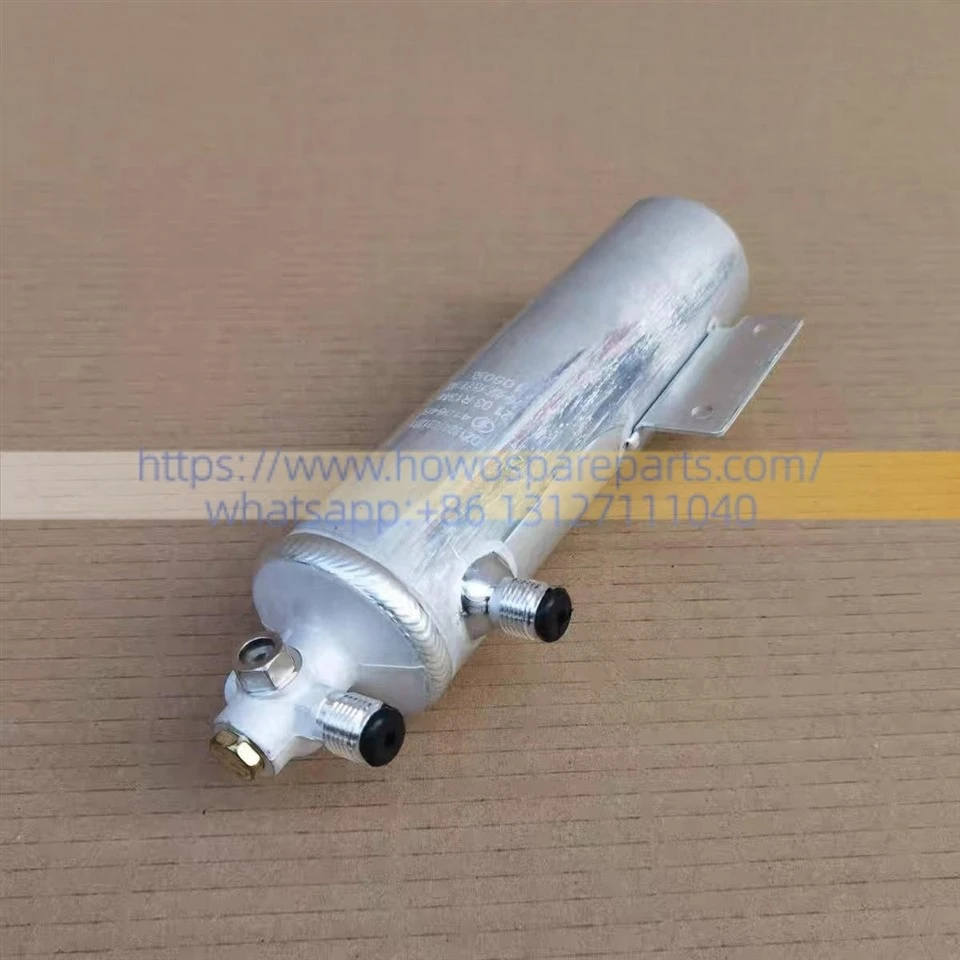

SHACMAN Cab A/C System Receiver-Drier Assembly DZ13241821201
It serves to absorb trace amounts of moisture and filter out particulate impurities within the air conditioning piping, while also acting as a temporary buffer reservoir for liquefied refrigerant to prevent compressor damage caused by "liquid slugging."
It is recommended that heavy-duty trucks undergo preventive replacement every two years or every 100,000 to 150,000 kilometers (or after two consecutive summers of high-temperature, heavy-load operation).
hacman Delong Heavy Duty Truck A/C Refrigeration System Maintenance BOM List
Note: The quantity per set below is calculated based on the standard requirement for a complete overhaul/replacement of a single truck's air conditioning system.
| Part Number / Standard No. | Part Name | Standard Specification / Technical Notes | Qty | Recommended Replacement Strategy |
|---|---|---|---|---|
| DZ13241821010 | A/C Compressor Assembly | 24V / 7H15 Classic heavy-duty type (with multi-groove pulley) | 1 pc | Replace if seized, scored, clutch fails to engage, or no pressure |
| DZ13241821201 | A/C Receiver Drier | Block-type flange connection / with pressure switch port (The Queried Part) | 1 pc | Mandatory replacement if system is opened, compressor is changed, or blocked |
| DZ13241821100 | A/C Condenser Assembly | Front-mounted high-capacity parallel flow radiator | 1 pc | Replace if deformed from collision, severely leaking, or internally clogged |
| DZ13241820140 | HVAC Evaporator Box Assembly | Interior dashboard assembly (includes evaporator core housing) | 1 set | Replace if housing is damaged, duct is broken, or overall unit is aged |
| DZ13241820025 | A/C Expansion Valve | H-Block / Block-type expansion valve | 1 pc | Replace if frozen/clogged, regulation fails, or system is not cooling |
| DZ13241820121 | Evaporator Core | Aluminum high-density heat exchanger (inside the evaporator box) | 1 pc | Replace if corroded, leaking refrigerant, or emitting foul odor |
| DZ15221840011 | A/C Binary/Trinary Pressure Switch | Screws onto the top of the drier; provides high/low pressure dual protection | 1 pc | Replace if frequently tripping, fan fails to run, or switch contact is poor |
| DZ13241821210 | A/C High-Pressure Aluminum Pipe | High-pressure line from compressor to condenser | 1 pc | Replace if pinholes leak, pipe is worn, or fitting is deformed |
| DZ13241821220 | A/C Low-Pressure Rubber Hose | Low-pressure vibration-resistant hose from evaporator to compressor | 1 pc | Replace if rubber is aged/cracked or hose body is weeping |
| Q64208 / Q64210 | A/C Dedicated O-Ring | HNBR (Hydrogenated Nitrile) green/black refrigerant-resistant rubber ring | 1 bag | Mandatory replacement for all pipe joints upon every disassembly |
| N/A (Universal Chemical) | R134a Eco-Friendly Refrigerant | Standard charge volume approx. 850g - 1000g (varies by specific model) | 2-3 cans | Refill to specification after every overhaul and complete vacuuming |
| N/A (Universal Chemical) | PAG 100 Compressor Oil | Dedicated lubricant for R134a heavy-duty compressors | 1 bot | Top up according to manual when replacing compressor or receiver drier |
DETAILS
| DESCRIPTION | Cab A/C System Receiver-Drier Assembly | PART NUMBER | DZ13241821201 |
| WEIGHT | 1kg | VOLUME | 35 cm × 8 cm × 8 cm |
| TRUCK MOLDE | SHACMAN | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CABIN |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
