Shandong Shengyue Technology Development Co.,Ltd is one of the most professional sinotruk howo weichai wp10 wp12 diesel engine coolant temperature sensor / water temperature sensor 612630060035 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

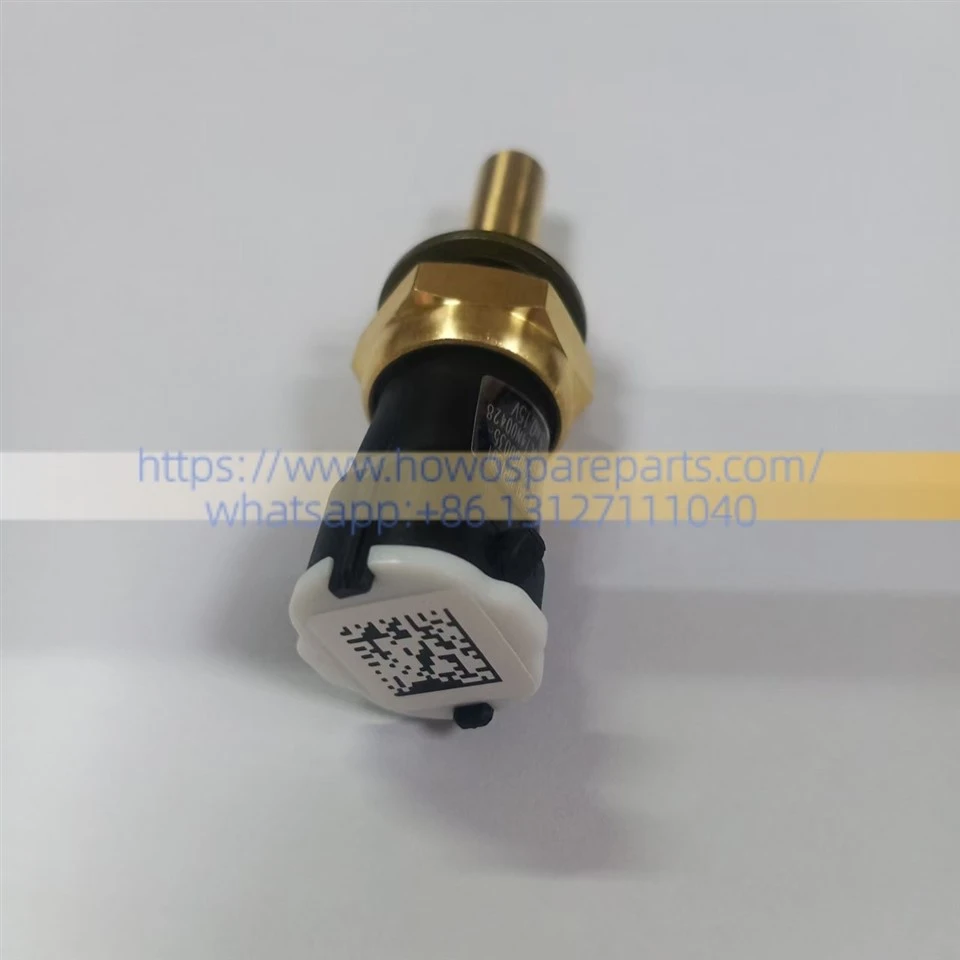

SINOTRUK HOWO WEICHAI WP10 WP12 Diesel Engine Coolant Temperature Sensor / Water Temperature Sensor 612630060035
Installation and Maintenance Tips
1. Installation Location: Typically installed on the engine cylinder head water outlet pipe, near the thermostat housing, or along the main coolant flow path.
2. Common Symptoms of Failure: If this sensor is damaged, the dashboard may indicate abnormal coolant temperatures (extremely high or low); other symptoms include difficulty with cold starts, unexplained increases in fuel consumption, or black smoke from the exhaust.
Bill of Materials (BOM) for Coolant Temperature Sensor (612630060035) Replacement
| No. | Part / Material Name | Specification / Core Parameters | Recommended Brand / Source | Qty | Unit | Replacement Remarks & Function |
|---|---|---|---|---|---|---|
| 1 | Coolant Temperature Sensor | 612630060035 (or BOSCH 0281002209) | Weichai Genuine / BOSCH | 1 | pc | Core Component. Monitors engine coolant temperature. |
| 2 | Sensor Sealing Washer | Copper or Viton (Typically M12 or M14 spec) | Included with sensor / Genuine repair kit | 1 | pc | Mandatory Replacement. Prevents high-temperature coolant leaks via threads. Do not reuse old washer. |
| 3 | Heavy-Duty Coolant | Heavy-duty anti-freeze & anti-corrosion (OAT, -35°C or -40°C) | Weichai Genuine / Sinopec / PetroChina | 2~4 | L | Consumable. Replaces coolant lost during sensor removal. Top off to standard level. |
| 4 | Sensor Connector Repair Kit | 2-pin/3-pin waterproof automotive connector (with terminals & seals) | Matches BOSCH connector series | 1 | set | Replace as Needed. Engine bays run hot; plastic connectors embrittle and terminals corrode over time. |
| 5 | High-Temp Corrugated Loom | Flame-retardant loom (ID Φ6mm or Φ8mm) / Harness tape | Universal automotive wiring supplies | 0.5 | m | Auxiliary Material. Protects sensor pigtail wiring from abrasion and heat radiation. |
| 6 | Thread Sealant | Loctite 567 or medium-strength pipe thread sealant | Loctite | 1 | tube | Auxiliary Material. Apply a small amount to threads to enhance sealing under high pressure. |
DETAILS
| DESCRIPTION | Coolant Temperature Sensor / Water Temperature Sensor | PART NUMBER | 612630060035 |
| WEIGHT | 0.09kg | VOLUME | 15.0 cm × 2.0 cm × 2.0 cm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
