Shandong Shengyue Technology Development Co.,Ltd is one of the most professional HENDRICKSON Air Suspension wg9925522610. 091011-130 091838-130 FOR SINOTRUK HOWO TRUCKS manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

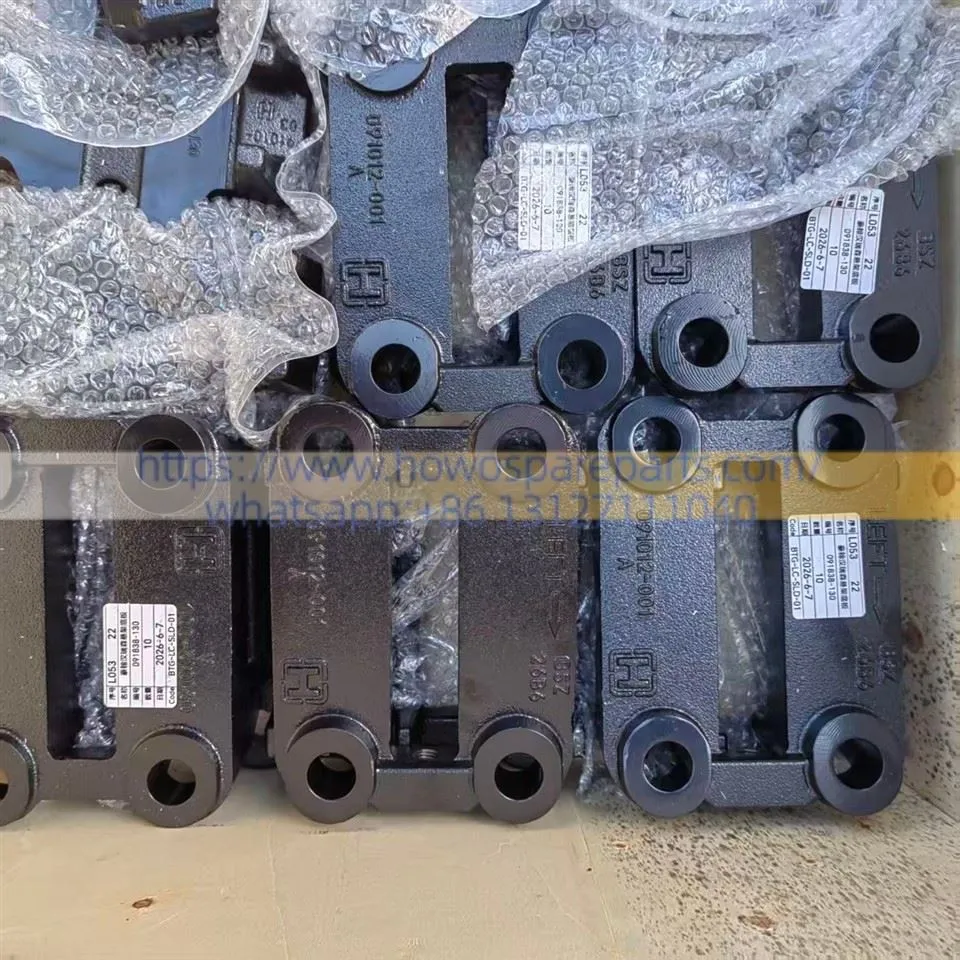

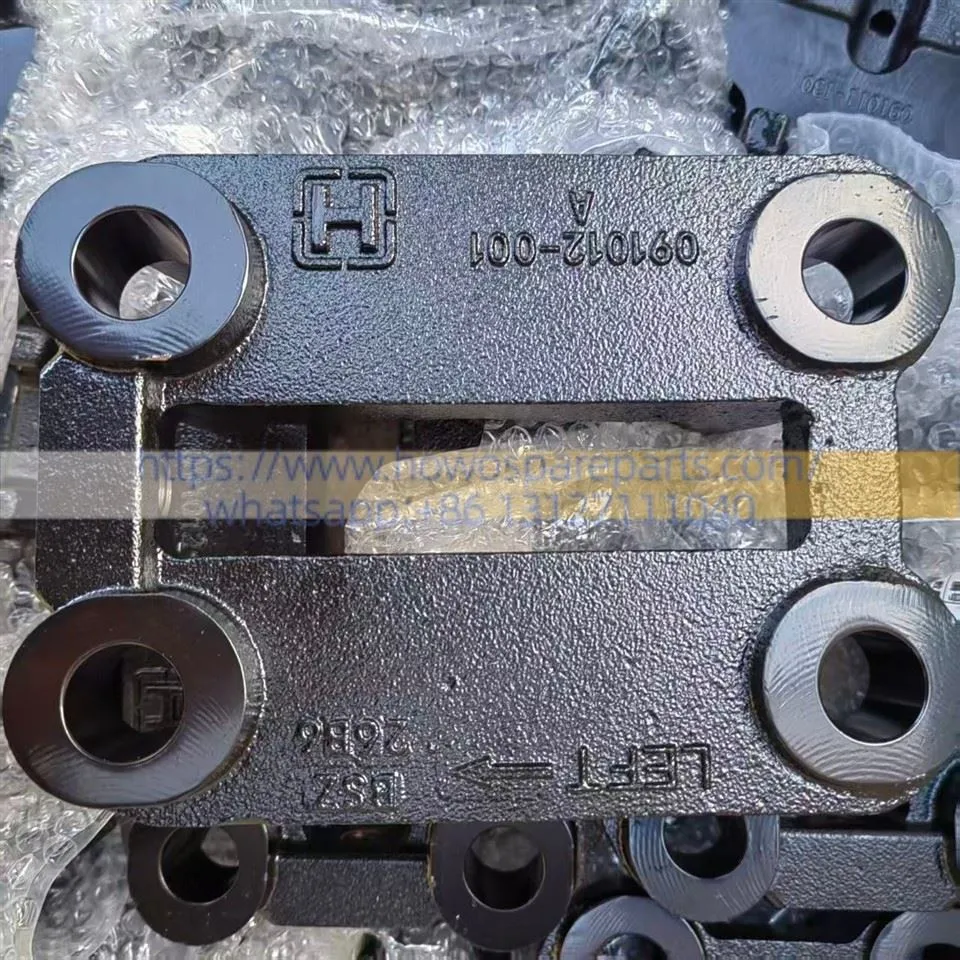

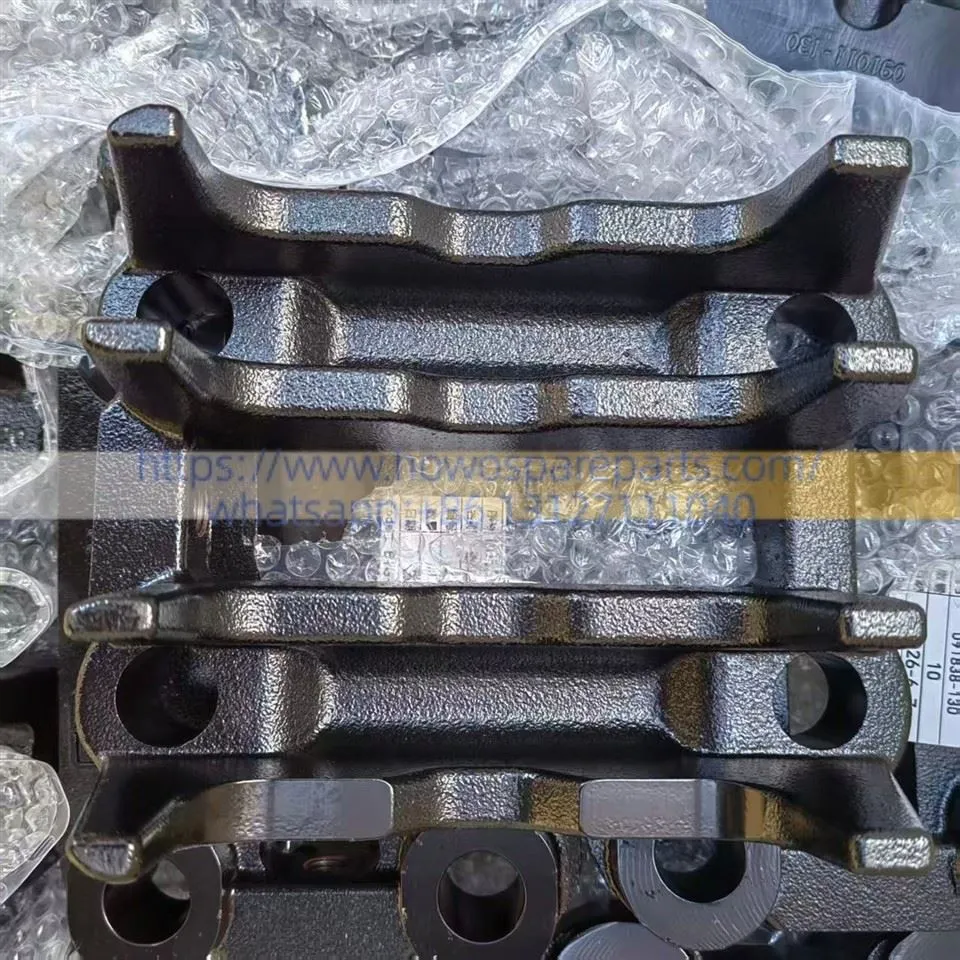

HENDRICKSON Air suspension 091838-130 FOR SINOTRUK HOWO TRUCKS
Core Functions and Mounting Locations
1. A pivotal connecting link: This base mounts directly onto the truck axle. Its upper section supports and secures the air spring, while its lower or side sections connect to the suspension's guide leaf springs (or control arms), firmly binding the axle and air spring together.
2. Bearing loads of tens of tons: The weight of the cargo-often tens of tons-is transmitted through the chassis, height control valve, and air springs, ultimately exerting pressure on this steel base. It must withstand this immense pressure without deforming, cracking, or shifting.
3. Precisely constraining axle movement: Working in tandem with the guide leaf springs, it firmly locks the axle in place. It prevents the axle from shifting longitudinally or swaying laterally during braking, acceleration, or travel over rough terrain.
Installation location
1. Top: Large rubber air spring (part of the air suspension system).
2. Middle: 091838-130 steel base plate (the bottom of the air spring is securely fixed to the upper surface of this base). 3. Bottom: Transversely positioned axle (axle tube) and the air suspension's guiding leaf spring (or primary guide arm).
DETAILS
| DESCRIPTION | Air suspension | PART NUMBER | wg9925522610. 091011-130 091838-130 |
| WEIGHT | 15 kg | VOLUME |
380 mm * 180 mm * 130 mm |
| TRUCK MOLDE | HENDRICKSON | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CHASSIS |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
When replacing the base, it is recommended to simultaneously inspect the associated U-bolts, guide plate bushings, and air spring base gaskets for signs of aging or wear; ideally, the clamping bolts should also be replaced to ensure complete reliability.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
