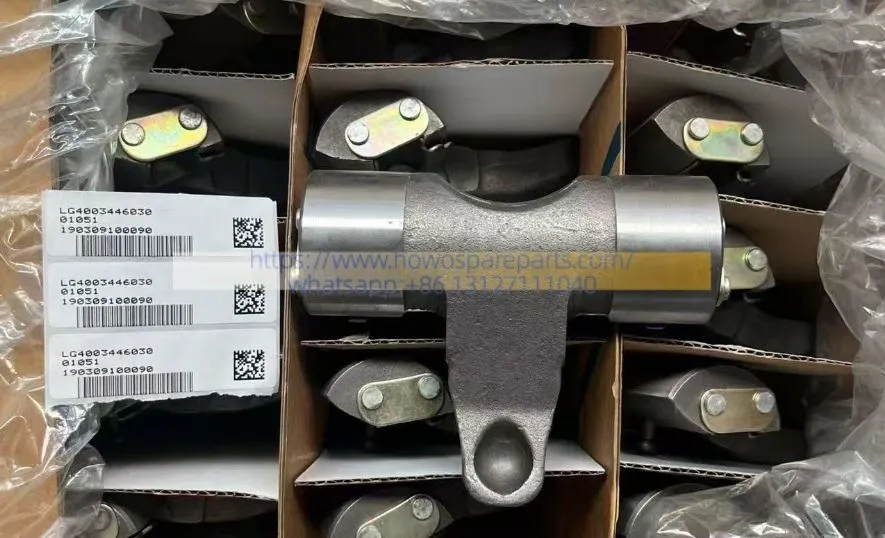

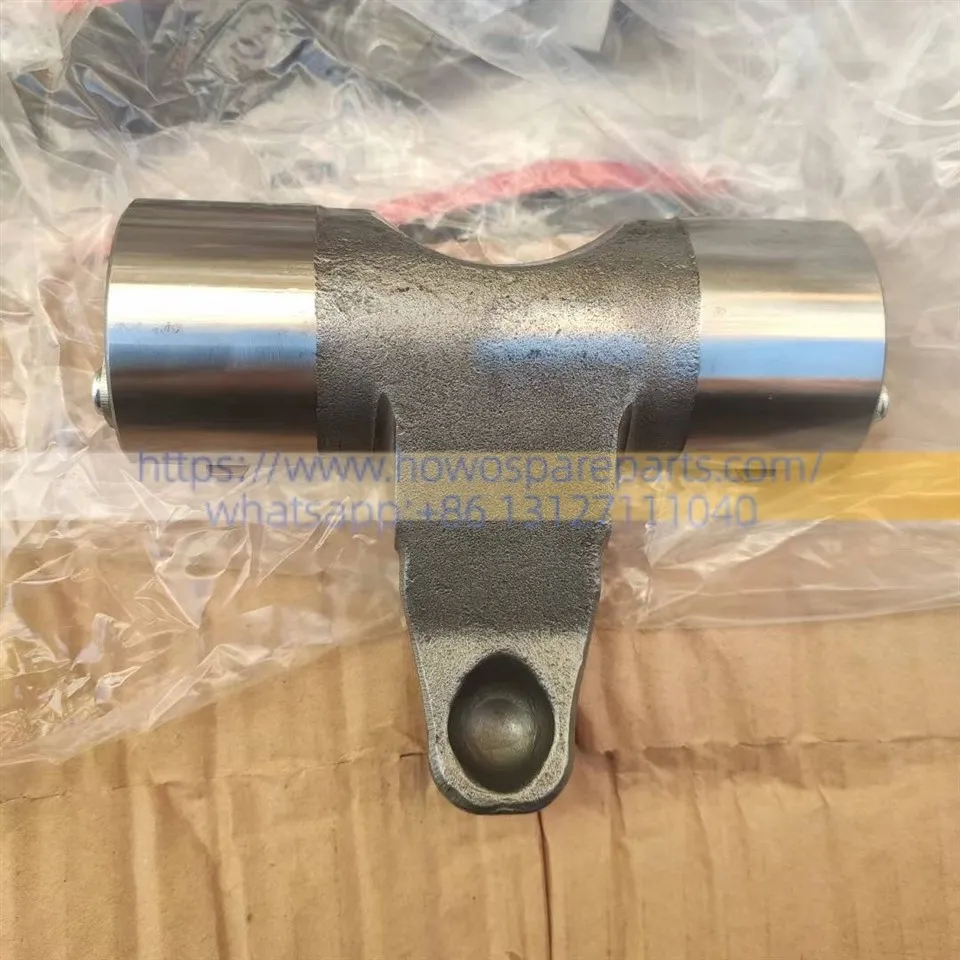

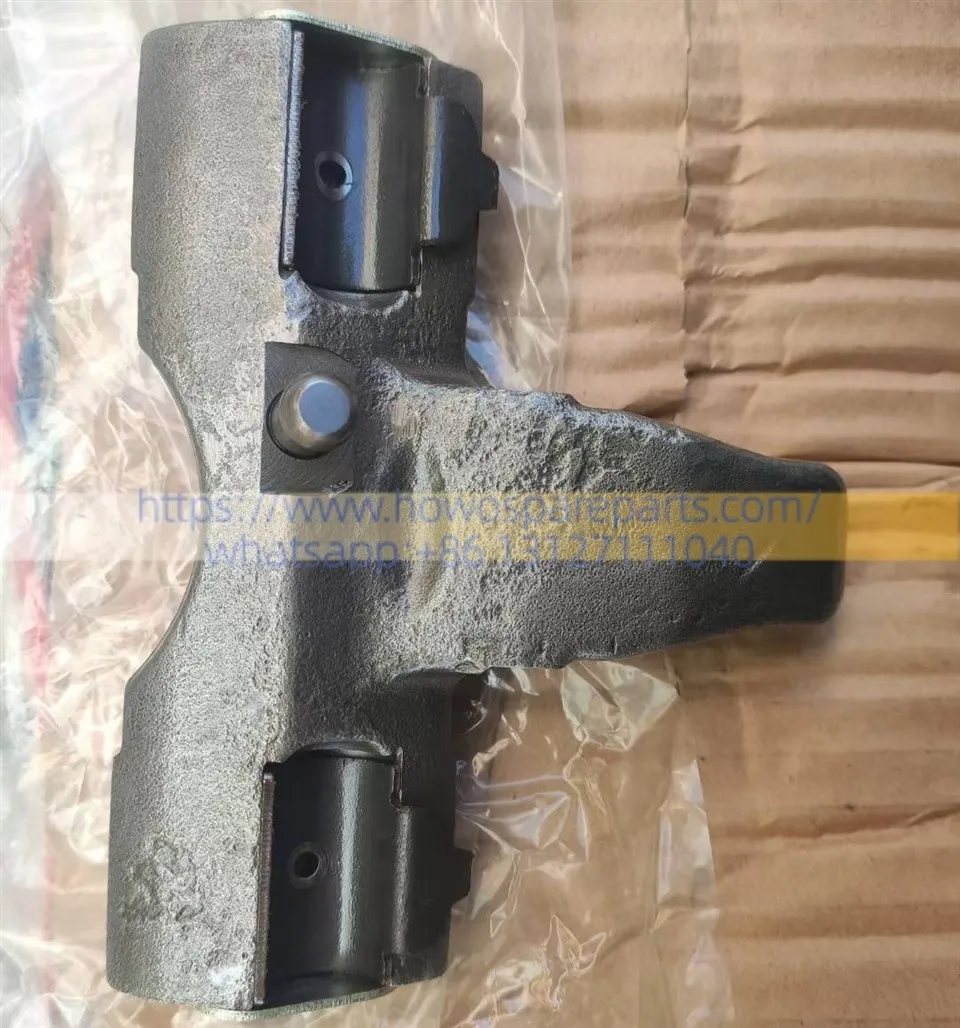

SINOTRUK HOWO LIGHT TRUCKL Lever Assembly LG4003446030
This component is part of the lever assembly within a disc brake caliper assembly. Typically utilized in the front-axle braking systems of light-duty trucks, it serves to transmit braking force (acting, for instance, as a lever mechanism for the brake pads or caliper).
FUNCTION
1. Braking Force Transmission Function:Precisely transmits the thrust generated by the brake air chamber-via the pushrod-into the interior of the brake caliper body, thereby actuating the brake pads and preventing any loss of braking force during the transmission process.
2. Braking Force Amplification Function:Utilizes a lever-based structural design to mechanically amplify the input force and boost braking torque, ensuring that light trucks possess sufficient stopping power under conditions of full load, high speed, or emergency braking.
3. Brake Response Control Function:Optimizes lever angles and operational clearances to ensure rapid and highly linear brake response, significantly reducing braking lag and enhancing pedal feel.
4. Braking Uniformity Assurance Function:Ensures the synchronized operation of the left and right brake calipers, achieving a balanced output of braking force on both sides; this prevents unilateral braking issues and enhances overall vehicle stability.
5. Brake System Coordination Function:Works in seamless coordination with components such as the brake air chamber, pushrod, adjustment mechanism, and brake pads to form a complete disc brake actuation system, thereby maintaining the stability and reliability of the overall braking performance.
Brief Description of Operating Principles
1. When the driver depresses the brake pedal, the brake air chamber extends its pushrod, which acts directly upon the lever assembly.
2. The lever rotates around a pivot point, utilizing the principle of leverage to amplify the thrust and transmit it to the adjustment mechanism and brake pads located within the brake caliper body.
3. The inner brake pad is pushed against the rotating brake disc; simultaneously, the floating caliper body slides to drive the outer brake pad to clamp the disc in synchronization, thereby generating dual-sided friction braking.
4. When the brake pedal is released, the lever returns to its original position under the force of the return spring; the brake pads disengage, and braking is released.
Performance Characteristics
| Performance Feature | Detailed Description |
|---|---|
| Rapid Response | Optimized lever structure with high force transmission efficiency, minimal braking delay, significantly shortening braking distance and improving emergency braking safety. |
| Strong Stability | Resistant to deformation or sticking under high-temperature and high-frequency braking conditions; minimal braking force attenuation, maintaining stable and good pedal feel even during prolonged downhill or fully loaded operation. |
| Excellent Durability | Made of high-strength wear-resistant materials with anti-corrosion surface treatment; superior fatigue resistance, long service life, effectively reducing secondary repairs caused by lever failure. |
| High Compatibility | Perfectly matches the HOWO light truck front axle disc brake caliper; no additional adjustment required after installation, ensuring even braking force on both sides and preventing one-sided braking. |
| High Safety | Ensures reliable operation of the braking system, delivering stable performance on wet roads, complex conditions, or during emergency braking, thereby enhancing overall vehicle driving safety. |
Installation Location
It is installed on the disc brake assembly of the vehicle's front axle, forming part of the front-wheel braking system. Situated at the lever's pivot point within the brake caliper body, it makes direct contact with the pushrod of the brake air chamber; it is secured in place by means of a pin shaft or eccentric bearing and is connected to both the adjustment mechanism and the brake pad carrier.
Maintenance Recommendations
1. Regular Inspection: Every 10,000 kilometers or once a month, inspect the lever mechanism to ensure smooth operation and check for any binding, abnormal noises, or visible signs of wear. Simultaneously, check the thickness of the brake pads, the condition of the brake discs, and the clearance of the brake chamber pushrods.
2. Cleaning and Lubrication: Keep the lever and its surrounding area clean to prevent oil, dust, or foreign objects from entering and causing the mechanism to bind. When inspecting the guide pins and pivot pins, remove any old grease and apply a specialized high-temperature brake lubricant (do *not* use standard mineral-oil-based cleaners, as this may damage rubber components).
3. Synchronized Replacement: When replacing the lever assembly, it is recommended to simultaneously inspect-or replace, if heavily worn-the brake pads, brake discs, guide pins, and dust boots. This prevents uneven overall performance that can result from replacing only a single component.
4. Brake System Bleeding and Break-in: Following installation or maintenance, the brake system must be thoroughly bled. Additionally, perform a low-speed break-in test (covering at least 50–100 kilometers) to ensure proper brake response and to verify the absence of brake pulling or a "soft pedal" sensation.
Although the lever assembly is a small component, it serves as an indispensable "joint" within the front axle braking system. It directly impacts the vehicle's braking distance, braking efficiency, and overall driving safety. Should it suffer from wear, seizing, or deformation, it can lead to issues such as a spongy brake pedal, abnormal noises, or insufficient braking force. Therefore, timely replacement effectively restores the braking system to its original factory performance specifications.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
