Shandong Shengyue Technology Development Co.,Ltd is one of the most professional weichai baudouin bosch common rail fuel injector 1004135715 f00bj00071 f00bj00070 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

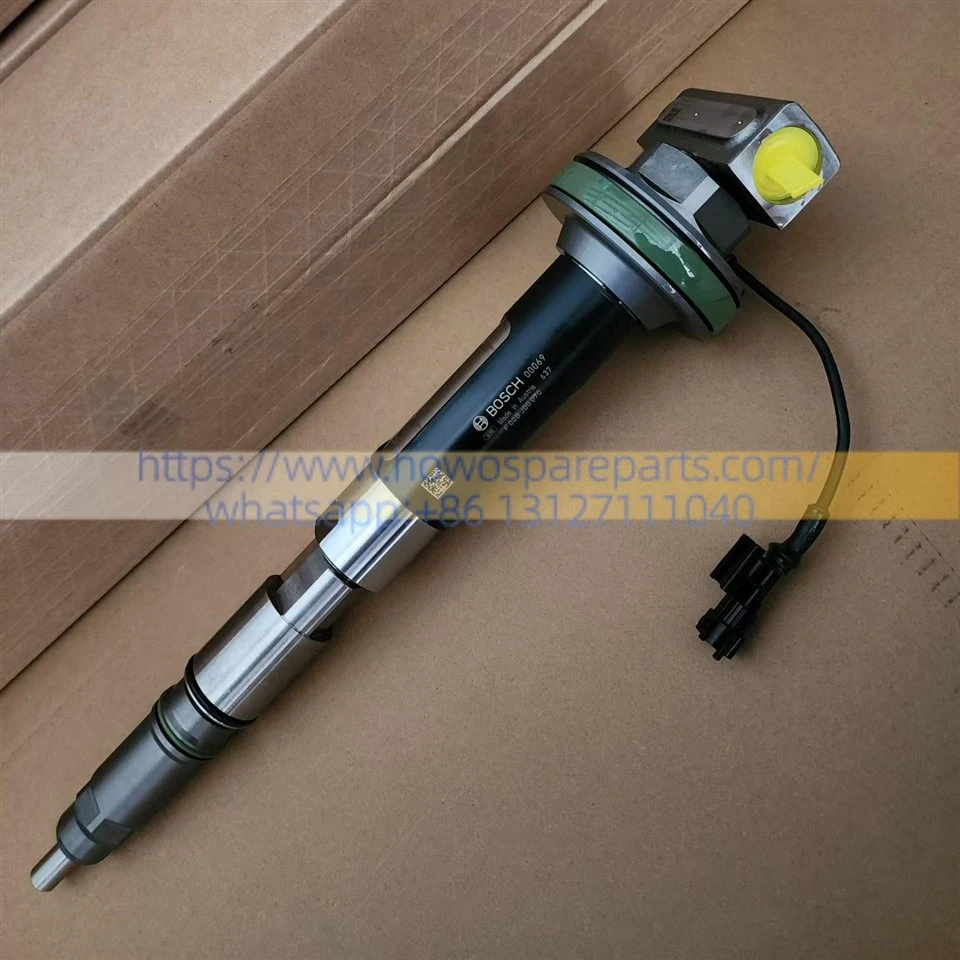

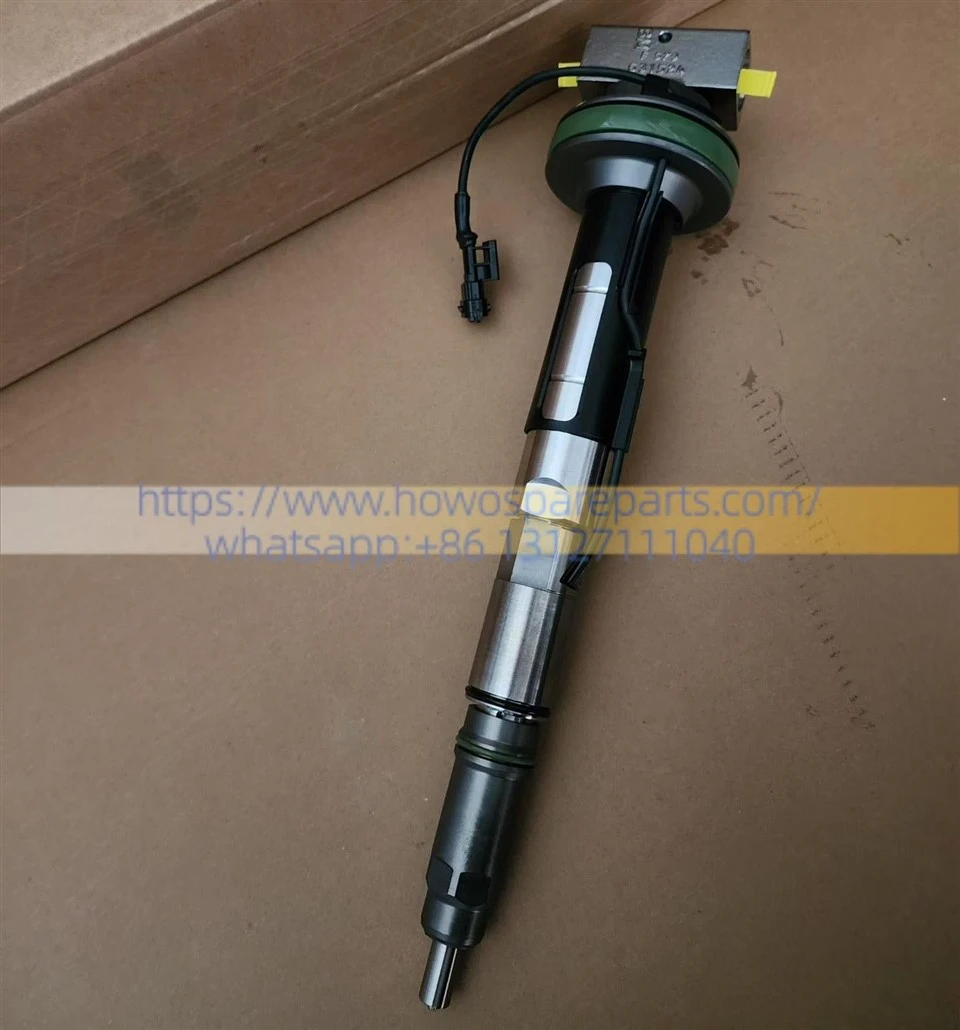

Weichai Baudouin BOSCH Common Rail Fuel Injector 1004135715 F00BJ00071 F00BJ00070
Weichai/Baudouin 6-cylinder engine series: 6M21, 6M26, 6M33
Weichai/Baudouin V-12 high-horsepower engine series: 12M26, 12M33 (widely used in major ports, as main propulsion engines for ocean-going vessels, and as backup generator sets for large-scale data centers exceeding 1,000 kW)
Common Rail Injector System Maintenance BOM - Large Industrial & Marine Engines
| Item | Part Name | Core OEM Part No. / Spec | Functional Description | Unit | Qty (Per Cyl.) | Qty (Full 6-Cyl. Overhaul) | Recommended Replacement Reason & Notes |
|---|---|---|---|---|---|---|---|
| 01 | Common Rail Injector Assembly | F00BJ00071 / 1004135715 | Core injection unit. Atomizes fuel under ultra-high pressure (>2,000 bar). | Pcs | 1 | 6 (or 12 for V12) | Subject to testing results. Can be replaced individually or as a complete engine set. |
| 02 | Injector Lower Copper Washer | Matches specific engine model (thickness varies) | Located at the tip of the nozzle; blocks ultra-high temp & pressure combustion gases. | Pcs | 1 | 6 | Mandatory Replacement. Undergoes plastic deformation under high torque. Reusing it guarantees blow-by gas leaks, melting the nozzle. |
| 03 | Injector Upper O-Ring | High-temp Fluororubber (Viton / FKM) | Seals against the cylinder head top to prevent engine oil from contaminating the diesel return line. | Pcs | 1 | 6 | Mandatory Replacement. Rapidly hardens and ages under prolonged exposure to hot engine oil; must be replaced once disturbed. |
| 04 | Injector Lower O-Ring | High-temp Fluororubber (Viton / FKM) | Works with the upper ring to prevent diesel from seeping into and diluting the crankcase engine oil. | Pcs | 1 | 6 | Mandatory Replacement. Failure leads to fuel dilution of oil, which can cause catastrophic bearing failure or engine seizure. |
| 05 | High-Pressure Fuel Inlet Connector | High-Pressure Feed Tube / Quill Tube | Passes through the side of the cylinder head to link the rail branch to the injector inlet. | Pcs | 1 | 6 (Subject to wear) | If the spherical/conical sealing seat is scratched or distorted during removal, it will leak internally under 2,000+ bar. Replace if worn. |
| 06 | Cylinder Head Cover Gasket | Matches specific engine model drawing | Seals the top valve cover structure to prevent engine oil splashing and weeping. | Pcs | 0.5 | 3 ~ 6 | Large industrial engines often feature "one cylinder, one head" or "two cylinders, one head" designs. Replace the gasket for any cylinder opened. |
| 07 | Heavy-Duty Primary Fuel Filter | High-efficiency water separator (e.g., Fleetguard) | Traps large particulates and removes up to 99% of free/emulsified water from diesel fuel. | Pcs | -- | 1 (Per Engine) | Highly Recommended. Common rail systems are extremely water-sensitive; ensuring pristine filtration protects new injectors. |
| 08 | BOSCH Standard Fine Fuel Filter | Micron-level ultra-high filtration efficiency | Traps sub-micron abrasive particles to protect the highly precise injector needle and valve seat. | Pcs | -- | 1 (Per Engine) | Highly Recommended. Skipping filter replacement may cause brand-new injectors to seize within hours due to contaminated fuel. |
DETAILS
| DESCRIPTION | Common Rail Fuel Injector | PART NUMBER | 1004135715 F00BJ00071 F00BJ00070 |
| WEIGHT | 2kg | VOLUME | |
| TRUCK MOLDE | Weichai Baudouin BOSCH | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
Hot Tags: weichai baudouin bosch common rail fuel injector 1004135715 f00bj00071 f00bj00070, manufacturers, suppliers, factory, parts, genuine, original
