Shandong Shengyue Technology Development Co.,Ltd is one of the most professional lovol fl956f / fl956h / fl956 wheel loader gear pump 9f650-56a010000a0 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

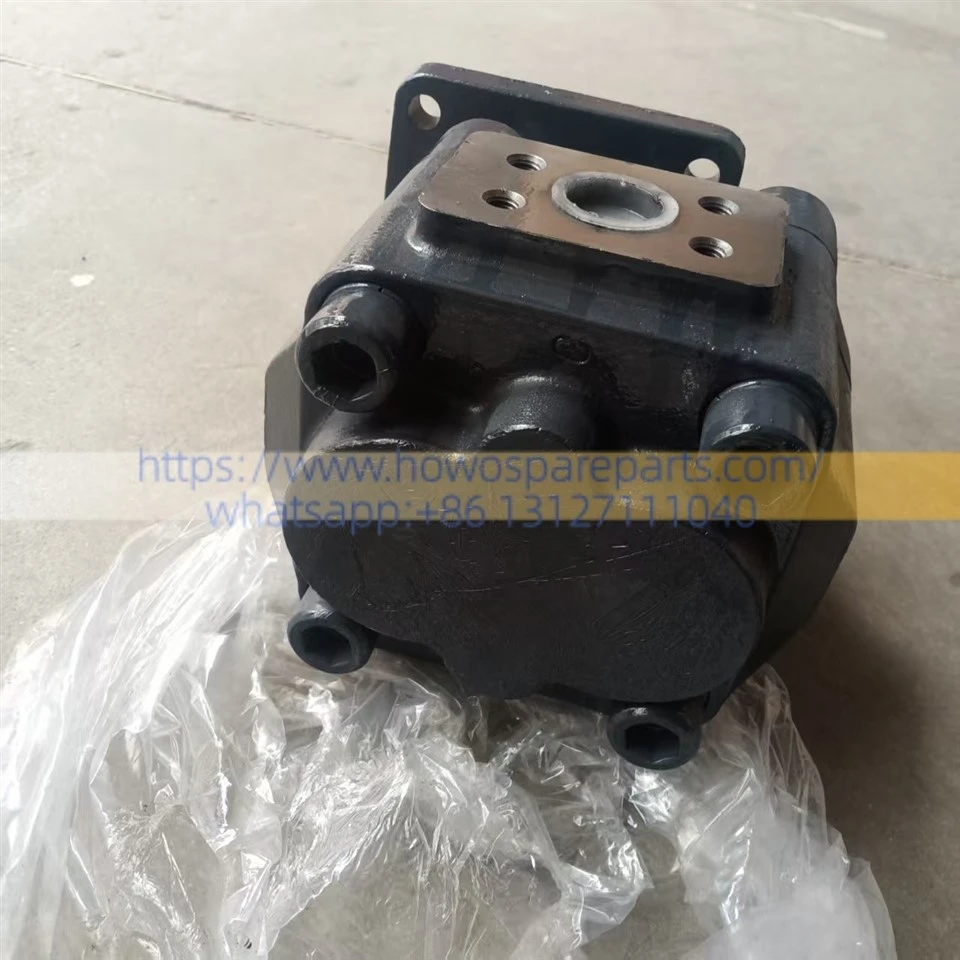

Lovol FL956F / FL956H / FL956 Wheel Loader Gear Pump 9F650-56A010000A0
FUNCTION
1. Hydraulic Power Supply: As a hydraulic gear pump, it supplies high-pressure hydraulic fluid to the working hydraulic systems of wheel loaders such as the Foton Lovol FL956F and FL956H.
2. Primary Driven Components: It is responsible for providing hydraulic power output to the loader's working implements (including bucket lifting, tilting, boom movements, etc.), serving as the core power component of the working hydraulic system.
3. Suction and Pressurization: Through the rotation of a pair of meshing gears, the pump generates volumetric changes that draw hydraulic fluid from the reservoir into the pump chamber; the fluid is then pressurized and discharged to the multi-way directional control valve, from where it is distributed to the various hydraulic cylinders (such as lift cylinders, tilt cylinders, etc.).
Installation Location
It is mounted on the torque converter.
Specifically, it is situated at the torque converter's pump drive flange-typically located on the side or top of the torque converter housing, between the rear of the engine and the front of the transmission.
This unit functions as a working hydraulic pump; together with components such as the steering pump and transmission pump, it forms a triple-pump or dual-pump assembly, driven directly by the torque converter (via gears or splines).
Performance Advantages
| No. | Performance Advantage Category | Specific Description | Practical Benefits |
|---|---|---|---|
| 1 | High-Pressure Stable Output | Rated pressure up to 20–25 MPa, fixed displacement design | Powerful bucket lifting under heavy load, stable pressure |
| 2 | Continuous and Uniform Flow | Continuous gear meshing, fixed oil output per revolution, fast response | Smooth and responsive actions, improved work efficiency |
| 3 | Compact Structure & High Reliability | High-strength ductile iron pump body + axial clearance auto-compensation + secondary sealing | Strong impact resistance, anti-contamination, long service life |
| 4 | High Efficiency & Low Noise | High volumetric efficiency, smooth operation | Reduced energy loss, better operator comfort |
DETAILS
| DESCRIPTION | Gear Pump | PART NUMBER | 9F650-56A010000A0 |
| WEIGHT |
30KG |
VOLUME |
20 × 20 × 33 cm |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | Hydraulics |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
Daily Maintenance Recommendations
Hydraulic Oil Inspection: Check the oil level and quality daily or at the start of every shift. Use the recommended hydraulic oil and maintain the oil temperature within the range of 30–90°C.
Oil Filter Maintenance: Replace the hydraulic return filter element and suction strainer every 250–500 hours to prevent impurities from entering the pump and causing gear wear.
Visual Inspection: Observe the pump body for any leaks (at oil seals or connections), abnormal noises, or vibrations. If any issues are detected, immediately shut down the equipment for inspection.
Fastener Inspection: Periodically check mounting bolts and pipeline connections to ensure they are not loose.
System Cleaning: Avoid immediately shutting down the system after prolonged, heavy-load operation; it is recommended to allow the pump to idle at low speed for a few minutes to dissipate heat.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
