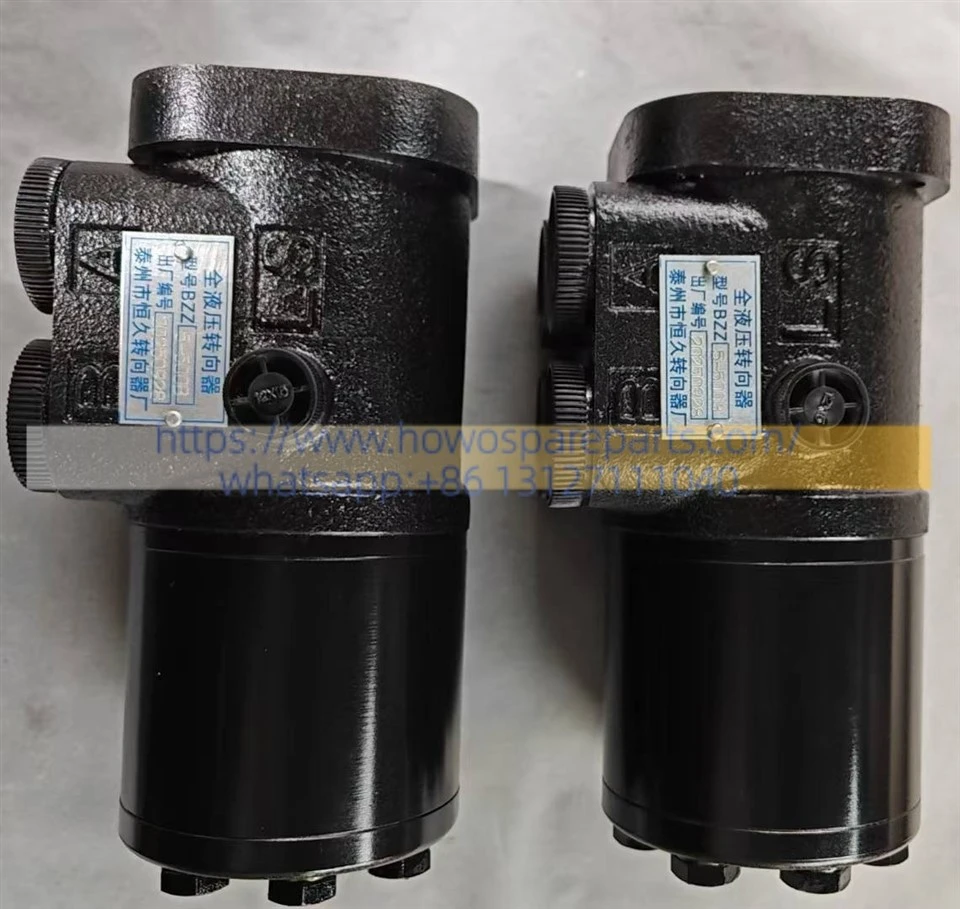

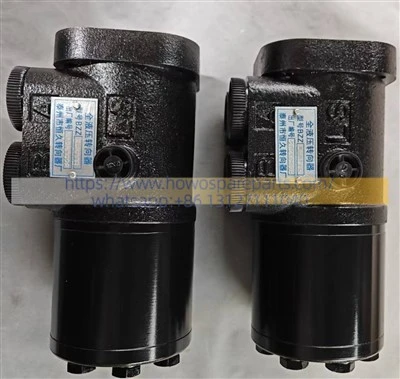

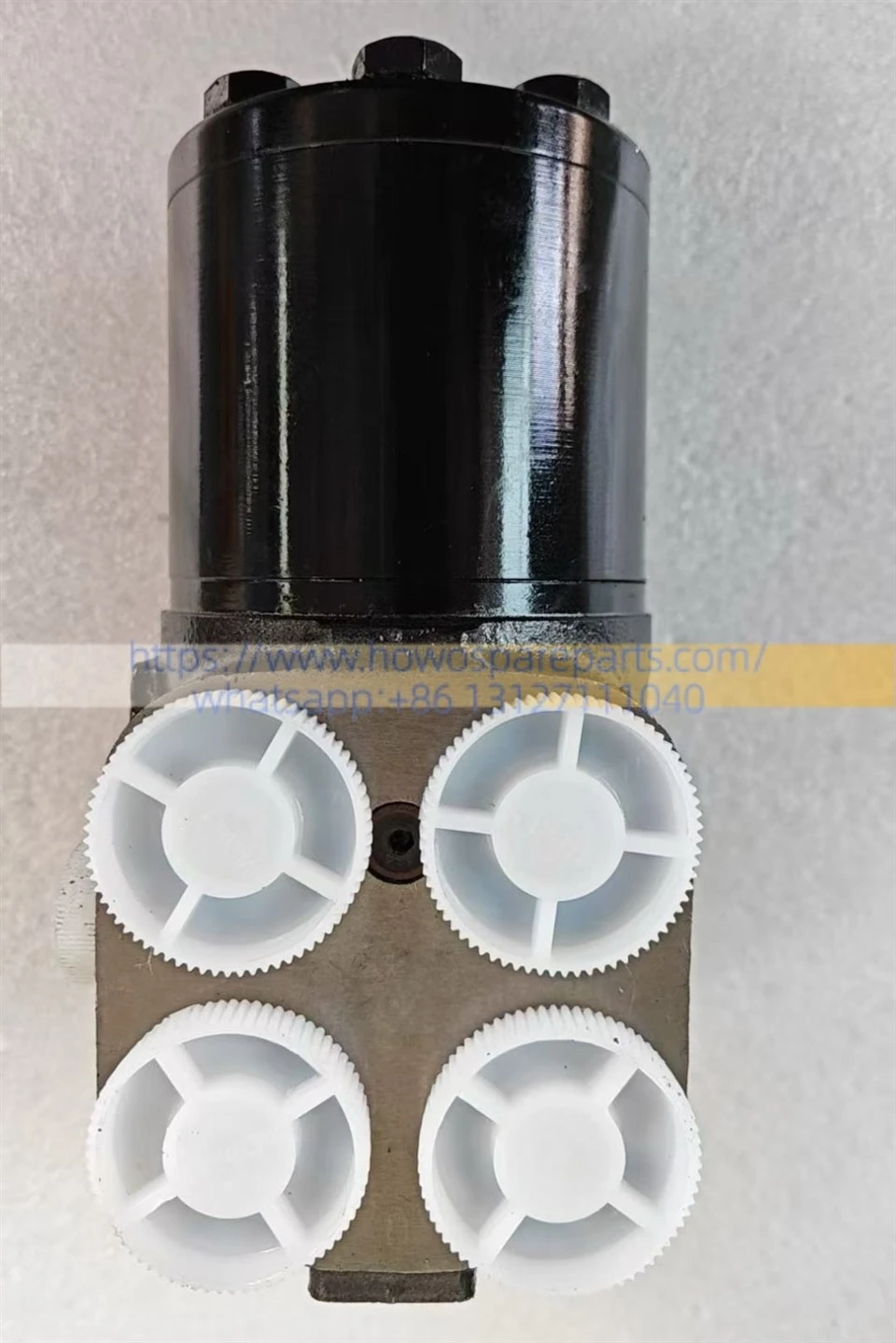

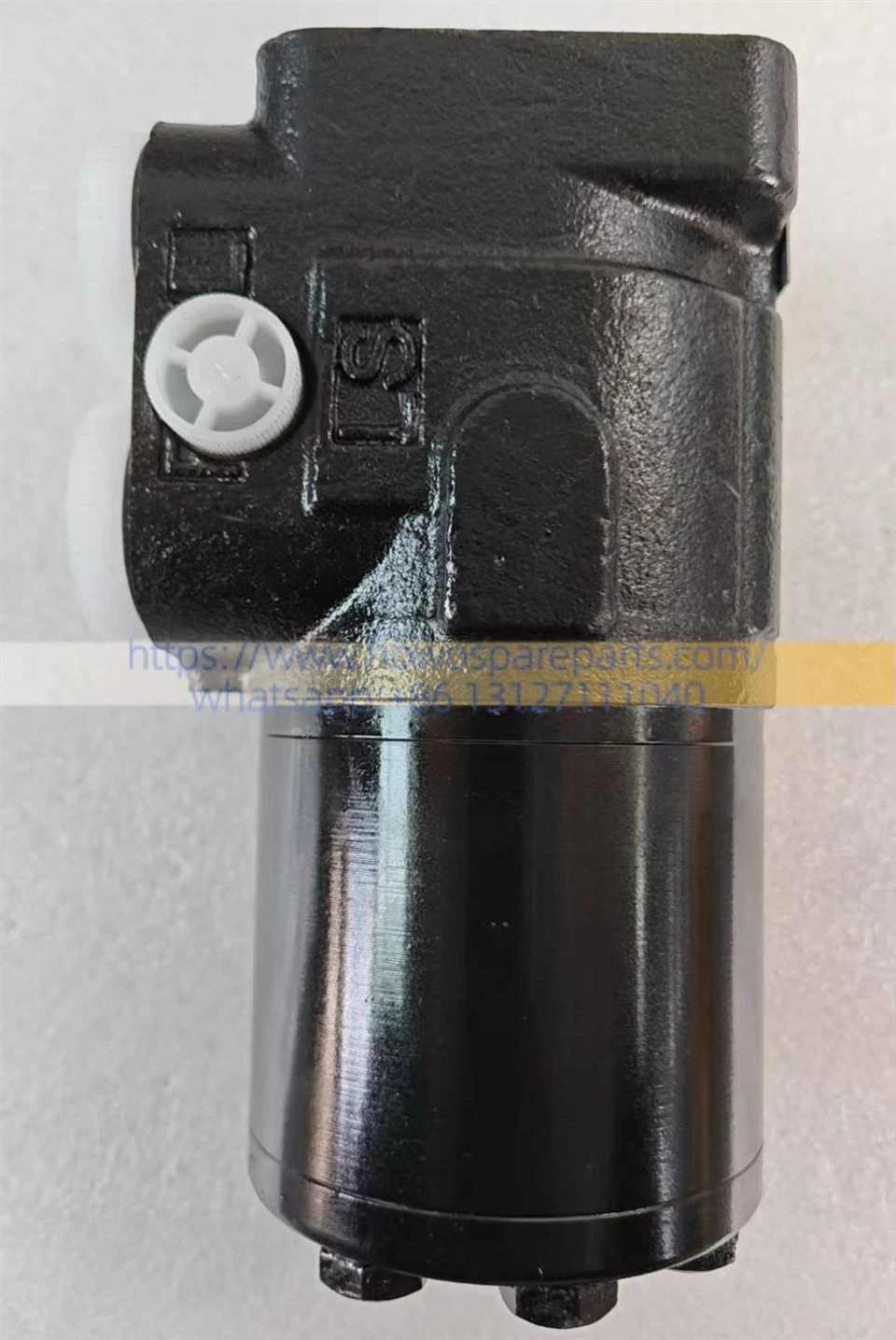

Full-hydraulic steering unit Marine Steering Gear BZZ5-5009
Core Technical & Physical Parameters (BZZ5-5009)
| Category | Core Technical Item | Official Standard Data | Industry Remarks / Actual Description |
|---|---|---|---|
| Displacement | Nominal Geometric Displacement | 500 ml/r | The steering unit displaces 500 milliliters of fluid for each full turn of the steering wheel. |
| Hydraulic Control | Max. System Input Pressure | 16 MPa (160 bar) | Beyond this pressure, the internal system safety relief valve opens for protection. |
| Rated System Flow Rate | 38 L/min | Ensures the steering wheel does not get heavy or laggy under high RPM and heavy load. | |
| Max. Continuous Backpressure | 1.6 MPa | The maximum pressure limitation allowed on the oil return line (T-port). | |
| Connections | Load Sensing Port (LS) | 1x Independent M10×1 / M12×1.5 | Core signal line; must be connected to a priority valve or a load-sensing pump. |
| Main Oil Ports Thread (P/T/A/B) | Typically M22×1.5 or M20×1.5 | Inlet Port (P), Return Port (T), Left Turn Port (A), and Right Turn Port (B). |
DETAILS
| DESCRIPTION | Full-hydraulic steering unit Marine Steering Gear | PART NUMBER | BZZ5-5009 |
| WEIGHT | 10 kg | VOLUME | 22 cm × 15 cm × 15 cm |
| TRUCK MOLDE | QUALITY | Copy,High Copy, OEM,Original | |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE |
hydraulic |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
