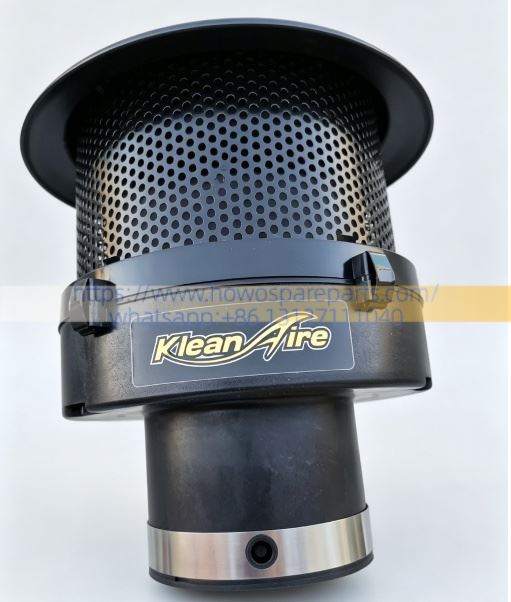

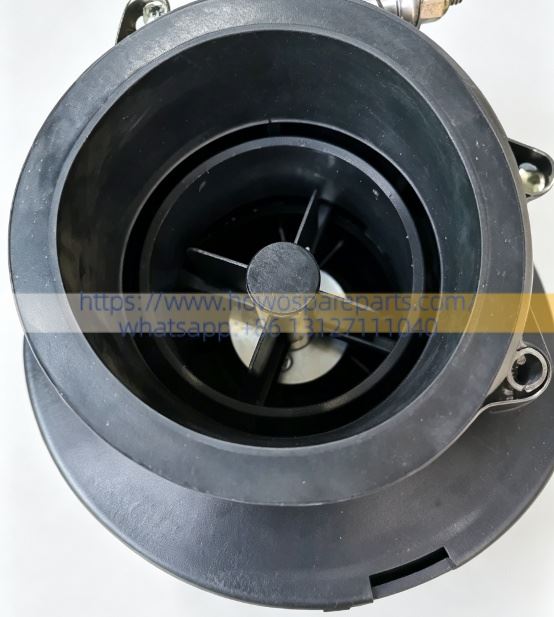

Foton Lovol Wheeled Tractor Air Preheater / Air Pre-filter TD820.11.1.2
Tips for Routine Maintenance and Safe Replacement
1. Regularly empty the dust collection cup: During peak agricultural seasons involving high-dust operations, the debris inside the dust collection cup must not exceed the maximum fill line. Overfilling compromises centrifugal separation, allowing debris to surge directly into the main filter.
2. Ensure an airtight seal: As the pre-cleaner connection is located at the very front of the intake tract, the hose clamp must be tightened to the correct torque when installing a new assembly. Any air leak at this connection allows unfiltered, dust-laden air to be drawn directly into the engine cylinders, causing severe premature wear on the piston rings.
3. Do not spray directly with a high-pressure washer: When washing the vehicle, avoid aiming the high-pressure water jet directly at the pre-cleaner's intake louvers; this prevents water from entering the intake tract and causing engine hydrolock (liquid ingestion leading to catastrophic internal damage).
Complete BOM Detailed List for Tractor Air Intake System Overhaul
| Item No. | Part Number / Drawing No. | Description (EN) | Qty | Material Property & Replacement Advice |
|---|---|---|---|---|
| [Part A] | Core Air Intake Filtration Components | (First & Second Lines of Defense) | ||
| 01 | TD820.11.1.2 | Air Preheater / Pre-filter Assembly | 1 Pc | Core Replacement Part: Includes swirl vanes, housing, semi-automatic duckbill dust valve, and dust bowl. |
| 02 | TA00021000007 (Ref) | Dust Bowl Rubber Gasket / O-Ring | 1 Pc | Highly Recommended: Prevents air leaks at the joint of the dust bowl, which would ruin the centrifugal cyclonic effect. |
| 03 | TD800.111C (Ref) | Dry-Type Main Air Filter Element | 1 Pc | Replace as Conditioned: The core of secondary filtration. Must be renewed if heavily blackened or clogged. |
| 04 | TD800.111C-2 (Ref) | Inner Safety Filter Element | 1 Pc | Paired Replacement: The final line of engine protection. Mandatory renewal if the main filter is broken or during overhaul. |
| [Part B] | Fasteners & Piping Accessories | (To Ensure Total Airtightness & Anti-Vibration) | ||
| 05 | Q676108 / Q67689 | Heavy Duty Worm Drive Hose Clamp (B108) | 2 Pcs | Mandatory Renewal: Used to lock the pre-filter outlet to the intake steel pipe. Strict prevention of loosening and air leaks. |
| 06 | TS06110050008 | Air Intake Transition Rubber Hose | 1 Pc | Inspect & Replace: Must be discarded if cracking or hardening occurs due to long-term field UV exposure. |
| 07 | TD900.11B.2 | Anti-Vibration Intake Pipe Retaining Clip | 1 Set | Inspect & Replace: Used to fix the vertical intake pipe to prevent the pre-filter from shaking off on bumpy terrain. |
| 08 | N/A | High-Viscosity Airtight Rubber Sealing Tape | A.R. | Consumable: Used for auxiliary airtight wrapping at piping connections. |
DETAILS
| DESCRIPTION | Wheeled Tractor Air Preheater / Air Pre-filter | PART NUMBER | TD820.11.1.2 |
| WEIGHT | 1.5kg | VOLUME | 220 mm × 220 mm × 320 mm |
| TRUCK MOLDE | Foton Lovol | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CHASSIS |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
