SHACMAN X5000 X6000 F3000 X3000 Fuel Level Sensor DZ93189553071

Shandong Shengyue Technology Development Co.,Ltd is one of the most professional shacman x5000 x6000 f3000 x3000 fuel level sensor dz93189553071 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

SHACMAN X5000 X6000 F3000 X3000 Fuel Level Sensor DZ93189553071

FUNCTION

1. Precision Fuel Level Measurement: Internally, the unit employs an array of advanced, densely packed reed switches. Externally, a high-density, diesel-resistant float-embedded with a permanent magnet-slides vertically in tandem with the rising and falling diesel level within the fuel tank. Through magnetic force, the float triggers the corresponding reed switches at its specific position, thereby altering the sensor's output resistance value. The sensor transmits this variable resistance signal in real-time to the vehicle's central body controller, where it is converted into a precise fuel percentage or remaining volume in liters, enabling the driver to accurately monitor fuel consumption and remaining driving range directly from the cab.

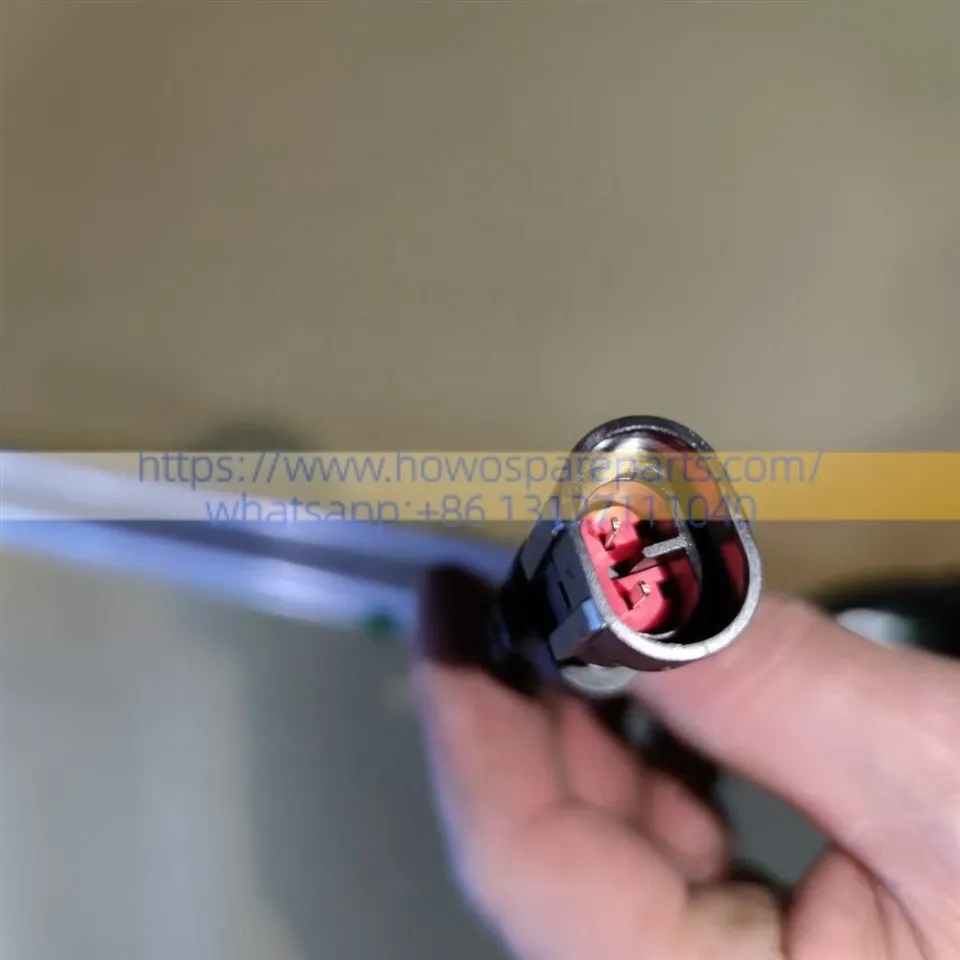

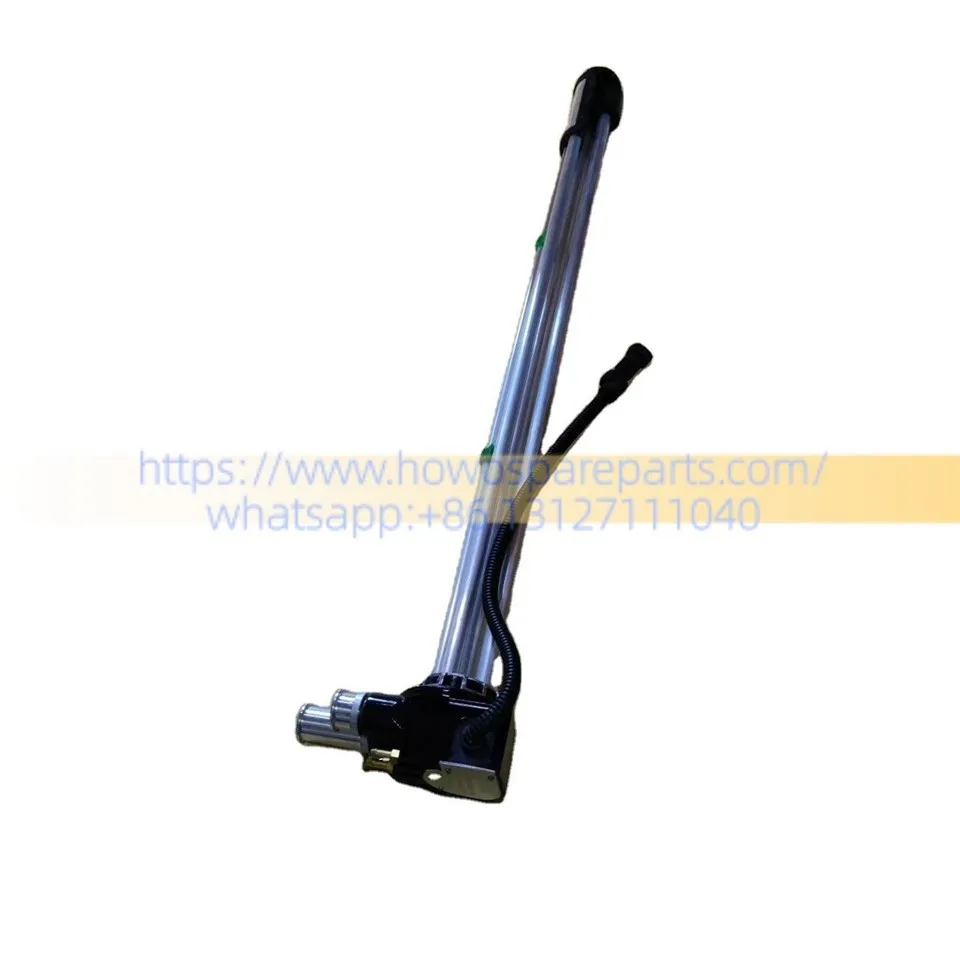

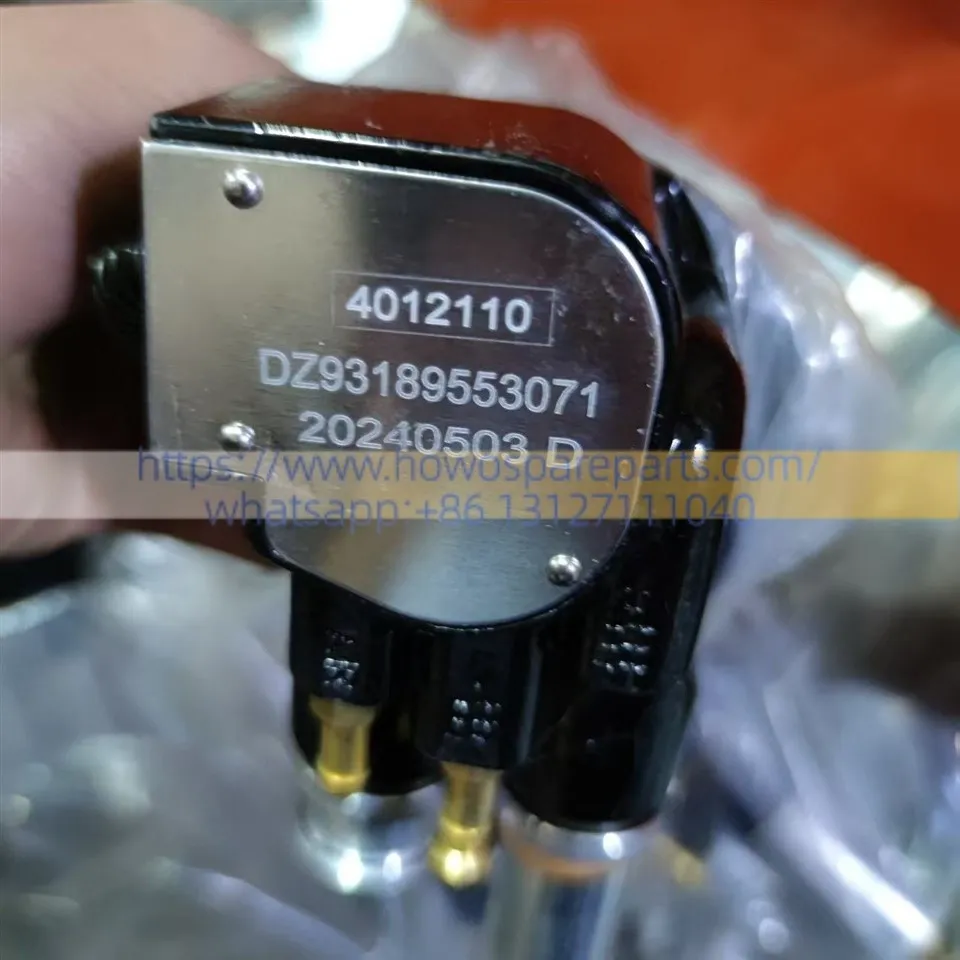

2. Integrated Fuel Supply & Return System: This component serves as far more than just an electronic sensor; it is a highly integrated fuel tank cover assembly. Its upper section features directly cast ports for both the engine's main fuel supply line and main return line. Encased within the sensor housing's protective stainless steel tube are the fuel intake pipes (constructed from copper or steel) that extend directly to the very bottom of the fuel tank. This design allows for all essential functions-engine fuel intake, fuel return, and fuel level measurement-to be accomplished through a single opening at the top of the fuel tank, thereby drastically reducing the number of tank penetrations and fundamentally lowering the overall risk of fuel leakage.
3. Anti-Sloshing Signal Smoothing: Given the massive capacity of heavy-duty truck fuel tanks, the diesel inside can undergo violent, wave-like sloshing during vehicle maneuvers such as starting, sudden braking, hill climbing, or traversing rough terrain. To counteract this, the sensor features a physical design incorporating an internal damping tube, and is further equipped with an electronic signal-smoothing filter function at its circuit output stage.

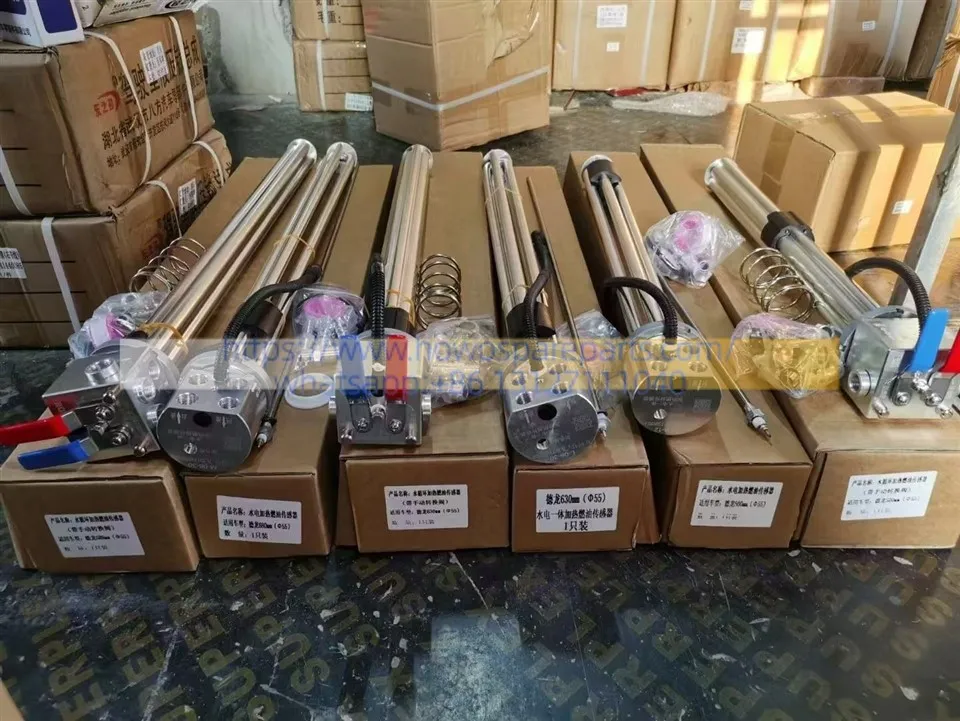

DETAILS

Routine Maintenance and Common Troubleshooting
1. Inaccurate/Fluctuating Fuel Gauge: The fuel tank is clearly full, yet the dashboard indicates it is only half-full; alternatively, while driving, the fuel needle suddenly drops directly to the "Empty" mark and triggers a flashing warning. This issue is typically caused by wear on the internal resistance track or by aging conductive contact springs resulting in poor electrical contact.
2. Stuck Fuel Gauge: Regardless of how much fuel is added, the gauge remains frozen at a fixed reading. This is usually caused by impurities or sludge in the fuel, which causes the external slider float to "seize up" on the sensor rod, preventing it from floating freely in response to changes in the fuel level.
3. Fuel Leakage from Tank Top: The rubber gasket on the sensor cover plate hardens and deteriorates due to prolonged exposure to diesel fuel and repeated cycles of temperature fluctuation. Consequently, when the vehicle is fully refueled or driven over rough terrain, diesel may begin to seep slightly from the edges of the sensor's mounting base.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
