Shandong Shengyue Technology Development Co.,Ltd is one of the most professional shacman f3000 dashboard dz93189582240 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

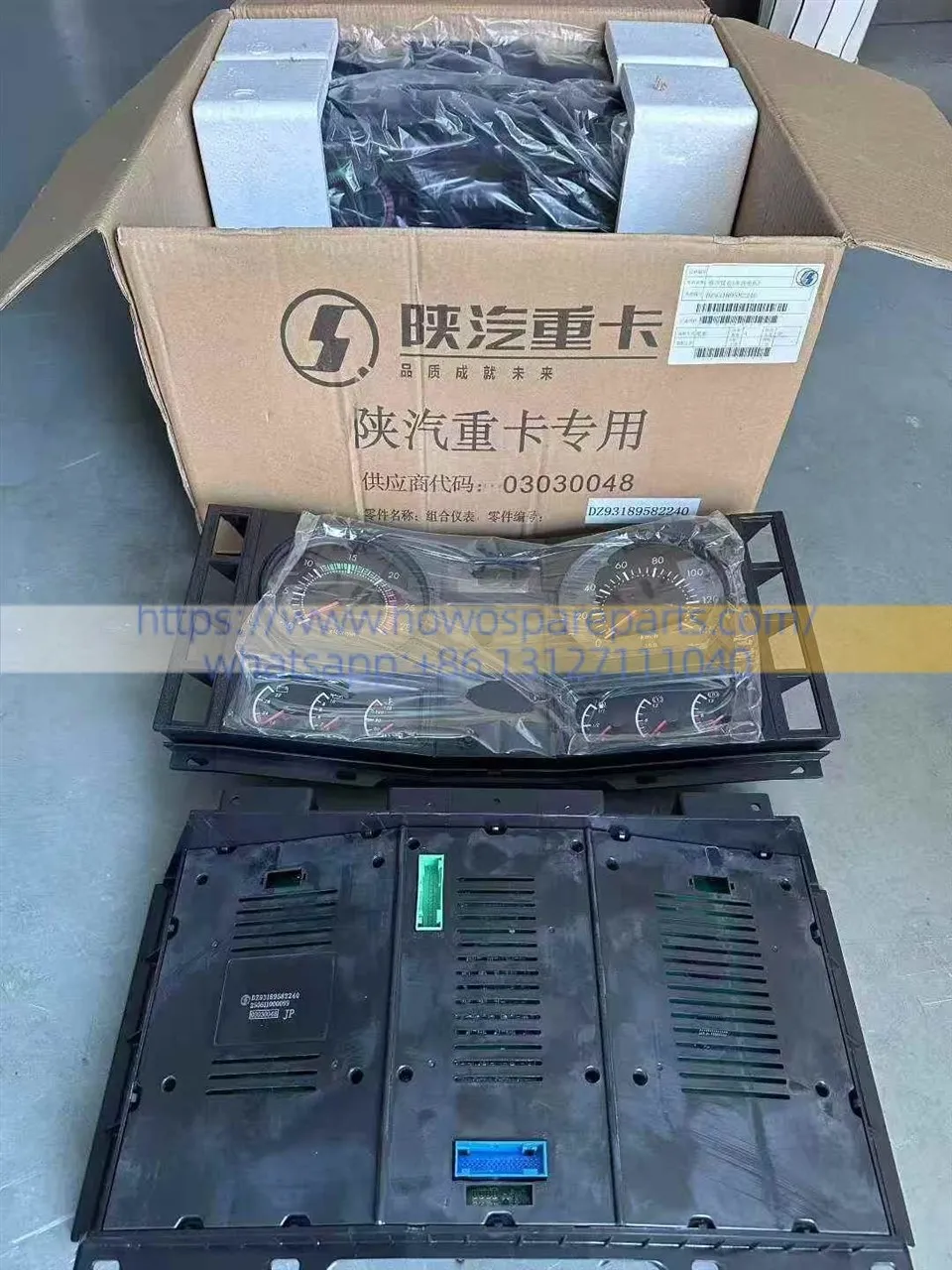

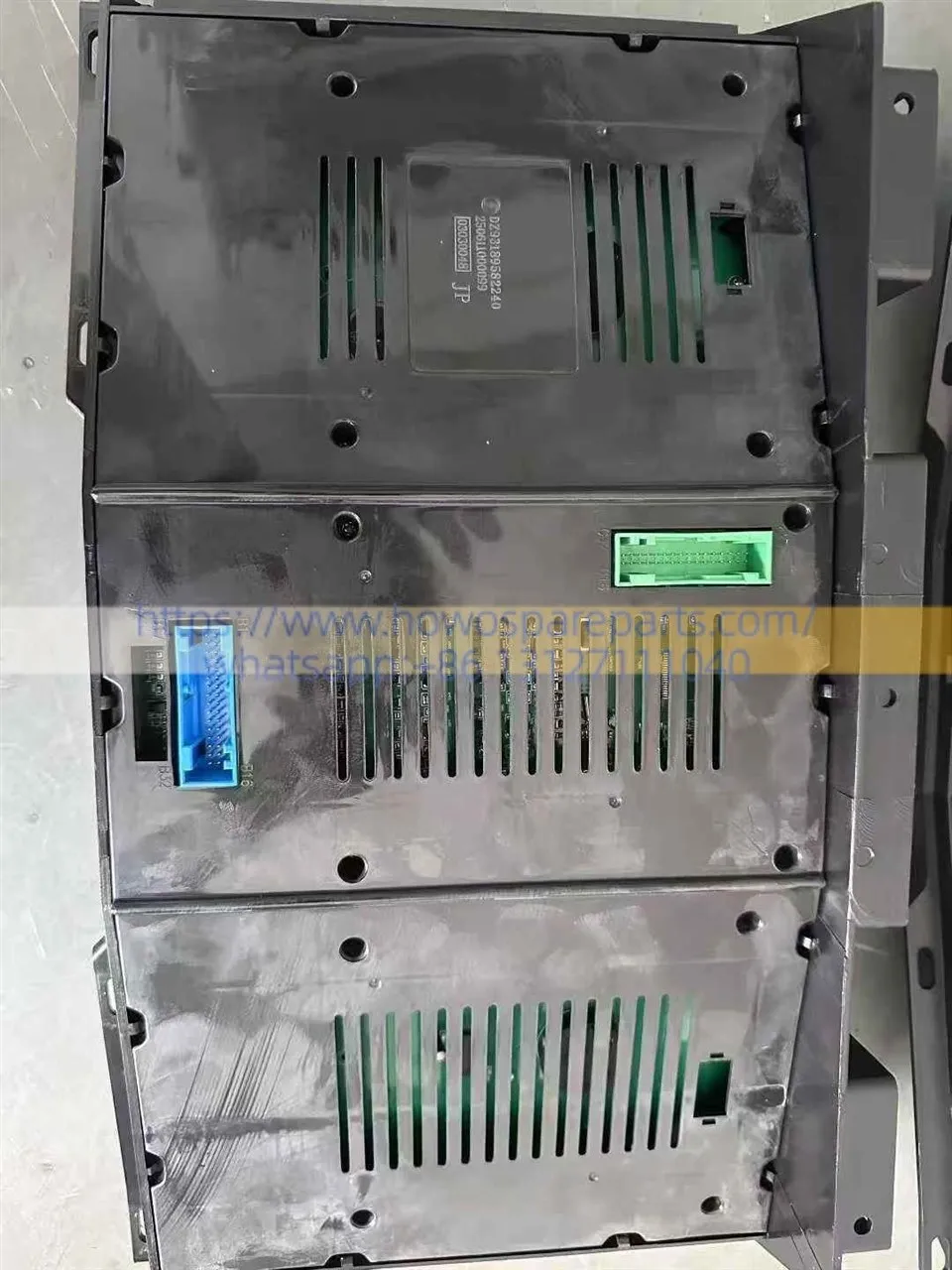

SHACMAN F3000 dashboard DZ93189582240
Key Features and Configuration
Includes multiple gauges, such as a speedometer, tachometer, fuel gauge, water temperature gauge, oil pressure gauge, and air pressure gauge.
Integrates a digital display screen (approx. 5-inch LCD) to show information such as mileage and fault codes.
Supports real-time vehicle monitoring and diagnostic functions, providing performance data and alert notifications.
FUNCTION
1. Basic Display Functions:
Real-time display of vehicle speed (Speedometer)
Display of engine RPM (Tachometer)
Display of remaining fuel level (Fuel Gauge)
Display of engine coolant temperature (Water Temperature Gauge)
Display of engine oil pressure (Oil Pressure Gauge)
Display of brake system air pressure (Dual-needle Air Pressure Gauge)
Display of vehicle battery voltage (Voltmeter)
2. Intelligent Information Display Functions:
Display of total accumulated mileage and trip mileage
Display of total accumulated engine operating hours
Display of instantaneous fuel consumption and average fuel consumption
Display of current gear position, time, and vehicle operating duration
Multi-page display switching for viewing additional vehicle status parameters
3. Fault Diagnosis and Alarm Functions:
Reads and displays vehicle ECU fault codes to facilitate rapid diagnosis and repair
Multiple alarm notifications: High temperature, low oil pressure, low air pressure, overspeed, oil system faults, charging system faults, etc.
Combined audio-visual alarms: Automatic light illumination and audible buzzer alerts for critical anomalies
4. User-Centric and Durable Design Features:
Adjustable backlight brightness ensures clear visibility during night driving without causing glare
Utilizes VDO stepper motor drive for rapid pointer response, high precision, and vibration resistance
Supports CAN bus communication, enabling real-time interaction with the vehicle's electronic systems for enhanced data accuracy
Overall design features high-temperature resistance, shock resistance, and dust protection, specifically engineered for the demanding, high-intensity operating environments of heavy-duty trucks
Advantages
| Core Advantage Dimension | Specific Advantages | Improvement vs Ordinary Gauges |
|---|---|---|
| Display Accuracy | VDO original stepper motor drive, fast pointer response, minimal jitter, high precision | Smaller error, clearer and more stable readings |
| Reliability & Durability | Shockproof, high-temperature resistant, dustproof sealed design, built for heavy-duty trucks | Longer service life, significantly lower failure rate |
| Intelligent Interaction | Supports CAN bus real-time communication, can read ECU fault codes | Faster and more accurate data transmission, supports intelligent diagnosis |
| Safety Alarm System | Multiple audio-visual alarms (high temp, low pressure, overspeed, low oil pressure, etc.) | Strong early warning capability, higher driving safety |
| Night Visibility | Adjustable backlight brightness, high-contrast LCD + pointers | Clear and non-glaring in night or strong light conditions |
| Compatibility & Stability | Perfect match with Shacman F3000 original ECU, stable signal | Plug-and-play, almost no matching issues |
| Practical Information Integration | Centralized display of mileage, fuel consumption, engine hours, etc. | Helps drivers better monitor vehicle status and reduce fuel consumption |
DETAILS
| DESCRIPTION | dashboard | PART NUMBER | DZ93189582240 |
| WEIGHT |
2KG |
VOLUME |
400mm × 240mm × 120mm |
| TRUCK MOLDE | SHACMAN | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CHASSIS |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
Daily Maintenance Suggestions
1. Regular Inspection: Every 1–2 months, or every 5,000 kilometers, check to ensure that the instrument pointers move freely, the LCD screen displays correctly, and all indicator lights and warning functions are fully operational.
2. Cleaning and Maintenance: Gently wipe the surface using a soft cloth and a neutral detergent. Avoid using strong solvents or high-pressure water jets to rinse the dashboard directly, as this may allow water ingress and damage the electrical circuitry.
3. Moisture and Dust Protection: Keep the vehicle cabin dry and avoid prolonged exposure to high-humidity or dusty environments. Periodically check the connectors located behind the instrument panel to ensure they are not loose or corroded.
4. Backlight and Function Testing: At night, verify that the backlight brightness is adjustable; when starting the vehicle, observe the self-diagnostic sequence to ensure it proceeds normally.
5. Avoid Modifications: Do not attempt to modify the instrument wiring or install additional equipment without authorization, as this may interfere with CAN bus communication and compromise compatibility with the vehicle's original systems.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
