Shandong Shengyue Technology Development Co.,Ltd is one of the most professional shacman x5000 x6000 x5000s clutch master cylinder with reservoir assembly dz9b189230010 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

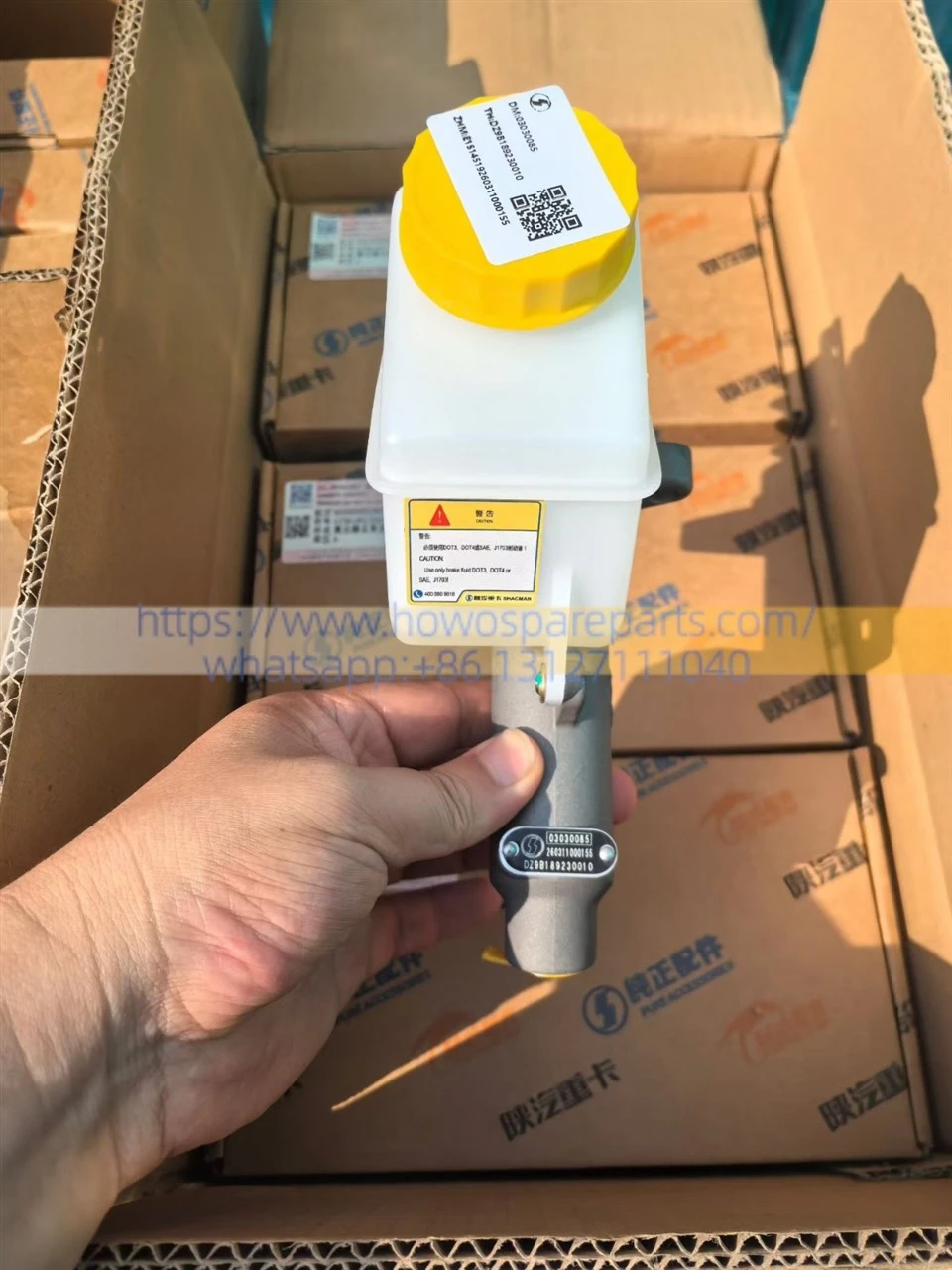

SHACMAN X5000 X6000 X5000S Clutch Master Cylinder with Reservoir Assembly DZ9B189230010
Core Functions
1. Conversion of mechanical force to hydraulic pressure: When the driver depresses the clutch pedal, the pedal linkage pushes the piston inside the master cylinder. The piston moves forward, instantly generating high pressure within the sealed hydraulic lines.
2. Actuating the slave cylinder for disengagement: The high-pressure hydraulic fluid generated by the master cylinder is rapidly transmitted via high-pressure lines (metal or rubber) to the clutch slave cylinder (or booster unit) located downstream. Upon receiving this pressure, the slave cylinder extends its pushrod to actuate the release bearing, thereby interrupting the power connection between the engine and the transmission and enabling the driver to smoothly engage gears, shift, or come to a stop.
3. Automatic compensation and fluid management: The master cylinder features an integrated reservoir that monitors fluid levels in real time. Whether fluid is slightly depleted due to frequent operation or the volume fluctuates due to thermal expansion and contraction, the reservoir automatically replenishes or recovers fluid, ensuring constant internal pressure and preventing airlocks.
Key Failure Symptoms and Diagnostic Methods
1. Gear shifting issues (sticking and grinding noises): After fully depressing the pedal, the clutch slave cylinder fails to disengage the pressure plate, preventing the transmission input shaft from coming to a complete stop; this makes engaging first gear and reverse extremely difficult.
2. Abnormal pedal feel (spongy pedal): The initial travel of the pedal feels hollow with no resistance, the clutch "bite point" shifts progressively closer to the floor, and the pedal may even fail to spring back after being depressed.
3. External leakage triggering fluid level warnings: Inspect the pushrod connection area above the driver's footwell; if the rubber dust boot shows signs of oily residue or unidentified fluid is found dripping onto the floor mat, the rear lip seal of the master cylinder is completely damaged.
Complete Replacement Bill of Materials (BOM)
| No. | Part Number / Spec | Part Name (English) | Qty | Unit | Requirement | Remarks & Description |
|---|---|---|---|---|---|---|
| 1 | DZ9B189230010 | Clutch Master Cylinder with Reservoir Assembly | 1 | pc | Mandatory | Shaanxi Automobile (SHACMAN) original master cylinder body with an integrated fluid reservoir. |
| 2 | SHACMAN OE Specs | Clutch Line Quick-Connect O-Rings | 2 | pcs | Mandatory | Seals for the oil lines. Highly recommended to replace along with the master cylinder to prevent slow leaks. |
| 3 | Vehicle Matching Spec | Clutch Slave Cylinder / Booster | 1 | pc | Optional | Optional replacement. Internal wear particles from the old master cylinder can contaminate the slave cylinder; check status. |
| 4 | DOT 4 Standard | Heavy-Duty Synthetic Brake/Clutch Fluid | 1~2 | L | Mandatory | Used to flush the system and refill. Do not mix old fluid with new fluid. |
| 5 | Industrial Grade | Heavy-Duty Parts & Brake Cleaner | 1 | can | Consumable | Used to thoroughly degrease and clean up any residual oil leaks around the pedal assembly or firewall area. |
DETAILS
| DESCRIPTION | Clutch Master Cylinder with Reservoir Assembly | PART NUMBER | DZ9B189230010 |
| WEIGHT | 3 kg | VOLUME | 20cm × 15cm × 15cm |
| TRUCK MOLDE | SAHCMAN | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CHASSIS |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
