Shandong Shengyue Technology Development Co.,Ltd is one of the most professional sinotruk howo tx series 6×4 dump truck manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

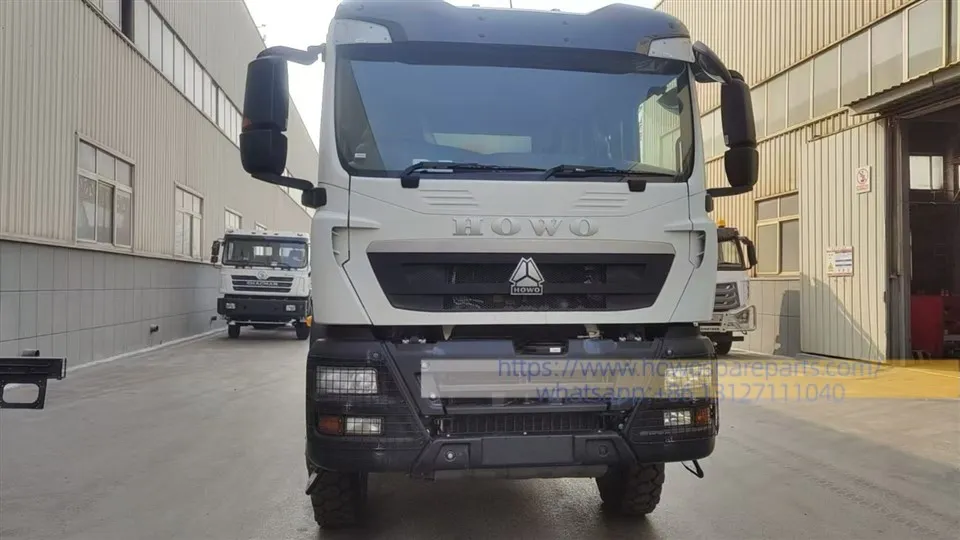

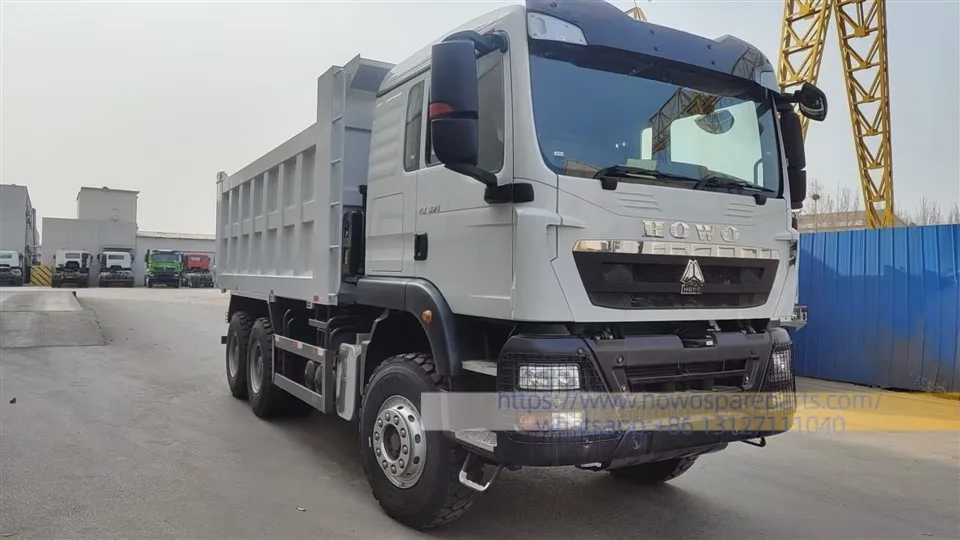

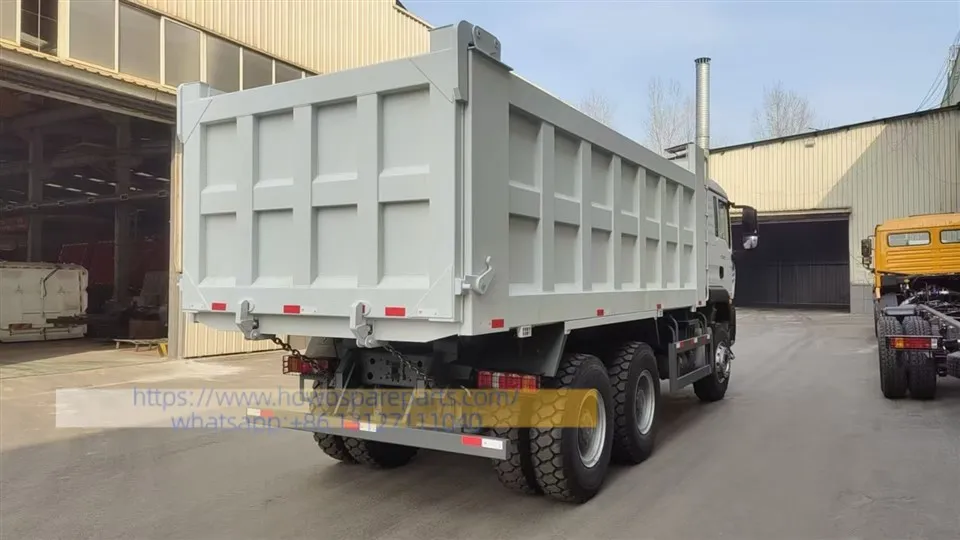

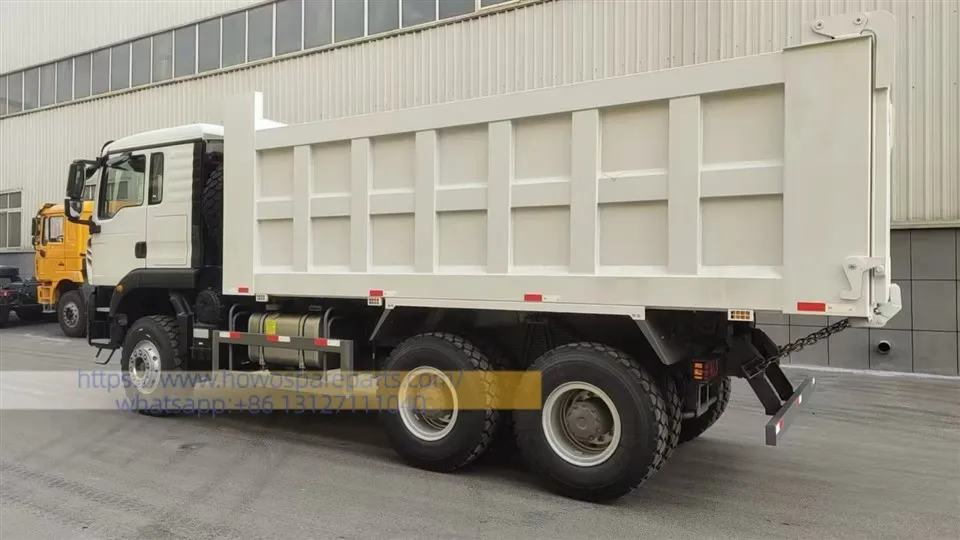

SINOTRUK HOWO TX Series 6×4 Dump Truck
Basic Information
| Item | Specification |
|---|---|
| Model | ZZ3257N384GB1 |
| Brand / Series | SINOTRUK HOWO TX Series |
| Drive Type | 6×4 (10 wheels) |
| Vehicle Type | Front Lift Dump Truck / Tipper Truck |
| Emission Standard | Euro II |
| Main Applications | Mining, construction, sand & gravel transport |
Engine Parameters
| Item | Specification |
|---|---|
| Engine Model | WD615.47 (Weichai) |
| Engine Type | 6-cylinder inline, 4-stroke, turbocharged & intercooled |
| Displacement | 9.726 L |
| Maximum Power | 371 HP (approx. 273 kW) |
| Maximum Torque | 1500 - 1570 N·m |
Chassis & Transmission
| Item | Specification |
|---|---|
| Gearbox | HW19710 (10 forward + 2 reverse) + HW50 PTO |
| Clutch | Φ430mm single dry plate, diaphragm spring, air assisted |
| Front Axle | HF9 / VGD95 (9 - 9.5 tons) |
| Rear Axle | HC16 (16 tons × 2, double reduction) |
| Steering System | ZF8118 hydraulic power steering |
| Fuel Tank Capacity | 400 L |
Dimension Parameters
| Item | Specification |
|---|---|
| Wheelbase | 3825 + 1350 mm |
| Overall Dimensions (L×W×H) | Approx. 8600 × 2550 × 3450 mm |
| Cargo Box Dimensions | 5400-5800 × 2300 × 1450-1500 mm (customizable) |
| Cargo Box Thickness | Floor 8mm, Sides 6mm (standard) |
Performance Parameters
| Item | Specification |
|---|---|
| Maximum Speed | 75 - 80 km/h |
| Maximum Gradeability | ≥ 30% |
| Dumping Method | Front hydraulic lift |
| Tire Specification | 12.00R20 (10+1 spare) |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
