Shandong Shengyue Technology Development Co.,Ltd is one of the most professional sinotruk ev/phev trucks all-in-one high-voltage integrated controller 6 in 1 az000063000144 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

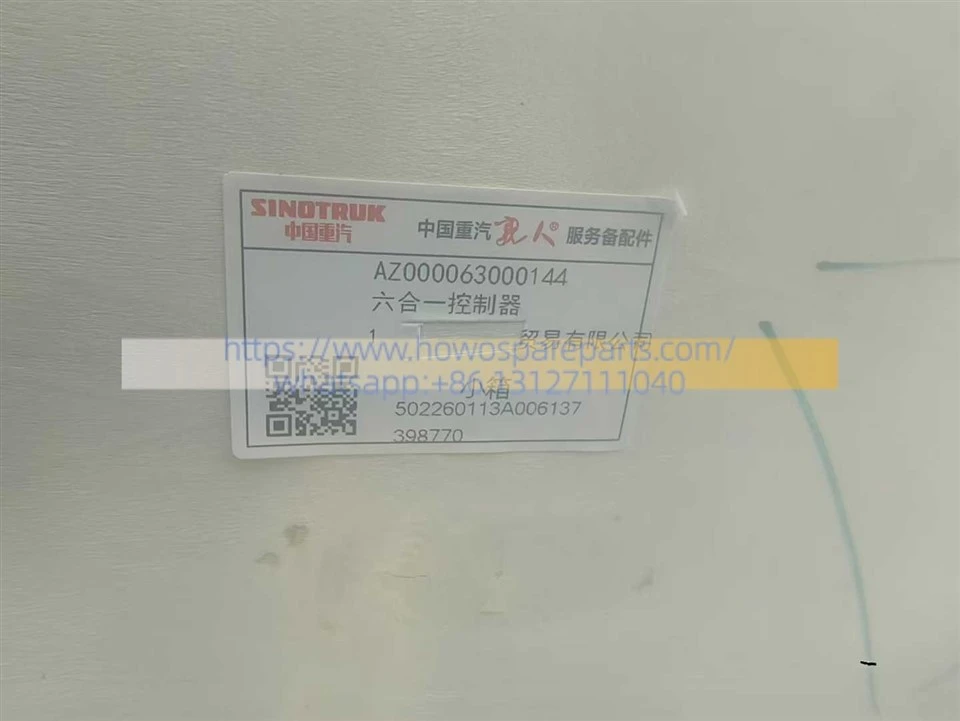

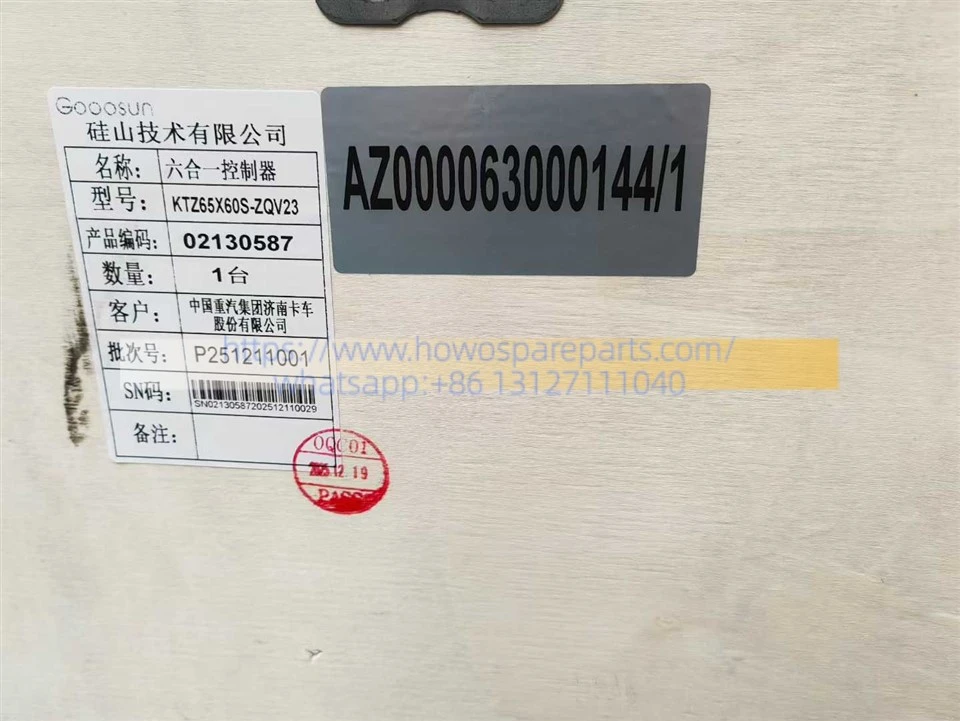

SINOTRUK EV/PHEV trucks All-in-one high-voltage integrated controller 6 in 1 AZ000063000144
Key Functions
This module highly integrates multiple high-voltage electronic control and management systems of the vehicle. These typically include the Motor Control Unit (MCU), On-Board Charger (OBC), High-Voltage Power Distribution Unit (PDU), DC/DC converter, electric air compressor controller, and electric steering pump controller. It is responsible for the distribution and conversion of high-voltage electrical energy, as well as the drive control of the core electric motor.
1. Motor Control Unit (MCU): Controls the vehicle's drive motor by converting DC power from the battery into three-phase AC power to drive the truck.
2. On-Board Charger (OBC): Connects to external charging stations or AC power sources to charge the traction battery.
3. High-Voltage Power Distribution Unit (PDU): Acts as the main switch and distribution hub for the vehicle's high-voltage system; equipped with multiple high-voltage fuses, it safely distributes power to various electrical components.
4. DC/DC Converter: Steps down the high-voltage DC power (hundreds of volts) from the battery to 24V low-voltage power to supply standard truck electrical systems such as the dashboard, lights, and horn.
5. Steering Pump Controller: Independently controls the electric power steering pump, ensuring effortless steering for the electric truck.
6. Air Pump Controller: Independently controls the electric air compressor (air pump), providing a continuous air supply for the braking system and air suspension.
Precautions for Daily Operation and Inspection
1. High Voltage Hazard: The module operates at internal DC voltages typically ranging from 500V to 750V. Strictly avoid touching the connected orange high-voltage wiring harnesses without first disconnecting the vehicle's high-voltage maintenance switch (MSD).
2. Liquid Cooling System: Due to its high level of integration, the module generates significant heat. Coolant levels must be checked regularly during vehicle maintenance. Issues such as airlocks in the cooling circuit or water pump failure can trigger over-temperature protection, causing the truck to instantly limit speed or shut down power.
3. Insulation Fault Alarm: If the housing connectors become damp-such as during rainy weather or after a vehicle wash-it may trigger a vehicle-wide insulation fault alarm (preventing the vehicle from shifting into gear or driving).
DETAILS
| DESCRIPTION | All-in-one high-voltage integrated controller 6 in 1 | PART NUMBER | AZ000063000144 |
| WEIGHT | 65 kg | VOLUME | 85 × 65 × 45 CM |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | |

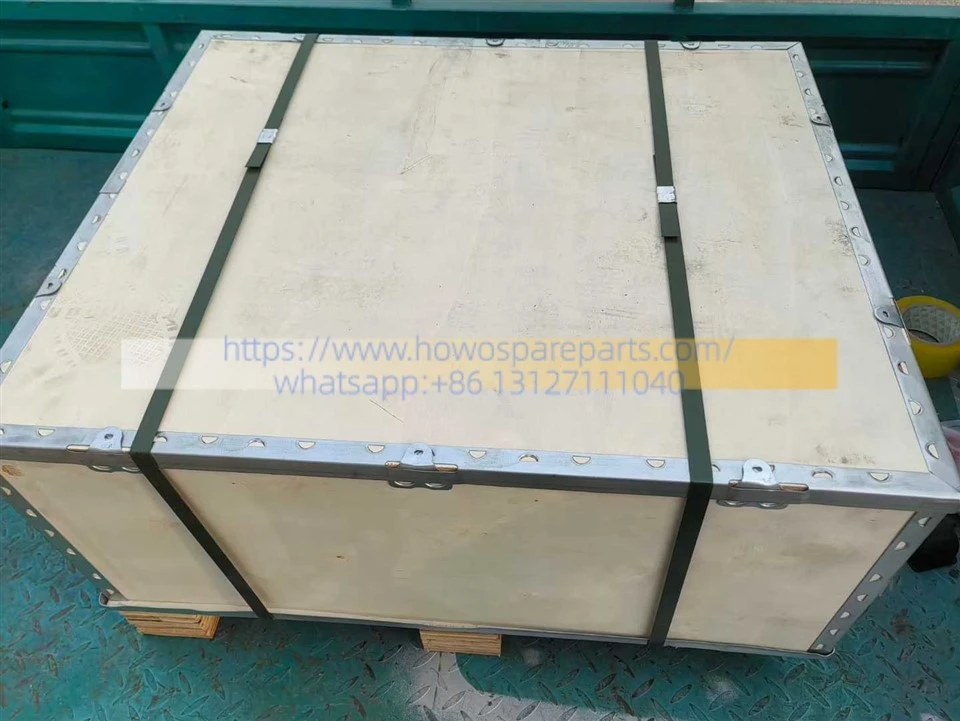

| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
