HOWO A7 Electrical Junction Box Assembly / Fuse Box WG9716582301

Shandong Shengyue Technology Development Co.,Ltd is one of the most professional howo a7 electrical junction box assembly / fuse box wg9716582301 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

HOWO A7 Electrical Junction Box Assembly / Fuse Box WG9716582301

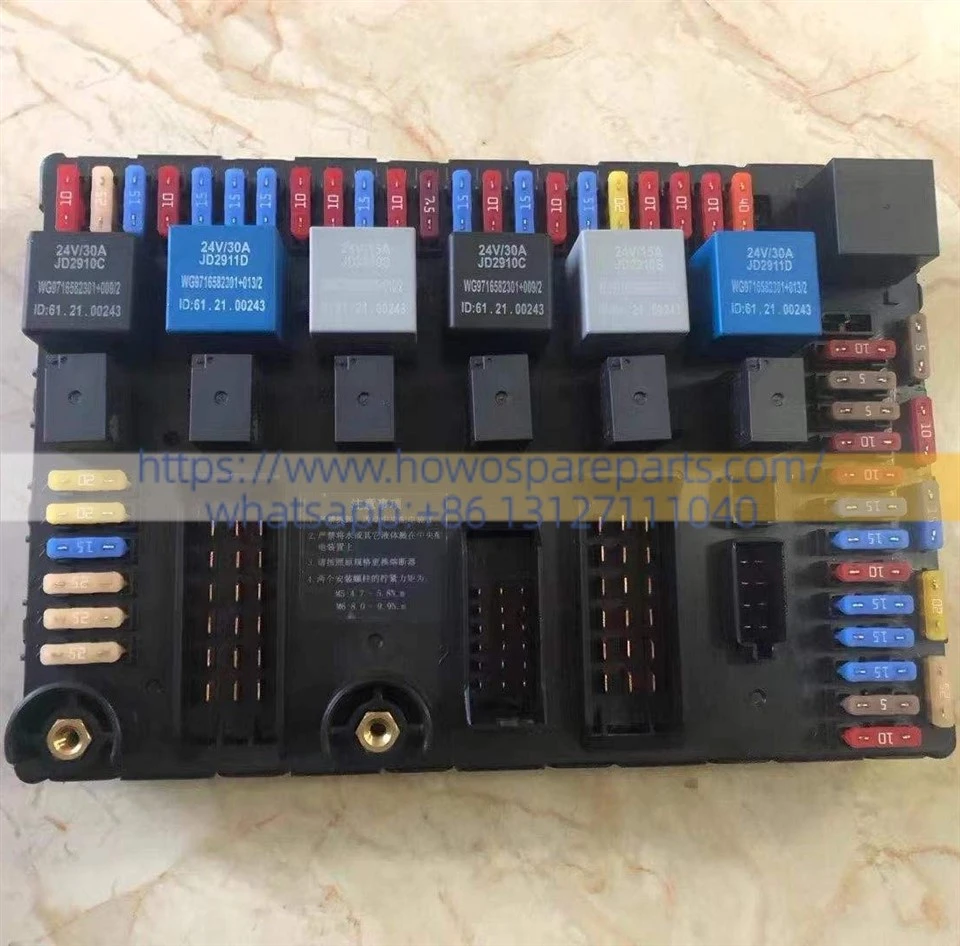

Core Functions and Internal Structure
1. Power Distribution and Control: Safely and systematically distributes main power from the generator and battery to various electrical components throughout the vehicle, such as the air conditioning system, headlights, instrument cluster, windshield wipers, and the ECU.
2. Overload Protection (Circuit Fusing): The unit houses blade-type automotive fuses of various amperage ratings (e.g., 5A, 10A, 20A, 30A). In the event of a short circuit, the corresponding fuse blows immediately to prevent the vehicle's main wiring harness from burning out.
3. Centralized Relay Control: The unit contains multiple genuine Sinotruk relays (such as standard 24V 20A/40A/70A relays-some bearing part numbers like WG9716582301+008 or +011). These enable low-current control of high-current circuits (e.g., starter relays, flasher relays, etc.).

Troubleshooting and Maintenance of Interconnected Electrical Faults
1. Ablation or Poor Contact: Prolonged overloading of high-power electrical devices (such as a heater or an aftermarket auxiliary light) can cause the copper contact terminals inside the power distribution box to overheat, deform, and carbonize. In such cases, even installing a new fuse will not restore functionality due to poor contact; typically, the entire power distribution box assembly must be replaced.
2. Short Circuit Due to Water Ingress: If cabin seals deteriorate or water accidentally enters during a car wash, the circuit board inside the power distribution box is highly susceptible to short-circuiting. This can trigger erratic electrical behavior throughout the vehicle or prevent the engine from starting. Immediate action should be taken to disconnect the vehicle's power supply and clean the unit with electronic cleaner before drying it thoroughly; if electrical continuity issues persist, the unit must be replaced.
