Shandong Shengyue Technology Development Co.,Ltd is one of the most professional sinotruk howo sitrak trucks cabin shock absorber bracket rubber bushing 850w96020-0004 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

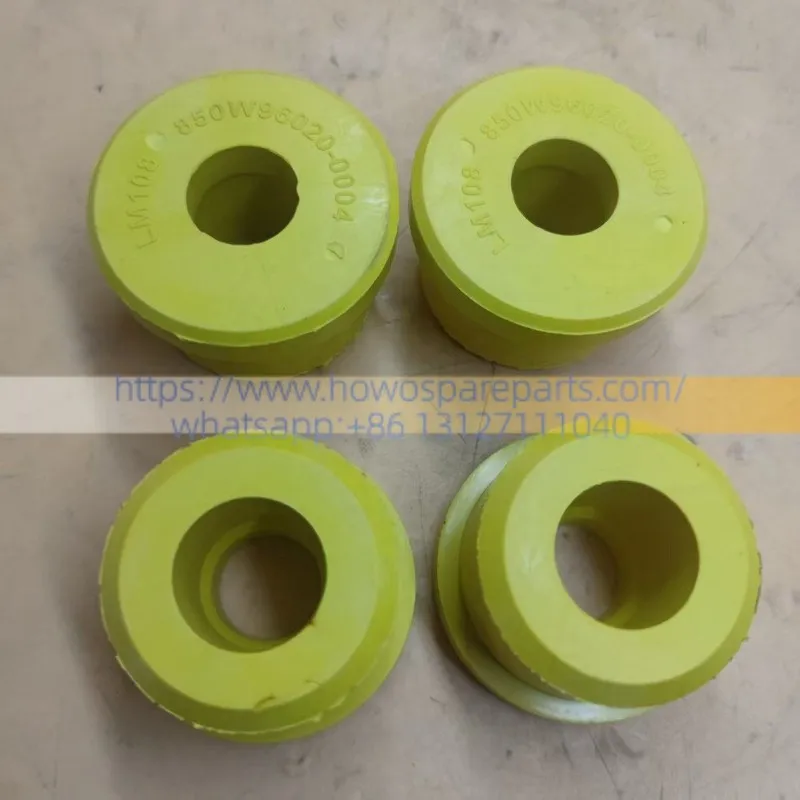

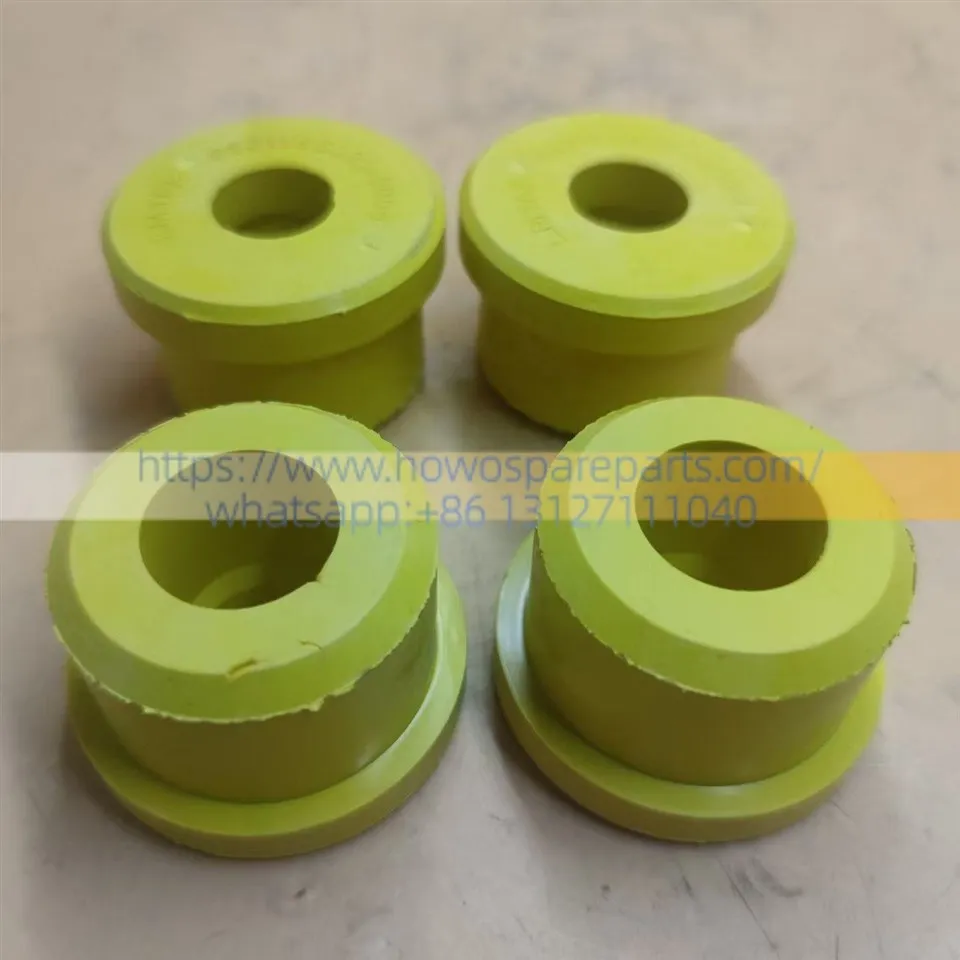

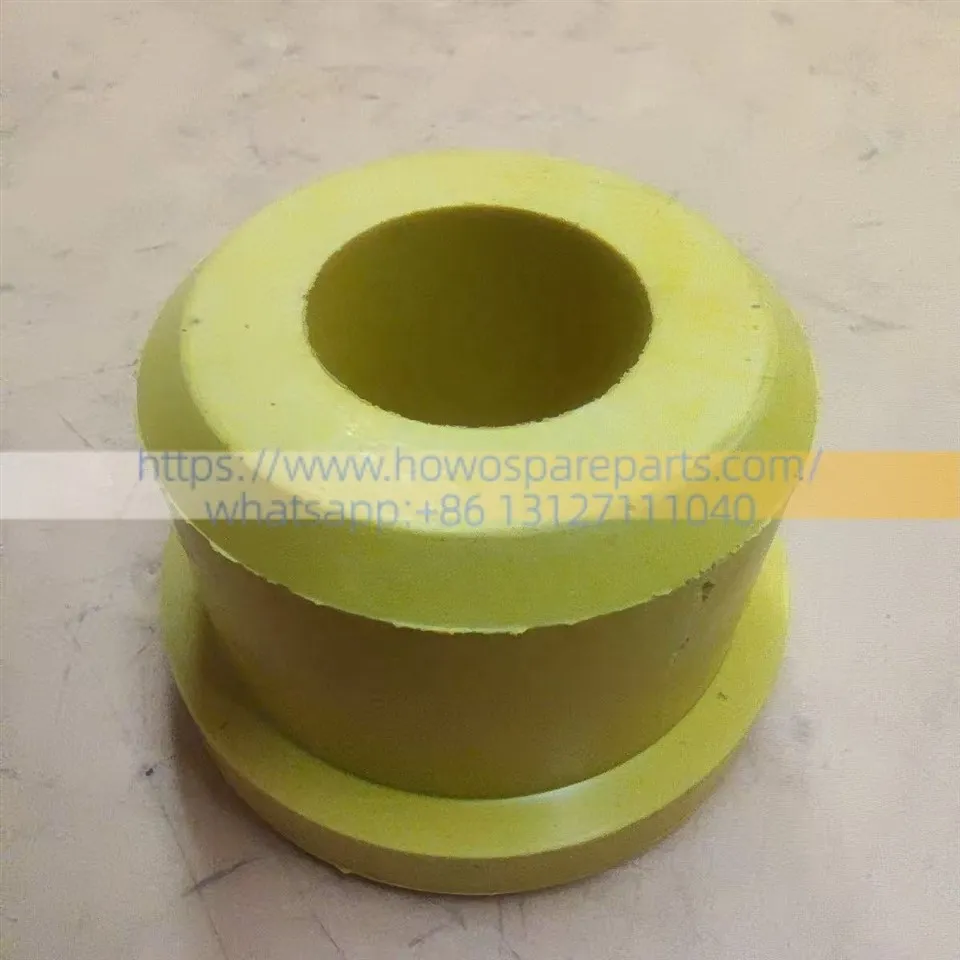

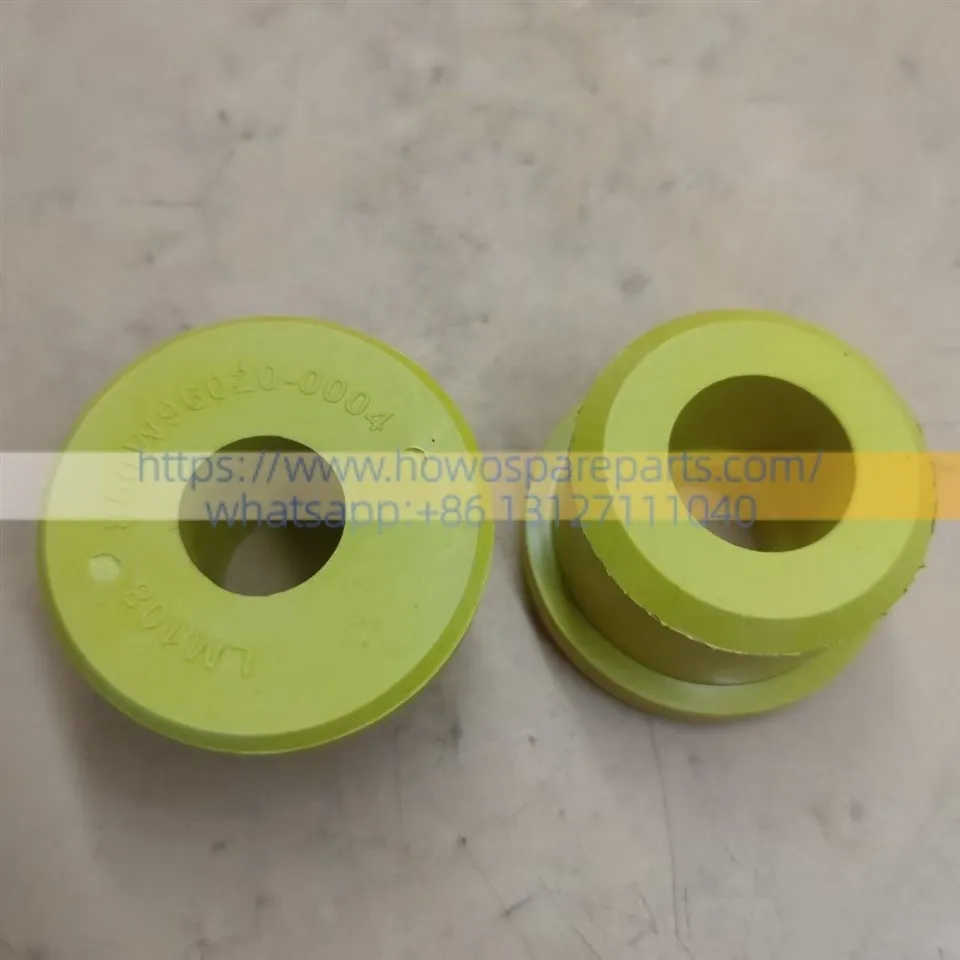

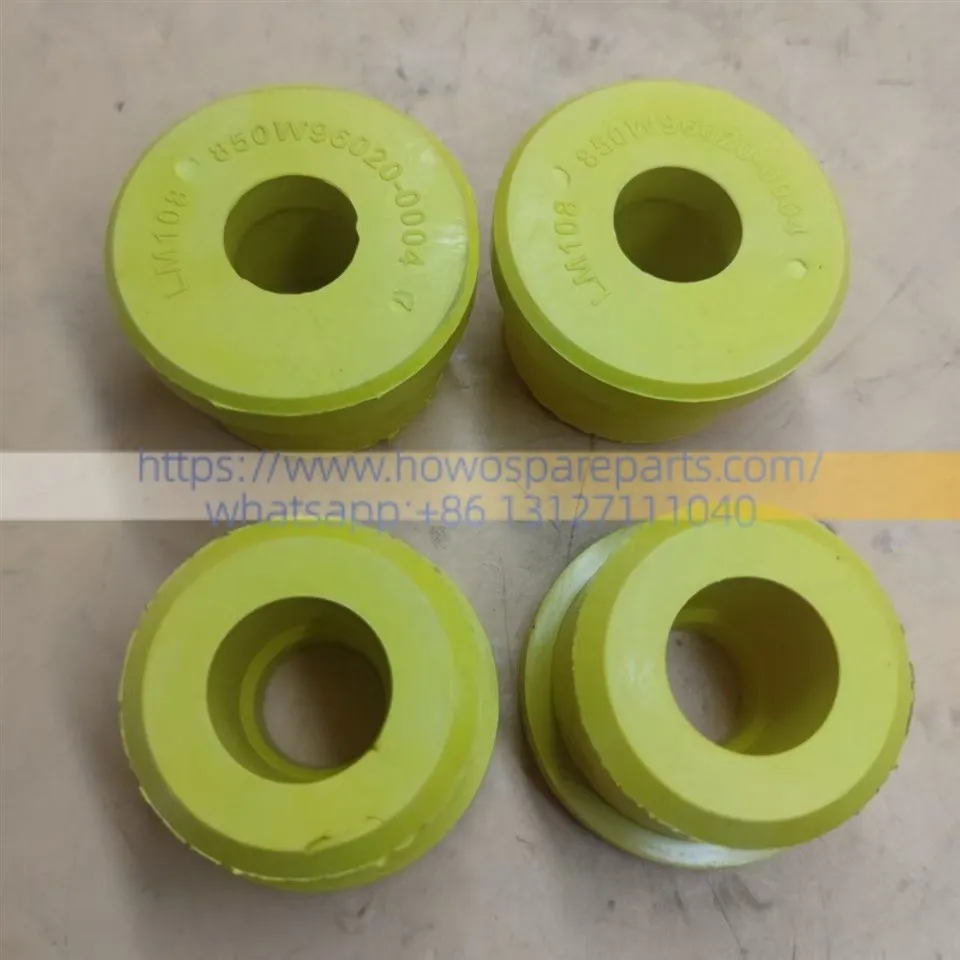

SINOTRUK HOWO SITRAK TRUCKS Cabin Shock Absorber Bracket Rubber Bushing 850W96020-0004
FUNCTION
1. Vibration Isolation: As a truck travels, the wheels and chassis frame generate intense, high-frequency vibrations. Installed between the metal mounting bracket and the shock absorber's mounting pin, this bushing blocks and absorbs these vibrations, preventing their direct transmission into the cab. Working in conjunction with the shock absorber's air spring, it specifically filters out the subtle, continuous tremors caused by road debris and speed bumps, thereby significantly enhancing ride comfort for the vehicle's occupants.
2. Noise Reduction: When the vehicle's original rubber bushings become worn, develop excessive play, or crack, the steel ring of the shock absorber may come into direct contact-and collide-with the mounting bracket or chassis frame. This product maintains the structural integrity and tightness of the connection point, thereby completely eliminating the common abnormal noises that often emanate from the rear of the cab when driving over potholes or negotiating turns.
3. Articulation & Cushioning: When heavy-duty trucks traverse complex or uneven terrain, relative torsional displacement occurs between the cab and the chassis frame. Acting as a flexible connecting joint, this bushing allows the shock absorber to execute multi-directional, flexible micro-oscillations within a specific angular range, thereby preventing rigid forces from snapping the connecting pin.
4. Protection of Core Components: If a bushing fails-resulting in mounting point eccentricity or instability-the shock absorber will be subjected to lateral shear forces during operation, potentially leading to oil leaks in the shock absorber itself or uneven wear and air leaks in the air spring. A high-quality bushing ensures that the shock absorber consistently maintains a proper, vertically aligned load path, thereby extending the overall service life of the entire shock absorption system-a system valued at hundreds of thousands of dollars.
DETAILS
| DESCRIPTION | Cabin Shock Absorber Bracket Rubber Bushing | PART NUMBER | 850W96020-0004 |
| WEIGHT | 0.2 kg | VOLUME | |
| TRUCK MOLDE | SINOTRUK | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | CHASSIS |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
Fault Diagnosis
1. Rear-End Abnormal Noise: When the vehicle traverses rough roads, speed bumps, or potholes, a distinct metallic clanking or grinding sound is heard emanating from the rear of the cab.
2. Visually Apparent Damage: Upon visual inspection of the cab's rear shock absorber mount, the rubber bushing is observed to be cracked, missing, severely deformed, displaced due to compression, or to have an enlarged inner bore.
3. Exacerbated Cab Sway: During driving, cornering, or emergency braking, a pronounced lateral (side-to-side) swaying motion is felt at the rear of the cab, resulting in a diminished sense of stability.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
