Shandong Shengyue Technology Development Co.,Ltd is one of the most professional man ac16 heavy-duty engineering axles ac26 mining axles brake shoe assemblies with linings (brake shoes) and brake backing plate assemblies. manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.
MAN AC16 heavy-duty engineering axles AC26 mining axles brake shoe assemblies with linings (brake shoes) and brake backing plate assemblies.
SINOTRUK Various Truck Axles Brake Shoe & Backing Plate Assembly Breakdown
| OEM Part No. | Detailed Product Name & Core Structure | Axle / Vehicle Compatibility & Key Features | Critical Purchasing, Stocking & Error-Prevention Tips |
|---|---|---|---|
| WG9231342006 | Wide-Body Brake Shoe with Lining Assembly | Specifically designed for the HOHAN vehicle series. Features a widened profile (typically 220mm wide lining), significantly increasing the braking contact area. | Engineered for heavy-duty highway hauling or mountainous terrains. Delivers superior wear resistance and braking efficiency under high-frequency, high-heat conditions. |
| AZ9231342010 AZ9231340100 |

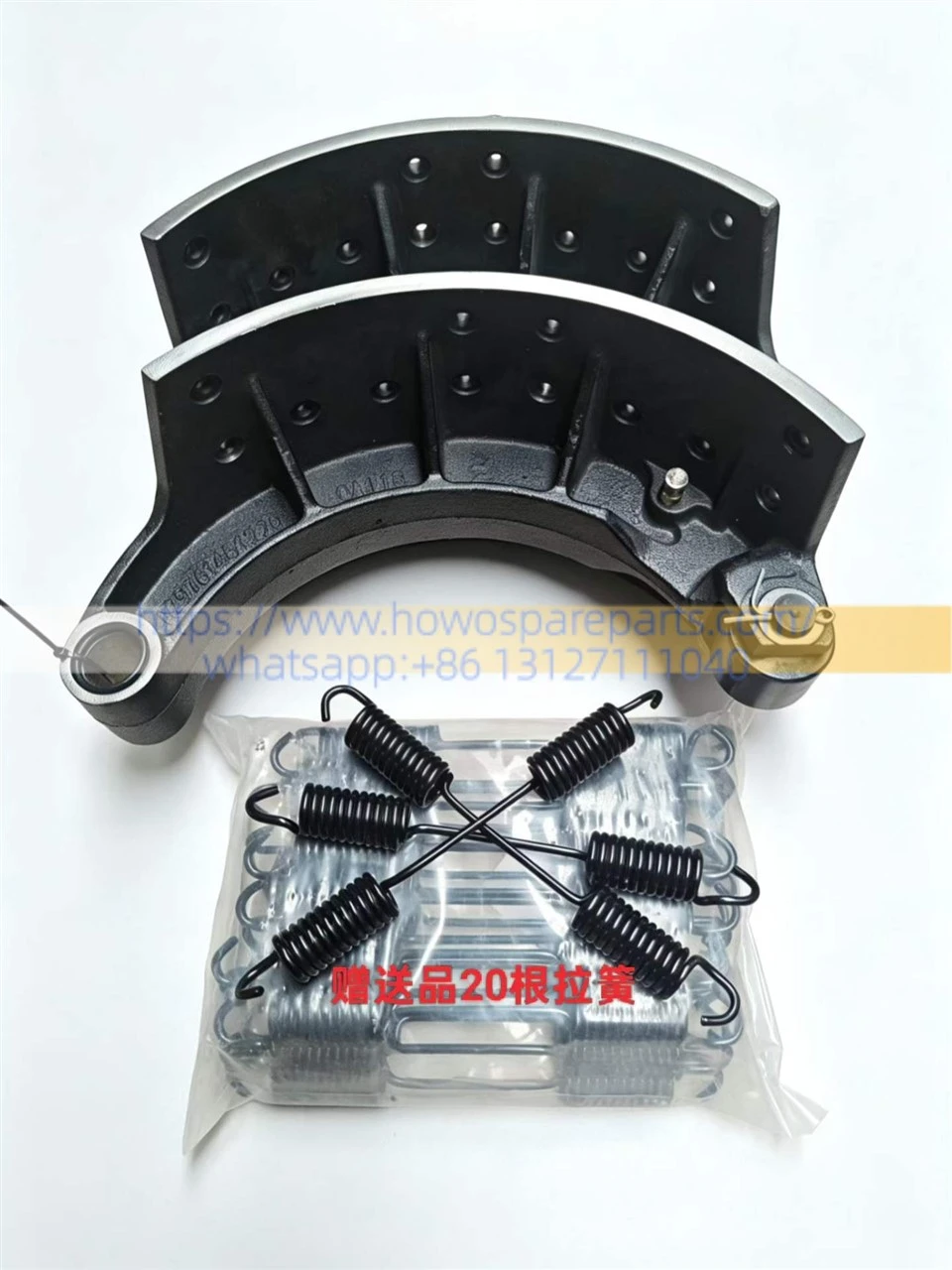

Brake Shoe with Lining Assembly | Widely used on SINOTRUK MAN-technology driving axles (e.g., MCY11, MCY12, MCY13 highway标载 axle series). A standard, high-frequency wear part for long-haul logistics. | Note that genuine SINOTRUK linings are categorized into different materials: asbestos-free, premium ceramic, or low-metallic. High-durability wear-resistant options are strongly recommended for long-distance and mountainous operations. |
| AZ9100443010 | 9-Ton Front Axle Brake Shoe with Lining Assembly (Manual Adjusting Snap Ring / Disc Brake) |
Designed for SINOTRUK front steering axles (7.5-ton / 9-ton premium front disc brake axles). Equipped with a manual adjusting snap ring / retaining ring mechanism. | This is a disc brake pad. Disc brake pads are flat and rectangular, looking completely different from drum brake shoes. They are mainly fitted on premium SITRAK or high-spec HOWO trucks. |
| AZ9100443500 | Piston Assembly / Clearance Adjustment Mechanism | The core driving component inside the disc brake caliper, responsible for pushing the brake pad and driving the automatic brake clearance adjustment. | When the disc brake exhibits uneven one-sided wear, fails to return/release, refuses to lock up, or the clearance fails to self-adjust, this mechanism typically needs replacement. |
| AZ9231342070 | Clearance Adjustment Mechanism Brake Shoe with Lining Assembly | Brake shoe assembly integrated with an automatic clearance adjustment function, generally working in tandem with automatic slack adjusters or internal mechanisms. | This assembly eliminates the hassle of manually crawling under the chassis to adjust the brakes, ensuring the system always operates at the optimal braking clearance. |
| 199000340070 | Brake Shoe Assembly | The highly classic universal brake shoe for Steyr (STR) technology axles (commonly found on older Steyr models and classic HOWO Steyr-axle trucks). | Massive market inventory. Since Steyr axles come in various tonnages, it is critical to cross-verify the exact lining width (such as 180mm or 200mm) before ordering. |
| WG9981340062-1 WG9981340063-1 |
Brake Backing Plate Assembly (For AC16 Axle) |
Exclusively for the AC16 heavy-duty double-reduction axle (cast steel housing, dedicated for engineering dump trucks). Features left/right distinctions (suffixes 0062 and 0063 denote left and right sides). | The backing plate serves as the foundational mounting base for the brake chamber, camshaft, and brake shoes. It should be replaced in pairs if deformed by heavy construction impacts or chronic overloading. |
| AZ9970340051 AZ9970340052 |
Brake Shoe Backing Plate Assembly (For AC26 Axle) |
Exclusively for AC26 mining heavy-duty axles / Mining Overlord wide-body off-highway dump trucks. This is a massive backing plate assembly with distinct left and right sides. | The AC26 is the top-tier heavy-duty axle for mining operations. This backing plate is forged from extremely thick steel plates, offering torsional rigidity and load capacities that far exceed standard highway trucks. |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
