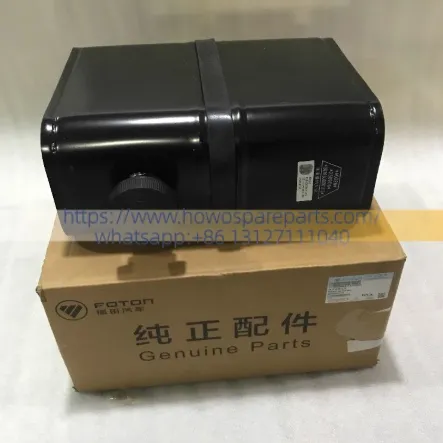

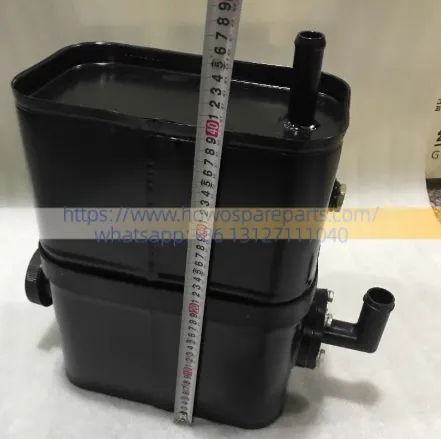

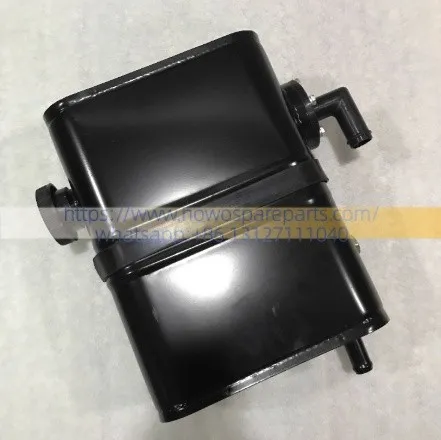

FOTON LIGHT TRUCK Hydraulic Oil Tank G086300001115

Shandong Shengyue Technology Development Co.,Ltd is one of the most professional foton light truck hydraulic oil tank g086300001115 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

FOTON LIGHT TRUCK Hydraulic Oil Tank G086300001115

It directly affects lifting speed, maximum lifting angle, and system stability. If the oil tank is damaged, leaks oil, or contains contaminated fluid, it will result in insufficient lifting power, the inability of the cargo box to lower, or hydraulic system failure.

FUNCTION

1. Hydraulic Oil Storage Function: Stores a sufficient volume of hydraulic oil to ensure an ample supply for the lifting system. This prevents the system from suffering from weak lifting force or operational failure caused by a shortage of oil.

2. Hydraulic Oil Supply Function: Connects to the hydraulic pump via a bottom outlet to provide a low-pressure oil source for the lifting cylinders. When the lifting switch is activated from the cab, the pump pressurizes the oil within the tank and delivers it to the cylinders, thereby executing the lifting of the cargo box.

3. Oil Return and Sedimentation Function: As the cargo box descends, the hydraulic oil from the cylinders flows back into the tank. The tank's internal design incorporates a filter screen and a sedimentation zone to filter out impurities and allow air bubbles and moisture to settle, thereby maintaining the cleanliness of the hydraulic fluid.

4. Heat Dissipation and Breathing Function: The tank's housing facilitates the natural dissipation of heat from the hydraulic oil, preventing excessive oil temperatures that could lead to a decline in system performance. The top filler port is equipped with a breather to equalize the air pressure inside and outside the tank, preventing the occurrence of negative pressure or tank rupture.

5. Oil Level Monitoring Function: Features an oil-level sight glass located on the side or within a transparent section of the tank, allowing drivers or maintenance personnel to easily check the oil level.

Installation Location
It is mounted on the outer side of the right-hand longitudinal beam of the chassis frame, situated between the rear of the cab and the cargo box lifting pump.
It is secured to the frame using metal brackets and bolts, typically positioned just forward of the rear wheels and in close proximity to the lifting pump, to facilitate the connection of hydraulic lines.

Working Principle

1. Oil Storage Phase: The oil tank stores 4–6 liters of hydraulic fluid; the appropriate fluid level is maintained via an oil-level sight glass, providing the fluid source for the entire lifting system.
2. Oil Supply Phase (During Lifting): The driver operates the lift switch → The hydraulic pump draws fluid from the bottom of the tank → After pressurizing the fluid, the pump delivers high-pressure oil to the lifting cylinder, driving the cargo box upward.
3. Oil Return Phase (During Lowering): As the cargo box descends, the hydraulic fluid within the cylinder flows back to the tank through a control valve, completing the fluid circulation cycle.
4. Heat Dissipation and Pressure Equalization: The tank housing facilitates the dissipation of heat from the hydraulic fluid; simultaneously, a breather automatically equalizes the air pressure inside and outside the tank, preventing negative pressure or fluid leakage.
5. Filtration and Sedimentation: Returning fluid passes through a built-in filter screen to remove impurities, while bubbles, moisture, and heavy particles settle within the tank, thereby maintaining the cleanliness of the hydraulic fluid.

Advantages

DETAILS

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
